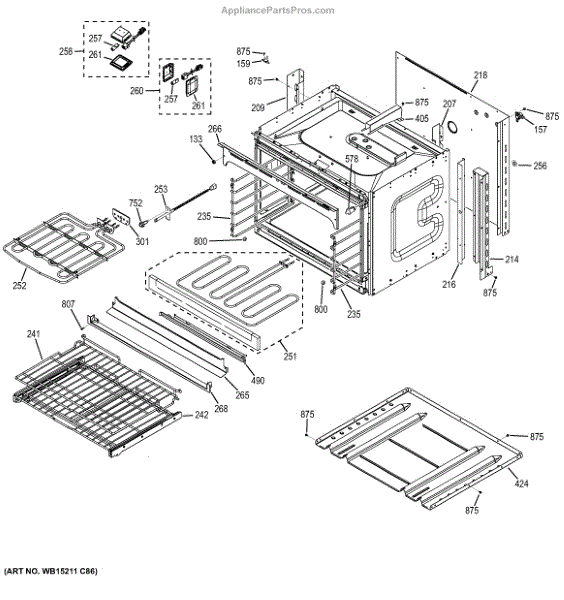

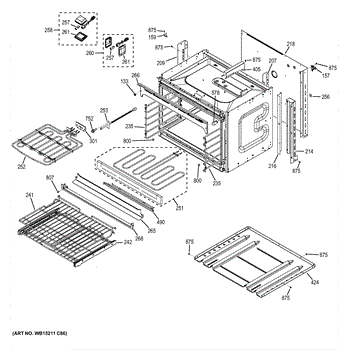

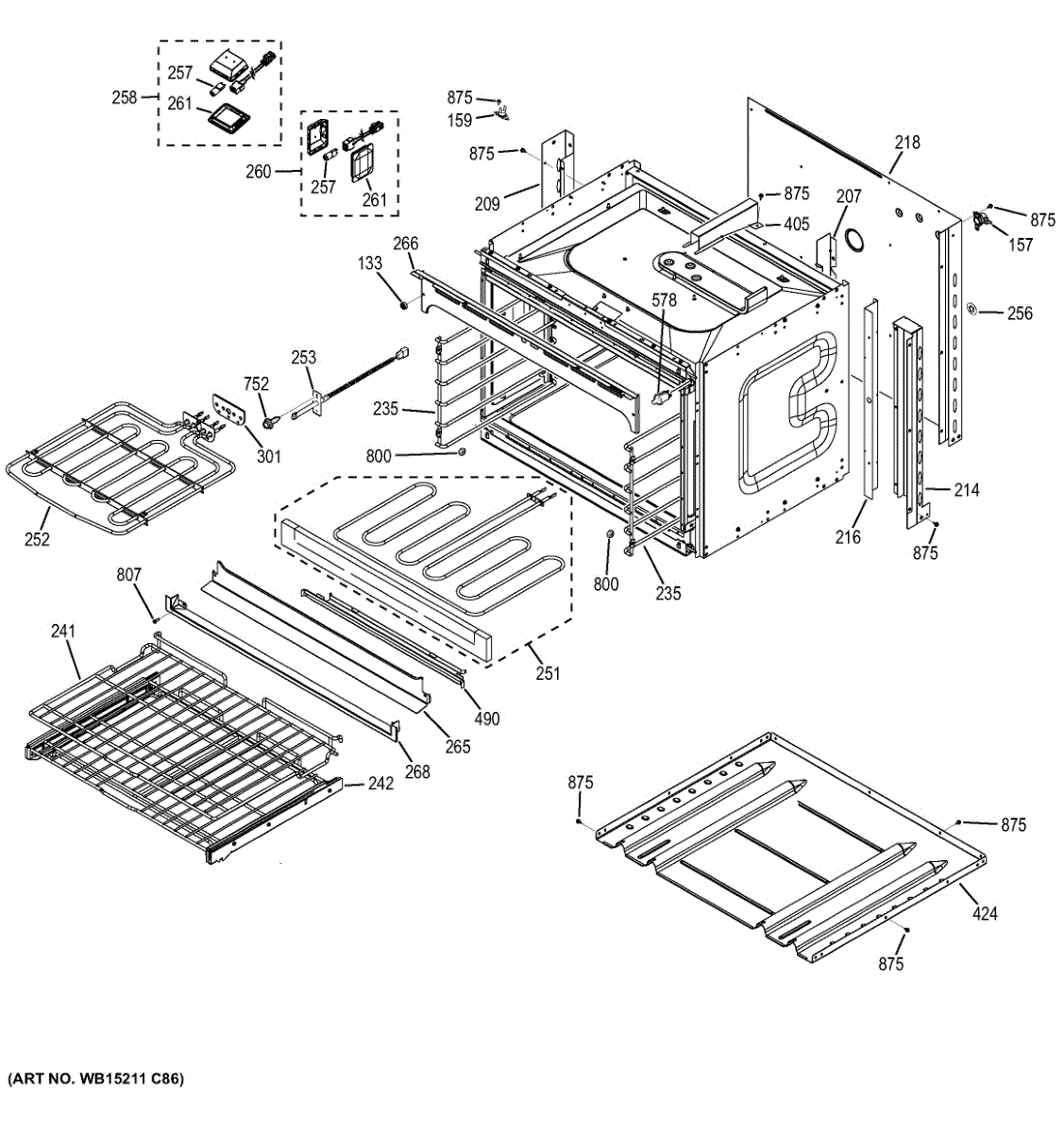

Parts for Ge PK7500DF2BB: Lower Oven Parts

Fixes oven not heating after self-clean cycle. This thermal safety switch cuts power when temperatures get too high. Simple diagnosis with continuity test.

Oven won't heat or shut off during self-clean? This high limit switch prevents overheating damage. Common fix after self-clean cycle failures.

Replace a worn or broken right-side oven rack guide to restore smooth rack movement and stable support. Prevents binding and keeps racks aligned.

Left-side oven rack guide supports and aligns your oven rack for smooth sliding. Replace if cracked, broken, or worn to restore stable rack movement.

Replace worn oven rack slides to restore smooth, supported movement and prevent sagging or drops. Confirm fit with your model number before ordering.

If your oven won't heat during bake cycles or bakes unevenly, this hidden bake element kit restores proper temperature. Mounts under the oven floor.

This broil element is the replacement heating element for the oven's upper/broil function, restoring direct top-heat for broiling and finishing dishes. Fits common GE ovens that use this OEM-style element. What it does:

• Heats the oven's upper cavity to provide direct broil heat for searing and browning.
• Replaces a broken, burned-out, or non-heating broil element.
• Helps restore even broiling when the oven fails to reach or maintain broil temperatures.
• Compatible with ovens that use a concealed or exposed upper broil element design.

• 1 broil element

• Disconnect power at the breaker or fuse box before starting any repair.
• Remove oven racks and back panel/insulation as needed to access mounting screws and wire terminals.
• Note terminal locations and wiring before disconnecting; take a photo for reference.
• Use proper strain relief on wires and tighten mounting hardware securely; test function after reassembly.

Fix F2 or F34 error codes and inaccurate oven temperatures with this temperature sensor assembly. Moderate DIY repair, 30-60 minutes install time.

Retainer bolt secures internal components and panels in your range or wall oven. Replace if bolt is stripped, missing, or causing loose assemblies.

Halogen bulb illuminates your oven cavity so you can monitor cooking without opening the door. Replace when dim or burnt out. Verify fit with your model.

Halogen light assembly illuminates your wall oven cavity for monitoring food while cooking. Replace when light fails despite new bulb or socket issues occur. Verify fit by model number.

Replace your wall oven light lens cover to restore visibility inside the oven cavity. Essential when cracked, discolored, or damaged by heat exposure. Verify fit with your model number before ordering.

Lower vent trim for wall ovens. Installs along the bottom edge to cover the vent opening. Replace if cracked, discolored, warped, or missing.

Bottom cabinet trim for wall ovens. Replaces the decorative trim piece at the base of your wall oven cabinet that has become cracked, broken, or damaged.

Heat escaping around broil element? This pass-through gasket seals the opening where the element enters the oven liner, containing heat and steam. Quick DIY fix.

Replaces cracked or missing bottom air duct cover for your wall oven. Routes airflow and protects internal components from debris. Direct fit replacement.

Protective cover that conceals the bake element in the oven cavity bottom. Replace if cracked, warped, discolored, or missing for a clean appearance.

This high-amp SPDT switch routes power between circuits in cooking appliances to control items such as locks, element relays, or fans. Replacing a worn switch restores dependable operation and helps eliminate intermittent on/off issues. What it does:

• Single-pole, double-throw action directs power between NO/NC circuits based on actuator position
• Used to signal or control a component per the model's design (e.g., latch/lock, relay, fan)
• Failure symptoms can include no activation, stuck-on/off behavior, intermittent operation, or heat-damaged terminals
• Electrical tests may show incorrect continuity between COM–NO/NC when pressed or released

• Includes: 1 SPDT high-amp switch

• Disconnect power at the breaker or unplug the appliance before servicing
• Label or photograph wiring; move leads to matching COM/NO/NC terminals on the new switch
• Mount with the correct actuator orientation and secure any bracket or screws
• Inspect connectors for heat damage; ensure tight spade fits, restore power, and test operation

Mounting screw secures panels, brackets, and trim in ranges and wall ovens. Replace when stripped, missing, or damaged to restore proper fastening.

Replacement rack guide nut for wall ovens. Secures oven rack guides in place. Order a new nut if yours is stripped, broken, or missing from the cavity.

Black-finished screw secures oven panels, trim, and brackets. Replace missing or damaged fasteners to restore solid fit and prevent rattling or gaps.

Black. 8-18 AB HXW 3/8
