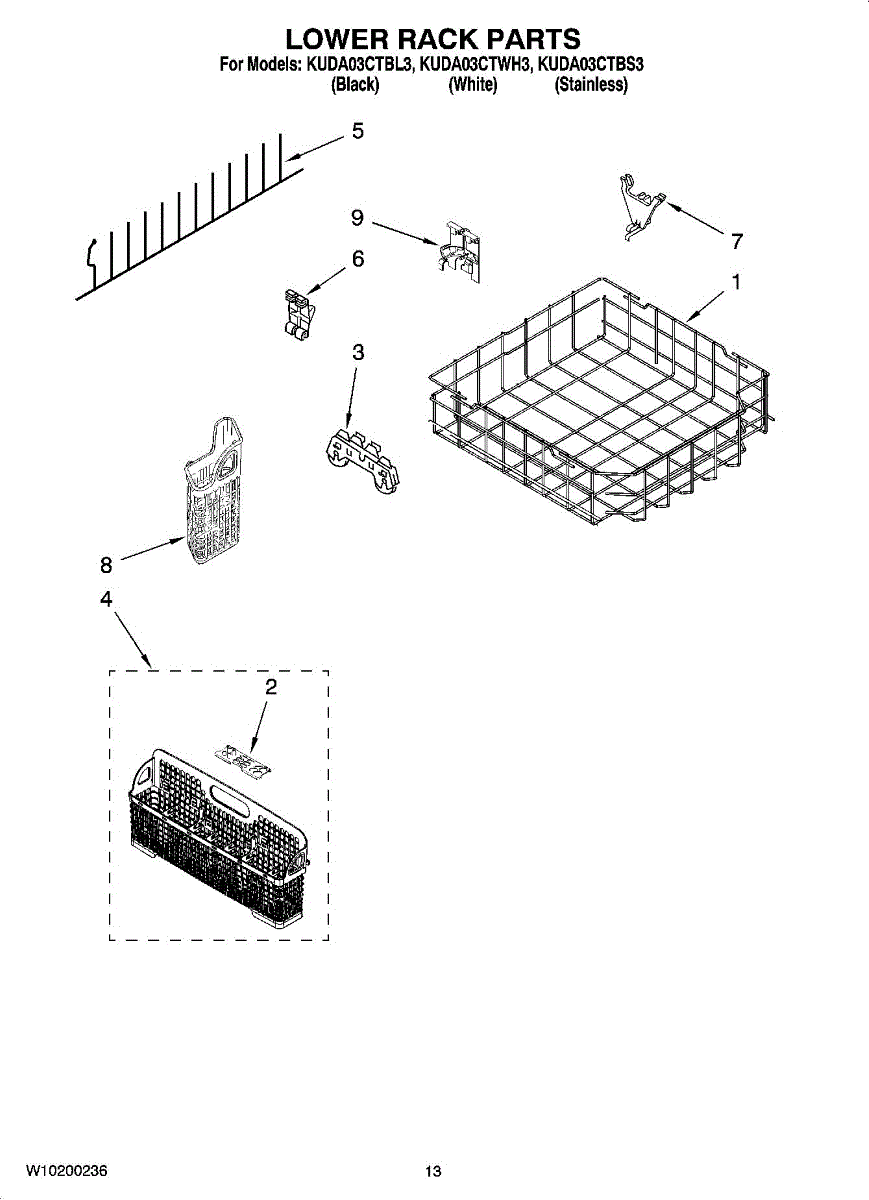

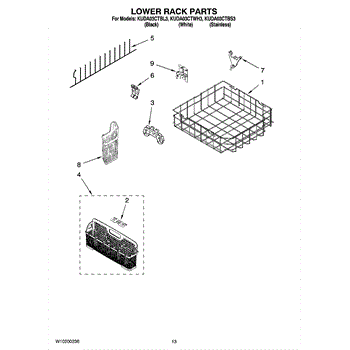

Parts for Kitchenaid KUDA03CTBL3: 10 - Lower Rack Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Restore smooth loading and secure placement for your dishes with this replacement dishrack. Replacing a bent, rusty, or damaged rack helps keep items upright, improves spray coverage, and prevents flaking or broken tines from contaminating the wash. What it does

• Holds and organizes dishes, bowls, and cookware during the wash cycle
• Slides on the rail system for easy loading and unloading
• Helps maintain proper spray coverage and drainage for effective cleaning
• Common symptoms of failure: rusted or broken tines, peeling rack coating, rack wobbling or derailing, poor rolling, items tipping over

What's included

• 1 dishrack

Install notes

• Disconnect power and shut off water; open the door and fully extend the rack
• Remove rail stop clips/end caps as applicable and slide out the old rack; wear gloves to avoid cuts from sharp edges or rust
• Transfer any reusable accessories (silverware basket, clips, holders) from the old rack if needed
• Slide the new rack onto the rails, reinstall the stops, and verify it glides smoothly before running a cycle

This is the center lid that fits into the washing basket/tub assembly to cover the center opening and help contain laundry during the wash cycle. It restores a proper seal and keeps items from entering the agitator area. What it does:

• Covers the center opening of the washer basket to prevent clothes from getting caught in the agitator
• Helps maintain normal wash action and water containment around the tub center
• Can resolve symptoms like items snagging near the agitator, visible gap in the basket center, or loose/missing center cover
• Matches OEM fit and geometry for correct placement in the basket assembly

• One lid, basket center

• Disconnect power and water to the appliance before beginning any repair
• Removal/install typically requires accessing the washer basket; follow the OEM service manual for steps
• Use hand tools as needed and avoid forcing plastic tabs to prevent breakage

The Wheel is an OEM part for Whirlpool dishwashers. This component is typically found on the lower or upper rack and allows the rack to slide in and out smoothly for easy loading and unloading of dishes.

You should replace the wheel if it becomes worn, cracked, or broken. Causes of a bad wheel can include regular wear and tear from frequent use, damage from heavy loads or sharp objects, and material fatigue over time. A damaged wheel can hinder the movement of the racks and affect the loading and unloading process.

Symptoms of a bad wheel include:

• Difficulty sliding the dishwasher rack in and out
• The rack getting stuck or not aligning properly on the tracks
• Visible cracks, breaks, or wear on the wheel
• Unusual noises when moving the rack

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Silverware Basket is an OEM part for Whirlpool dishwashers. This basket holds silverware and utensils securely during the wash cycle, ensuring they are thoroughly cleaned. It is designed to fit in the lower rack of the dishwasher and has compartments to organize various types of cutlery.

You should replace the silverware basket if it becomes damaged, worn out, or develops holes. Causes of a bad silverware basket can include regular wear and tear, exposure to high temperatures and harsh detergents, or physical damage from heavy utensils.

Symptoms of a bad silverware basket include:

• Broken or missing compartments
• Silverware falling through holes or not being held securely
• Difficulty fitting the basket into the dishwasher
• Visible cracks or warping

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: gray. Measures about a 1/2 inch wide by 3 inches high by 1-1/2 inches deep.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Tine Row is an OEM part for Whirlpool dishwashers. It is a component of the dishwasher's rack that holds dishes, glasses, and other items securely in place during the wash cycle. The tine row helps organize the dishes, ensuring they remain upright and properly spaced for optimal cleaning.

Causes of a bad tine row can include regular wear and tear, excessive force when loading or unloading dishes, or rust and corrosion over time, particularly in areas with hard water.

Symptoms of a bad tine row include:

• Bent or broken tines
• Difficulty in placing dishes securely
• Rust or discoloration on the tines
• Dishes not staying in place during the wash cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This fold-down tine pivot for the lower dishrack acts as the hinge and latch for the adjustable tine row. Replacing a worn pivot restores stable loading and allows the tines to flip up or down as designed. What it does:

• Supports and pivots the fold-down tine row on the lower dishrack
• Holds tines in either position to accommodate different dish loads
• Common symptoms: tines won't stay upright, adjustable row detaches, cracked or missing pivot
• Helps prevent dishes from tipping during wash cycles

• Disconnect power and water supply to the dishwasher for safety; remove the lower rack
• Release the old pivot's locking tabs and slide it off the rack/tine row
• Align the new pivot with the rack wires and tine row; snap securely into place
• The tine row pivots smoothly and holds in both positions

Color: gray. Measures about 3 inches wide by 8 inches high by 5 inches deep.

Color: gray. Measures about 3 inches high by 2-1/2 inches deep.
