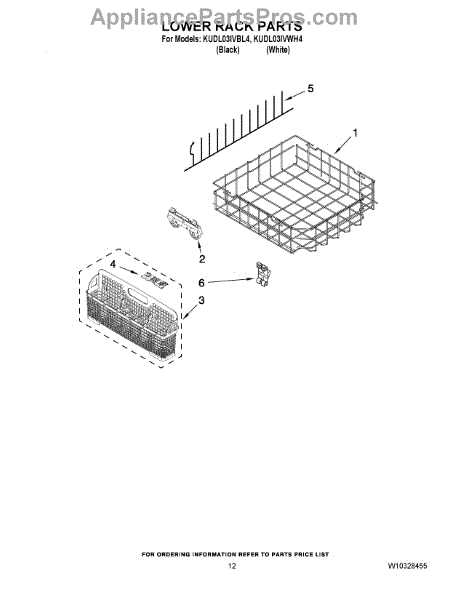

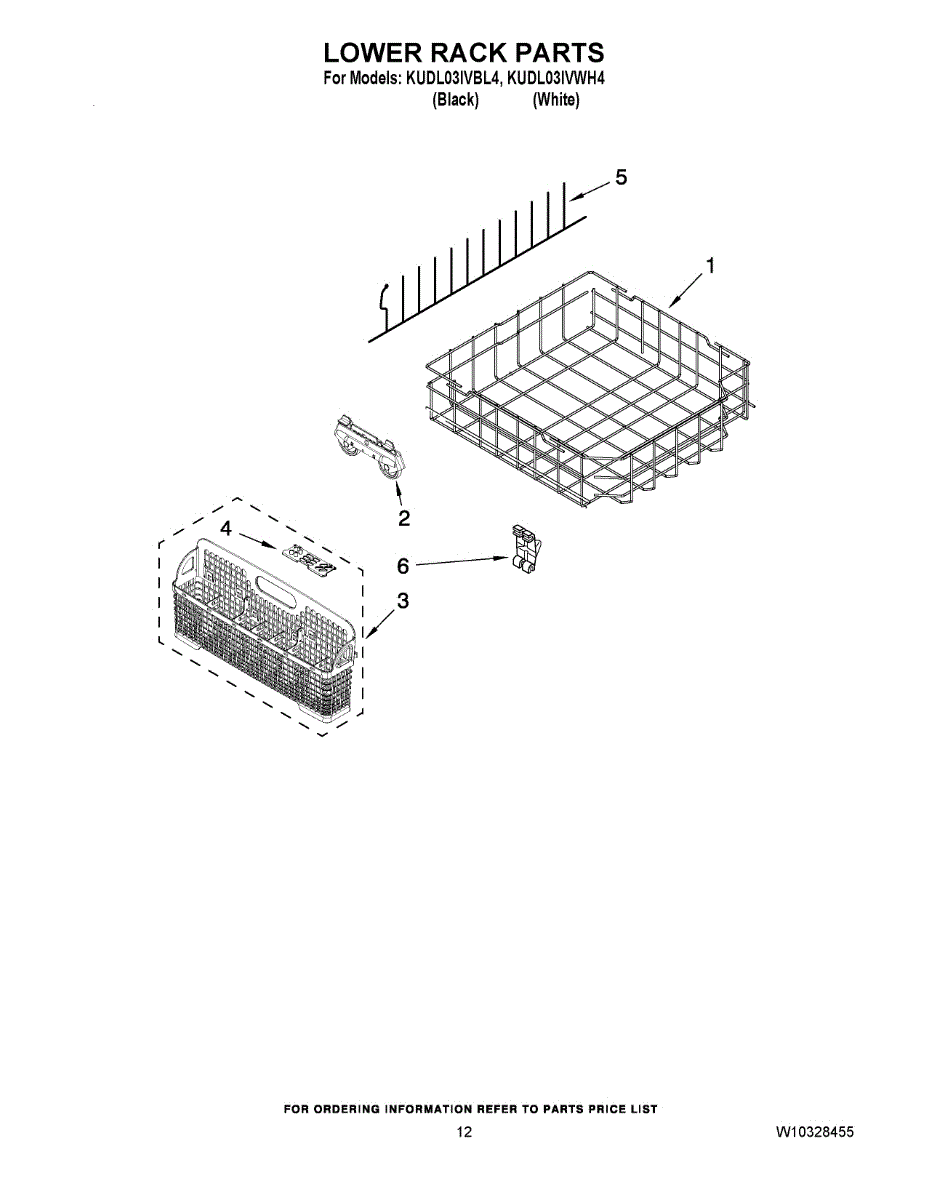

Parts for Kitchenaid KUDL03IVBL4: 10 - Lower Rack Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Replacement lower dishrack for dishwashers. Holds dishes, pots, and pans during wash cycles. Replace if cracked, rusted, or tines are broken or missing.

Roller and mount assembly for dishwasher racks. Allows smooth sliding for loading and unloading. Replace if worn, cracked, broken, or missing.

Holds utensils and cutlery in the lower rack during wash cycles. Replace if bottom is cracked, broken, has holes, or compartments are damaged or missing.

This is the center lid that fits into the washing basket/tub assembly to cover the center opening and help contain laundry during the wash cycle. It restores a proper seal and keeps items from entering the agitator area. What it does:

• Covers the center opening of the washer basket to prevent clothes from getting caught in the agitator
• Helps maintain normal wash action and water containment around the tub center
• Can resolve symptoms like items snagging near the agitator, visible gap in the basket center, or loose/missing center cover
• Matches OEM fit and geometry for correct placement in the basket assembly

• One lid, basket center

• Disconnect power and water to the appliance before beginning any repair
• Removal/install typically requires accessing the washer basket; follow the OEM service manual for steps
• Use hand tools as needed and avoid forcing plastic tabs to prevent breakage

Replacement tine row for dishwasher upper or lower rack. Holds dishes upright and properly spaced. Replace if tines are rusted, broken, or rotted away.

Gray plastic retainer clip that secures tine rows to the dishwasher rack. Replace if broken, cracked, or missing to keep tine rows properly attached.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
