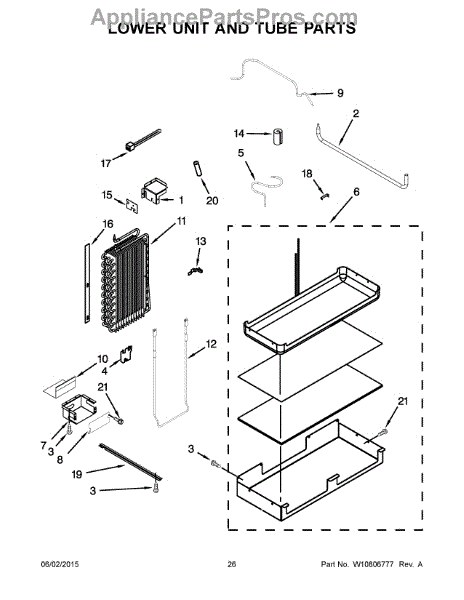

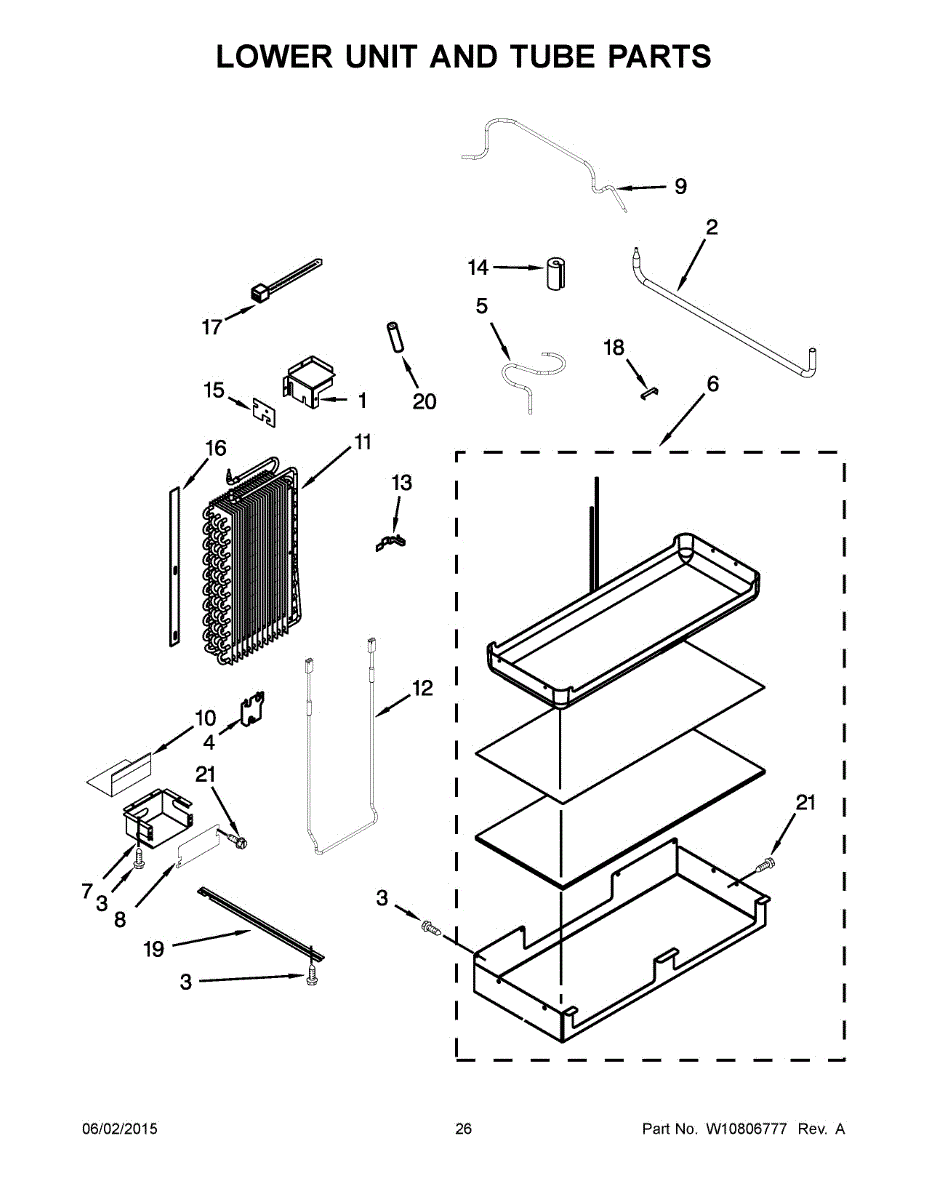

Parts for Kitchenaid KBSD502ESS00: 14 - Lower Unit And Tube Parts

Replaces cracked or damaged water line tube in your refrigerator. Installs between water supply and dispenser/ice maker. Essential for leak repairs.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Replace the water supply tube in your side-by-side refrigerator. Needed when the tube is cracked, leaking, kinked, or damaged during repairs.

This is a heater element installed in or near the upper condensate drain pan of a refrigerator. It warms the pan to help evaporate collected defrost water before it can overflow. Replace this heater if you notice water pooling beneath the refrigerator, water leaking onto shelves or the floor, or if the drain pan is not drying out between defrost cycles.

Fix refrigerator not cooling or freezing issues with this evaporator coil. Essential component for proper temperature control in your side-by-side fridge.

Secures the heating element in proper position for quiet operation and efficient frost melting. Replace if loose or damaged. Confirm fit with model number.

This is a replacement door seal that forms a secure, flexible barrier around the appliance door to help prevent leaks and maintain proper temperature and operation. It restores the seal between the door and cabinet for reliable performance. What it does:

• Creates a watertight/airtight barrier at the door to prevent leaks and spills
• Helps maintain correct internal temperature or pressure during operation
• Reduces vibration and rattling by cushioning the door edge
• Worn or damaged seals can cause visible leaks, poor cycle performance, or unusual noises

• One replacement door seal

• For safety, disconnect power and water before starting
• Inspect mounting channel and door edge for debris or damage; clean before installing
• Seat the seal evenly around the full door per OEM alignment and trim instructions if required

This bracket provides a secure mounting point for internal appliance components, restoring proper alignment and reducing vibration for smooth operation. Use it to replace a worn, bent or missing support bracket. What it does:

• Secures panels, assemblies or components to the appliance frame to prevent movement
• Restores proper alignment and fit where a bracket has failed or been removed
• Helps eliminate rattling, vibration or misaligned parts caused by a damaged bracket
• Simple, passive component—no electrical function

• Bracket

• Disconnect power (and water, if applicable) before starting any repair
• Inspect mounting holes and mating surfaces for damage before installing
• Reuse or replace original fasteners as appropriate; tighten securely but avoid over-torquing

This is a damper assembly that controls the flow of cold air from the freezer compartment into the refrigerator section. It regulates temperature by opening and closing to allow the right amount of chilled air through. Replace this part if your refrigerator is too warm, too cold, or experiencing inconsistent temperatures despite correct thermostat settings.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.
