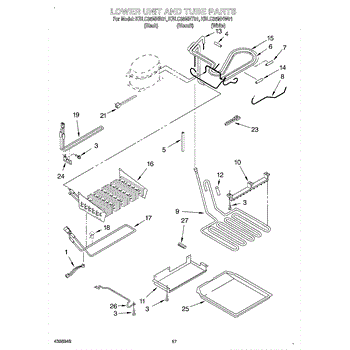

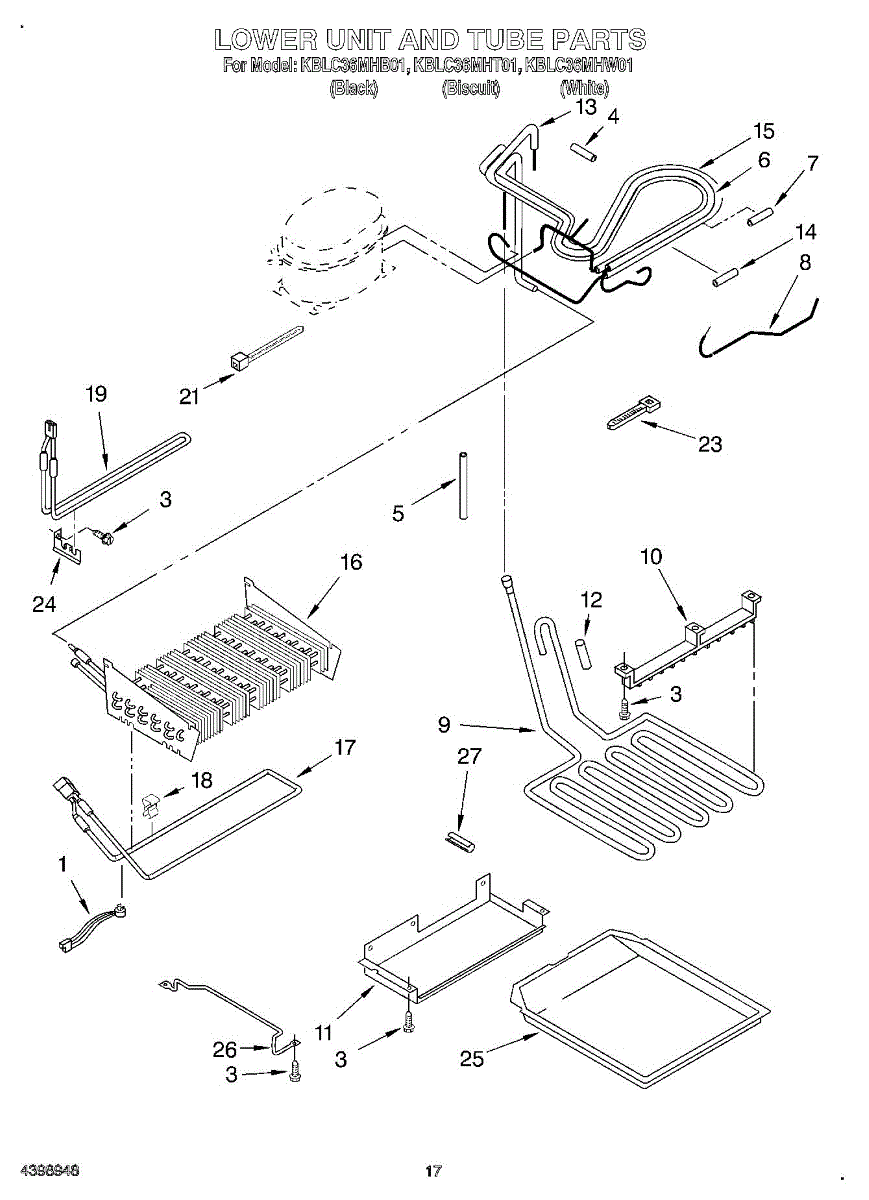

Parts for Kitchenaid KBLC36MHT01: 10 - Lower Unit And Tube Parts

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This drain pan heater keeps the refrigerator's drain area warm to prevent ice buildup and help melt frost so condensate can flow to the drain pan. It helps reduce standing water and drainage blockages caused by frozen drains. What it does:

• Warms the drain pan/drain path to help melt ice and allow condensate to flow
• Helps prevent water from pooling under or inside the cabinet due to frozen drains
• Can reduce recurring thaw/freeze cycles that lead to clogs and overflow
• Common part to check when water leaks or persistent ice formation occur near the evaporator or drain

• One drain pan heater assembly

• Disconnect power to the appliance before starting work
• Typically accessed from the back or bottom; may require removing a service panel
• Handle wiring and mounting hardware carefully; match connector orientation when reattaching

A replacement drain pan that captures defrost and condensation water to keep it contained and away from the cabinet and floor. Restores the appliance's normal water-collection path and helps reduce leaks. What it does:

• Collects melting ice and condensation from the evaporator to prevent water from pooling under the appliance.
• Channels collected water toward the drain system so it evaporates or exits as designed.
• Stops common symptoms like puddles or moisture under the unit and musty odors caused by standing water.
• Fits under the evaporator/coil area to restore proper water management.

• Disconnect power to the appliance before service to avoid electrical hazards.
• Remove the required access panels or move the appliance per the manufacturer's guidance to reach the pan.
• Lift out the old pan carefully—it may contain standing water—and position the replacement so the drain outlet and routing match the OEM layout.
• After installation, restore power and check for proper water flow during a defrost cycle; inspect surrounding seals and tubing for proper seating.

This dampener cushions and stabilizes the washer tub during spin cycles to reduce vibration and noise for smoother operation. It replaces worn or damaged suspension dampeners to help restore proper tub balance and quieter performance. What it does:

• Absorbs and dampens tub movement during agitation and spin to reduce vibration and noise.
• Helps maintain proper tub alignment for more even spinning and less wobble.
• Commonly replaced when the washer rocks, thumps, or makes excessive noise during spin.
• Works with the washer's suspension system to protect other components from shock and wear.

• 1 dampener

• Disconnect power and shut off water supply before beginning any repair.
• Access typically requires removing the washer cabinet or front panel; follow OEM service instructions.
• Inspect mounting studs and clips for wear; replace as needed to ensure a secure fit.
