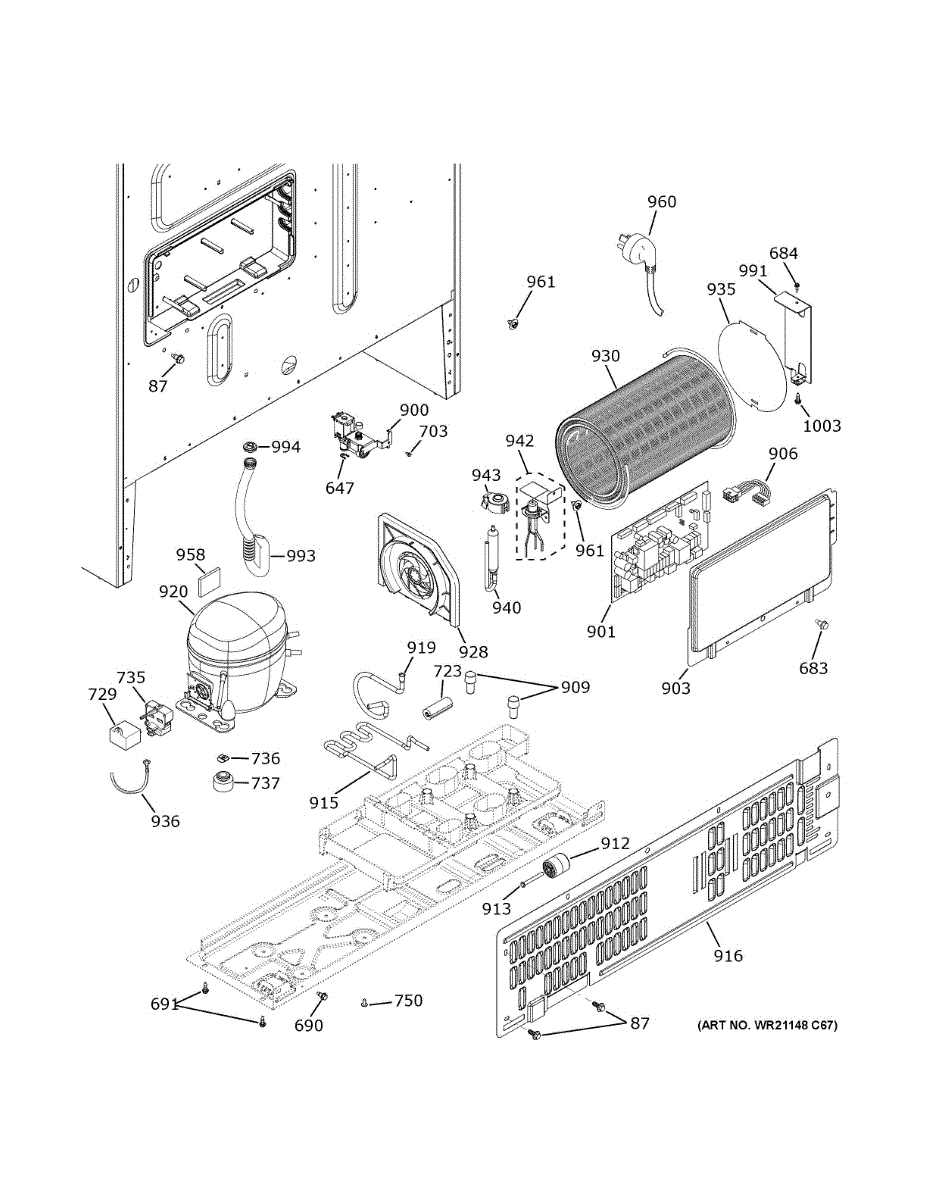

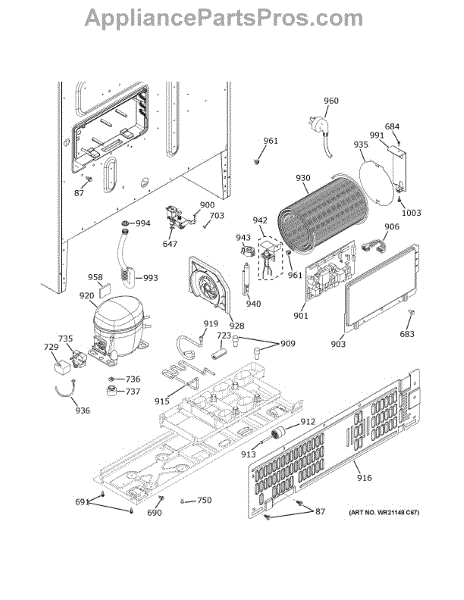

Parts for Ge PYE22KBLRTS: Machine Compartment Parts

Water leaking from connections? This locking clip secures 1/4-inch tubing in push-to-connect fittings on refrigerator water and ice systems.

Hex washer head screw secures panels, brackets, and small assemblies inside refrigerators and ranges. Replace stripped, missing, or damaged screws.

This SCR (silicon controlled rectifier) controls high-current switching in the appliance's power circuit to enable reliable on/off control of heating or motor circuits. Designed for direct replacement of the original SCR component. What it does:

• Acts as a solid-state switch to control power to heating elements or motors when triggered by the appliance control board.
• Helps regulate current during start-up and run cycles to maintain proper operation of the appliance.
• Failures can cause symptoms such as no heat, intermittent operation, or the appliance not powering its load.
• Matches the OEM mounting and stud terminal configuration for proper electrical connection.

• One SCR component (8-32 stud) as pictured.

• Disconnect power to the appliance before servicing to avoid shock or damage.
• Use proper tools for the 8-32 stud terminals and ensure secure electrical and heatsink connections.
• Inspect mounting surfaces and replace any damaged hardware or thermal pads as needed for safe operation.

Size: 8-32 t. Includes 12 screws.

Rubber grommet that cushions and protects refrigerant or water tubing where it passes through sheet metal. Replace if cracked, worn, or missing.

The Run Capacitor is an OEM part for GE refrigerators. It plays a crucial role in the refrigerator's cooling system by providing the necessary start and run voltage to the compressor. Without a properly functioning run capacitor, your refrigerator may struggle to maintain the desired temperature, leading to spoiled food and inefficient energy use.

Causes of a bad run capacitor include electrical surges, wear and tear over time, or overheating due to a malfunctioning refrigerator compressor or poor ventilation.

Symptoms of a bad Run Capacitor include:

• The refrigerator compressor fails to start.
• Unusual humming noises coming from the refrigerator.
• The refrigerator cycles on and off more frequently than normal.
• A noticeable increase in energy consumption as the refrigerator struggles to maintain the proper temperature.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Fix a refrigerator that won't cool or clicks but doesn't start. This compressor start relay and overload protects against electrical issues. DIY-friendly.

Fix refrigerator vibration or rattling noise with this compressor mounting clip. Secures the compressor to reduce movement. Quick 15-minute repair.

Replacement mounting screw for securing panels, trim, and internal components in appliances. Needed when original screws are stripped, lost, or damaged.

Fixes weak water dispenser flow and no ice production. Controls water supply to your refrigerator's dispenser and ice maker. DIY-friendly repair.

Replace a cracked or missing control board cover to protect electronics from moisture and dust. Simple snap-on installation takes 10-15 minutes.

Roller wheel for bottom-mount refrigerators. Mounts to the base to allow smooth rolling movement. Replace if cracked, broken, or causing uneven gliding.

Refrigerator not cooling or compressor overheating? This compressor discharge tube jumper connects refrigerant lines. Moderate DIY repair for most models.

Seals the refrigerator fan housing to maintain proper airflow and reduce noise. Replace when worn or damaged to restore cooling performance. Confirm fit.

Leaking water at the back of your fridge? A failed valve body disrupts water flow to the dispenser and ice maker. Professional repair recommended.

Reduces refrigerator vibration noise by damping component and panel contact. Replace deteriorated mastic to eliminate rattles and buzzing. Confirm fit.

Fixes refrigerator with no power or intermittent operation. Replaces damaged or rodent-chewed power cord harness. Restores secure electrical connection.

Fix water pooling or ice buildup in your fridge with a new defrost drain tube. Channels condensation from evaporator to drain pan. Simple install.

Vacuum break valve for refrigerator drain helps stop siphoning and keeps defrost and condensation water flowing to the drain pan. Replacing a failed valve restores proper condensate drainage and can reduce leaks and standing water. What it does:

• Allows air into the drain line to break siphoning and maintain steady condensate flow.
• Directs defrost and condensation water to the drain pan to prevent pooling and ice buildup.
• Helps address symptoms such as slow draining, water under crisper/behind kick plate, and intermittent leaks.
• Simple, passive valve with no electrical components.

• Disconnect power (unplug or shut off breaker) before accessing internal components.
• Access the drain area per your model—typically near the evaporator or rear—remove panels carefully to reach the valve.
• Install with correct orientation and secure tubing connections; replace any cracked or brittle drain tubing.

Mounting screw fastens panels, brackets, and trim in refrigerators, dishwashers, and ranges. Replace missing, stripped, or rusty screws to secure parts.
