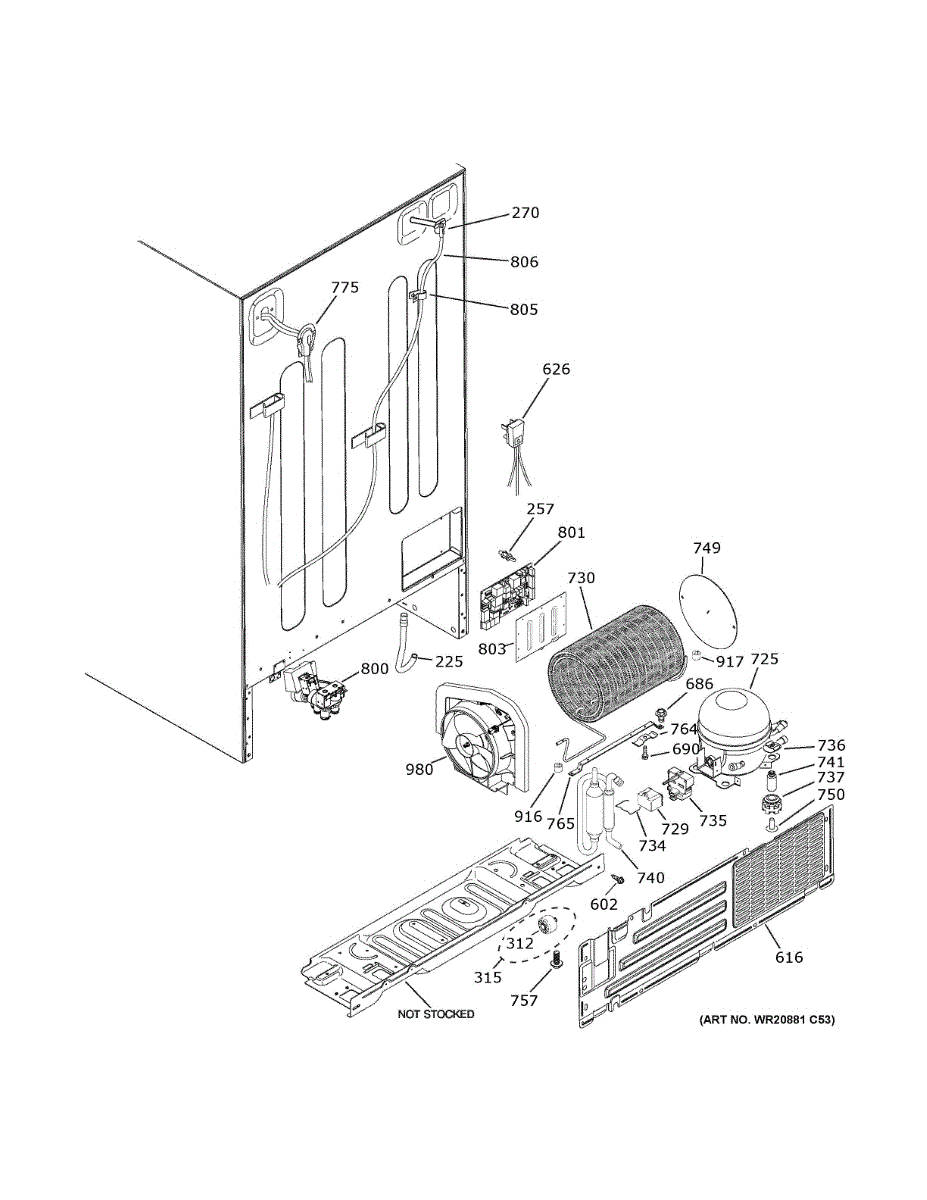

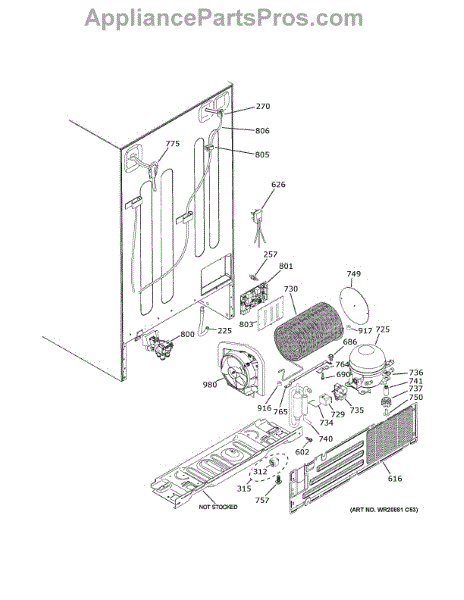

Parts for Ge XSS25GYPJCFS: Machine Compartment Parts

Directs defrost water from the evaporator to the drain pan below your refrigerator. Replace if cracked, damaged, or clogged to prevent water pooling.

Mounting standoff spacer secures internal components, panels, and circuit boards inside your refrigerator. Replace if cracked, broken, or missing.

Replaces a cracked, severed, or frozen ice maker fill tube and grommet. Delivers water from valve to ice maker. Includes tube, grommet, and plate.

Replacement rear wheel for refrigerators. Mounts to the bottom rear frame to enable smooth rolling for cleaning and repositioning. Order if cracked or missing.

Mobility wheel kit for refrigerator cabinet base. Allows easy movement and repositioning. Replace if wheels are cracked, worn, or missing.

Replacement mounting screw for refrigerator interior components. Needed when original hardware is stripped, missing, or damaged during repairs or maintenance.

Interior lights not working or control panel unresponsive? This lower cabinet wiring harness restores power to refrigerator door features. Clips in place.

10-32 x 5/16 machine-thread screw secures refrigerator panels, trim, and internal brackets. Replaces missing or damaged fasteners to prevent rattles.

Size: 8-32 t. Includes 12 screws.

If your refrigerator won't start or cycles frequently, the compressor start device may have failed. This overload and relay combo ensures reliable starts.

This sealed component removes moisture and contaminants from the R600 refrigerant system, typically located in the sealed system behind the refrigerator. Replace if the refrigerator isn't cooling properly, runs constantly, or if a technician identifies refrigerant system contamination.

A threaded mounting bolt that secures the compressor to the refrigerator's frame, providing vibration dampening and structural support. Replace when you hear excessive compressor noise, vibration, or notice the compressor appears loose or misaligned.

Condenser air baffle for refrigerators. Directs airflow over the condenser coils. Replace if cracked, broken, or missing to maintain proper air circulation.

Replacement mounting screw for securing panels, trim, and internal components in appliances. Needed when original screws are stripped, lost, or damaged.

Machine screw secures panels, brackets, and components in refrigerators. Replaces lost, stripped, or damaged 10-32 fasteners to restore stability.

Secures the condenser unit in your refrigerator. Replace if loose, broken, or causing vibration noise. Verify fit with your model number before ordering.

Covers and conceals the water supply tube on your refrigerator for a clean appearance. Replace if cracked, broken, or missing to protect the line.

Fix no water or ice issues with this triple water valve. Controls flow to dispenser and ice maker. Stops leaks from worn valves. Moderate DIY repair.

Secures refrigerator wiring to prevent chafing and vibration noise. Replace when damaged or missing to keep harnesses organized. Confirm fit by model.

Plastic water line that runs from the water valve to the icemaker fill tube. Replace if cracked, brittle, broken, or leaking at connection points.

This sound damper is a small vibration cushion designed to reduce noise and dampen vibration from moving components in the appliance, helping keep operation quieter and preventing parts from rattling against the cabinet. What it does:

• Cushions and isolates vibration to reduce humming, buzzing or rattling noises
• Helps stabilize small components and prevent metal-on-metal contact
• Protects surrounding parts from wear caused by excessive movement
• Supports quieter operation when installed in its intended location

• One sound damper

• Disconnect power to the appliance before accessing internal components
• Access may require removing an access panel or cover; keep fasteners organized
• Press-fit or slide into place as shown in the service diagram; avoid excessive force

This sound damper cushions the refrigerator compressor to reduce vibration and minimize noise for quieter operation. It helps protect the compressor from metal-on-metal contact and dampens normal operating sounds. What it does:

• Cushions compressor mounting to absorb vibration and reduce noise
• Prevents metal-on-metal contact that can cause rattling or buzzing
• Helps stabilize the compressor to reduce wear from vibration
• Commonly used when compressor noise, rattling, or increased vibration is noticed

• One sound damper

• Always disconnect power to the appliance before beginning any repair
• Access the compressor area (rear lower cabinet); remove any panels as needed
• Remove the old damper and press the replacement onto the compressor mounting foot until fully seated
• If mounting hardware is damaged or the compressor mount appears worn, replace mounting parts.
