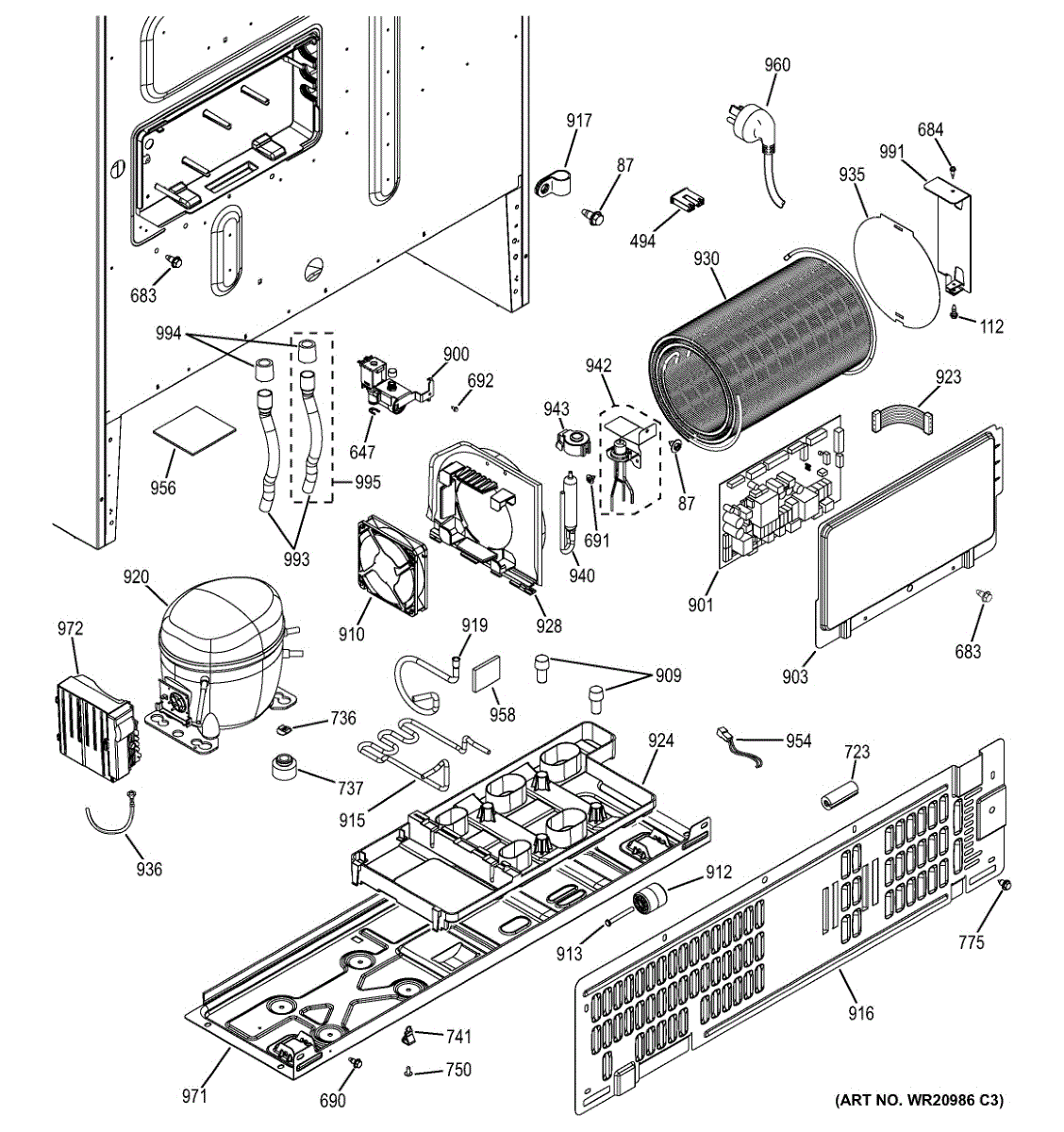

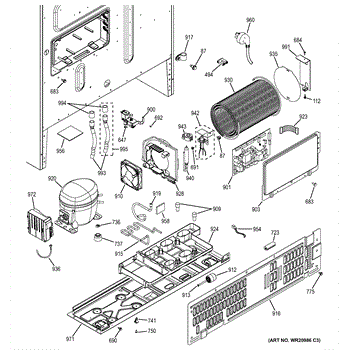

Parts for Ge CYE23TSDASS: Machine Compartment Parts

The Motor Duct Door is an OEM part for GE refrigerators. It is the cover that houses the evaporator fan motor and ductwork in the refrigerator. The motor and ductwork circulate cold air throughout the unit to maintain even temperatures for food storage.

Causes of a bad motor duct door can include failed seals that compromise cooling performance or damage to the door and hinges that prevent proper opening and closing.

Symptoms of a bad motor duct door include:

• Warm or lukewarm air inside the refrigerator sections
• Improper airflow causes warmer or colder spots
• Difficulty opening or closing the duct door

Replacing with this genuine GE OEM part allows for optimal air circulation throughout the refrigerator. This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

2 wire insulator.

This 1/4-inch quick-connect locking clip secures water tubing in push-to-connect fittings on your refrigerator's water and ice system. It locks the tube in place to help prevent leaks and accidental disconnection at the fitting. What it does:

• Locks 1/4-inch OD tubing into compatible push-to-connect fittings
• Helps maintain a secure seal to reduce drips at water line connections
• Replaces a missing, cracked, or loose clip on filter heads, inlet valves, or inline couplers
• Symptoms include leaks at a fitting or a tube that won't stay seated

• One 1/4-inch quick-connect locking clip

• Disconnect power and shut off the water supply before servicing; dispense water to relieve pressure
• Remove the old clip; ensure the tubing end is clean and cut square
• Fully insert the tube into the fitting until it bottoms out, tug lightly to seat, then install the clip in the collet groove
• Restore water and check all connections for leaks

• Designed for fittings that use 1/4-inch OD tubing. It will not fit 5/16-inch or 3/8-inch quick-connect fittings.

A short 8-32 x 3/8 hex washer head screw used to secure small appliance panels and components. Simple replacement for stripped or missing fasteners to restore proper fit and prevent rattles or loose parts. What it does:

• Secures panels, brackets, and small assemblies in place
• Helps eliminate vibration-related noise from loose parts
• Replaces missing, damaged, or corroded screws to restore proper alignment
• Fits standard 8-32 threaded holes requiring a 3/8" length screw

• One 8-32 x 3/8 hex washer head screw

• Use the correct 8-32 driver to avoid stripping the head
• Tighten snugly but avoid over-torquing to prevent thread damage
• Disconnect power and follow appliance safety procedures before accessing internal components
• Replace only like-for-like fasteners in load-bearing or safety-critical locations

This SCR (silicon controlled rectifier) controls high-current switching in the appliance's power circuit to enable reliable on/off control of heating or motor circuits. Designed for direct replacement of the original SCR component. What it does:

• Acts as a solid-state switch to control power to heating elements or motors when triggered by the appliance control board.
• Helps regulate current during start-up and run cycles to maintain proper operation of the appliance.
• Failures can cause symptoms such as no heat, intermittent operation, or the appliance not powering its load.
• Matches the OEM mounting and stud terminal configuration for proper electrical connection.

• One SCR component (8-32 stud) as pictured.

• Disconnect power to the appliance before servicing to avoid shock or damage.
• Use proper tools for the 8-32 stud terminals and ensure secure electrical and heatsink connections.
• Inspect mounting surfaces and replace any damaged hardware or thermal pads as needed for safe operation.

Includes 12 screws.

A rubber tubing grommet that fits a factory hole to protect and cushion refrigerant/water tubing and help prevent chafing or leaks. Simple, durable replacement that restores a sealed pass-through for tubing. What it does:

• Cushions and protects tubing where it passes through sheet metal or plastic openings
• Helps prevent chafing, rubbing and premature tubing wear
• Provides a cleaner, more secure tubing pass-through to reduce leak risk
• Commonly used on water lines, refrigerant lines or small-diameter tubing in appliances

• One tubing grommet

• Disconnect power and water supply before servicing the appliance
• Remove access panels as needed to reach the tubing hole; press-fit the grommet into the opening and route tubing through the slit
• Replace grommet if cracked, torn or excessively worn; ensure tubing is properly seated in the grommet
• Do not use sharp tools that could damage the grommet or tubing during installation

A replacement rubber mounting cushion that isolates and secures the refrigerator compressor to reduce vibration and noise. Restores proper compressor seating to help lower vibration transfer and prevent premature wear. What it does:

• Cushions the compressor to absorb vibration and reduce noise during operation
• Helps keep the compressor properly aligned and secured to the mounting bracket
• Can reduce rattling or buzzing that indicates worn or missing mounts
• Protects mounting hardware and body panels from metal-on-metal contact

• One compressor grommet

• Turn off power to the appliance and unplug before servicing
• Inspect surrounding mounts and hardware; replace any damaged fasteners
• Grommet installs between compressor and mounting bracket; reuse OEM orientation

This is a replacement screw used to secure appliance components and panels so parts stay properly attached for safe operation. It's a direct-fit fastener matching OEM form and function. What it does

• Secures panels, trim, or internal components to prevent rattling or gaps
• Restores factory attachment where a screw is missing or stripped
• Helps maintain proper alignment of housing and service access
• Suitable when repair requires original-fit fasteners

• Disconnect power or unplug the appliance before servicing to avoid shock
• Use the matching screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed screws organized; replace only the screws that match the original locations

The Water Inlet Valve is an OEM part for GE refrigerators. It controls the flow of water into the refrigerator’s ice maker and water dispenser, ensuring a consistent and regulated water supply. The valve opens and closes in response to electrical signals, allowing water to enter the appliance as needed.

Causes of a bad water inlet valve can include mineral buildup from hard water, wear and tear over time, or electrical faults. A malfunctioning valve can lead to issues with water flow and ice production, impacting the refrigerator's performance.

Symptoms of a bad water inlet valve include:

• No water flow to the ice maker or water dispenser
• Slow or inconsistent water flow
• Leaking water around the valve
• Ice maker not producing ice

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Main Control Board (Reflashed) is an OEM replacement part for GE refrigerators. This board serves as the central hub for managing key refrigerator functions, including temperature regulation, defrost cycles, and operation of fans and compressors. The "reflashed" designation indicates that the board is pre-programmed with the latest firmware specific to your appliance model, ensuring optimal performance.

Over time, control boards can fail due to power surges, electrical component wear, or environmental factors such as moisture. A faulty board can disrupt the refrigerator’s functionality, leading to inefficient cooling and other operational issues.

Symptoms of a bad main control board include:

• Inconsistent or incorrect temperatures in the refrigerator or freezer
• Unresponsive controls or display malfunctions
• The refrigerator not cooling, or cycling excessively
• Error codes or unusual noises during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This condenser support is the replacement mounting bracket that holds the refrigerator condenser or condenser coil securely in place, helping maintain proper clearance and airflow for reliable cooling performance. What it does:

• Secures the condenser or condenser coil to the cabinet to prevent movement or vibration
• Maintains correct condenser positioning to support consistent airflow and heat dissipation
• Helps reduce rattling or noise caused by a loose condenser assembly
• Supports overall cooling reliability by keeping components aligned

• One condenser support bracket

• Installation requires basic hand tools; disconnect power before beginning any repair
• Handle sharp sheet-metal edges carefully to avoid cuts
• Reinstall any removed panels or fasteners to restore proper airflow paths

The Condenser Fan Motor Assembly is an OEM part for GE refrigerators. This part is responsible for circulating air through the refrigerator condenser coils and over the compressor. It plays a role in dissipating heat away from the refrigerator's cooling system, ensuring that the appliance operates efficiently and maintains the set temperatures to keep your food fresh and safe.

Causes of a bad condenser fan motor can include overheating due to blockages in the fan blades, wear and tear on the motor bearings, or electrical faults that prevent the motor from running.

Symptoms of a bad Condenser Fan Motor Assembly include:

• The refrigerator runs warmer than usual
• Unusual noises coming from the back of the refrigerator
• The fan motor does not run when the compressor is on
• Increased energy bills due to the refrigerator working harder to maintain temperature

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This clamp tube secures small appliance tubing and lines to the cabinet, keeping water and refrigerant hoses routed and held in place to prevent chafing or pinch-related leaks. Durable plastic construction fits designated mounting points. What it does:

• Holds water, drain or refrigerant tubing against the appliance frame to prevent movement
• Helps reduce rubbing and chafing that can lead to leaks or hose wear
• Keeps lines organized for reliable operation and easier service access
• Works at common tubing attachment locations such as cabinet walls and brackets

• One clamp tube (single piece as shown)

• Remove power and water supply to the appliance before servicing
• Fastens into a molded or screw-type mounting boss; inspect mating surface for damage
• Replace only with the same style clamp to ensure proper fit and secure routing
• If tubing is damaged, replace the tubing as well—clamp only secures, it does not repair leaks

This inverter compressor kit replaces a failed inverter-type compressor assembly to restore cooling performance in compatible refrigerators. Designed to match the OEM function and maintain efficient temperature control when the original compressor fails. What it does:

• Replaces the refrigerator's inverter compressor assembly to restore sealed-system compression
• Helps resolve symptoms like no cooling, warm fridge/freezer, or loud/different compressor noise when diagnosis confirms compressor failure
• Works with inverter-driven refrigeration systems that require a matched compressor module
• Intended for use only when compressor/isolation parts are confirmed to be the failed component

• Requires proper evacuation, recharge, and leak testing per EPA and OEM guidelines
• Ensure electrical isolation and follow lockout/tagout before servicing

This ground harness is a factory-style wire assembly that provides a safe electrical return path to reduce shock and interference risks. It restores proper grounding for affected appliance circuits and helps maintain safe operation. What it does:

• Connects appliance metal chassis/components to the ground system to prevent stray voltage and reduce shock risk
• Provides the ground path for control boards and other electrical components to function correctly
• Common symptom: appliance shows electrical faults, intermittent operation, or visible arcing at connection points
• Used when original ground wire is damaged, corroded, or has a failed connector

• One ground harness (wire assembly) as pictured

• Always unplug the appliance or disconnect power at the breaker before starting work
• Match connector types and routing to the original harness; secure all fasteners and strain reliefs
• Inspect mounting points and mating terminals for corrosion; replace fasteners if damaged

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This valve body assembly routes and supports the refrigerator's water flow for the dispenser and ice maker. Replacing a cracked or leaking body restores proper water delivery and helps prevent leaks at the rear of the unit.

• Directs incoming water to the dispenser and/or ice maker
• Maintains sealed connections for water lines and valve components
• Helps resolve leaks around the rear valve area
• Symptoms can include no/slow dispenser flow or an ice maker not filling

• Unplug the refrigerator and shut off the household water supply
• Relieve line pressure; place a towel or container to catch residual water
• Note tubing and wire positions; transfer to the new assembly and ensure every connection is fully seated
• Restore water and power, then check all joints for leaks while dispensing and during an ice maker fill

This valve body assembly routes and supports the refrigerator's water flow for the dispenser and ice maker. Replacing a cracked or leaking body restores proper water delivery and helps prevent leaks at the rear of the unit.

• Directs incoming water to the dispenser and/or ice maker
• Maintains sealed connections for water lines and valve components
• Helps resolve leaks around the rear valve area
• Symptoms can include no/slow dispenser flow or an ice maker not filling

• Unplug the refrigerator and shut off the household water supply
• Relieve line pressure; place a towel or container to catch residual water
• Note tubing and wire positions; transfer to the new assembly and ensure every connection is fully seated
• Restore water and power, then check all joints for leaks while dispensing and during an ice maker fill

This pad mastic is an adhesive sealant used to secure foam pads and insulation inside the appliance, helping keep components in place and reducing vibration and air gaps for more consistent performance. What it does:

• Bonds foam pads, insulation and other non-structural components to appliance cabinet surfaces
• Helps reduce vibration and noise by holding pads firmly in place
• Seals small gaps to limit air movement and moisture around insulation
• Commonly used during panel, liner, or insulation repairs and reassembly

• Unplug the appliance or shut off power before starting any repair
• Clean and dry mounting surfaces; remove old adhesive and debris for best adhesion
• Press pad into place and hold as needed; allow adhesive to set per OEM recommendations
• Wear gloves and avoid skin/eye contact; ventilate area when working with adhesives

This refrigerator drain tube and valve assembly channels defrost water to the drain pan, while the valve helps block warm air from entering the drain. Replace a cracked or clogged assembly to address leaks and recurring ice buildup. What it does:

• Routes defrost water from the evaporator to the drain pan beneath the unit
• Integrated valve helps prevent warm air backflow that can lead to frost and drain clogs
• A damaged or obstructed tube/valve may cause water inside the compartments or on the floor
• Visual cracks, deformation, or blockage indicate the assembly should be replaced

• One drain tube and valve assembly

• Disconnect power and wear cut-resistant gloves before servicing
• Pull the refrigerator forward and remove the rear lower access panel
• Locate the drain outlet above the drain pan; remove the old tube/valve and clear any debris from the drain
• Seat the new assembly fully and ensure proper routing into the drain pan before restoring power

This refrigerator drain tube and valve assembly channels defrost water to the drain pan, while the valve helps block warm air from entering the drain. Replace a cracked or clogged assembly to address leaks and recurring ice buildup. What it does:

• Routes defrost water from the evaporator to the drain pan beneath the unit
• Integrated valve helps prevent warm air backflow that can lead to frost and drain clogs
• A damaged or obstructed tube/valve may cause water inside the compartments or on the floor
• Visual cracks, deformation, or blockage indicate the assembly should be replaced

• One drain tube and valve assembly

• Disconnect power and wear cut-resistant gloves before servicing
• Pull the refrigerator forward and remove the rear lower access panel
• Locate the drain outlet above the drain pan; remove the old tube/valve and clear any debris from the drain
• Seat the new assembly fully and ensure proper routing into the drain pan before restoring power
