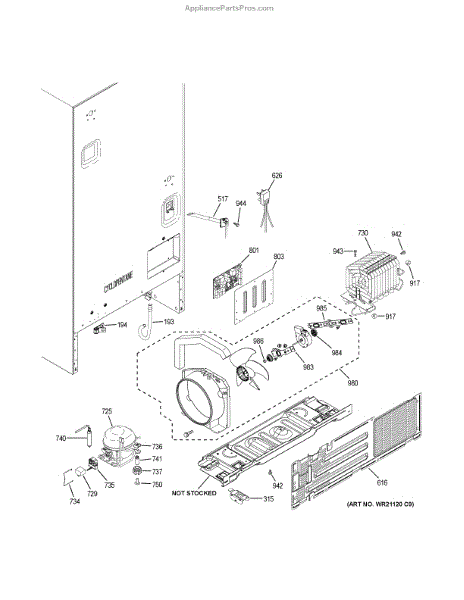

Parts for Ge GBE21DGKARBB: Machine Compartment Parts

The Drain Tube is an OEM part for GE refrigerators. It is responsible for directing defrost water to the drain pan located beneath the appliance, where it can evaporate safely.

Causes of a bad drain tube can include blockages from debris or ice, physical damage such as cracks or splits that allow water leakage, or a disconnection from its fitting points due to improper installation or material fatigue.

Symptoms of a bad Drain Tube include:

• Water pooling at the bottom of the refrigerator compartment
• Ice accumulation in or around the freezer area
• Leakage of water onto the kitchen floor beneath the refrigerator

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Grommet and Tube Icemaker Assembly is an OEM part for GE refrigerators. This assembly features a sealing grommet that fits snugly around refrigerant tubes entering the icemaker system. It prevents air leaks while allowing flexible movement of insulated tubing.

Symptoms of a bad grommet assembly include:

• Frost or condensation building up around the tube entry point
• Difficulties with the icemaker maintaining proper freezing temperatures

Causes can be splits or cracks in the rubber grommet developing after years of fluctuating fridge temperatures contracting and expanding the material.

This GE OEM replacement restores the crucial refrigerant line seal into the icemaker. Its durable grommet protects the refrigeration circuitry to ensure efficient icemaking for the life of the appliance. Compatible with some Hotpoint, RCA, and Kenmore side-by-side refrigerator configurations.


The Lower Cabinet Harness is an OEM replacement part for GE refrigerators responsible for providing electrical connections between various components within the lower cabinet of the refrigerator.

A bad lower cabinet harness can occur due to wear and tear over time or damage caused by mishandling or accidents. If you notice symptoms such as intermittent or complete loss of power to components within the lower cabinet, flickering lights, or malfunctioning controls, it may indicate a need to replace the wiring harness.

Symptoms of a bad lower cabinet harness include:

• Intermittent or complete loss of power to components within the lower cabinet
• Flickering lights or erratic behavior
• Malfunctioning controls or display

Restore your refrigerator by replacing the faulty lower cabinet harness with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


The Run Capacitor is an OEM part for GE refrigerators. It plays a crucial role in the refrigerator's cooling system by providing the necessary start and run voltage to the compressor. Without a properly functioning run capacitor, your refrigerator may struggle to maintain the desired temperature, leading to spoiled food and inefficient energy use.

Causes of a bad run capacitor include electrical surges, wear and tear over time, or overheating due to a malfunctioning refrigerator compressor or poor ventilation.

Symptoms of a bad Run Capacitor include:

• The refrigerator compressor fails to start.
• Unusual humming noises coming from the refrigerator.
• The refrigerator cycles on and off more frequently than normal.
• A noticeable increase in energy consumption as the refrigerator struggles to maintain the proper temperature.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This clip retainer combo secures appliance panels and trim, restoring proper fit and preventing rattling or sagging. It replaces worn or broken retainers so doors, drawers, or trim pieces stay aligned and stable. What it does:

• Holds and aligns trim or panel pieces to the appliance cabinet
• Prevents loose, vibrating, or sagging panels and trim
• Replaces cracked or broken retainers that no longer secure parts
• Restores a flush, finished appearance and reduces noise from vibration

• Disconnect power to the appliance before beginning any repair
• Remove the affected panel or trim per the appliance service instructions
• Press or snap the retainer into the mounting location until it seats fully; reinstall panel/trim
• If clips are brittle or adjacent fasteners are damaged, inspect and replace as needed

This compressor start device attaches to the compressor to help it start and protect it from overheating. Replacing a failed device can help restore reliable compressor starts and consistent cooling.

• Provides the initial boost to start the compressor, then disengages
• Protects the compressor by opening the circuit on overcurrent/overheat
• Common symptoms of failure: compressor won't start, repeated clicking or buzzing from the rear, warm temperatures, short cycling
• Often shows heat damage or a burnt odor at the connector when failed

• Disconnect power and remove the rear access panel to reach the compressor
• Note wire locations and compressor pin orientation; take a photo before removal
• Push the device straight onto the compressor terminals until fully seated; replace any burnt connectors
• Restore power and verify smooth compressor start without repeated clicking

This is a grommet and it is intended for use on refrigerators and freezers. This is a genuine replacement part made by General Electric. A new grommet might be needed if the current one is visibly worn out or damaged in any way. If there are noises from vibration coming from the lower back area of the fridge there might be need for a new grommet. This is an OEM part sourced directly from the manufacturer, and it is sold individually. It is compatible with refrigerators and freezers, or units with a compressor and is made by General Electric.

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement screw used to secure appliance components and panels so parts stay properly attached for safe operation. It's a direct-fit fastener matching OEM form and function. What it does

• Secures panels, trim, or internal components to prevent rattling or gaps
• Restores factory attachment where a screw is missing or stripped
• Helps maintain proper alignment of housing and service access
• Suitable when repair requires original-fit fasteners

• Disconnect power or unplug the appliance before servicing to avoid shock
• Use the matching screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed screws organized; replace only the screws that match the original locations

The Main Control Board Assembly is an OEM replacement part for GE refrigerators. This control board manages tasks such as temperature control, defrost cycles, and compressor operation, ensuring optimal cooling performance and energy efficiency.

A bad main control board assembly can occur due to electrical issues, component failure, or damage to the board itself. If you notice symptoms such as erratic temperature readings, frequent cycling of the compressor, or unresponsive functions, it may indicate a need to replace the control board assembly.

Symptoms of a bad main control board assembly include:

• Erratic temperature readings
• Frequent cycling of the compressor
• Unresponsive functions

Restore your refrigerator by replacing the faulty main control board assembly with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This main board enclosure houses and protects the appliance's electronic control board, keeping wiring and circuitry secure and organized for reliable operation. It helps prevent contact damage and contains the control components in one location. What it does:

• Covers and protects the main electronic control board from debris and accidental contact
• Keeps wiring routed and secured around the control area to reduce strain on connectors
• Helps maintain correct positioning of the control board for consistent electrical connections
• Useful when the original housing is cracked, missing mounting points, or allowing exposed circuitry

• Disconnect power to the appliance before beginning any work to avoid shock or damage
• Handle the control board and connectors gently; avoid touching circuit traces or components
• Keep track of any mounting screws and brackets removed during disassembly for reinstallation

This sound damper cushions the refrigerator compressor to reduce vibration and minimize noise for quieter operation. It helps protect the compressor from metal-on-metal contact and dampens normal operating sounds. What it does:

• Cushions compressor mounting to absorb vibration and reduce noise
• Prevents metal-on-metal contact that can cause rattling or buzzing
• Helps stabilize the compressor to reduce wear from vibration
• Commonly used when compressor noise, rattling, or increased vibration is noticed

• One sound damper

• Always disconnect power to the appliance before beginning any repair
• Access the compressor area (rear lower cabinet); remove any panels as needed
• Remove the old damper and press the replacement onto the compressor mounting foot until fully seated
• If mounting hardware is damaged or the compressor mount appears worn, replace mounting parts.

This is a 10-32 machine-thread screw used to secure appliance panels, trim, and components. It replaces missing or damaged fasteners so parts fit tightly and operate without rattles or misalignment. What it does:

• Fastens panels, brackets, or assemblies that use a 10-32 machine screw
• Restores secure mounting where a stripped, missing, or corroded screw causes looseness
• Helps eliminate vibration noise or gaps caused by loose hardware
• Matches OEM thread size and length for correct fit in designated mounting holes

• One 10-32 x 5/16 machine screw

• Disconnect power and remove power source or batteries before servicing appliances
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread carefully; do not force or overtighten to prevent thread damage
• Replace any damaged mating hardware or clipped inserts for a secure repair

Specs: 8-18 AB IHW 5/8 S

This condenser fan and housing assembly circulates air over the refrigerator condenser to help dissipate heat and maintain efficient cooling. Replaces a worn or damaged condenser fan unit to restore proper airflow and reduce overheating. What it does:

• Moves air across the condenser coils to support the refrigeration cycle and prevent heat buildup
• Helps the compressor run within normal temperature by improving condenser cooling
• Commonly used to fix noisy, non-spinning, or damaged condenser fan problems
• Restores proper airflow when the original fan blade, motor mount or housing is cracked or bent

• Disconnect power to the appliance before beginning any service to avoid electrical shock
• Access typically requires removing lower kickplate or rear access panel—keep fasteners for reassembly
• Inspect wiring connectors and mounting points; replace only if explicitly specified for this part

This condenser fan mounting bracket secures the condenser fan motor and blade in the correct position to move air across the coils. Replacing a cracked or bent bracket restores stable mounting, reduces vibration, and helps maintain proper condenser airflow.

• Holds the condenser fan motor/blade assembly in alignment for proper airflow through the condenser
• Maintains clearance to prevent the fan blade from rubbing or contacting nearby components
• Helps reduce rattling, vibration, or scraping noises from the rear of the refrigerator
• Damage or misalignment can contribute to restricted condenser airflow and warmer temperatures

• Disconnect power and pull the refrigerator away from the wall to access the rear service area
• Remove the rear lower access panel; note wiring and hardware locations
• Support the fan motor/blade while removing the old bracket; transfer motor, blade, grommets, and screws to the new bracket
• The fan spins freely with proper clearance and correct airflow direction before reassembly

The Condenser Fan Motor is an OEM part for GE refrigerators. This fan motor circulates air in the fridge, helping to cool the compressor and condenser coils for better temperature control. It also evaporates extra water in the drain pan, stopping problems from water buildup.

Symptoms of a failing condenser fan motor include:

• The refrigerator running hotter than usual
• Loud noise or rattling sounds coming from the back of the refrigerator
• The refrigerator cycling on and off more frequently or for longer periods

Causes of condenser fan motor failure typically include wear and tear from continuous use, dust and debris accumulation obstructing fan movement, or electrical issues such as faulty wiring or capacitor problems.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Note: This is a (12-volt DC) fan motor. For the (115-volt AC) fan motor, order part number WR60X10220.

This fan-mount grommet fits the evaporator or condenser fan assembly to isolate vibration and keep the motor aligned. Replacing a worn grommet can quiet rattles and prevent the fan blade from rubbing the housing. What it does:

• Isolates the fan motor from its bracket to reduce vibration and operating noise
• Helps maintain proper fan motor and blade alignment/clearance
• Replaces cracked, flattened, hardened, or missing grommets
• Typical symptoms: rattling, buzzing, or vibration sounds from the freezer or rear machine compartment

• 1 fan motor grommet

• Disconnect power before servicing; pull the refrigerator forward for rear access if needed
• Evaporator fan: remove the freezer's rear panel; condenser fan: remove the rear service panel
• Support the motor, remove the fan blade and mounting hardware as needed, replace the grommet, and reassemble
• Ensure the fan spins freely and does not contact the shroud before restoring power
