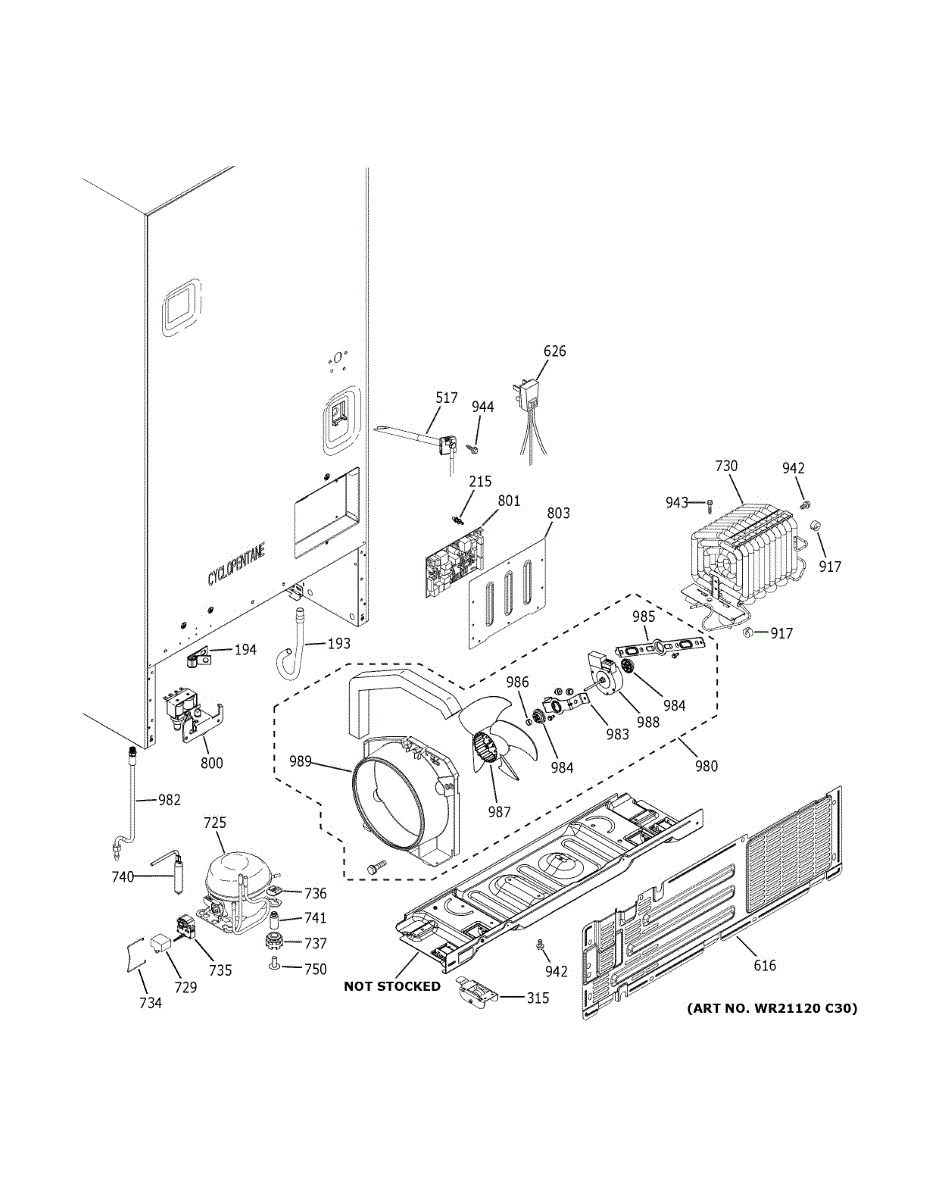

Parts for Ge GDE21ESKJRSS: Machine Compartment Parts

The Drain Tube is an OEM part for GE refrigerators. It is responsible for directing defrost water to the drain pan located beneath the appliance, where it can evaporate safely.

Causes of a bad drain tube can include blockages from debris or ice, physical damage such as cracks or splits that allow water leakage, or a disconnection from its fitting points due to improper installation or material fatigue.

Symptoms of a bad Drain Tube include:

• Water pooling at the bottom of the refrigerator compartment
• Ice accumulation in or around the freezer area
• Leakage of water onto the kitchen floor beneath the refrigerator

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This cable clamp secures refrigerator wiring to the cabinet, keeping harnesses organized and protected. Replacing a missing or damaged clamp helps prevent chafing and vibration noise while maintaining proper clearance from fans and other moving components.

• Anchors wire harnesses in their designed routing
• Helps prevent insulation wear from rubbing or vibration
• Keeps wires clear of sharp edges and moving parts
• Common signs it's needed: missing/broken clamp, loose or dangling wires, or new rattling/buzzing noises

• Disconnect power before servicing
• Access the clamp location and note original wire routing
• Position the clamp and secure with the existing fastener; do not overtighten
• Ensure wires aren't pinched and have clearance from the fan/compressor before restoring power

This stand off is a small mounting spacer that secures and spaces internal components, restoring proper alignment and reducing panel movement or vibration for quieter, more reliable operation. What it does:

• Provides a solid mounting point to hold panels, brackets or wiring harnesses in place.
• Replaces broken, cracked or missing standoffs that allow components to shift or rub.
• Helps stop rattling, buzzing or misalignment caused by loose mounting points.
• Keeps proper clearance between parts to prevent wear or chafing over time.

• Disconnect power to the appliance before starting any repair.
• Remove the affected panel or access cover to reach the damaged standoff.
• Replace the old standoff with the new part; retain and reuse any existing screws or fasteners unless damaged.
• Hand-tighten mounting hardware and test the appliance; avoid overtightening plastic standoffs.

The Grommet and Tube Icemaker Assembly is an OEM part for GE refrigerators. This assembly features a sealing grommet that fits snugly around refrigerant tubes entering the icemaker system. It prevents air leaks while allowing flexible movement of insulated tubing.

Symptoms of a bad grommet assembly include:

• Frost or condensation building up around the tube entry point
• Difficulties with the icemaker maintaining proper freezing temperatures

Causes can be splits or cracks in the rubber grommet developing after years of fluctuating fridge temperatures contracting and expanding the material.

This GE OEM replacement restores the crucial refrigerant line seal into the icemaker. Its durable grommet protects the refrigeration circuitry to ensure efficient icemaking for the life of the appliance. Compatible with some Hotpoint, RCA, and Kenmore side-by-side refrigerator configurations.


The Lower Cabinet Harness is an OEM replacement part for GE refrigerators responsible for providing electrical connections between various components within the lower cabinet of the refrigerator.

A bad lower cabinet harness can occur due to wear and tear over time or damage caused by mishandling or accidents. If you notice symptoms such as intermittent or complete loss of power to components within the lower cabinet, flickering lights, or malfunctioning controls, it may indicate a need to replace the wiring harness.

Symptoms of a bad lower cabinet harness include:

• Intermittent or complete loss of power to components within the lower cabinet
• Flickering lights or erratic behavior
• Malfunctioning controls or display

Restore your refrigerator by replacing the faulty lower cabinet harness with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


The Run Capacitor is an OEM part for GE refrigerators. It plays a crucial role in the refrigerator's cooling system by providing the necessary start and run voltage to the compressor. Without a properly functioning run capacitor, your refrigerator may struggle to maintain the desired temperature, leading to spoiled food and inefficient energy use.

Causes of a bad run capacitor include electrical surges, wear and tear over time, or overheating due to a malfunctioning refrigerator compressor or poor ventilation.

Symptoms of a bad Run Capacitor include:

• The refrigerator compressor fails to start.
• Unusual humming noises coming from the refrigerator.
• The refrigerator cycles on and off more frequently than normal.
• A noticeable increase in energy consumption as the refrigerator struggles to maintain the proper temperature.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Overload Ptcr Combo is an OEM part for GE refrigerators. It is responsible for regulating the electrical current flowing to the compressor. It helps prevent damage to the compressor and extends its lifespan.

A bad overload ptcr combo can be caused by power surges, electrical malfunctions, or normal wear and tear over time.

Symptoms of a bad overload ptcr combo include:

• The refrigerator not cooling properly.
• The compressor making unusual noises or not running at all.
• Excessive heat around the compressor area.
• Frequent tripping of the circuit breaker.

Replace your worn-out or damaged overload ptcr combo with this genuine OEM part and ensure the efficient and reliable operation of your refrigerator's compressor. This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This is a grommet and it is intended for use on refrigerators and freezers. This is a genuine replacement part made by General Electric. A new grommet might be needed if the current one is visibly worn out or damaged in any way. If there are noises from vibration coming from the lower back area of the fridge there might be need for a new grommet. This is an OEM part sourced directly from the manufacturer, and it is sold individually. It is compatible with refrigerators and freezers, or units with a compressor and is made by General Electric.

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement screw used to secure appliance components and panels so parts stay properly attached for safe operation. It's a direct-fit fastener matching OEM form and function. What it does

• Secures panels, trim, or internal components to prevent rattling or gaps
• Restores factory attachment where a screw is missing or stripped
• Helps maintain proper alignment of housing and service access
• Suitable when repair requires original-fit fasteners

• Disconnect power or unplug the appliance before servicing to avoid shock
• Use the matching screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed screws organized; replace only the screws that match the original locations

The Valve & Guard Assembly is an OEM part for GE refrigerators. This component controls water flow into the ice maker and water dispenser systems. It incorporates both inlet and outlet valves along with a filter guard to protect internal components.

Symptoms of a bad valve assembly include:

• Drips or leaks around the valve area
• Failure to dispense water through the external dispenser
• Inability to adequately fill the ice maker when producing cubes

Causes can be mineral buildup over time, worn valve seals, or damage to valve components.

This GE OEM replacement restores the full functionality of the refrigerator's internal plumbing. Its durable valves and protected filter ensure dependable water access and protection from contaminants entering the system. Compatible with later produced Hotpoint, RCA, and Kenmore models.


This main board enclosure houses and protects the appliance's electronic control board, keeping wiring and circuitry secure and organized for reliable operation. It helps prevent contact damage and contains the control components in one location. What it does:

• Covers and protects the main electronic control board from debris and accidental contact
• Keeps wiring routed and secured around the control area to reduce strain on connectors
• Helps maintain correct positioning of the control board for consistent electrical connections
• Useful when the original housing is cracked, missing mounting points, or allowing exposed circuitry

• Disconnect power to the appliance before beginning any work to avoid shock or damage
• Handle the control board and connectors gently; avoid touching circuit traces or components
• Keep track of any mounting screws and brackets removed during disassembly for reinstallation

This sound damper cushions the refrigerator compressor to reduce vibration and minimize noise for quieter operation. It helps protect the compressor from metal-on-metal contact and dampens normal operating sounds. What it does:

• Cushions compressor mounting to absorb vibration and reduce noise
• Prevents metal-on-metal contact that can cause rattling or buzzing
• Helps stabilize the compressor to reduce wear from vibration
• Commonly used when compressor noise, rattling, or increased vibration is noticed

• One sound damper

• Always disconnect power to the appliance before beginning any repair
• Access the compressor area (rear lower cabinet); remove any panels as needed
• Remove the old damper and press the replacement onto the compressor mounting foot until fully seated
• If mounting hardware is damaged or the compressor mount appears worn, replace mounting parts.

This condenser fan and housing assembly circulates air across the condenser coils to help your refrigerator dissipate heat and run efficiently. Replaces a damaged or worn housing and fan to restore proper airflow and cooling performance. What it does

• Moves air over condenser coils so the compressor can shed heat and maintain cooling
• Prevents overheating and helps the system run more efficiently
• Can stop loud fan noise, rattling, or reduced cooling when the fan or housing is damaged
• Restores correct airflow when the original housing is cracked, bent, or obstructed

• One condenser fan and housing assembly

• Disconnect power to the appliance before starting any repair
• Access may require removing rear or bottom access panels; keep track of fasteners
• Handle sheet metal edges and fan blades carefully to avoid cuts and damage
• After installation, verify fan spins freely and recheck connections; confirm proper cooling

The Tube Lead is an OEM part for GE refrigerators. It is responsible for routing water through the unit.

Causes of a bad tube lead can include mineral accumulation restricting flow, loosened compression fittings, or cracked/split tubing exposing water to air.

Symptoms of an issue with the water line tube lead include:

• Slow or inconsistent water and ice production
• Water pressure or temperature fluctuations at the dispenser
• Leaks in the refrigerator's exterior bottom panel

This GE replacement part is compatible with Hotpoint, RCA, and some Kenmore models.

This fan-mount grommet fits the evaporator or condenser fan assembly to isolate vibration and keep the motor aligned. Replacing a worn grommet can quiet rattles and prevent the fan blade from rubbing the housing. What it does:

• Isolates the fan motor from its bracket to reduce vibration and operating noise
• Helps maintain proper fan motor and blade alignment/clearance
• Replaces cracked, flattened, hardened, or missing grommets
• Typical symptoms: rattling, buzzing, or vibration sounds from the freezer or rear machine compartment

• 1 fan motor grommet

• Disconnect power before servicing; pull the refrigerator forward for rear access if needed
• Evaporator fan: remove the freezer's rear panel; condenser fan: remove the rear service panel
• Support the motor, remove the fan blade and mounting hardware as needed, replace the grommet, and reassemble
• Ensure the fan spins freely and does not contact the shroud before restoring power

The Compression Ring is an OEM part for GE refrigerators. It is designed to secure and seal connections within the refrigerator’s water and ice dispensing system, ensuring a leak-free operation. This small yet vital component helps maintain the integrity of the connections, preventing water leaks and ensuring the proper flow of water through the dispenser and ice maker.

Over time, the compression ring can wear out or become damaged due to regular use and the natural aging of materials. If the compression ring is compromised, it can lead to water leaks or poor water flow, which can affect the overall performance of the refrigerator’s water and ice dispensing functions.

Symptoms of a bad compression ring include:

• Water leaks around the dispenser or ice maker
• Reduced water flow or no water flow at all
• Drips or puddles forming inside the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Condenser Fan Blade is an OEM part for GE refrigerators. It is responsible for moving air across the condenser coils to help dissipate heat, allowing the refrigerator to maintain the proper cooling temperature. This fan blade ensures efficient operation of the cooling system by facilitating proper airflow.

You should replace this condenser fan blade if it becomes damaged, warped, or fails to move air effectively. Common causes of a bad fan blade include physical damage from debris, wear and tear over time, or warping due to prolonged exposure to heat.

Symptoms of a bad condenser fan blade include:

• Refrigerator not cooling properly
• Increased noise from the refrigerator
• Overheating of the condenser coils
• Reduced airflow around the condenser area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
