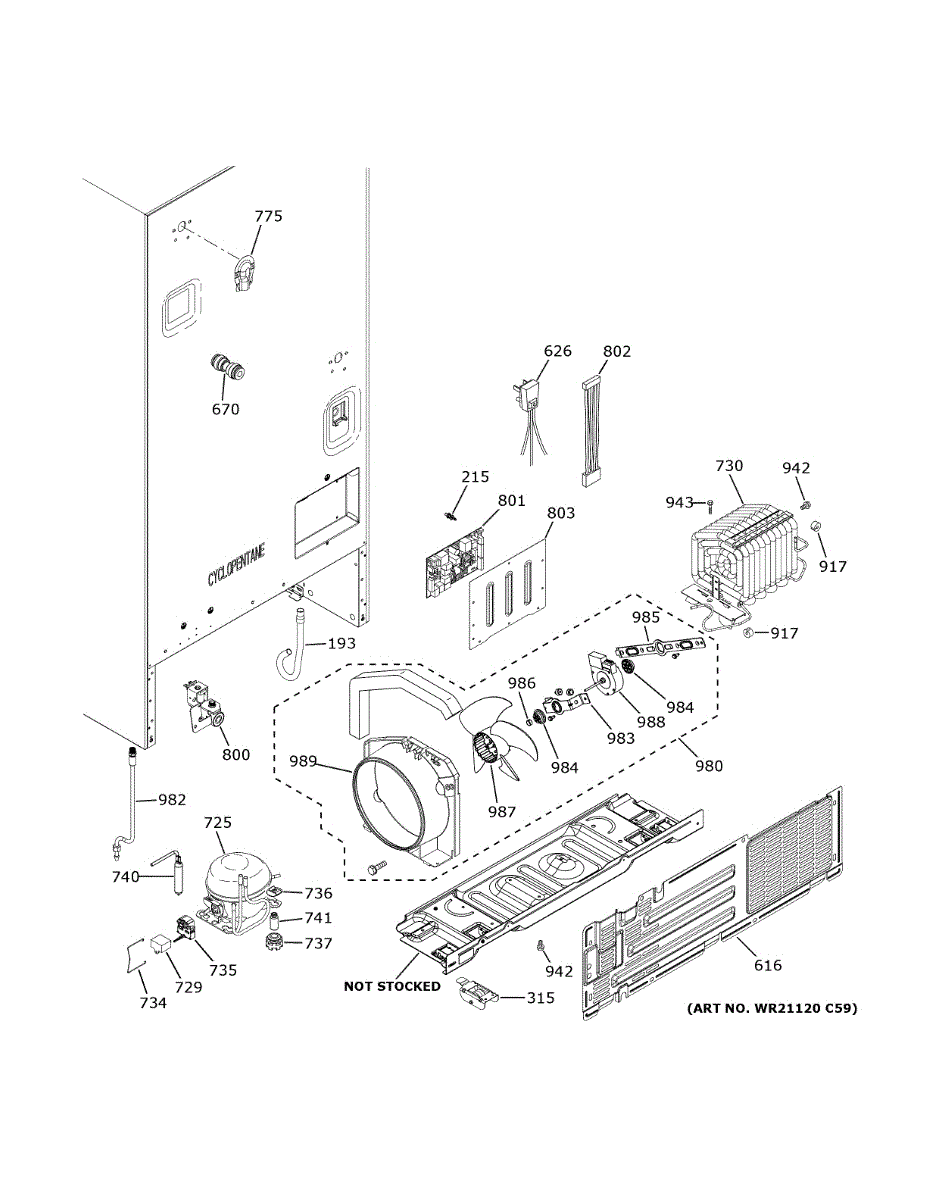

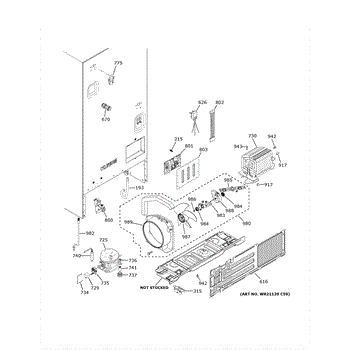

Parts for Ge GFE24JGKTFBB: Machine Compartment Parts

The Drain Tube is an OEM part for GE refrigerators. It is responsible for directing defrost water to the drain pan located beneath the appliance, where it can evaporate safely.

Causes of a bad drain tube can include blockages from debris or ice, physical damage such as cracks or splits that allow water leakage, or a disconnection from its fitting points due to improper installation or material fatigue.

Symptoms of a bad Drain Tube include:

• Water pooling at the bottom of the refrigerator compartment
• Ice accumulation in or around the freezer area
• Leakage of water onto the kitchen floor beneath the refrigerator

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This stand off is a small mounting spacer that secures and spaces internal components, restoring proper alignment and reducing panel movement or vibration for quieter, more reliable operation. What it does:

• Provides a solid mounting point to hold panels, brackets or wiring harnesses in place.
• Replaces broken, cracked or missing standoffs that allow components to shift or rub.
• Helps stop rattling, buzzing or misalignment caused by loose mounting points.
• Keeps proper clearance between parts to prevent wear or chafing over time.

• Disconnect power to the appliance before starting any repair.
• Remove the affected panel or access cover to reach the damaged standoff.
• Replace the old standoff with the new part; retain and reuse any existing screws or fasteners unless damaged.
• Hand-tighten mounting hardware and test the appliance; avoid overtightening plastic standoffs.

This access cover closes a service opening on the refrigerator cabinet, protecting internal components and restoring a secure, finished fit. Replacing a cracked or missing cover helps keep debris out and supports proper operation and airflow paths.

• Covers the machine/service compartment to shield wiring, fan, and other components from contact and debris
• Helps maintain designed airflow through the compartment when properly installed
• Reduces vibration and rattling when the cover is secured
• Replace if the cover is missing, cracked, warped, or no longer fastens securely

• Disconnect power before servicing
• Remove any retaining screws/clips and note the cover's orientation and vent/slot alignment
• Transfer any original grommets or insulation to the new cover if present
• Reinstall with existing hardware; do not overtighten; ensure openings/vents remain unobstructed

The Lower Cabinet Harness is an OEM replacement part for GE refrigerators responsible for providing electrical connections between various components within the lower cabinet of the refrigerator.

A bad lower cabinet harness can occur due to wear and tear over time or damage caused by mishandling or accidents. If you notice symptoms such as intermittent or complete loss of power to components within the lower cabinet, flickering lights, or malfunctioning controls, it may indicate a need to replace the wiring harness.

Symptoms of a bad lower cabinet harness include:

• Intermittent or complete loss of power to components within the lower cabinet
• Flickering lights or erratic behavior
• Malfunctioning controls or display

Restore your refrigerator by replacing the faulty lower cabinet harness with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This straight 1/4-inch water line coupler joins two sections of 1/4-inch OD refrigerator tubing, restoring a secure connection in dispenser and icemaker supply lines. Use it to splice, repair, or extend existing tubing.

• Creates an inline union for 1/4-inch OD refrigerator water tubing
• Helps address leaks, cracks, or breaks by replacing a damaged connector or splicing a cut line
• Useful when rerouting lines or adding inline components such as filters
• Common symptoms: water dripping at a tubing joint, loose/disconnected line, reduced or no water to dispenser/ice maker

• Unplug the refrigerator and turn off the water supply; dispense water to relieve pressure
• Cut tubing ends square and clean; ensure both tubes are 1/4-inch OD
• Make secure connections per the coupler design (push-to-connect or compression); ensure tubing is fully seated/assembled and gently pull to verify
• Restore water and check thoroughly for leaks

The Run Capacitor is an OEM part for GE refrigerators. It plays a crucial role in the refrigerator's cooling system by providing the necessary start and run voltage to the compressor. Without a properly functioning run capacitor, your refrigerator may struggle to maintain the desired temperature, leading to spoiled food and inefficient energy use.

Causes of a bad run capacitor include electrical surges, wear and tear over time, or overheating due to a malfunctioning refrigerator compressor or poor ventilation.

Symptoms of a bad Run Capacitor include:

• The refrigerator compressor fails to start.
• Unusual humming noises coming from the refrigerator.
• The refrigerator cycles on and off more frequently than normal.
• A noticeable increase in energy consumption as the refrigerator struggles to maintain the proper temperature.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This clip retainer combo secures appliance panels and trim, restoring proper fit and preventing rattling or sagging. It replaces worn or broken retainers so doors, drawers, or trim pieces stay aligned and stable. What it does:

• Holds and aligns trim or panel pieces to the appliance cabinet
• Prevents loose, vibrating, or sagging panels and trim
• Replaces cracked or broken retainers that no longer secure parts
• Restores a flush, finished appearance and reduces noise from vibration

• Disconnect power to the appliance before beginning any repair
• Remove the affected panel or trim per the appliance service instructions
• Press or snap the retainer into the mounting location until it seats fully; reinstall panel/trim
• If clips are brittle or adjacent fasteners are damaged, inspect and replace as needed

The Overload PTCR Combo is an OEM part for GE refrigerators. It is designed to protect the compressor from electrical overload, ensuring reliable performance and extending the life of the appliance. This part combines the functions of a positive temperature coefficient resistor (PTCR) and an overload relay.

Causes of a bad overload PTCR combo can include electrical surges, wear and tear over time, or internal component failure. A malfunctioning overload PTCR can lead to compressor issues and inefficient cooling.

Symptoms of a bad overload PTCR combo include:

• The refrigerator not cooling properly
• The compressor not starting or frequently cycling on and off
• Unusual clicking noises from the compressor area
• The refrigerator running continuously without cooling effectively

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Drier is an OEM component specifically designed for GE combination refrigerator-freezers. Absorbing moisture, its treated silica particles buffer humidity within refrigerant lines. Proper drying sustains energy-efficient performance while preventing corrosion.

Causes of a faulty drier commonly relate to saturation reducing capacity. As desiccant degrades, water passes into closed system compressors requiring change.

Symptoms of a bad drier involve:

• Frost and ice buildup impairing cooling
• Puddling around evaporator evidencing leaks
• Higher operating costs from impaired efficiency

Causes of a bad drier involve typical saturation shortening drying cycles. Cracks release desiccant particles risking blockages necessitating timely replacement.

This OEM GE part is also compatible with some Hotpoint, RCA, and Frigidaire combination units. Replace to retain steady humidity management protecting components and maximizing freshness years of operation.


This water line cover protects and conceals the refrigerator water supply tube for a clean look and reduced snagging. It helps keep the line routed and out of the way behind the appliance. What it does

• Covers and protects the refrigerator water supply tube from accidental contact or damage
• Keeps the water line neatly routed to prevent kinks and rubbing
• Restores the appliance's finished appearance if the original cover is cracked or missing
• Can reduce noise from a loosely routed water tube by holding it in place

• One water line cover

• Disconnect water supply and unplug the refrigerator before servicing
• Remove any damaged cover pieces and slide the new cover over the water tube into the factory routing
• Verify the water line is not pinched or kinked after installing the cover

The Valve & Guard Assembly is an OEM component specifically designed for GE bottom-freezer refrigerators. This assembly is located inside the fresh food compartment and includes a water filter valve and protective cover.

The valve monitors flow through the water and ice dispenser system while the guard shields internal components from accidental impact or debris entry. Together they uphold water quality and system functionality.

Symptoms of a faulty assembly include:

• Slow or inconsistent water dispensing
• Leaks or messes inside the refrigerator
• Mineral or sediment buildup reducing filter capacity

Causes stem from normal use wearing out plastic valve seals over time. Impact damage is also possible if protections are compromised.

This OEM GE part restores reliable filtered water access and protects valuables inside your fridge. Install it today and continue enjoying purification and convenience for years to come. It is also compatible with Hotpoint, RCA, and some Kenmore models.


This sound damper cushions the refrigerator compressor to reduce vibration and minimize noise for quieter operation. It helps protect the compressor from metal-on-metal contact and dampens normal operating sounds. What it does:

• Cushions compressor mounting to absorb vibration and reduce noise
• Prevents metal-on-metal contact that can cause rattling or buzzing
• Helps stabilize the compressor to reduce wear from vibration
• Commonly used when compressor noise, rattling, or increased vibration is noticed

• One sound damper

• Always disconnect power to the appliance before beginning any repair
• Access the compressor area (rear lower cabinet); remove any panels as needed
• Remove the old damper and press the replacement onto the compressor mounting foot until fully seated
• If mounting hardware is damaged or the compressor mount appears worn, replace mounting parts.

This is a 10-32 machine-thread screw used to secure appliance panels, trim, and components. It replaces missing or damaged fasteners so parts fit tightly and operate without rattles or misalignment. What it does:

• Fastens panels, brackets, or assemblies that use a 10-32 machine screw
• Restores secure mounting where a stripped, missing, or corroded screw causes looseness
• Helps eliminate vibration noise or gaps caused by loose hardware
• Matches OEM thread size and length for correct fit in designated mounting holes

• One 10-32 x 5/16 machine screw

• Disconnect power and remove power source or batteries before servicing appliances
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread carefully; do not force or overtighten to prevent thread damage
• Replace any damaged mating hardware or clipped inserts for a secure repair

This condenser fan and housing assembly circulates air across the condenser coils to help your refrigerator dissipate heat and run efficiently. Replaces a damaged or worn housing and fan to restore proper airflow and cooling performance. What it does

• Moves air over condenser coils so the compressor can shed heat and maintain cooling
• Prevents overheating and helps the system run more efficiently
• Can stop loud fan noise, rattling, or reduced cooling when the fan or housing is damaged
• Restores correct airflow when the original housing is cracked, bent, or obstructed

• One condenser fan and housing assembly

• Disconnect power to the appliance before starting any repair
• Access may require removing rear or bottom access panels; keep track of fasteners
• Handle sheet metal edges and fan blades carefully to avoid cuts and damage
• After installation, verify fan spins freely and recheck connections; confirm proper cooling

The Tube Lead is an OEM part for GE refrigerators. It is responsible for routing water through the unit.

Causes of a bad tube lead can include mineral accumulation restricting flow, loosened compression fittings, or cracked/split tubing exposing water to air.

Symptoms of an issue with the water line tube lead include:

• Slow or inconsistent water and ice production
• Water pressure or temperature fluctuations at the dispenser
• Leaks in the refrigerator's exterior bottom panel

This GE replacement part is compatible with Hotpoint, RCA, and some Kenmore models.

This condenser fan mounting bracket secures the condenser fan motor and blade in the correct position to move air across the coils. Replacing a cracked or bent bracket restores stable mounting, reduces vibration, and helps maintain proper condenser airflow.

• Holds the condenser fan motor/blade assembly in alignment for proper airflow through the condenser
• Maintains clearance to prevent the fan blade from rubbing or contacting nearby components
• Helps reduce rattling, vibration, or scraping noises from the rear of the refrigerator
• Damage or misalignment can contribute to restricted condenser airflow and warmer temperatures

• Disconnect power and pull the refrigerator away from the wall to access the rear service area
• Remove the rear lower access panel; note wiring and hardware locations
• Support the fan motor/blade while removing the old bracket; transfer motor, blade, grommets, and screws to the new bracket
• The fan spins freely with proper clearance and correct airflow direction before reassembly

This fan-mount grommet fits the evaporator or condenser fan assembly to isolate vibration and keep the motor aligned. Replacing a worn grommet can quiet rattles and prevent the fan blade from rubbing the housing. What it does:

• Isolates the fan motor from its bracket to reduce vibration and operating noise
• Helps maintain proper fan motor and blade alignment/clearance
• Replaces cracked, flattened, hardened, or missing grommets
• Typical symptoms: rattling, buzzing, or vibration sounds from the freezer or rear machine compartment

• 1 fan motor grommet

• Disconnect power before servicing; pull the refrigerator forward for rear access if needed
• Evaporator fan: remove the freezer's rear panel; condenser fan: remove the rear service panel
• Support the motor, remove the fan blade and mounting hardware as needed, replace the grommet, and reassemble
• Ensure the fan spins freely and does not contact the shroud before restoring power

The Compression Ring is an OEM part for GE refrigerators. It is designed to secure and seal connections within the refrigerator’s water and ice dispensing system, ensuring a leak-free operation. This small yet vital component helps maintain the integrity of the connections, preventing water leaks and ensuring the proper flow of water through the dispenser and ice maker.

Over time, the compression ring can wear out or become damaged due to regular use and the natural aging of materials. If the compression ring is compromised, it can lead to water leaks or poor water flow, which can affect the overall performance of the refrigerator’s water and ice dispensing functions.

Symptoms of a bad compression ring include:

• Water leaks around the dispenser or ice maker
• Reduced water flow or no water flow at all
• Drips or puddles forming inside the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Condenser Fan Blade is an OEM part for GE refrigerators. It is responsible for moving air across the condenser coils to help dissipate heat, allowing the refrigerator to maintain the proper cooling temperature. This fan blade ensures efficient operation of the cooling system by facilitating proper airflow.

You should replace this condenser fan blade if it becomes damaged, warped, or fails to move air effectively. Common causes of a bad fan blade include physical damage from debris, wear and tear over time, or warping due to prolonged exposure to heat.

Symptoms of a bad condenser fan blade include:

• Refrigerator not cooling properly
• Increased noise from the refrigerator
• Overheating of the condenser coils
• Reduced airflow around the condenser area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Condenser Fan Motor is an OEM part for GE refrigerators. This fan motor circulates air in the fridge, helping to cool the compressor and condenser coils for better temperature control. It also evaporates extra water in the drain pan, stopping problems from water buildup.

Symptoms of a failing condenser fan motor include:

• The refrigerator running hotter than usual
• Loud noise or rattling sounds coming from the back of the refrigerator
• The refrigerator cycling on and off more frequently or for longer periods

Causes of condenser fan motor failure typically include wear and tear from continuous use, dust and debris accumulation obstructing fan movement, or electrical issues such as faulty wiring or capacitor problems.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Note: This is a (12-volt DC) fan motor. For the (115-volt AC) fan motor, order part number WR60X10220.
