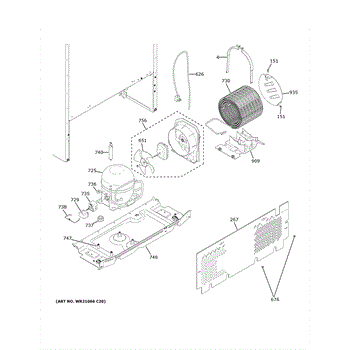

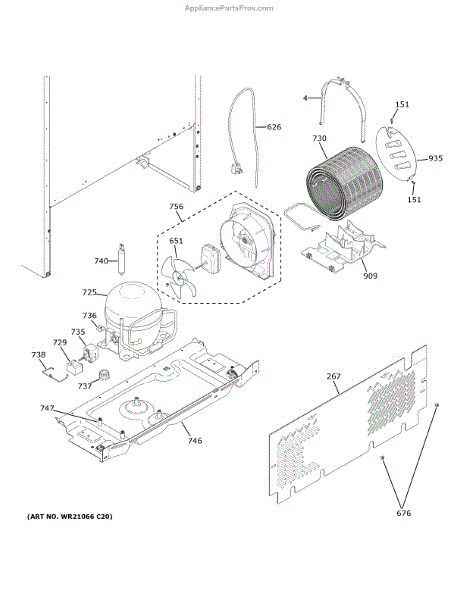

Parts for Ge GTS22KYNBRFS: Machine Compartment Parts

This metal condenser strap secures the condenser coil to the refrigerator frame, helping keep the coil stable and properly positioned for efficient operation. Replaces a worn or damaged strap to stop movement and rattling. What it does:

• Holds the condenser coil or assembly firmly in place to prevent vibration and noise
• Keeps the condenser aligned so airflow and cooling performance are maintained
• Commonly replaces a bent, cracked, or missing strap that allows coil movement
• Can stop rubbing or scraping sounds caused by a loose condenser assembly

• One metal condenser strap

• Disconnect power to the appliance before starting work
• Remove access panels as needed; support the condenser/coils while swapping the strap
• Use appropriate hand tools; avoid over-tightening fasteners which can bend the strap
• Watch for sharp sheet-metal edges and wear gloves and eye protection

This hex-head screw secures dishwasher panels, brackets, and internal hardware so parts stay tight and rattle-free. Replace missing or stripped fasteners to restore a secure fit and reliable operation.

• Fastens panels, brackets, and other dishwasher components to the tub or frame
• Replaces a missing, stripped, or corroded screw that no longer holds securely
• Helps eliminate vibration and rattling caused by loose hardware
• Maintains proper alignment and secure mounting of parts during operation

• Disconnect power and shut off water supply before servicing
• Keep track of fastener locations and orientation for correct reassembly
• Start threads by hand; use an appropriate nut driver or socket to tighten
• Tighten snugly—do not overtighten, especially when threading into plastic

The Harness and Power Cord is an OEM part for GE refrigerators. It carries power from the wall outlet to internal refrigerator components and electronically connects these components through its wiring harness. A reliable harness and power cord is essential for powering refrigerator operations like cooling, freezing, lighting, and circulating air.

Causes of a bad harness and power cord can include fraying of wires over time, cracks or splits in insulation exposing wires, and damaged or faulty connectors.

Symptoms include:

• Intermittent or complete power failures
• Lights or fans not functioning
• Inability to control temperature settings
• Error codes or diagnostic issues

Having the right harness and power cord installed ensures consistent power delivery without disruptions or electrical issues. This GE OEM replacement provides a factory fit and match for your model. This part is also compatible with some Kenmore, Hotpoint, and RCA refrigerators.

The Capacitor is an OEM component specifically designed for GE refrigerators with bottom-mount freezers. Located inside near the compressor unit, it aids in powering the refrigerator system during startup.

Causes of a bad capacitor include normal wear from thousands of startup cycles. Exposure to moisture or fluctuating voltages over many years can diminish performance.

Symptoms of a failing capacitor include:

• Inconsistent cooling or inability to lower temperatures
• Buzzing or humming noises from inside the fridge
• Repeatedly tripping the power breaker

Replacing with this genuine GE capacitor restores reliable operation. Compatible with GE bottom-freezer models, it features reliable aluminum electrolytic construction. Backed by GE quality, this replacement ensures smooth powering of the compressor for efficient cooling cycles. Compatible replacements are also available for GE Profile and GE Cafe series refrigerators.


This compressor start kit provides the overload protector and PTCR starting device used to help refrigerator compressors start and protect against electrical overloads. It replaces failed start components to restore reliable compressor starting. What it does:

• Supplies a PTCR (positive temperature coefficient resistor) starter to give the compressor the initial starting boost.
• Includes an overload protector that helps prevent compressor damage from electrical overload or overheating.
• Common symptom linkage: may be needed when the compressor hums but won't start, the fridge cycles without cooling, or the compressor repeatedly clicks/trips.
• Works with compressors that use separate PTCR and overload start components.

• Disconnect power to the appliance at the breaker or unplug before servicing.
• Installed at the compressor terminals; follow OEM wiring orientation and secure connections.
• Test compressor and start circuit after installation to confirm proper operation.

This metal compressor mounting clip secures the refrigerator compressor to the base, helping keep the unit stable and reducing vibration transfer. Replaces a worn or broken clip to restore proper compressor alignment and quieter operation. What it does:

• Secures the compressor to the cabinet/base to prevent movement during operation and transport
• Helps reduce vibration and rattling that can indicate a loose or damaged mount
• Keeps the compressor aligned so refrigerant lines and mounting hardware remain correctly positioned
• Useful when the original clip is bent, cracked, or missing

• One compressor mounting clip

• Disconnect power to the appliance before beginning any repair
• Support the compressor before removing or installing the clip to avoid strain on lines or fittings
• Use appropriate hand tools; avoid over-tightening fasteners which can cause damage
• Replace rubber grommets or insulation if present and damaged for best vibration isolation

This is a grommet and it is intended for use on refrigerators and freezers. This is a genuine replacement part made by General Electric. A new grommet might be needed if the current one is visibly worn out or damaged in any way. If there are noises from vibration coming from the lower back area of the fridge there might be need for a new grommet. This is an OEM part sourced directly from the manufacturer, and it is sold individually. It is compatible with refrigerators and freezers, or units with a compressor and is made by General Electric.

The Drier is an OEM component specifically designed for GE combination refrigerator-freezers. Absorbing moisture, its treated silica particles buffer humidity within refrigerant lines. Proper drying sustains energy-efficient performance while preventing corrosion.

Causes of a faulty drier commonly relate to saturation reducing capacity. As desiccant degrades, water passes into closed system compressors requiring change.

Symptoms of a bad drier involve:

• Frost and ice buildup impairing cooling
• Puddling around evaporator evidencing leaks
• Higher operating costs from impaired efficiency

Causes of a bad drier involve typical saturation shortening drying cycles. Cracks release desiccant particles risking blockages necessitating timely replacement.

This OEM GE part is also compatible with some Hotpoint, RCA, and Frigidaire combination units. Replace to retain steady humidity management protecting components and maximizing freshness years of operation.


The Condenser Fan & Housing is an OEM replacement part for GE refrigerators. It is responsible for circulating air across the condenser coils, dissipating heat and providing proper airflow and cooling for your refrigerator.

A bad condenser fan and housing can occur due to wear and tear over time or damage caused by mishandling or accidents. If you notice symptoms such as excessive heat in your refrigerator, reduced cooling performance, or unusual noises coming from the back of the unit, it may indicate a need to replace the condenser fan and housing.

Symptoms of a bad condenser fan and housing include:

• Excessive heat inside the refrigerator
• Reduced cooling efficiency
• Unusual noises, such as grinding or squealing sounds

Restore your refrigerator by replacing the faulty condenser fan and housing with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This condenser support is the replacement mounting bracket that secures the refrigerator condenser coil to the cabinet, restoring proper alignment and reducing vibration for quieter, more reliable operation. What it does:

• Holds the condenser coil and fan assembly in the correct position to prevent contact with the cabinet
• Reduces rattling or vibration caused by a loose or broken bracket
• Helps maintain proper airflow around the condenser for efficient cooling performance
• Prevents additional wear to nearby components from a shifting condenser

• Disconnect power to the appliance before starting any repair to avoid electrical shock.
• Access typically requires removing the rear or lower access panel; keep track of fasteners.
• Handle condenser fins and tubing carefully to avoid bending or damage.
