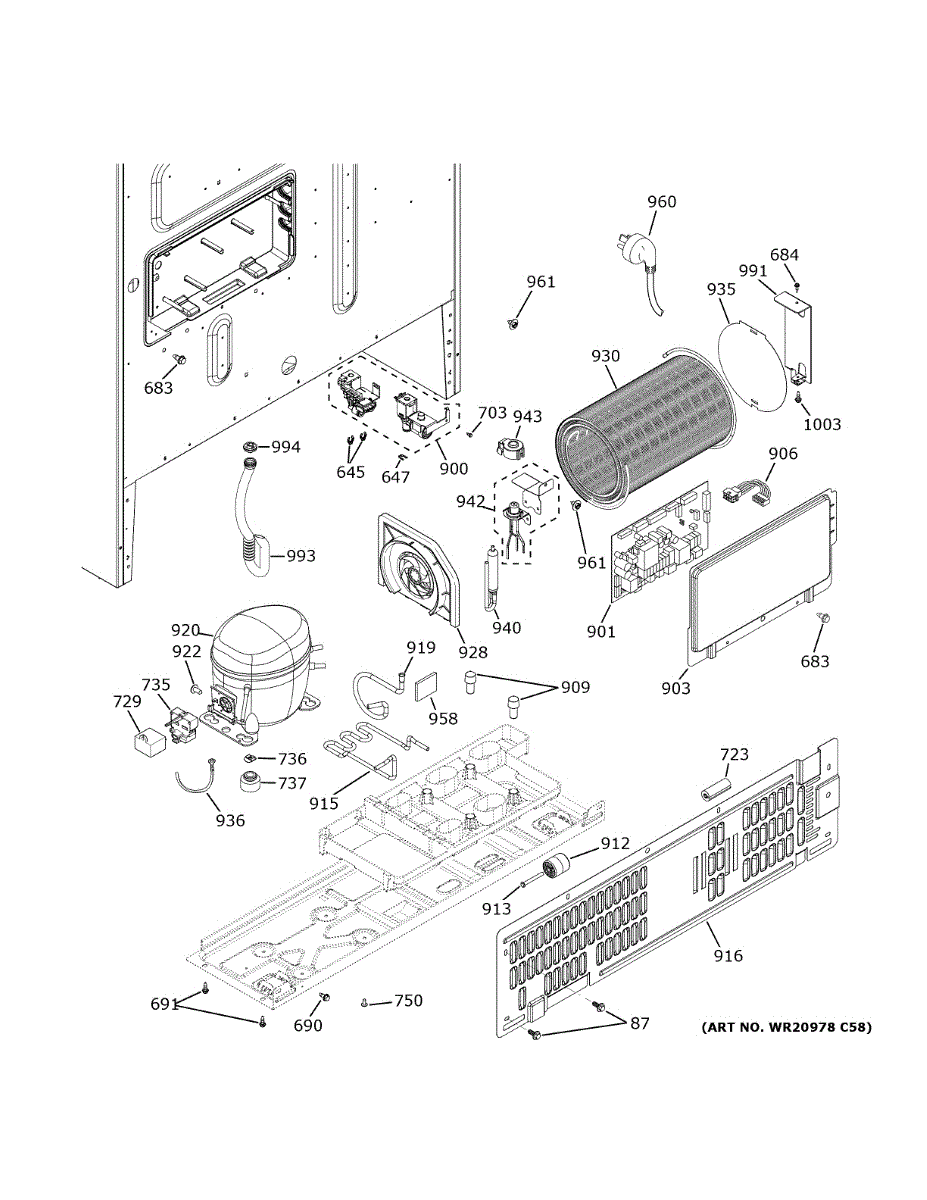

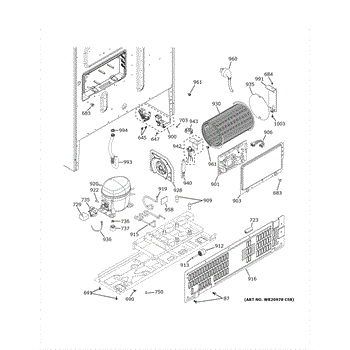

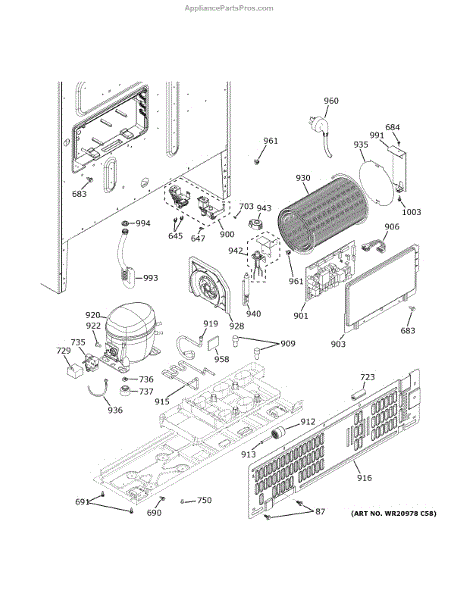

Parts for Ge GWE23GENHDS: Machine Compartment Parts

A 1/4" clip connector that secures a quick-disconnect terminal to appliance wiring for a reliable electrical connection. Replaces worn or loose connectors to restore consistent contact at spade terminals. What it does:

• Provides a secure spade/quick-disconnect connection between wires and component terminals
• Restores power to components when original connector is corroded, cracked, or loose
• Helps prevent intermittent operation caused by poor terminal contact
• Designed for use on appliance wiring where 1/4" quick-disconnects are required

• One 1/4" clip connector

• Always disconnect power to the appliance before inspecting or replacing electrical connectors
• Remove the old connector and ensure wire size and terminal type match this 1/4" connector before installing
• Fully seat the terminal and ensure a snug, non-wobbly fit; avoid forcing mismatched terminals
• If wiring is damaged, replace or repair the wire per the manufacturer's service instructions

This 1/4-inch quick-connect locking clip secures water tubing in push-to-connect fittings on your refrigerator's water and ice system. It locks the tube in place to help prevent leaks and accidental disconnection at the fitting. What it does:

• Locks 1/4-inch OD tubing into compatible push-to-connect fittings
• Helps maintain a secure seal to reduce drips at water line connections
• Replaces a missing, cracked, or loose clip on filter heads, inlet valves, or inline couplers
• Symptoms include leaks at a fitting or a tube that won't stay seated

• One 1/4-inch quick-connect locking clip

• Disconnect power and shut off the water supply before servicing; dispense water to relieve pressure
• Remove the old clip; ensure the tubing end is clean and cut square
• Fully insert the tube into the fitting until it bottoms out, tug lightly to seat, then install the clip in the collet groove
• Restore water and check all connections for leaks

• Designed for fittings that use 1/4-inch OD tubing. It will not fit 5/16-inch or 3/8-inch quick-connect fittings.

A short 8-32 x 3/8 hex washer head screw used to secure small appliance panels and components. Simple replacement for stripped or missing fasteners to restore proper fit and prevent rattles or loose parts. What it does:

• Secures panels, brackets, and small assemblies in place
• Helps eliminate vibration-related noise from loose parts
• Replaces missing, damaged, or corroded screws to restore proper alignment
• Fits standard 8-32 threaded holes requiring a 3/8" length screw

• One 8-32 x 3/8 hex washer head screw

• Use the correct 8-32 driver to avoid stripping the head
• Tighten snugly but avoid over-torquing to prevent thread damage
• Disconnect power and follow appliance safety procedures before accessing internal components
• Replace only like-for-like fasteners in load-bearing or safety-critical locations

This SCR (silicon controlled rectifier) controls high-current switching in the appliance's power circuit to enable reliable on/off control of heating or motor circuits. Designed for direct replacement of the original SCR component. What it does:

• Acts as a solid-state switch to control power to heating elements or motors when triggered by the appliance control board.
• Helps regulate current during start-up and run cycles to maintain proper operation of the appliance.
• Failures can cause symptoms such as no heat, intermittent operation, or the appliance not powering its load.
• Matches the OEM mounting and stud terminal configuration for proper electrical connection.

• One SCR component (8-32 stud) as pictured.

• Disconnect power to the appliance before servicing to avoid shock or damage.
• Use proper tools for the 8-32 stud terminals and ensure secure electrical and heatsink connections.
• Inspect mounting surfaces and replace any damaged hardware or thermal pads as needed for safe operation.

Size: 8-32 t. Includes 12 screws.

A rubber tubing grommet that fits a factory hole to protect and cushion refrigerant/water tubing and help prevent chafing or leaks. Simple, durable replacement that restores a sealed pass-through for tubing. What it does:

• Cushions and protects tubing where it passes through sheet metal or plastic openings
• Helps prevent chafing, rubbing and premature tubing wear
• Provides a cleaner, more secure tubing pass-through to reduce leak risk
• Commonly used on water lines, refrigerant lines or small-diameter tubing in appliances

• One tubing grommet

• Disconnect power and water supply before servicing the appliance
• Remove access panels as needed to reach the tubing hole; press-fit the grommet into the opening and route tubing through the slit
• Replace grommet if cracked, torn or excessively worn; ensure tubing is properly seated in the grommet
• Do not use sharp tools that could damage the grommet or tubing during installation

The Run Capacitor is an OEM part for GE refrigerators. It plays a crucial role in the refrigerator's cooling system by providing the necessary start and run voltage to the compressor. Without a properly functioning run capacitor, your refrigerator may struggle to maintain the desired temperature, leading to spoiled food and inefficient energy use.

Causes of a bad run capacitor include electrical surges, wear and tear over time, or overheating due to a malfunctioning refrigerator compressor or poor ventilation.

Symptoms of a bad Run Capacitor include:

• The refrigerator compressor fails to start.
• Unusual humming noises coming from the refrigerator.
• The refrigerator cycles on and off more frequently than normal.
• A noticeable increase in energy consumption as the refrigerator struggles to maintain the proper temperature.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Overload PTCR Combo is an OEM part for GE refrigerators. It is designed to protect the compressor from electrical overload, ensuring reliable performance and extending the life of the appliance. This part combines the functions of a positive temperature coefficient resistor (PTCR) and an overload relay.

Causes of a bad overload PTCR combo can include electrical surges, wear and tear over time, or internal component failure. A malfunctioning overload PTCR can lead to compressor issues and inefficient cooling.

Symptoms of a bad overload PTCR combo include:

• The refrigerator not cooling properly
• The compressor not starting or frequently cycling on and off
• Unusual clicking noises from the compressor area
• The refrigerator running continuously without cooling effectively

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement screw used to secure appliance components and panels so parts stay properly attached for safe operation. It's a direct-fit fastener matching OEM form and function. What it does

• Secures panels, trim, or internal components to prevent rattling or gaps
• Restores factory attachment where a screw is missing or stripped
• Helps maintain proper alignment of housing and service access
• Suitable when repair requires original-fit fasteners

• Disconnect power or unplug the appliance before servicing to avoid shock
• Use the matching screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed screws organized; replace only the screws that match the original locations

The Valve Double Im Asm is an OEM part for GE refrigerators. It houses two inlet water valves for the ice maker and water dispenser.

Causes of failure can include mineral buildup or scale deposits obstructing the valve pathways over many years of use. General wear and tear on the internal valve mechanisms from continuous operation can also take a toll.

Symptoms of a faulty assembly include things like:

• Not dispensing water
• Reduced ice production or incomplete cubes
• Water not entering the ice maker
• Ice that is clumped or has hollow areas

This GE replacement part is compatible with Hotpoint, RCA, and some Kenmore models.

Protective plastic cover that shields the appliance main control board from dust, moisture and accidental contact. Keeps the control electronics enclosed for safer operation and easier servicing without touching the board. What it does:

• Protects the main control board from spills, dust and physical contact that can cause shorts or damage
• Helps prevent accidental contact with live terminals during use or maintenance
• Keeps wiring and connectors secured and routed away from moving parts
• Restores the original enclosure for a proper OEM fit and finish
• Useful when the existing cover is cracked, warped or missing

• Always disconnect power to the appliance before servicing electrical components
• Remove interior panels or shelves as needed for access; retain mounting screws for reinstallation
• Align cover tabs and screw holes carefully to avoid stressing the board or connectors
• If the control board shows signs of damage, inspect or replace the board before reassembly

This fan gasket assembly seals the refrigerator/freezer fan housing to help maintain proper airflow and reduce noise. It replaces a worn or damaged seal to restore smoother fan operation and improve cooling performance. What it does:

• Creates a tight seal around the fan housing to prevent air bypass and reduce frost or temperature issues
• Dampens fan vibration to help lower operational noise
• Helps channel airflow for more efficient cooling
• Commonly used when you hear a noisy fan, notice reduced cooling, or see frost/ice buildup near the evaporator

• One fan gasket assembly

• Disconnect power to the appliance before beginning any repair
• Access may require removing interior panels or the evaporator cover—keep track of fasteners
• Handle thin gasket material carefully to avoid tearing; avoid stretching during installation

This valve body assembly routes and supports the refrigerator's water flow for the dispenser and ice maker. Replacing a cracked or leaking body restores proper water delivery and helps prevent leaks at the rear of the unit.

• Directs incoming water to the dispenser and/or ice maker
• Maintains sealed connections for water lines and valve components
• Helps resolve leaks around the rear valve area
• Symptoms can include no/slow dispenser flow or an ice maker not filling

• Unplug the refrigerator and shut off the household water supply
• Relieve line pressure; place a towel or container to catch residual water
• Note tubing and wire positions; transfer to the new assembly and ensure every connection is fully seated
• Restore water and power, then check all joints for leaks while dispensing and during an ice maker fill

This sound-deadening mastic helps quiet refrigerator operation by damping vibration on components and panels. Replace deteriorated or missing mastic to reduce rattles, buzzing, and metal-to-metal contact for smoother, quieter performance. What it does:

• Damps vibration between sealed-system tubing, compressor mounts, and cabinet surfaces
• Helps reduce humming, rattling, or buzzing noises from the rear/bottom of the unit
• Replaces hardened, cracked, or fallen-off mastic
• Helps prevent metal-to-metal contact that can amplify noise

• Sound-deadening mastic

• Unplug the appliance before accessing the rear compartment
• Remove old material and clean surfaces; ensure they are dry before applying the mastic
• Press firmly to secure; do not obstruct fans, vents, or moving parts
• Avoid stressing or puncturing sealed-system tubing;

This replacement power cord harness connects the appliance's incoming mains power to its internal wiring, restoring a secure electrical path. Use it to replace damaged or worn harnesses to help resolve power loss or intermittent operation. What it does:

• Routes mains power from the inlet to the control board and internal components
• Replaces frayed, cut, or heat-damaged wiring that can cause intermittent power or complete power failure
• Restores secure connector and terminal connections to reduce arcing or loose-contact symptoms
• Maintains factory routing and strain relief when installed correctly

• Disconnect power at the breaker or unplug the appliance before starting any repair
• Replace with the same connector orientation and routing as the original harness to ensure correct fit and strain relief
• Inspect related terminals and wire insulation; if you see melted terminals or heavy corrosion,

This replacement drain tube channels defrost and condensation water from the evaporator area to the drain pan, helping prevent water pooling and ice build-up in the fresh-food section. Restores proper drainage when the original tube is damaged. What it does:

• Directs defrost/condensation water to the drain pan during the refrigerator's automatic defrost cycle.
• Helps stop water pooling inside the fresh-food compartment and under crisper drawers.
• Reduces risk of frost or ice buildup near the evaporator when the original tube is cracked, kinked, or clogged.
• Provides a direct-fit replacement for the factory drain path when specified by OEM part number.

• Disconnect power to the appliance before servicing to avoid electrical shock.
• Remove food and drawer assemblies as needed to access the evaporator/drain area; some residual ice or water may be present.
• Clear any drain blockages and ensure the tube is seated without kinks so water flows freely to the drain pan.

Vacuum break valve for refrigerator drain helps stop siphoning and keeps defrost and condensation water flowing to the drain pan. Replacing a failed valve restores proper condensate drainage and can reduce leaks and standing water. What it does:

• Allows air into the drain line to break siphoning and maintain steady condensate flow.
• Directs defrost and condensation water to the drain pan to prevent pooling and ice buildup.
• Helps address symptoms such as slow draining, water under crisper/behind kick plate, and intermittent leaks.
• Simple, passive valve with no electrical components.

• Disconnect power (unplug or shut off breaker) before accessing internal components.
• Access the drain area per your model—typically near the evaporator or rear—remove panels carefully to reach the valve.
• Install with correct orientation and secure tubing connections; replace any cracked or brittle drain tubing.

This screw fastens appliance panels, brackets, and trim so parts stay secure and aligned. Replace a missing, stripped, or rusty screw to stop rattles and restore a tight, factory fit.

• Secures covers, brackets, and trim to the appliance cabinet or liner
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration noise and loose or misaligned parts
• Maintains proper fit of guards, kickplates, or internal panels

• Disconnect power; turn off water supply if working near water lines
• Match to the original fastener to size and thread
• Start threads by hand to avoid cross-threading; tighten snugly, not excessively
• If threading into plastic, avoid overtightening to prevent damage
