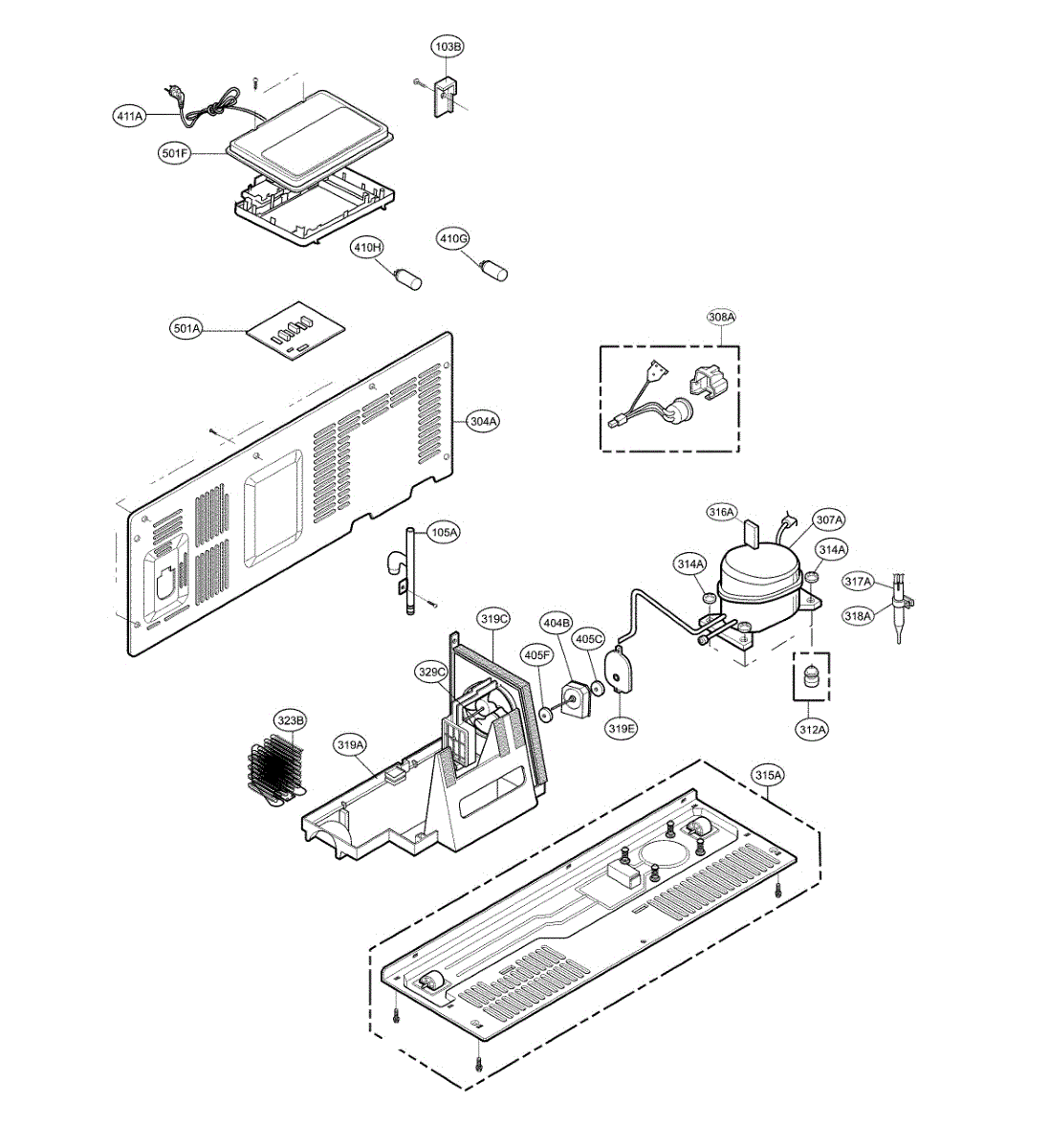

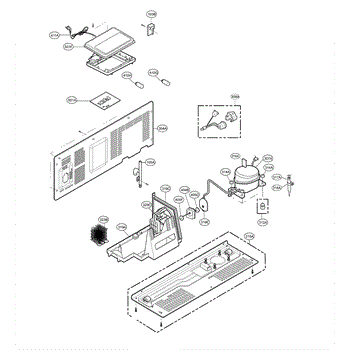

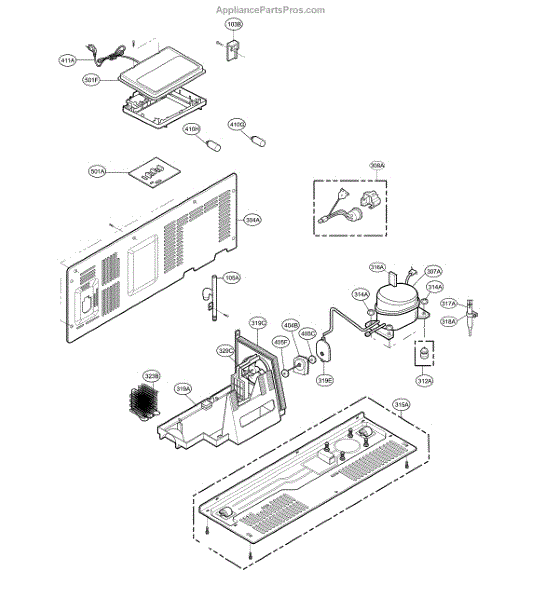

Parts for Lg LSXC22396D/00: Machine Compartment Parts

This is a replacement drain tube assembly that directs water from the appliance tub to the drain pump or household drain, helping restore proper water removal and reduce leaks. It's a direct-fit service part used in the drainage system. What it does:

• Channels wastewater away from the tub to the drain pump or drain line
• Helps prevent pooling or slow draining caused by a damaged or disconnected tube
• Restores a sealed path to reduce leaks at the tub-to-pump connection
• Suitable when the original drain tube is cracked, split, collapsed, or leaking

• One drain tube assembly as shown

• Disconnect power and water before beginning any repair to avoid shock or flooding
• Inspect and clean mating surfaces and clamps; replace clamps if corroded or damaged
• Ensure correct routing and secure connections to prevent kinks and leaks

This dispenser lever holder is the mounting bracket behind the refrigerator's dispenser paddle. It supports and aligns the lever and switch so water or ice dispenses reliably when the paddle is pressed.

• Holds and guides the dispenser lever and actuator switch inside the dispenser housing
• Provides a secure pivot point for smooth paddle movement
• Helps ensure consistent activation of water and ice dispensing
• Damage can cause a loose or stuck paddle, intermittent dispensing, or no dispense

• Disconnect power and shut off the water supply before servicing
• Remove the dispenser panel/escutcheon to access the lever assembly; note part orientation
• Transfer the lever, switch, and return spring to the new holder and secure with the original fasteners
• Restore power/water and test dispensing before reinstalling trim

The Ice Door Lever Spring is an OEM component compatible with LG refrigerators. It is part of the mechanism that opens and closes the ice door on LG French door refrigerators. Over time, springs can lose resiliency or become misaligned.

Causes may be extensive usage over years or damage like kinking that compromises spring function.

Symptoms of a bad ice door lever spring include:

• The ice door not latching fully when closed
• Difficulty opening or poor balance while moving the door
• The lever rubbing or catching instead of moving smoothly

This OEM LG part is also compatible with Sears/Kenmore side-by-side refrigerators.

This insulated duct assembly cushions and channels airflow while reducing noise and heat transfer. It restores proper ventilation and helps maintain efficient operation and quieter performance. What it does:

• Replaces a damaged or worn insulated duct to restore correct airflow routing
• Reduces vibration noise and minimizes heat loss from the airflow path
• Helps prevent air leaks that can cause reduced performance or localized heating
• Fits where the original insulated duct was installed and works with the appliance's venting system

• Disconnect power and any gas supply before servicing
• Inspect surrounding seals and fasteners; replace any damaged clips or tape
• Follow OEM instructions for routing and securing the duct to avoid pinching

This case assembly for the refrigerator control area houses and protects the control board and user interface components, helping keep electronics secure and accessible for diagnostics or replacement. What it does:

• Protects the control board and wiring from damage, dust, and moisture
• Provides mounting points and alignment for the user interface and controls
• Keeps the control area organized for service access and replacement
• Helps maintain proper airflow around control electronics where applicable

• Power off and unplug the appliance before servicing to avoid shock or injury
• Handle the control housing and any attached ribbons or connectors carefully to avoid damage
• Keep screws and small fasteners organized; verify fit before final assembly
• Follow manufacturer instructions and ESD precautions

This guide rail helps the appliance drawer slide smoothly and stay aligned, restoring reliable opening and closing. It reduces binding and sagging so drawers operate quietly and track correctly. What it does

• Supports and guides the drawer along its track for smooth movement
• Helps prevent drawer sagging, misalignment, or binding during use
• Reduces noise and sticking caused by damaged or worn rails
• Restores proper engagement with the drawer rollers or slides

• Safety first: disconnect power (or unplug) and remove any contents before service
• Remove the drawer or panel to access the old rail, keep fasteners for reuse if applicable
• Align the replacement rail with the existing mounting points and secure with the original screws
• Test drawer operation after installation and re-tighten fasteners if needed

This bucket cover restores the top enclosure of the washer tub so water stays contained and the wash basket operates as designed. It helps protect laundry and internal components from splashes and debris. What it does:

• Fits over the wash bucket to cover the tub opening and direct water flow
• Helps prevent water spray and leaks during fill and spin cycles
• Keeps clothing and loose items from entering the tub gap
• Contributes to stable basket operation and reduces direct contact with internal parts

• Disconnect power and water supply before beginning any repair
• Remove the cabinet or access panel as required by your model to reach the bucket area
• Use appropriate hand tools; support the tub/basket to avoid displacement during removal/installation
• Follow OEM instructions for torque, alignment, and reassembly

This ice bucket assembly stores and delivers ice to the dispenser. Replacing a damaged bucket restores smooth, reliable dispensing and helps prevent jams when the original container is cracked, worn, or no longer engaging the drive.

• Stores finished ice beneath the icemaker and positions it for dispensing
• Interfaces with the dispenser drive to move ice into the chute when activated
• Helps maintain proper alignment for consistent cube delivery
• Common symptoms: cracked or broken container/tabs, ice won't dispense or jams, grinding/skipping during dispense

• Disconnect power to the refrigerator before servicing
• Remove the old bucket; empty ice and note the drive coupler orientation
• Seat the new assembly fully so the drive engages; transfer any reusable covers from the original if needed
• Restore power and test ice dispensing

This drawer tray assembly replaces a damaged or broken refrigerator drawer to restore storage and organization inside the fresh-food compartment. Durable molded tray that supports produce and other stored items for normal daily use. What it does:

• Replaces a cracked, warped, or missing refrigerator drawer so food stays contained
• Restores smooth sliding and proper seating when the old drawer no longer engages tracks
• Helps prevent items from shifting or falling out when opening and closing the compartment
• Fits as the single molded tray component of the drawer assembly

• One (1) drawer tray assembly

• Remove food and empty the drawer area before starting; handle glass or plastic parts carefully
• Slide the old drawer out and lift to disengage; align the new tray on tracks and seat fully
• No specialized tools required for most installations; model-specific instructions if any clips or supports are present
• If working near electrical components, unplug the appliance or disconnect power to be safe

This shelf assembly replaces a broken or worn refrigerator shelf so you can keep food organized and stored safely. It restores a stable, level surface for containers and helps prevent spills or items tipping. What it does:

• Provides a flat, secure shelf surface for refrigerated items.
• Replaces cracked, sagging, or missing shelving that causes unstable storage.
• Helps maintain proper airflow and organization inside the fresh-food compartment.
• Visible trim or support features restore original fit and appearance.

• One refrigerator shelf assembly (as pictured/numbered by manufacturer)

• Remove food and unplug or power off the refrigerator before starting.
• Handle glass shelves carefully; use gloves to prevent cuts and avoid dropping.
• Slide or clip the shelf into existing tracks or supports per the cabinet's design.
• If the shelf has trim or fasteners, keep original hardware and reinstall as needed.

This replacement door gasket assembly restores the airtight seal around a refrigerator door to help maintain stable temperatures and reduce frost and moisture buildup. Use it to replace torn, warped, or leaking gaskets and improve sealing. What it does:

• Seals the refrigerator door to keep cold air in and warm air out.
• Helps reduce frost and moisture inside the compartment.
• Commonly replaced when the gasket is cracked, warped, compressed, or allows noticeable air leaks.
• Installing a good seal can help the appliance maintain set temperatures more consistently.

• Disconnect power and remove food/media from the door area before starting.
• Clean the door channel and gasket seating area to ensure proper adhesion/seating.
• Align the gasket evenly and engage all retaining tabs or adhesive per the original orientation.

This name plate is the exterior emblem that mounts to the appliance's front panel. It replaces a missing, cracked, or faded badge to restore a clean, factory look and cover the designated trim area.

• Attaches to the outer panel to display brand/series identification
• Restores a finished appearance where the original emblem sits
• Direct replacement for a lost, damaged, or worn badge
• Typical symptoms: missing emblem, loose or broken tabs, peeling, or discoloration

• Disconnect power before servicing the appliance
• Carefully remove the old emblem; release any tabs from behind or peel away remaining adhesive
• Clean and dry the mounting surface; remove all residue for best fit
• Align with the recess/holes and press evenly until fully seated

This small stopper fits inside the handle assembly to limit travel and keep the handle properly seated. Replacing a worn or missing stopper restores a solid, secure feel when opening and closing your appliance.

• Provides a positive stop for handle movement
• Helps keep the handle aligned and seated against its mounts
• Replaces a cracked, deformed, or missing stopper
• Common signs: handle feels loose or wobbly, over-rotates, or shifts/clicks during use

• Unplug the appliance before servicing to prevent injury
• Support the handle and protect the finish while removing fasteners
• Note the original stopper's orientation and install the new one the same way
• Tighten fasteners evenly; do not overtighten to avoid damaging plastic or finishes

This is the door handle mounting bracket assembly that secures the handle firmly to the door. It replaces a damaged or stripped bracket to restore a solid, wobble-free grip and reliable handle attachment.

• Mounts and secures the door handle to the door/frame
• Maintains alignment to prevent handle wobble or looseness
• Replaces cracked, broken, or stripped brackets to restore proper attachment
• Typical symptoms: loose or wobbly handle, handle pulls off, visible damage at the handle mount, rattling at the handle area

• Disconnect power before servicing and work carefully to avoid damaging the door surface
• Support the handle while loosening and tightening set screws or fasteners
• Retain and reuse original mounting hardware if it's in good condition
• Align the new bracket in the original location; do not overtighten fasteners

Restore a tight seal on your refrigerator door with this door gasket assembly. A fresh, flexible gasket helps keep cold air in and warm air out, maintaining proper temperatures and reducing frost and moisture around the door.

• Creates an airtight seal between the refrigerator door and cabinet to maintain consistent cooling
• Helps reduce condensation, frost, and warm spots near the door
• May help if the door won't close fully, the gasket is torn or warped, or temperatures fluctuate
• Magnetized edge engages the cabinet for a secure seal when the door is closed

• Unplug the refrigerator before beginning; wear cut-resistant gloves
• Soften the gasket in warm water or with gentle heat to ease installation and improve fit
• Remove the old gasket carefully, noting retainer/channel orientation; press new gasket fully into the track
• Check door alignment and perform a dollar-bill test around the perimeter to confirm a uniform seal

This case assembly is the molded housing that supports and finishes the refrigerator's home-bar compartment, restoring the opening and mounting points so the bar door and components fit and function correctly. What it does:

• Replaces cracked, broken or warped home-bar housing that can prevent the door from seating properly
• Provides the mounting surface and alignment for the home-bar door and internal components
• Helps maintain a proper seal at the home-bar opening to reduce air leakage
• Stops loose or rattling parts in the bar area and restores a finished appearance

• Disconnect power to the appliance before beginning work
• Remove the door trim and any fasteners to access the existing case assembly; keep screws and clips for re-use only if undamaged
• Handle the replacement carefully to avoid stressing plastic tabs; ensure all mounting tabs and clips engage fully
• After installation, check door alignment and sealing, and test operation

This door basket is the upper-rack basket assembly that holds small items securely in the dishwasher, helping keep utensils and small dishes positioned for thorough cleaning. It replaces a damaged or worn basket to restore proper loading. What it does:

• Secures small items and utensils in the upper rack so they stay in place during wash cycles
• Prevents items from falling into the lower rack or blocking spray arms, which can reduce cleaning performance
• Replaces cracked, warped, or broken basket sections that no longer support dishes safely
• Helps maintain proper water flow and coverage by keeping load items organized

• One door basket (upper rack)

• Designed to snap or slide into the upper rack;
• Inspect surrounding rack components and track for wear before installing
• Disconnect power and follow basic dishwasher safety procedures if service access requires removing panels
• Use common hand tools;

This Door Basket is the removable shelf that locks into the refrigerator door to hold bottles, jars, and condiments. Replacing a cracked or missing bin restores secure storage and helps keep items from tipping when the door moves.

• Provides on-door storage for bottles, jars, condiments, and small items
• Replaces a broken, cracked, or missing door bin
• Attaches to the door liner to keep items contained during opening/closing
• Common signs it's needed: bin won't stay seated, plastic is damaged, or items fall from the door

• Remove any items and support the bin with both hands
• Lift the old bin up and out of the door liner channels; align the new bin and press down until fully seated
• Ensure both ends are locked in evenly before reloading
• Handle plastic carefully to avoid cracking; do not force into place

This refrigerator door bin replaces a broken or missing shelf on the inner door, restoring organized, easy-to-reach storage. It seats into the molded tabs on the door liner to hold items securely and maximize usable space.

• Holds bottles, jars, and condiments on the door to free up shelf space
• Replaces cracked plastic or broken locking tabs
• Addresses a bin that won't stay seated, sags, or wobbles
• Ideal when a bin is missing or too damaged to safely store items

• Remove the old bin by lifting up to release it from the retaining tabs, then pull out
• Align the new bin's tabs/hooks with the slots on the door liner
• Press down/slide into place until fully seated and level
• Verify the bin is secure before loading; distribute weight evenly to prevent damage

This door stopper is the replacement part that cushions and limits a refrigerator door's travel to prevent slamming and reduce wear on hinges and seals. It helps restore smooth, controlled door movement and alignment. What it does:

• Absorbs impact as the door closes to prevent hard slams and noise
• Limits how far the door opens to protect adjacent cabinetry and seals
• Helps maintain proper door alignment for an even seal and consistent cooling
• Common symptom: door slams, hangs up, or doesn't stop at the correct open position

• One door stopper

• Disconnect power or unplug the appliance before inspecting or working near door components
• Installation typically requires removing the door trim or hinge cover—refer to your model's service instructions
• Handle small parts carefully and retain screws or clips removed during replacement
• If the door is heavy or awkward, get a helper to support it during work to avoid damage or injury

The Hinge Assembly, Upper is an OEM replacement part for LG refrigerators. This upper hinge assembly works together with the center hinge to provide balanced support and motion to the refrigerator doors.

Causes of a bad upper hinge assembly can include long-term wear and tear, accidents, or overloading the doors with excessive weight. Over time, the hinges may become misaligned or components can weaken.

Symptoms of a bad upper hinge assembly include:

• Gaps appearing along the top edge of the door seal
• Doors no longer closing flush or sealing properly
• Difficulty opening and closing the doors
• Noises or creaking coming from the hinge area

This OEM LG part is also compatible with select Sears/Kenmore brand models.

This hinge lever mounts on the refrigerator door hinge to guide door movement and closure, helping the door seal properly. Replacing a worn or broken lever restores smooth operation and consistent sealing.

• Guides hinge motion so the door opens and closes smoothly
• Helps maintain door alignment for a reliable gasket seal
• Replace if the lever is visibly cracked, worn, or deformed

• Disconnect power and support the door to prevent injury or damage
• Remove the hinge cover and fasteners; note the lever's orientation before removal
• Install the new lever in the same position and reassemble the hinge components
• Adjust hinge per model procedures if needed

This cap assembly for the duct secures and seals a dryer/exhaust duct connection to restore proper airflow and help prevent leaks. Designed to replace a worn or damaged duct cap and keep the vent path intact. What it does:

• Caps and secures the duct outlet to maintain a tight connection and reduce air leakage
• Helps direct exhaust airflow through the duct instead of escaping at the connection
• Can reduce lint and moisture escaping at a faulty or damaged duct joint
• Commonly replaced when the original cap is cracked, broken, or no longer holds the duct in place

• One cap assembly

• Disconnect and power off the appliance before servicing; follow the manufacturer's service manual
• Basic hand tools typically required; check panel or vent access before starting
• Inspect surrounding duct and fasteners; replace damaged clamps or tape as needed

This evaporator assembly replaces the sealed evaporator coil and housing that cools the freezer compartment and helps maintain proper low temperatures. Restores cold-air circulation and supports frost-management in frost-free refrigerators. What it does:

• Absorbs heat from the freezer compartment so refrigerant can carry heat away
• Works with the evaporator fan to circulate cold air through the cabinet
• Failing or damaged evaporators can cause warm/freezer not cold, frost buildup, or excessive frost/ice on coils
• Helps stop drip or pooling water from improper defrost when the evaporator assembly is functioning

• One evaporator assembly

• Service may require access to the sealed refrigeration system; follow manufacturer repair procedures
• Handle carefully to avoid puncturing the coil; damaged coils require sealed-system service
• Disconnect power before servicing and wear appropriate PPE when accessing internal components

A small retaining pin used to secure moving parts and keep components aligned for smooth operation. Replacing a worn or broken common pin can stop rattling and restore proper fit between linked parts. What it does:

• Holds or aligns two parts together so they move correctly and stay in position
• Helps prevent rattling, looseness, or parts slipping out of place
• Works as a simple mechanical fastener—no electronics involved

• One common pin

• Disconnect power to the appliance before beginning any service
• Keep track of small parts; lay out components in order to aid reassembly
• May require removal of trim or a hinge/retainer to access the pin—use basic hand tools
• If the pin is difficult to seat, do not force; inspect mating parts for damage

NOTE: This part also requires software update kit CJT30000002. DO NOT INSTALL WITHOUT UPDATING SOFTWARE. Call for more information.

The Compressor is an OEM part for LG refrigerators. As the primary component that circulates refrigerant to chill the refrigerator and freezer compartments, it is crucial for proper cooling operation. The compressor works with the condenser fan and evaporator coil to regulate temperatures inside the refrigerator.

Causes of a faulty compressor can include gradual breakdown of motor windings, loss of refrigerant pressure over time, or failure of electrical components vital to operation.

Symptoms of a bad compressor are:

• Elevated fridge/freezer temperatures unable to be maintained
• Frost patterns indicating poor or insufficient cooling
• Abnormal vibrations or sounds upon compressor cycling
• Error codes displayed regarding cooling performance

It is also compatible with Sears/Kenmore refrigerator models.


The Compressor Overload is an OEM part for LG refrigerators. It works to prevent damage by automatically shutting off power to the compressor in the event of overheating, helping to extend the life of the compressor.

Causes of a bad compressor overload include normal wear and tear over time, extended use in high-heat conditions, or physical damage that impacts its protective functions.

Symptoms of a bad overload include:

• The compressor failing to start or run
• Strange noises coming from the compressor
• An increase in the refrigerator's operating temperature
• Frequent and unexpected shut-offs of the compressor

This OEM LG part is also compatible with Sears/Kenmore refrigerator models.

This damper cushions and isolates the refrigerator compressor to reduce vibration and noise for smoother operation. It helps maintain stable compressor mounting and prevents metal-to-metal contact that can cause wear or rattling. What it does:

• Absorbs compressor vibrations to reduce noise and movement
• Helps protect the compressor housing and mounting points from shock
• Can reduce rattling or knocking sounds originating near the compressor area
• Supports proper alignment of the compressor assembly during operation

• One compressor damper (mounting isolator)

• Turn off power at the breaker and unplug the appliance before servicing
• Inspect mounting area and hardware; replace any damaged fasteners before installing the damper
• Position the damper on the compressor mount as shown in the service manual and secure per OEM guidance

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

This holder secures the dryer-related assembly in place to reduce movement and wear, helping maintain proper alignment and quieter operation. It's a simple replacement that restores part stability in the appliance. What it does:

• Secures a dryer assembly or component to the appliance frame to prevent shifting
• Helps reduce vibration and rubbing noises caused by a loose part
• Maintains correct alignment so related parts operate smoothly
• Used when the existing holder is cracked, broken, or missing

• Disconnect power before replacing any dryer components to avoid shock or injury
• Access location and removal steps vary by model; follow the appliance's service manual or exploded view
• Keep fasteners and adjacent parts organized for reassembly; replace any damaged clips or screws

This condenser assembly is the factory-style replacement condenser wiring and support used in compatible LG refrigerators to restore proper condenser connections and securement. It helps maintain reliable cooling system electrical routing and component support. What it does:

• Provides the correct wire routing and connections for the refrigerator condenser area
• Secures condenser components in place to prevent vibration and wear
• Restores proper electrical paths for condenser-related circuits to help the compressor/fan operate as intended
• Helps address symptoms like intermittent cooling, unusual vibration, or loose wiring in the condenser compartment

• One condenser assembly as shown

• Disconnect power and follow manufacturer safety procedures before starting work
• Inspect surrounding components (fan, compressor mounts, tubing) while replacing this assembly

This fan assembly is the rotating blower that moves air through the appliance to support drying, venting, and internal cooling. Replacing a worn fan restores proper airflow and reduces noise or overheating risks. What it does

• Spins the blower wheel to circulate air for drying, venting, or cooling functions.
• Restores airflow when the appliance has weak or no air movement.
• Reduces abnormal rattling, grinding, or humming caused by a damaged motor or wheel.
• Helps prevent overheating by maintaining adequate internal ventilation.

• One fan assembly.

• Disconnect power before starting any repair.
• Access may require removing outer panels or interior trim; keep fasteners organized.
• Handle wiring connectors and harnesses carefully; match connector positions during reassembly.
• Test operation after installation and reassemble panels securely before returning the appliance to service.

A replacement grille assembly that covers and protects the appliance fan while directing airflow for proper cooling and quieter operation. Restores the fan housing appearance and helps keep debris away from moving parts. What it does

• Protects the fan and motor from accidental contact and foreign objects
• Directs airflow for efficient cooling of the appliance components
• Helps reduce fan noise and vibration caused by loose or missing grille
• Keeps dust and large debris out of the fan area to prevent clogging

• Always disconnect power to the appliance before beginning any service
• Remove any access panels or kickplate to reach the fan area; keep fasteners for reinstallation
• Align clips or mounting tabs and secure all screws firmly but avoid overtightening

This DC motor drives the rotating component it's attached to—such as a fan blade, impeller, or gear—restoring smooth, reliable motion so your appliance can maintain the airflow or mechanical movement it was designed to deliver.

• Converts electrical power into controlled rotation for the connected part
• Restores proper airflow or mechanical movement when a motor has failed
• Common symptoms include the connected part not running, intermittent operation, unusual noise, or error codes
• Replaces a seized, noisy, or burnt-smelling motor

• Disconnect power (and water, if applicable) before servicing
• Note wire/harness orientation and routing before removal
• Transfer any reusable brackets, grommets, or the driven component (fan blade/impeller) from the original as needed
• Ensure the shaft spins freely and check for smooth, quiet operation after reassembly

This motor bracket secures the washer motor to the chassis, restoring proper alignment and reducing vibration and noise caused by a loose or damaged mount. Fits the OEM motor location to keep drive components stable. What it does:

• Provides a stable mounting point for the motor to prevent movement and misalignment
• Helps reduce excessive vibration and rattling during spin and agitate cycles
• Prevents motor-to-chassis contact that can cause grinding or unusual noises
• Maintains correct motor position for proper belt/drive engagement

• Disconnect power and water before starting any repair
• Support the motor or drum when removing/installing the bracket to avoid strain on wiring or drive components
• Keep existing hardware if reusable; replace stripped or damaged screws/bolts with OEM-specified fasteners
• If noise or vibration persists after installation, inspect motor bearings, suspensions, and mounts for related wear

This motor support damper sits between the refrigerator's compressor and base to absorb vibration and movement. Replacing a worn damper helps quiet rattles and humming from the back of the cabinet and keeps the compressor properly supported.

• Cushions the compressor to reduce transmitted vibration and noise
• Helps quiet humming, buzzing, or rattling from the lower rear of the refrigerator
• Maintains proper compressor alignment and support on the base pan
• Common signs of wear: increased vibration/noise, a cracked or flattened damper, or noticeable compressor movement when running

• Unplug the refrigerator and pull it forward to access the rear; allow the compressor to cool before working
• Support the compressor to remove load from the mount before loosening hardware
• Replace the damper and tighten mounting hardware evenly without over-compressing the rubber
• Avoid bending or stressing refrigerant tubing; wear gloves and eye protection

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Front Evaporator Motor Grommet is an OEM part for LG refrigerators. This grommet cushions and secures the evaporator motor, reducing vibrations and noise during operation to ensure efficient cooling.

Causes of a bad grommet can include prolonged use leading to material fatigue, exposure to extreme temperatures, or physical damage from accidental impacts. A damaged grommet can result in increased noise and potential misalignment of the evaporator motor.

Symptoms of a bad evaporator motor grommet include:

• Increased noise from the refrigerator
• Vibrations or rattling sounds
• Poor cooling performance
• The evaporator motor becoming loose

This OEM LG part is also compatible with Sears/Kenmore.

The Ice Dispenser Door Motor is an OEM part for LG refrigerators. This motor is responsible for the operation of the ice dispenser door, controlling its opening and closing mechanism to allow ice to be dispensed without letting warm air into the freezer.

Symptoms of a bad Ice Dispenser Door Motor include:

• The dispenser door not opening or closing properly,
• Ice not being dispensed when activated,
• Unusual noises coming from the dispenser mechanism.

Causes of ice dispenser door motor failure can include electrical issues such as shorts or wiring problems, mechanical wear over time, or blockages that strain the motor.

This OEM LG part is also compatible with Sears/Kenmore.

A film radial capacitor used in appliance electrical assemblies to stabilize voltage and support motor and control circuits. Replaces a worn or failed film capacitor to restore consistent operation and reduce electrical noise. What it does:

• Smooths and stabilizes voltage in motor and control circuits to help maintain reliable operation
• Reduces electrical noise that can cause humming or erratic behavior in appliances
• Helps ensure consistent motor start/run performance when the capacitor is the cause of symptoms
• Commonly replaced when appliances exhibit intermittent starts, humming, or control board errors linked to compromised capacitors

• Disconnect power to the appliance before accessing electrical components
• Discharge the capacitor safely before touching terminals to avoid shock
• Observe correct polarity/terminal orientation and secure connections per OEM guidance

The Capacitor is an OEM part for LG refrigerators. It plays a vital role in the electrical system, providing the necessary power boost to start the compressor and maintain its operation. This component ensures that the refrigerator runs efficiently by stabilizing voltage and improving overall performance.

Common causes of a bad capacitor include electrical surges, wear and tear over time, or exposure to excessive heat.

Symptoms of a bad capacitor include:

• The refrigerator not cooling properly
• The compressor not starting or running intermittently
• Unusual noises coming from the refrigerator
• The refrigerator cycling on and off frequently

This OEM LG part is also compatible with Sears/Kenmore models.

This main control board is the appliance's primary power and logic hub, replacing a faulty PCB to restore normal electronic control and power distribution. It mounts in the main control area and connects to the appliance's wiring harness. What it does:

• Receives and routes incoming power to control circuits and major components
• Manages control signals to motors, valves, compressors, and user interface electronics
• Replaces a failed board that causes unresponsive controls, no power to components, or intermittent operation
• Can resolve error codes or erratic behavior tied to a damaged or burned PCB

• One main control (power control) PCB assembly as shown

• Disconnect all power (unplug or shut off breaker) before accessing the board
• Take photos or label connectors before removing the wiring harness to ensure correct reconnection
• Handle the PCB by its edges and avoid touching components; observe anti-static precautions

The Ice Maker Assembly is an OEM replacement part for LG refrigerators. It automatically produces and dispenses batches of ice through the ice bucket and into the storage bin. Proper ice production is crucial for cold beverages and food preservation.

Causes of a bad ice maker assembly can be failures in the electronic control board, freezing components or water supply system. Regular filter changes help prevent excess mineral buildup.

Symptoms of a bad ice maker assembly include:

• No ice production or inconsistent amounts
• Ice cubes that are malformed, fused together or absorbed cold liquid
• Leaking or flooding from the ice maker area
• Error codes shown on the refrigerator display

This genuine LG OEM replacement part is also compatible with some Kenmore models.

The Ice Dispenser Auger Motor is an OEM part for LG refrigerators. This part is designed to drive the auger that moves ice from the ice bin into the dispenser chute. This motor ensures that ice is available on demand through the door dispenser.

Causes of a bad Ice Dispenser Auger Motor can include electrical issues such as a burnt-out motor, wear and tear on the motor's components over time, or damage from moisture or ice buildup that can affect the motor's functionality.

Symptoms of a bad Ice Dispenser Auger Motor include:

• The ice dispenser not dispensing ice, even though the ice bin is full.
• A humming or buzzing sound from the motor area without any ice being dispensed, indicating the motor is receiving power but failing to turn the auger.
• Intermittent or inconsistent dispensing of ice, which can suggest a failing motor.

This OEM LG part is also compatible with Sears/Kenmore.

The Water Filter Assembly is an OEM part for LG refrigerators that feature integrated water and ice. This important assembly helps ensure clean, pure water for drinking and ice production.

Causes of a bad water filter can include failure to change filters regularly as recommended, damage allowing bypass of unfiltered water, or issues with the electronic monitoring head.

Symptoms of a bad water filter assembly include:

• Cloudy or contaminated water dispensed
• Decline in filter's contaminant removal abilities
• Alarms signaling need for replacement despite a new filter
• Leaks or drips occurring around the filter housing

This replacement filter is also compatible with Kenmore, Samsung, and some GE models featuring internal water systems.

This water filter assembly replaces the refrigerator's water filtration module to help restore clear-tasting water and steady flow. Fits models that use the AGF80300705 assembly and installs at the refrigerator water inlet. What it does:

• Filters sediment and common taste/odor contaminants to improve drinking water quality
• Restores reduced water flow caused by a clogged or failing filter module
• Helps reduce visible particulates and cloudiness in dispensed water
• Prevents unfiltered water from reaching the dispenser/ice maker when installed

• Turn off refrigerator water supply before replacing the assembly to avoid leaks
• Hand-tighten connections; avoid overtightening fittings to prevent damage
• Run and discard the manufacturer-recommended initial volume of water after install to flush the system

The Dispenser Motor is an OEM part for LG refrigerators. It is the motor component housed inside the external ice and water dispenser.

This dispenser motor controls dispensing functions by operating the ice and water delivery system. It works with electronic controls to precisely dispense desired amounts of cubed ice or chilled water on demand.

Causes of a bad dispenser motor can include failures in motor electronics, damage from water damage, or normal wear over time.

Symptoms of a bad dispenser motor include:

• Inability to dispense ice or water through the external spout
• Malfunctions in ice or water delivery amounts
• Abnormal sounds or jerky motions from the dispenser area

Replacing the dispenser motor with this genuine LG OEM part restores convenient dispensing capabilities. It is also compatible with Sears/Kenmore refrigerator models.

The Water Tank is an OEM part for LG refrigerators. This tank stores and supplies water to the refrigerator's ice maker and water dispenser, ensuring a consistent supply of fresh, filtered water. It is designed to fit securely within the refrigerator, maintaining hygiene and preventing leaks.

Over time, the water tank can become worn out, cracked, or contaminated. Common causes of a bad water tank include regular wear and tear, exposure to extreme temperatures, or damage from mishandling or improper installation.

Symptoms of a bad water tank include:

• Leaking water inside the refrigerator
• Low water flow to the dispenser or ice maker
• Unusual tastes or odors in the water
• Visible cracks or damage to the tank

This OEM LG part is also compatible with Sears/Kenmore.

Replacement tube connector (mechanical) that secures and routes tubing in compatible LG appliances, helping restore proper fluid flow and reduce leaks from loose or damaged connections. A literal OEM-style connector used where a secure tube-to-component join is required. What it does:

• Joins and secures tubing to appliance components or chassis to maintain a stable connection
• Keeps tubing aligned to prevent kinks or dislodging that can interrupt flow
• Commonly replaced when you see dripping, visible leaks, loose tubing, or poor water flow
• Fits the original mounting interface for reliable mechanical retention

• Disconnect power and shut off the water supply before starting any repairs
• Inspect tubing and nearby fittings for damage; replace any compromised tubing before installing the connector
• Seat the connector fully and secure per the appliance's service instructions; avoid overtightening which can damage tubing
• After installation, restore water and power and check the connection for leaks during a short test cycle

The Connector (Mech), Tube is an OEM part for LG refrigerators. It is used to securely connect water tubing within the refrigerator, ensuring a reliable flow of water to components such as the ice maker and water dispenser.

Causes of a bad connector can include wear and tear over time, physical damage from improper installation or handling, or degradation due to exposure to varying temperatures and water pressure.

Symptoms of a bad connector include:

• Leaks or drips around the connector area
• Reduced water flow to the ice maker or water dispenser
• Water pooling inside or around the refrigerator
• The ice maker or water dispenser not functioning properly

This OEM LG part is also compatible with Sears/Kenmore models.

This mechanical mounting band secures a bracket assembly inside the appliance to keep components aligned and reduce vibration. It restores proper bracket positioning so moving parts run quietly and reliably. What it does:

• Holds a bracket or component assembly in place to maintain proper alignment
• Dampens movement and reduces vibration-related noise or rattling
• Prevents excess wear by keeping parts from shifting during operation
• Helps maintain correct clearances to avoid interference or rubbing

• Disconnect power before inspecting or replacing internal parts
• Remove only the fasteners necessary to access the bracket; keep track of hardware
• Secure all fasteners to the manufacturer's torque or snug specification
• Replace the band if bent, cracked, or missing to restore proper fit and function

This LED assembly restores the TV's backlight by replacing a failed LED strip, improving screen brightness and uniformity for visible picture. Designed to match the original part's fit and function. What it does:

• Replaces the TV's failed LED backlight strip to restore screen illumination
• Can resolve symptoms such as dim or dark screen, uneven brightness, or vertical/horizontal dark bands
• Helps stop flickering or intermittent backlight outages when caused by the LED strip
• Works with the TV's existing power board and connectors

• Disconnect power and unplug the TV before starting any repair
• Handle LEDs and the circuit board carefully; avoid touching LED surfaces and flexing the strip
• Use anti-static precautions and keep small screws and brackets organized during reassembly

This LED assembly is the backlight strip used to illuminate an LCD panel, restoring even screen brightness and color when individual LEDs fail or the backlight dims. It replaces a damaged or faulty LED strip to improve picture visibility. What it does:

• Provides uniform backlighting behind the LCD panel for consistent brightness across the screen
• Replaces burned-out or flickering LEDs that can cause dark spots, vertical bands, or uneven lighting
• Stops intermittent or flashing backlight-related display issues caused by failed LED elements
• Works with the TV's existing power module and driver board to restore normal backlight operation

• Disconnect power and unplug the TV before beginning any repair
• Handle the LED assembly and circuit board by the edges; avoid touching LEDs or solder joints
• Use proper tools and keep small screws/parts organized; follow TV disassembly guidance for your model

This temperature sensor monitors refrigerator temperatures and sends signals to the control board so it can regulate cooling and airflow. Replacing a failed sensor restores accurate readings and consistent temperatures in the fresh food and freezer sections.

• Measures internal compartment temperature for the control system
• Helps the board regulate compressor and evaporator fan operation to maintain setpoints
• Supports stable cooling and proper system cycling
• Failure may present as sections too warm or too cold, temperature swings, or frequent cycling

• Disconnect power to the refrigerator before servicing
• Access point varies by model; commonly behind an interior cover or clipped near the evaporator
• Note wire routing and any clips/insulation and transfer them to the new sensor
• Restore power and allow up to 24 hours for temperatures to stabilize

The Freezer Temperature Sensor is an OEM part for LG refrigerators. It plays a critical role in precisely monitoring freezer compartment temperatures to maintain a consistent cold environment for food storage.

Causes of a bad temperature sensor can include wear from years of use, moisture damage impairing sensor function, or physical impact affecting circuit integrity.

Symptoms of a bad temperature sensor include:

• Inability to regulate freezer temperatures properly
• Wide temperature fluctuations outside of set range
• Repeated ice maker or cooling failures
• Error codes indicating temperature control issues

This OEM LG replacement sensor is also compatible with some Kenmore models.
