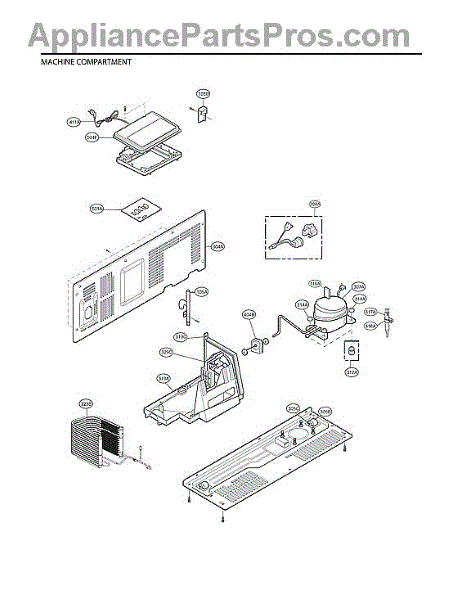

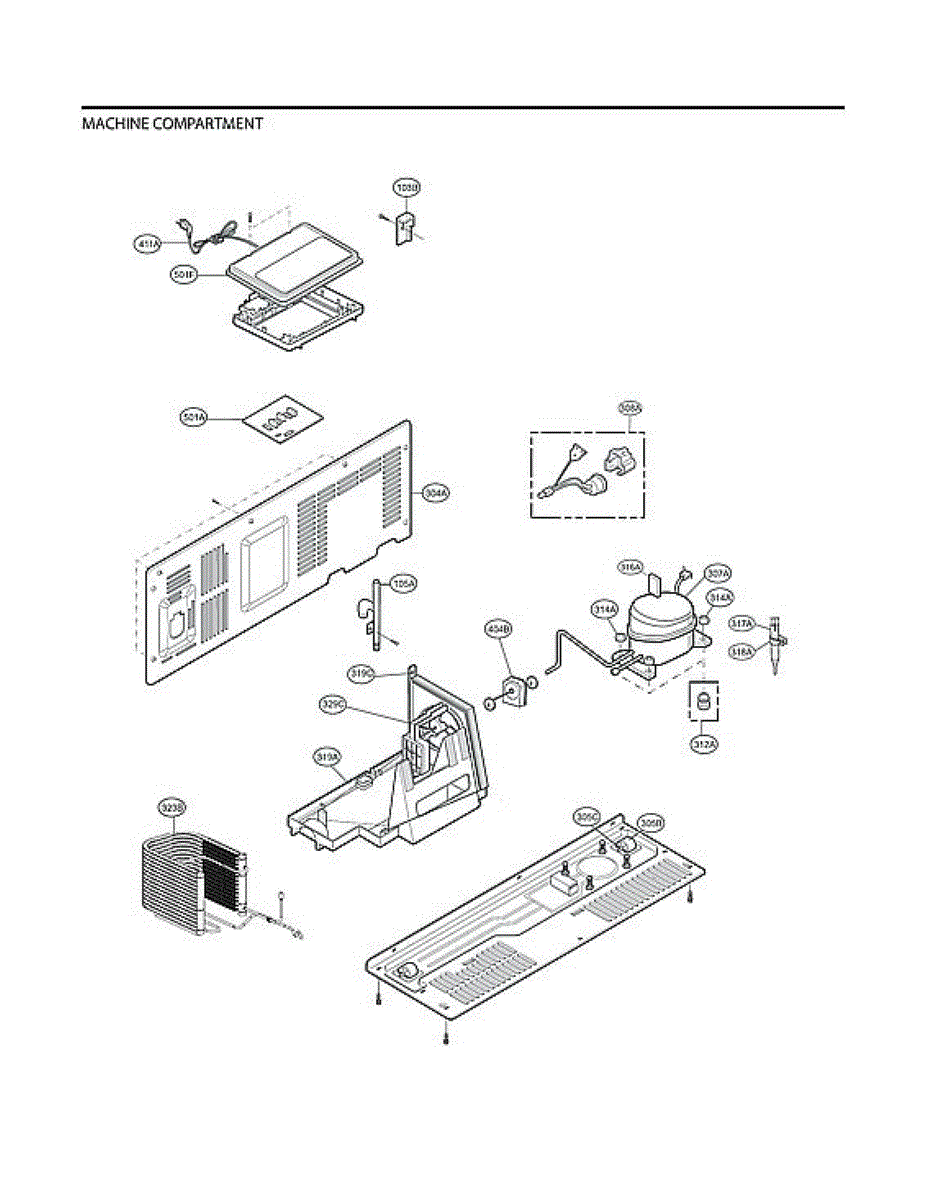

Parts for Lg LSXC22426S/07: Machine Compartment Parts

Replace your refrigerator's rear handle if it's cracked, broken, or missing. This structural support handle mounts to the back panel of your unit.

Water pooling under your refrigerator? A damaged drain tube assembly causes leaks and water buildup. This direct-fit part restores proper drainage.

This dispenser lever holder is the mounting bracket behind the refrigerator's dispenser paddle. It supports and aligns the lever and switch so water or ice dispenses reliably when the paddle is pressed.

• Holds and guides the dispenser lever and actuator switch inside the dispenser housing
• Provides a secure pivot point for smooth paddle movement
• Helps ensure consistent activation of water and ice dispensing
• Damage can cause a loose or stuck paddle, intermittent dispensing, or no dispense

• Disconnect power and shut off the water supply before servicing
• Remove the dispenser panel/escutcheon to access the lever assembly; note part orientation
• Transfer the lever, switch, and return spring to the new holder and secure with the original fasteners
• Restore power/water and test dispensing before reinstalling trim

Spring for the ice door lever mechanism in your refrigerator's dispenser. Replace if the spring is stretched, broken, or missing and the ice door won't stay closed.

Control panel not responding or display damaged? This refrigerator control housing protects the control board and interface. Moderate DIY repair, 30-45 minutes.

Fix uneven cooling or excess noise with this insulated duct assembly. Restores proper airflow between compartments and reduces heat transfer in your fridge.

Guide rail that supports and aligns refrigerator drawers for smooth sliding. Replace if cracked, broken, or worn causing drawer binding or misalignment.

Replaces a cracked, broken, or missing bucket cover on your refrigerator. Installs over the tub opening to contain water and protect internal components.

Ice won't dispense or jams in the chute? A damaged ice bucket with worn gears or cracks prevents smooth delivery. This assembly restores reliable dispensing.

Plastic cap that covers the air duct opening in your refrigerator. Replace if cracked, broken, or missing to restore proper airflow channel coverage.

Refrigerator drawer tray assembly that holds items in the refrigerator compartment. Replace if cracked, broken, or damaged to restore proper storage.

Refrigerator shelf assembly for side-by-side models. Replaces cracked, broken, or worn shelving. Installs in fresh food compartment for storage.

Freezer shelf assembly for side-by-side refrigerators. Replaces cracked, broken, or missing shelves in the freezer compartment. Direct fit component.

Glass freezer shelf assembly with frame provides organized storage in your refrigerator. Replace cracked, chipped, or missing shelves to restore space.

Refrigerator tray cover assembly that sits above the storage tray in your side-by-side fridge. Replace if cracked, broken, or missing for proper fit.

Seals your refrigerator door to maintain stable temperatures and prevent frost buildup. Replace if torn, warped, or leaking. Confirm fit with your model.

This name plate is the exterior emblem that mounts to the appliance's front panel. It replaces a missing, cracked, or faded badge to restore a clean, factory look and cover the designated trim area.

• Attaches to the outer panel to display brand/series identification
• Restores a finished appearance where the original emblem sits
• Direct replacement for a lost, damaged, or worn badge
• Typical symptoms: missing emblem, loose or broken tabs, peeling, or discoloration

• Disconnect power before servicing the appliance
• Carefully remove the old emblem; release any tabs from behind or peel away remaining adhesive
• Clean and dry the mounting surface; remove all residue for best fit
• Align with the recess/holes and press evenly until fully seated

Small stopper that fits inside the handle assembly to limit travel and keep the handle properly seated. Replace if worn, missing, or broken to restore secure feel.

Restore a tight seal on your refrigerator door. Replace this gasket when you notice frost buildup, warm spots, or air leaks. Confirm fit with your model.

Replace your broken or cracked refrigerator door basket. This storage bin installs on the interior door to hold condiments, beverages, and items.

Upper door basket for refrigerator doors. Replaces cracked, broken, or missing bins. Holds small items securely in side-by-side models.

Replacement basket assembly door that secures the dishwasher utensil/cutlery basket and keeps small items contained during wash cycles. Restores proper basket closure to help prevent items from falling into the lower rack. What it does:

• Secures the utensil/cutlery basket so forks, knives and small items stay contained during a cycle
• Stops loose items from shifting into the lower rack and interfering with spray arms
• Reduces rattling and noise caused by a cracked or broken basket door
• Replaces a cracked, warped or non-latching basket door to restore normal basket function

• One basket assembly door

• Disconnect power and water to the dishwasher per the owner's manual before starting any repair
• Inspect and retain the original mounting clips or screws; the door may fasten with clips or small screws depending on model
• Align the door with the basket and snap or secure it into place; test by closing the basket and running a short cycle to fit
• If the original hardware is damaged or missing, obtain matching fasteners from the manufacturer or parts supplier

Broken or missing door basket letting items tip and fall? This removable shelf securely holds bottles, jars, and condiments in your refrigerator door.

Replace a cracked, broken, or missing door bin. Snaps into molded tabs on the inner door liner to hold bottles, jars, and condiments securely.

Replacement door handle assembly for refrigerators. Installs on the exterior door to provide a secure grip. Replaces cracked, broken, or loose handles.

Fix a sagging or misaligned refrigerator door with this upper hinge assembly. Restores smooth opening and closing while eliminating gaps. DIY-friendly repair.

Upper door hinge assembly for refrigerators. Mounts at the top of the cabinet to support and pivot the fresh food door. Replace if bent, cracked, or worn.

This hinge lever mounts on the refrigerator door hinge to guide door movement and closure, helping the door seal properly. Replacing a worn or broken lever restores smooth operation and consistent sealing.

• Guides hinge motion so the door opens and closes smoothly
• Helps maintain door alignment for a reliable gasket seal
• Replace if the lever is visibly cracked, worn, or deformed

• Disconnect power and support the door to prevent injury or damage
• Remove the hinge cover and fasteners; note the lever's orientation before removal
• Install the new lever in the same position and reassemble the hinge components
• Adjust hinge per model procedures if needed

Hinge cover assembly for side-by-side refrigerators. Replaces cracked, broken, or missing hinge covers on the door frame for a clean appearance.

Replaces damaged, cracked, or missing outer cover panel on your refrigerator. Restores finished appearance and protects internal components.

Seals and protects your refrigerator's vent duct outlet, directing airflow while keeping moisture and debris out. Replace if cracked or missing. Verify fit by model number before ordering.

Freezer not cooling or icing up? This evaporator coil and housing assembly absorbs heat and restores proper cold-air circulation in your refrigerator.

Refrigerator roller wheel for leveling and mobility. Replaces worn, cracked, or broken rollers that prevent smooth movement or proper leveling.

Rattling or loose parts in your refrigerator? This retaining pin secures moving components and keeps them aligned for smooth, quiet operation.

The Compressor, Set Assembly is an OEM part for Whirlpool refrigerators. This assembly includes the compressor and additional modules required for proper operation, such as the condenser coil, filter drier, accumulator, and discharge line. Working together, these components circulate refrigerant through the fridge to maintain consistent internal cooling.

Causes of a bad compressor assembly can include leaks within the sealed system that allow refrigerant to escape over time. The compressor motor may also decline in performance or fail due to years of operation.

Symptoms of a failed compressor assembly include:

• Abnormal vibrations or loud noises from the rear of the fridge
• Inability to maintain proper internal fridge and freezer temperatures
• Refrigerant charge loss leading to inefficient or inadequate cooling

This OEM Whirlpool part is compatible with KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

Fix incorrect refrigerator temperatures with this thermistor assembly. Senses temperature and signals the control board for proper cooling operation.

Vibration-isolating grommet that mounts between the compressor and chassis. Replace if cracked, worn, or missing to restore proper cushioning.

Replaces broken or missing refrigerator door stop. Limits door travel to prevent over-extension and maintain proper alignment and smooth operation.

This noise damper reduces vibration and rattling sounds from refrigerant lines in your refrigerator. It cushions the copper tubing against the cabinet to prevent metal-on-metal contact that creates annoying noises. Install this damper if your refrigerator makes clicking, rattling, or vibrating sounds, especially when the compressor cycles on and off.

This noise damper reduces vibration and rattling sounds from refrigerant lines in your refrigerator. It cushions the copper tubing against the cabinet to prevent metal-on-metal contact that creates annoying noises. Install this damper if your refrigerator makes clicking, rattling, or vibrating sounds, especially when the compressor cycles on and off.

Secures the drier assembly to the refrigerator frame. Replace if the clip is cracked, broken, or missing to restore stability and reduce movement.

Drain tray assembly for side-by-side refrigerators. Collects defrost water beneath the appliance. Replace if cracked, warped, or missing.

If your refrigerator is noisy or not cooling properly, the fan assembly may be worn. This part circulates air to maintain even temperatures throughout.

Fixes warm or cool spots in your refrigerator. This fan guide assembly directs proper airflow in the compartment. Compatible with multiple models.

Refrigerator running loud or fan exposed? This fan grille assembly protects the fan motor, directs airflow, and reduces noise. Simple snap-in install.

Fix uneven cooling or noisy fan operation with a new circulation fan motor. This DC motor restores proper airflow across coils. Moderate DIY repair.

Fix excessive vibration and loud noises from your refrigerator with this motor bracket. Secures the motor to the chassis, preventing misalignment issues.

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

Replaces a worn or broken evaporator fan motor grommet in your refrigerator. Cushions the motor to reduce vibration and noise during operation.

The Ice Dispenser Door Motor is an OEM part for LG refrigerators. This motor is responsible for the operation of the ice dispenser door, controlling its opening and closing mechanism to allow ice to be dispensed without letting warm air into the freezer.

Symptoms of a bad Ice Dispenser Door Motor include:

• The dispenser door not opening or closing properly,
• Ice not being dispensed when activated,
• Unusual noises coming from the dispenser mechanism.

Causes of ice dispenser door motor failure can include electrical issues such as shorts or wiring problems, mechanical wear over time, or blockages that strain the motor.

This OEM LG part is also compatible with Sears/Kenmore.

Control board cover assembly for side-by-side refrigerators. Protects the PCB from dust and damage. Replace if cracked, broken, or missing clips.

Ice maker not making ice or quit working? This ice maker assembly produces ice within the freezer. Common fix for refrigerators with no ice production.

The Auger Motor is an OEM part for LG refrigerators. It is responsible for dispensing ice from the icemaker into the ice bucket.

Symptoms of a bad auger motor include:

• Slow or incomplete ice filling of the ice bucket
• Ice clumping or jamming in the auger assembly
• Grinding or rubbing noises coming from the icemaker region
• The icemaker not producing any ice at all

Causes of a bad auger motor can be wear and tear over time, freezing or ice buildup preventing proper operation, or failure of internal motor components.

This OEM LG part is also compatible with select Sears/Kenmore models.

Fix water leaking from filter area or pooling under your fridge. This assembly holds the filter securely and prevents leaks at the connection point.

Removes contaminants for clean, fresh-tasting water and ice. Replace every 6 months or 200 gallons to maintain water quality. Verify fit with your model.

Fix a dispenser that won't move or makes grinding noises. This motor powers the actuator paddle to restore smooth water and ice dispensing.

Water reservoir tank for side-by-side refrigerators. Stores filtered water for door dispenser. Replace if cracked, leaking, or damaged. Direct fit part.

Replaces cracked or broken tube connector in your refrigerator. Secures and routes tubing to prevent leaks from loose connections. Easy install.

Fix no water dispensing or leaking water lines with this inlet valve assembly. Controls water flow to your refrigerator. Straightforward DIY repair.

Connects water tubing inside your refrigerator to supply the ice maker and water dispenser. Replace if cracked, leaking, or unable to hold tubing securely.

Refrigerator hose clamp band secures water lines and hoses. Replace if cracked, loose, or causing leaks. Verify fit with your model number before ordering.

Tube cover for refrigerator water lines. Replaces cracked, broken, or missing covers that protect tubing connections. Installs over exposed tubes.

Secures hoses and tubing in your refrigerator to prevent leaks. Replace if worn, cracked, or losing grip. Verify fit with your model number listed.

This LED assembly restores the TV's backlight by replacing a failed LED strip, improving screen brightness and uniformity for visible picture. Designed to match the original part's fit and function. What it does:

• Replaces the TV's failed LED backlight strip to restore screen illumination
• Can resolve symptoms such as dim or dark screen, uneven brightness, or vertical/horizontal dark bands
• Helps stop flickering or intermittent backlight outages when caused by the LED strip
• Works with the TV's existing power board and connectors

• Disconnect power and unplug the TV before starting any repair
• Handle LEDs and the circuit board carefully; avoid touching LED surfaces and flexing the strip
• Use anti-static precautions and keep small screws and brackets organized during reassembly

This LED assembly is the backlight strip used to illuminate an LCD panel, restoring even screen brightness and color when individual LEDs fail or the backlight dims. It replaces a damaged or faulty LED strip to improve picture visibility. What it does:

• Provides uniform backlighting behind the LCD panel for consistent brightness across the screen
• Replaces burned-out or flickering LEDs that can cause dark spots, vertical bands, or uneven lighting
• Stops intermittent or flashing backlight-related display issues caused by failed LED elements
• Works with the TV's existing power module and driver board to restore normal backlight operation

• Disconnect power and unplug the TV before beginning any repair
• Handle the LED assembly and circuit board by the edges; avoid touching LEDs or solder joints
• Use proper tools and keep small screws/parts organized; follow TV disassembly guidance for your model

If your refrigerator isn't cooling properly or temperatures fluctuate, a faulty temperature sensor may be the cause. This part restores accurate readings.

If your freezer isn't maintaining the right temperature or runs constantly, the freezer temperature sensor may have failed. This part monitors compartment temperature to keep food properly frozen.
