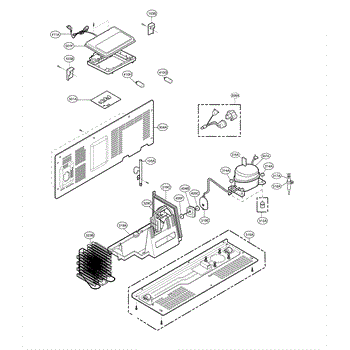

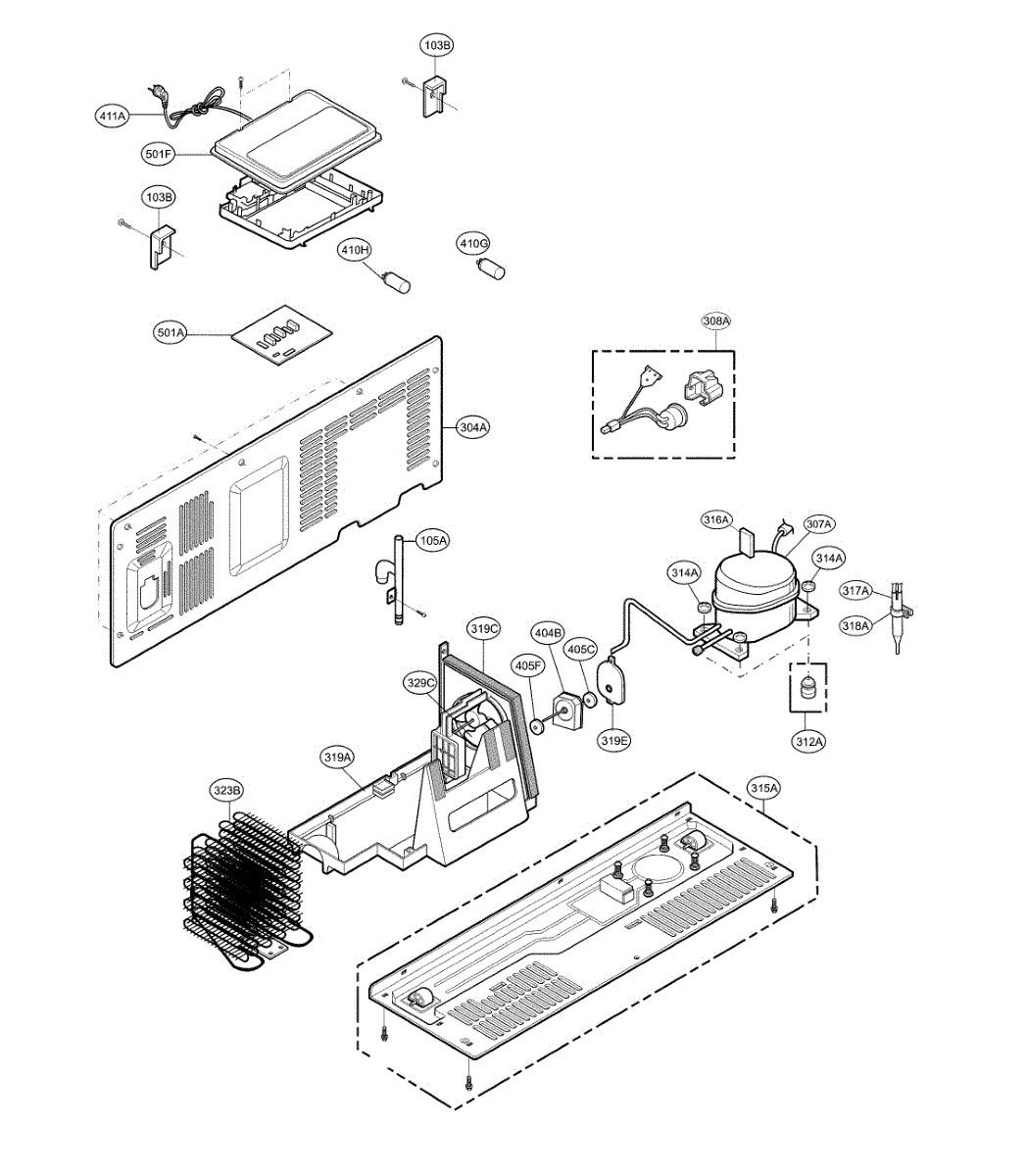

Parts for Lg LSXS26366D/02: Machine Compartment Parts

This is a replacement drain tube assembly that directs water from the appliance tub to the drain pump or household drain, helping restore proper water removal and reduce leaks. It's a direct-fit service part used in the drainage system. What it does:

• Channels wastewater away from the tub to the drain pump or drain line
• Helps prevent pooling or slow draining caused by a damaged or disconnected tube
• Restores a sealed path to reduce leaks at the tub-to-pump connection
• Suitable when the original drain tube is cracked, split, collapsed, or leaking

• One drain tube assembly as shown

• Disconnect power and water before beginning any repair to avoid shock or flooding
• Inspect and clean mating surfaces and clamps; replace clamps if corroded or damaged
• Ensure correct routing and secure connections to prevent kinks and leaks

This dispenser lever holder is the mounting bracket behind the refrigerator's dispenser paddle. It supports and aligns the lever and switch so water or ice dispenses reliably when the paddle is pressed.

• Holds and guides the dispenser lever and actuator switch inside the dispenser housing
• Provides a secure pivot point for smooth paddle movement
• Helps ensure consistent activation of water and ice dispensing
• Damage can cause a loose or stuck paddle, intermittent dispensing, or no dispense

• Disconnect power and shut off the water supply before servicing
• Remove the dispenser panel/escutcheon to access the lever assembly; note part orientation
• Transfer the lever, switch, and return spring to the new holder and secure with the original fasteners
• Restore power/water and test dispensing before reinstalling trim

The Ice Door Lever Spring is an OEM component compatible with LG refrigerators. It is part of the mechanism that opens and closes the ice door on LG French door refrigerators. Over time, springs can lose resiliency or become misaligned.

Causes may be extensive usage over years or damage like kinking that compromises spring function.

Symptoms of a bad ice door lever spring include:

• The ice door not latching fully when closed
• Difficulty opening or poor balance while moving the door
• The lever rubbing or catching instead of moving smoothly

This OEM LG part is also compatible with Sears/Kenmore side-by-side refrigerators.

This insulated duct assembly cushions and channels airflow while reducing noise and heat transfer. It restores proper ventilation and helps maintain efficient operation and quieter performance. What it does:

• Replaces a damaged or worn insulated duct to restore correct airflow routing
• Reduces vibration noise and minimizes heat loss from the airflow path
• Helps prevent air leaks that can cause reduced performance or localized heating
• Fits where the original insulated duct was installed and works with the appliance's venting system

• Disconnect power and any gas supply before servicing
• Inspect surrounding seals and fasteners; replace any damaged clips or tape
• Follow OEM instructions for routing and securing the duct to avoid pinching

This case assembly for the refrigerator control area houses and protects the control board and user interface components, helping keep electronics secure and accessible for diagnostics or replacement. What it does:

• Protects the control board and wiring from damage, dust, and moisture
• Provides mounting points and alignment for the user interface and controls
• Keeps the control area organized for service access and replacement
• Helps maintain proper airflow around control electronics where applicable

• Power off and unplug the appliance before servicing to avoid shock or injury
• Handle the control housing and any attached ribbons or connectors carefully to avoid damage
• Keep screws and small fasteners organized; verify fit before final assembly
• Follow manufacturer instructions and ESD precautions

This bucket cover restores the top enclosure of the washer tub so water stays contained and the wash basket operates as designed. It helps protect laundry and internal components from splashes and debris. What it does:

• Fits over the wash bucket to cover the tub opening and direct water flow
• Helps prevent water spray and leaks during fill and spin cycles
• Keeps clothing and loose items from entering the tub gap
• Contributes to stable basket operation and reduces direct contact with internal parts

• Disconnect power and water supply before beginning any repair
• Remove the cabinet or access panel as required by your model to reach the bucket area
• Use appropriate hand tools; support the tub/basket to avoid displacement during removal/installation
• Follow OEM instructions for torque, alignment, and reassembly

This ice bucket assembly stores and delivers ice to the dispenser. Replacing a damaged bucket restores smooth, reliable dispensing and helps prevent jams when the original container is cracked, worn, or no longer engaging the drive.

• Stores finished ice beneath the icemaker and positions it for dispensing
• Interfaces with the dispenser drive to move ice into the chute when activated
• Helps maintain proper alignment for consistent cube delivery
• Common symptoms: cracked or broken container/tabs, ice won't dispense or jams, grinding/skipping during dispense

• Disconnect power to the refrigerator before servicing
• Remove the old bucket; empty ice and note the drive coupler orientation
• Seat the new assembly fully so the drive engages; transfer any reusable covers from the original if needed
• Restore power and test ice dispensing

This drawer tray assembly is the replacement storage tray that supports and contains items inside a refrigerator drawer, restoring proper drawer function and organization. What it does

• Replaces a cracked, warped, or broken drawer tray so items sit level and the drawer closes smoothly
• Restores a sealed surface that helps contain spills and prevents items from shifting
• Helps eliminate scraping, catching, or sticking during drawer use
• Fits into the existing drawer housing and works with the factory slide mechanism when the original tray is removed

• One drawer tray assembly as shown

• Installation typically requires removing the drawer and snapping or sliding the tray into the drawer frame
• Handle the part carefully to avoid cracking plastic; inspect mounting rails and clips for damage before installing
• If clips or rails are damaged, replace those components as well—this part replaces only the tray
• Disconnect power and remove stored items from the drawer before starting work

This upper drawer tray assembly supports and contains items in the refrigerator's top drawer, restoring a stable surface and helping prevent spills or sagging. Designed to replace a cracked, warped, or damaged upper drawer tray. What it does:

• Provides a flat, stable base for the upper refrigerator drawer so items sit level
• Keeps small items contained to reduce shifting and spills inside the drawer
• Restores proper drawer alignment and smooth sliding when a broken tray causes binding
• Helps prevent moisture pooling when the original tray is cracked or distorted

• Unplug the refrigerator or disconnect power before servicing to avoid electrical hazard
• Remove food and slide out the drawer fully to access and replace the tray
• Handle the replacement part carefully to avoid scratching or chipping; reassemble in reverse order
• If you encounter resistance or misalignment after installation, double-check tray seating and drawer rails

This shelf assembly replaces a damaged or missing refrigerator shelf to restore stable storage and organization. It provides a durable, easy-to-install surface for holding food, containers, and other items in the fresh-food compartment. What it does

• Provides a flat, stable surface for storing food and containers inside the refrigerator
• Replaces cracked, chipped, or warped shelves that cause items to tip or slide
• Restores proper spacing and organization to improve usable storage area
• Compatible with factory shelf supports and slides to sit securely in place

• One refrigerator shelf assembly (exact configuration as shown)

• Remove all food and loose items before installing; handle glass edges carefully
• Slide the shelf into existing tracks or rest on supports until it sits level and secure
• If shelf uses clips or brackets, confirm alignment before applying pressure
• If damaged supports or clips are present, replace those parts to ensure a safe fit

A replacement freezer shelf assembly that restores storage support and organization inside the freezer compartment. Replaces a cracked, warped or missing shelf so frozen items sit level and are easier to access. What it does:

• Provides a sturdy surface to hold frozen foods and containers
• Replaces shelves that are cracked, bent, or no longer supporting weight
• Helps restore proper airflow and organization inside the freezer compartment
• Useful when shelf clips or mounting points are damaged or worn

What's included: One freezer shelf assembly Install notes:

• Unplug the appliance or shut off power before starting work
• Remove contents from the shelf and surrounding area to avoid breakage
• Handle with care if the shelf includes glass; wear gloves and eye protection
• Basic tools may be needed to release or secure mounting clips

This freezer shelf assembly restores a sturdy, level surface for food storage in your freezer. Replace a broken or missing shelf to maximize usable space, keep items organized, and maintain safe, easy access to stored foods. What it does:

• Provides a stable, level platform for freezer storage
• Replaces cracked, broken, sagging, or missing shelf panels
• Helps items stay organized and prevents tipping or shifting
• Can resolve issues with a shelf not seating or staying in its rails when the original is damaged

• 1 freezer shelf assembly

• Disconnect power and remove contents before servicing
• Lift out or unclip the damaged shelf; install the new shelf in the same orientation and position
• Ensure the shelf is fully seated in side rails or rear slots; do not force into place
• Distribute weight evenly before loading items

This vegetable tray assembly replaces a damaged or worn crisper drawer to restore storage for fresh produce and help keep it organized in your refrigerator. Durable molded construction supports fruits and vegetables while sliding into the cabinet. What it does:

• Replaces a cracked, chipped, or broken crisper/vegetable drawer that won't hold produce
• Restores a smooth sliding drawer action when the tray and guides are intact
• Provides a dedicated, contained space to keep fruits and vegetables organized
• Helps prevent produce from spilling onto lower shelves

• One vegetable/crisper tray assembly

• Unload produce and remove the old tray before installing the replacement
• Inspect drawer rails/guides for damage and clean tracks of debris for smooth operation
• No special tools typically required; handle glass or plastic components carefully to avoid damage

This Tray Cover Assembly replaces a cracked or damaged plastic cover that protects and secures the appliance tray, restoring proper fit and appearance. It provides a simple, direct replacement for worn or broken covers. What it does:

• Covers and protects tray contents from debris and spills
• Keeps the tray seated and aligned to prevent rattling or shifting
• Replaces cracked, warped, or broken covers that no longer stay in place
• Helps restore proper function and appearance after impact or wear

• One tray cover assembly

• Disconnect power or unplug the appliance before starting any repair
• Remove the old cover by releasing retaining clips or screws as applicable; handle plastic parts gently to avoid breakage
• Align the replacement cover and snap or fasten it into place until all clips engage

This rear cabinet cover replaces a damaged or missing TV back panel to protect internal electronics and restore the set's finished appearance. It provides a secure mounting surface and helps keep dust and debris out of the chassis. What it does

• Shields internal circuit boards, power supply and connections from dust, impact and accidental contact
• Restores proper alignment and attachment points for the TV chassis and external connectors
• Eliminates rattles or loose fit caused by cracked or broken mounting tabs
• Helps maintain proper ventilation paths around internal components when installed correctly

• Unplug the TV and place on a soft, protected surface before starting; handle cover edges carefully to avoid cuts.
• Keep and reuse original screws and any attached hardware unless replacements are specified.
• Align mounting tabs and connectors before tightening fasteners; do not force or overtighten to avoid breaking plastic tabs.
• If internal access is required, refer to the TV's service manual; do not touch exposed boards while the set is powered.

This replacement door gasket assembly restores the airtight seal around a refrigerator door to help maintain stable temperatures and reduce frost and moisture buildup. Use it to replace torn, warped, or leaking gaskets and improve sealing. What it does:

• Seals the refrigerator door to keep cold air in and warm air out.
• Helps reduce frost and moisture inside the compartment.
• Commonly replaced when the gasket is cracked, warped, compressed, or allows noticeable air leaks.
• Installing a good seal can help the appliance maintain set temperatures more consistently.

• Disconnect power and remove food/media from the door area before starting.
• Clean the door channel and gasket seating area to ensure proper adhesion/seating.
• Align the gasket evenly and engage all retaining tabs or adhesive per the original orientation.

This name plate is the exterior emblem that mounts to the appliance's front panel. It replaces a missing, cracked, or faded badge to restore a clean, factory look and cover the designated trim area.

• Attaches to the outer panel to display brand/series identification
• Restores a finished appearance where the original emblem sits
• Direct replacement for a lost, damaged, or worn badge
• Typical symptoms: missing emblem, loose or broken tabs, peeling, or discoloration

• Disconnect power before servicing the appliance
• Carefully remove the old emblem; release any tabs from behind or peel away remaining adhesive
• Clean and dry the mounting surface; remove all residue for best fit
• Align with the recess/holes and press evenly until fully seated

This small stopper fits inside the handle assembly to limit travel and keep the handle properly seated. Replacing a worn or missing stopper restores a solid, secure feel when opening and closing your appliance.

• Provides a positive stop for handle movement
• Helps keep the handle aligned and seated against its mounts
• Replaces a cracked, deformed, or missing stopper
• Common signs: handle feels loose or wobbly, over-rotates, or shifts/clicks during use

• Unplug the appliance before servicing to prevent injury
• Support the handle and protect the finish while removing fasteners
• Note the original stopper's orientation and install the new one the same way
• Tighten fasteners evenly; do not overtighten to avoid damaging plastic or finishes

This door foam assembly is the insulated inner core for a home-bar style refrigerator door, helping restore the door's thermal seal and fridge efficiency. It replaces aged or damaged door insulation to help reduce temperature loss. What it does:

• Replaces the foam insulation inside the home-bar door to restore proper insulation
• Helps reduce warm air infiltration that can cause the refrigerator to run more often
• Addresses symptoms like a soft or misshapen door, reduced cooling performance, or visible torn/crumbled foam
• Works as the internal support layer behind the door liner to maintain door shape

• One door foam assembly

• Intended for technicians or experienced DIYers; handle carefully to avoid tearing the foam or damaging the door liner
• Installation typically requires removal of the door liner and reconnecting any door components; keep track of fasteners and clips
• Follow appliance power-off and safety procedures before servicing (unplug or switch off breaker)

This is the door handle mounting bracket assembly that secures the handle firmly to the door. It replaces a damaged or stripped bracket to restore a solid, wobble-free grip and reliable handle attachment.

• Mounts and secures the door handle to the door/frame
• Maintains alignment to prevent handle wobble or looseness
• Replaces cracked, broken, or stripped brackets to restore proper attachment
• Typical symptoms: loose or wobbly handle, handle pulls off, visible damage at the handle mount, rattling at the handle area

• Disconnect power before servicing and work carefully to avoid damaging the door surface
• Support the handle while loosening and tightening set screws or fasteners
• Retain and reuse original mounting hardware if it's in good condition
• Align the new bracket in the original location; do not overtighten fasteners

Restore a tight seal on your refrigerator door with this door gasket assembly. A fresh, flexible gasket helps keep cold air in and warm air out, maintaining proper temperatures and reducing frost and moisture around the door.

• Creates an airtight seal between the refrigerator door and cabinet to maintain consistent cooling
• Helps reduce condensation, frost, and warm spots near the door
• May help if the door won't close fully, the gasket is torn or warped, or temperatures fluctuate
• Magnetized edge engages the cabinet for a secure seal when the door is closed

• Unplug the refrigerator before beginning; wear cut-resistant gloves
• Soften the gasket in warm water or with gentle heat to ease installation and improve fit
• Remove the old gasket carefully, noting retainer/channel orientation; press new gasket fully into the track
• Check door alignment and perform a dollar-bill test around the perimeter to confirm a uniform seal

This door basket is the upper-rack basket assembly that holds small items securely in the dishwasher, helping keep utensils and small dishes positioned for thorough cleaning. It replaces a damaged or worn basket to restore proper loading. What it does:

• Secures small items and utensils in the upper rack so they stay in place during wash cycles
• Prevents items from falling into the lower rack or blocking spray arms, which can reduce cleaning performance
• Replaces cracked, warped, or broken basket sections that no longer support dishes safely
• Helps maintain proper water flow and coverage by keeping load items organized

• One door basket (upper rack)

• Designed to snap or slide into the upper rack;
• Inspect surrounding rack components and track for wear before installing
• Disconnect power and follow basic dishwasher safety procedures if service access requires removing panels
• Use common hand tools;

This home bar case assembly replaces the small door compartment that stores bottles and cans on the fridge door, restoring secure storage and organized access to beverages. Durable molded construction keeps items contained and easy to reach. What it does

• Replaces a cracked, broken or missing door beverage compartment that won't hold bottles or cans securely
• Restores proper fit and alignment on the refrigerator door to prevent items from falling out
• Provides the molded shelf needed for organized storage of drinks and small items
• Helps eliminate rattling or loose movement caused by a damaged case

• Basic removal of the old case and snap-in or screw-mount installation of the new case; refer to your model's service instructions
• Power is not required for this replacement, but remove stored items before starting
• Inspect mounting tabs and screws for damage and replace if needed

This home bar case assembly replaces the small door compartment that stores bottles and cans on the fridge door, restoring secure storage and organized access to beverages. Durable molded construction keeps items contained and easy to reach. What it does

• Replaces a cracked, broken or missing door beverage compartment that won't hold bottles or cans securely
• Restores proper fit and alignment on the refrigerator door to prevent items from falling out
• Provides the molded shelf needed for organized storage of drinks and small items
• Helps eliminate rattling or loose movement caused by a damaged case

• Basic removal of the old case and snap-in or screw-mount installation of the new case; refer to your model's service instructions
• Power is not required for this replacement, but remove stored items before starting
• Inspect mounting tabs and screws for damage and replace if needed

Replacement door basket that restores secure storage on the refrigerator door, keeping bottles, condiments and small items organized and preventing them from shifting or falling when the door is opened. What it does:

• Provides a stable shelf on the refrigerator door for bottles, jars and small items.
• Replaces cracked, broken or warped baskets that allow items to tilt or fall.
• Snaps or slides into the door shelf supports to restore original storage capacity.
• Keeps frequently used items accessible and helps prevent interior clutter.

• Remove all contents from the existing door shelf before removing the old basket.
• Most installs are done by aligning the basket with the door clips or tracks and pressing until it snaps into place; use gentle, even pressure.
• If fasteners are present, keep them and reattach as needed; follow the refrigerator's service manual or exploded parts diagram to confirm orientation.

This Door Basket is the removable shelf that locks into the refrigerator door to hold bottles, jars, and condiments. Replacing a cracked or missing bin restores secure storage and helps keep items from tipping when the door moves.

• Provides on-door storage for bottles, jars, condiments, and small items
• Replaces a broken, cracked, or missing door bin
• Attaches to the door liner to keep items contained during opening/closing
• Common signs it's needed: bin won't stay seated, plastic is damaged, or items fall from the door

• Remove any items and support the bin with both hands
• Lift the old bin up and out of the door liner channels; align the new bin and press down until fully seated
• Ensure both ends are locked in evenly before reloading
• Handle plastic carefully to avoid cracking; do not force into place

This refrigerator door bin replaces a broken or missing shelf on the inner door, restoring organized, easy-to-reach storage. It seats into the molded tabs on the door liner to hold items securely and maximize usable space.

• Holds bottles, jars, and condiments on the door to free up shelf space
• Replaces cracked plastic or broken locking tabs
• Addresses a bin that won't stay seated, sags, or wobbles
• Ideal when a bin is missing or too damaged to safely store items

• Remove the old bin by lifting up to release it from the retaining tabs, then pull out
• Align the new bin's tabs/hooks with the slots on the door liner
• Press down/slide into place until fully seated and level
• Verify the bin is secure before loading; distribute weight evenly to prevent damage

The Hinge Assembly, Upper is an OEM replacement part for LG refrigerators. This upper hinge assembly works together with the center hinge to provide balanced support and motion to the refrigerator doors.

Causes of a bad upper hinge assembly can include long-term wear and tear, accidents, or overloading the doors with excessive weight. Over time, the hinges may become misaligned or components can weaken.

Symptoms of a bad upper hinge assembly include:

• Gaps appearing along the top edge of the door seal
• Doors no longer closing flush or sealing properly
• Difficulty opening and closing the doors
• Noises or creaking coming from the hinge area

This OEM LG part is also compatible with select Sears/Kenmore brand models.

This hinge lever mounts on the refrigerator door hinge to guide door movement and closure, helping the door seal properly. Replacing a worn or broken lever restores smooth operation and consistent sealing.

• Guides hinge motion so the door opens and closes smoothly
• Helps maintain door alignment for a reliable gasket seal
• Replace if the lever is visibly cracked, worn, or deformed

• Disconnect power and support the door to prevent injury or damage
• Remove the hinge cover and fasteners; note the lever's orientation before removal
• Install the new lever in the same position and reassemble the hinge components
• Adjust hinge per model procedures if needed

This Display Cover Assembly protects and finishes the appliance control panel while keeping the display and buttons visible and accessible. It restores a clean, functional front surface for the control area. What it does:

• Protects the control panel and display from spills, dust, and wear
• Provides a clear window for the LED/LCD readout so status and settings remain readable
• Keeps buttons and touch controls properly aligned and accessible
• Helps maintain the appliance's original appearance and user interface

• Designed for replacement without modifying the appliance; follow manufacturer disassembly steps
• Power off and unplug the appliance before beginning any work to avoid shock or damage
• Handle the cover gently to avoid scratching the clear display area and damaging clips
• Use appropriate tools and retain screws/clips removed during disassembly for reassembly

This cap assembly for the duct secures and seals a dryer/exhaust duct connection to restore proper airflow and help prevent leaks. Designed to replace a worn or damaged duct cap and keep the vent path intact. What it does:

• Caps and secures the duct outlet to maintain a tight connection and reduce air leakage
• Helps direct exhaust airflow through the duct instead of escaping at the connection
• Can reduce lint and moisture escaping at a faulty or damaged duct joint
• Commonly replaced when the original cap is cracked, broken, or no longer holds the duct in place

• One cap assembly

• Disconnect and power off the appliance before servicing; follow the manufacturer's service manual
• Basic hand tools typically required; check panel or vent access before starting
• Inspect surrounding duct and fasteners; replace damaged clamps or tape as needed

NOTE: This part also requires software update kit CJT30000002. DO NOT INSTALL WITHOUT UPDATING SOFTWARE. Call for more information.

The Compressor is an OEM part for LG refrigerators. As the primary component that circulates refrigerant to chill the refrigerator and freezer compartments, it is crucial for proper cooling operation. The compressor works with the condenser fan and evaporator coil to regulate temperatures inside the refrigerator.

Causes of a faulty compressor can include gradual breakdown of motor windings, loss of refrigerant pressure over time, or failure of electrical components vital to operation.

Symptoms of a bad compressor are:

• Elevated fridge/freezer temperatures unable to be maintained
• Frost patterns indicating poor or insufficient cooling
• Abnormal vibrations or sounds upon compressor cycling
• Error codes displayed regarding cooling performance

It is also compatible with Sears/Kenmore refrigerator models.


The Compressor Overload is an OEM part for LG refrigerators. It works to prevent damage by automatically shutting off power to the compressor in the event of overheating, helping to extend the life of the compressor.

Causes of a bad compressor overload include normal wear and tear over time, extended use in high-heat conditions, or physical damage that impacts its protective functions.

Symptoms of a bad overload include:

• The compressor failing to start or run
• Strange noises coming from the compressor
• An increase in the refrigerator's operating temperature
• Frequent and unexpected shut-offs of the compressor

This OEM LG part is also compatible with Sears/Kenmore refrigerator models.

This damper cushions and isolates the refrigerator compressor to reduce vibration and noise for smoother operation. It helps maintain stable compressor mounting and prevents metal-to-metal contact that can cause wear or rattling. What it does:

• Absorbs compressor vibrations to reduce noise and movement
• Helps protect the compressor housing and mounting points from shock
• Can reduce rattling or knocking sounds originating near the compressor area
• Supports proper alignment of the compressor assembly during operation

• One compressor damper (mounting isolator)

• Turn off power at the breaker and unplug the appliance before servicing
• Inspect mounting area and hardware; replace any damaged fasteners before installing the damper
• Position the damper on the compressor mount as shown in the service manual and secure per OEM guidance

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

This holder secures the dryer-related assembly in place to reduce movement and wear, helping maintain proper alignment and quieter operation. It's a simple replacement that restores part stability in the appliance. What it does:

• Secures a dryer assembly or component to the appliance frame to prevent shifting
• Helps reduce vibration and rubbing noises caused by a loose part
• Maintains correct alignment so related parts operate smoothly
• Used when the existing holder is cracked, broken, or missing

• Disconnect power before replacing any dryer components to avoid shock or injury
• Access location and removal steps vary by model; follow the appliance's service manual or exploded view
• Keep fasteners and adjacent parts organized for reassembly; replace any damaged clips or screws

This condenser assembly is the factory-style replacement condenser wiring and support used in compatible LG refrigerators to restore proper condenser connections and securement. It helps maintain reliable cooling system electrical routing and component support. What it does:

• Provides the correct wire routing and connections for the refrigerator condenser area
• Secures condenser components in place to prevent vibration and wear
• Restores proper electrical paths for condenser-related circuits to help the compressor/fan operate as intended
• Helps address symptoms like intermittent cooling, unusual vibration, or loose wiring in the condenser compartment

• One condenser assembly as shown

• Disconnect power and follow manufacturer safety procedures before starting work
• Inspect surrounding components (fan, compressor mounts, tubing) while replacing this assembly

This fan assembly is the rotating blower that moves air through the appliance to support drying, venting, and internal cooling. Replacing a worn fan restores proper airflow and reduces noise or overheating risks. What it does

• Spins the blower wheel to circulate air for drying, venting, or cooling functions.
• Restores airflow when the appliance has weak or no air movement.
• Reduces abnormal rattling, grinding, or humming caused by a damaged motor or wheel.
• Helps prevent overheating by maintaining adequate internal ventilation.

• One fan assembly.

• Disconnect power before starting any repair.
• Access may require removing outer panels or interior trim; keep fasteners organized.
• Handle wiring connectors and harnesses carefully; match connector positions during reassembly.
• Test operation after installation and reassemble panels securely before returning the appliance to service.

A replacement grille assembly that covers and protects the appliance fan while directing airflow for proper cooling and quieter operation. Restores the fan housing appearance and helps keep debris away from moving parts. What it does

• Protects the fan and motor from accidental contact and foreign objects
• Directs airflow for efficient cooling of the appliance components
• Helps reduce fan noise and vibration caused by loose or missing grille
• Keeps dust and large debris out of the fan area to prevent clogging

• Always disconnect power to the appliance before beginning any service
• Remove any access panels or kickplate to reach the fan area; keep fasteners for reinstallation
• Align clips or mounting tabs and secure all screws firmly but avoid overtightening

The Sensor Assembly is an OEM replacement part for LG refrigerators. It houses several critical sensors that monitor temperatures and humidity levels inside the refrigerator.

This sensor assembly plays a vital role in temperature management by providing real-time sensor data to the control board. The control board uses this input information to regulate cooling and defrosting cycles appropriately based on detected conditions.

Causes of a bad sensor assembly can include sensor failures due to prolonged exposure to cold temperatures and humidity. Symptoms of a bad sensor assembly include:

• Inaccurate temperature readings
• Improper cooling and freezing performances
• Frequent or prolonged defrost cycles
• Error codes relating to internal sensors

Replacing the sensor assembly with this genuine OEM LG part restores temperature and humidity monitoring capabilities. It is also compatible with Sears/Kenmore refrigerator models.

This DC motor drives the rotating component it's attached to—such as a fan blade, impeller, or gear—restoring smooth, reliable motion so your appliance can maintain the airflow or mechanical movement it was designed to deliver.

• Converts electrical power into controlled rotation for the connected part
• Restores proper airflow or mechanical movement when a motor has failed
• Common symptoms include the connected part not running, intermittent operation, unusual noise, or error codes
• Replaces a seized, noisy, or burnt-smelling motor

• Disconnect power (and water, if applicable) before servicing
• Note wire/harness orientation and routing before removal
• Transfer any reusable brackets, grommets, or the driven component (fan blade/impeller) from the original as needed
• Ensure the shaft spins freely and check for smooth, quiet operation after reassembly

This motor bracket secures the washer motor to the chassis, restoring proper alignment and reducing vibration and noise caused by a loose or damaged mount. Fits the OEM motor location to keep drive components stable. What it does:

• Provides a stable mounting point for the motor to prevent movement and misalignment
• Helps reduce excessive vibration and rattling during spin and agitate cycles
• Prevents motor-to-chassis contact that can cause grinding or unusual noises
• Maintains correct motor position for proper belt/drive engagement

• Disconnect power and water before starting any repair
• Support the motor or drum when removing/installing the bracket to avoid strain on wiring or drive components
• Keep existing hardware if reusable; replace stripped or damaged screws/bolts with OEM-specified fasteners
• If noise or vibration persists after installation, inspect motor bearings, suspensions, and mounts for related wear

This motor support damper sits between the refrigerator's compressor and base to absorb vibration and movement. Replacing a worn damper helps quiet rattles and humming from the back of the cabinet and keeps the compressor properly supported.

• Cushions the compressor to reduce transmitted vibration and noise
• Helps quiet humming, buzzing, or rattling from the lower rear of the refrigerator
• Maintains proper compressor alignment and support on the base pan
• Common signs of wear: increased vibration/noise, a cracked or flattened damper, or noticeable compressor movement when running

• Unplug the refrigerator and pull it forward to access the rear; allow the compressor to cool before working
• Support the compressor to remove load from the mount before loosening hardware
• Replace the damper and tighten mounting hardware evenly without over-compressing the rubber
• Avoid bending or stressing refrigerant tubing; wear gloves and eye protection

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Front Evaporator Motor Grommet is an OEM part for LG refrigerators. This grommet cushions and secures the evaporator motor, reducing vibrations and noise during operation to ensure efficient cooling.

Causes of a bad grommet can include prolonged use leading to material fatigue, exposure to extreme temperatures, or physical damage from accidental impacts. A damaged grommet can result in increased noise and potential misalignment of the evaporator motor.

Symptoms of a bad evaporator motor grommet include:

• Increased noise from the refrigerator
• Vibrations or rattling sounds
• Poor cooling performance
• The evaporator motor becoming loose

This OEM LG part is also compatible with Sears/Kenmore.

The Ice Dispenser Door Motor is an OEM part for LG refrigerators. This motor is responsible for the operation of the ice dispenser door, controlling its opening and closing mechanism to allow ice to be dispensed without letting warm air into the freezer.

Symptoms of a bad Ice Dispenser Door Motor include:

• The dispenser door not opening or closing properly,
• Ice not being dispensed when activated,
• Unusual noises coming from the dispenser mechanism.

Causes of ice dispenser door motor failure can include electrical issues such as shorts or wiring problems, mechanical wear over time, or blockages that strain the motor.

This OEM LG part is also compatible with Sears/Kenmore.

A film radial capacitor used in appliance electrical assemblies to stabilize voltage and support motor and control circuits. Replaces a worn or failed film capacitor to restore consistent operation and reduce electrical noise. What it does:

• Smooths and stabilizes voltage in motor and control circuits to help maintain reliable operation
• Reduces electrical noise that can cause humming or erratic behavior in appliances
• Helps ensure consistent motor start/run performance when the capacitor is the cause of symptoms
• Commonly replaced when appliances exhibit intermittent starts, humming, or control board errors linked to compromised capacitors

• Disconnect power to the appliance before accessing electrical components
• Discharge the capacitor safely before touching terminals to avoid shock
• Observe correct polarity/terminal orientation and secure connections per OEM guidance

The Capacitor is an OEM part for LG refrigerators. It plays a vital role in the electrical system, providing the necessary power boost to start the compressor and maintain its operation. This component ensures that the refrigerator runs efficiently by stabilizing voltage and improving overall performance.

Common causes of a bad capacitor include electrical surges, wear and tear over time, or exposure to excessive heat.

Symptoms of a bad capacitor include:

• The refrigerator not cooling properly
• The compressor not starting or running intermittently
• Unusual noises coming from the refrigerator
• The refrigerator cycling on and off frequently

This OEM LG part is also compatible with Sears/Kenmore models.

This sheath-style defrost heater warms the evaporator during the automatic defrost cycle to clear frost and keep air moving. Replacing a failed heater helps stop ice buildup on the evaporator and restores stable refrigerator temperatures.

• Heats the evaporator coil to melt accumulated frost/ice during defrost
• Helps maintain airflow for consistent cooling performance
• Typical failure symptoms include heavy frost on the back panel/evaporator, weak airflow, warmer-than-normal temperatures, or fan noise from ice contact
• Can contribute to repeat icing shortly after a manual defrost if open or damaged

• Disconnect power before servicing; wear cut-resistant gloves
• Access is typically behind the freezer/evaporator cover; fully defrost any ice before removal
• Reuse existing brackets, clips, or insulation as required; make secure electrical connections
• Do not kink or sharply bend the element; inspect related defrost components

This main PCB power control board assembly controls and distributes power to appliance functions, restoring electronic control when the original board fails. Replaces a damaged or nonresponsive control board to return reliable operation. What it does:

• Regulates power to the appliance's control circuits and motors
• Controls user interface signals, display functions, and cycle commands
• Can resolve symptoms like no-power or intermittent power, unresponsive control panel/display, or erratic cycle behavior
• Prevents further electrical faults when the original board shows burn marks or component failure

• One main PCB power control board assembly

• Disconnect power (unplug appliance or switch off breaker) before beginning any repair
• Observe electrostatic discharge (ESD) precautions and handle the board by its edges
• Verify connectors are fully seated and match keyed harnesses; do not force connectors
• If symptoms persist after replacement, check fuses, wiring, and related components before replacing additional parts

The Ice Maker Assembly is an OEM replacement part for LG refrigerators. It automatically produces and dispenses batches of ice through the ice bucket and into the storage bin. Proper ice production is crucial for cold beverages and food preservation.

Causes of a bad ice maker assembly can be failures in the electronic control board, freezing components or water supply system. Regular filter changes help prevent excess mineral buildup.

Symptoms of a bad ice maker assembly include:

• No ice production or inconsistent amounts
• Ice cubes that are malformed, fused together or absorbed cold liquid
• Leaking or flooding from the ice maker area
• Error codes shown on the refrigerator display

This genuine LG OEM replacement part is also compatible with some Kenmore models.

The Ice Dispenser Auger Motor is an OEM part for LG refrigerators. This part is designed to drive the auger that moves ice from the ice bin into the dispenser chute. This motor ensures that ice is available on demand through the door dispenser.

Causes of a bad Ice Dispenser Auger Motor can include electrical issues such as a burnt-out motor, wear and tear on the motor's components over time, or damage from moisture or ice buildup that can affect the motor's functionality.

Symptoms of a bad Ice Dispenser Auger Motor include:

• The ice dispenser not dispensing ice, even though the ice bin is full.
• A humming or buzzing sound from the motor area without any ice being dispensed, indicating the motor is receiving power but failing to turn the auger.
• Intermittent or inconsistent dispensing of ice, which can suggest a failing motor.

This OEM LG part is also compatible with Sears/Kenmore.

This water filter assembly secures the refrigerator's replaceable water filter and routes water to the dispenser and ice maker. Replacing a cracked or leaking assembly restores proper flow and helps ensure a tight, reliable seal at the filter connection. What it does:

• Holds and seals the replaceable water filter cartridge
• Channels inlet water through the filter to the dispenser and ice maker
• Helps prevent leaks at the filter connection and housing
• Common symptoms: leaks around the filter area, low or no water to dispenser/ice maker, filter won't seat or stay in place, visible cracks on the housing

• 1 water filter assembly

• Disconnect power and shut off the water supply before servicing
• Relieve line pressure by dispensing water; place a towel to catch residual water
• Transfer fittings/lines carefully and seat connections fully; do not overtighten
• Restore water, check for leaks, and run water to purge air from the system

The Water Filter LT800P is an OEM part for LG refrigerators. This filter is designed to remove contaminants from the water supply, ensuring clean and fresh-tasting water and ice.

Causes of a bad water filter can include extended use beyond its recommended lifespan, exposure to high levels of contaminants, or damage to the filter itself.

Symptoms of a bad Water Filter LT800P include:

• Unpleasant taste or odor in the water or ice
• Reduced water flow from the dispenser
• Indicator light signaling the need for replacement
• Visible sediment or particles in the water

This OEM LG part is also compatible with Sears/Kenmore.

The Dispenser Motor is an OEM part for LG refrigerators. It is the motor component housed inside the external ice and water dispenser.

This dispenser motor controls dispensing functions by operating the ice and water delivery system. It works with electronic controls to precisely dispense desired amounts of cubed ice or chilled water on demand.

Causes of a bad dispenser motor can include failures in motor electronics, damage from water damage, or normal wear over time.

Symptoms of a bad dispenser motor include:

• Inability to dispense ice or water through the external spout
• Malfunctions in ice or water delivery amounts
• Abnormal sounds or jerky motions from the dispenser area

Replacing the dispenser motor with this genuine LG OEM part restores convenient dispensing capabilities. It is also compatible with Sears/Kenmore refrigerator models.

The Water Tank is an OEM part for LG refrigerators. This tank stores and supplies water to the refrigerator's ice maker and water dispenser, ensuring a consistent supply of fresh, filtered water. It is designed to fit securely within the refrigerator, maintaining hygiene and preventing leaks.

Over time, the water tank can become worn out, cracked, or contaminated. Common causes of a bad water tank include regular wear and tear, exposure to extreme temperatures, or damage from mishandling or improper installation.

Symptoms of a bad water tank include:

• Leaking water inside the refrigerator
• Low water flow to the dispenser or ice maker
• Unusual tastes or odors in the water
• Visible cracks or damage to the tank

This OEM LG part is also compatible with Sears/Kenmore.

Replacement tube connector (mechanical) that secures and routes tubing in compatible LG appliances, helping restore proper fluid flow and reduce leaks from loose or damaged connections. A literal OEM-style connector used where a secure tube-to-component join is required. What it does:

• Joins and secures tubing to appliance components or chassis to maintain a stable connection
• Keeps tubing aligned to prevent kinks or dislodging that can interrupt flow
• Commonly replaced when you see dripping, visible leaks, loose tubing, or poor water flow
• Fits the original mounting interface for reliable mechanical retention

• Disconnect power and shut off the water supply before starting any repairs
• Inspect tubing and nearby fittings for damage; replace any compromised tubing before installing the connector
• Seat the connector fully and secure per the appliance's service instructions; avoid overtightening which can damage tubing
• After installation, restore water and power and check the connection for leaks during a short test cycle

The Connector (Mech), Tube is an OEM part for LG refrigerators. It is used to securely connect water tubing within the refrigerator, ensuring a reliable flow of water to components such as the ice maker and water dispenser.

Causes of a bad connector can include wear and tear over time, physical damage from improper installation or handling, or degradation due to exposure to varying temperatures and water pressure.

Symptoms of a bad connector include:

• Leaks or drips around the connector area
• Reduced water flow to the ice maker or water dispenser
• Water pooling inside or around the refrigerator
• The ice maker or water dispenser not functioning properly

This OEM LG part is also compatible with Sears/Kenmore models.

This mechanical mounting band secures a bracket assembly inside the appliance to keep components aligned and reduce vibration. It restores proper bracket positioning so moving parts run quietly and reliably. What it does:

• Holds a bracket or component assembly in place to maintain proper alignment
• Dampens movement and reduces vibration-related noise or rattling
• Prevents excess wear by keeping parts from shifting during operation
• Helps maintain correct clearances to avoid interference or rubbing

• Disconnect power before inspecting or replacing internal parts
• Remove only the fasteners necessary to access the bracket; keep track of hardware
• Secure all fasteners to the manufacturer's torque or snug specification
• Replace the band if bent, cracked, or missing to restore proper fit and function

This LED assembly restores the TV's backlight by replacing a failed LED strip, improving screen brightness and uniformity for visible picture. Designed to match the original part's fit and function. What it does:

• Replaces the TV's failed LED backlight strip to restore screen illumination
• Can resolve symptoms such as dim or dark screen, uneven brightness, or vertical/horizontal dark bands
• Helps stop flickering or intermittent backlight outages when caused by the LED strip
• Works with the TV's existing power board and connectors

• Disconnect power and unplug the TV before starting any repair
• Handle LEDs and the circuit board carefully; avoid touching LED surfaces and flexing the strip
• Use anti-static precautions and keep small screws and brackets organized during reassembly

This LED assembly is the backlight strip used to illuminate an LCD panel, restoring even screen brightness and color when individual LEDs fail or the backlight dims. It replaces a damaged or faulty LED strip to improve picture visibility. What it does:

• Provides uniform backlighting behind the LCD panel for consistent brightness across the screen
• Replaces burned-out or flickering LEDs that can cause dark spots, vertical bands, or uneven lighting
• Stops intermittent or flashing backlight-related display issues caused by failed LED elements
• Works with the TV's existing power module and driver board to restore normal backlight operation

• Disconnect power and unplug the TV before beginning any repair
• Handle the LED assembly and circuit board by the edges; avoid touching LEDs or solder joints
• Use proper tools and keep small screws/parts organized; follow TV disassembly guidance for your model

This temperature sensor monitors refrigerator temperatures and sends signals to the control board so it can regulate cooling and airflow. Replacing a failed sensor restores accurate readings and consistent temperatures in the fresh food and freezer sections.

• Measures internal compartment temperature for the control system
• Helps the board regulate compressor and evaporator fan operation to maintain setpoints
• Supports stable cooling and proper system cycling
• Failure may present as sections too warm or too cold, temperature swings, or frequent cycling

• Disconnect power to the refrigerator before servicing
• Access point varies by model; commonly behind an interior cover or clipped near the evaporator
• Note wire routing and any clips/insulation and transfer them to the new sensor
• Restore power and allow up to 24 hours for temperatures to stabilize

The Freezer Temperature Sensor is an OEM part for LG refrigerators. It plays a critical role in precisely monitoring freezer compartment temperatures to maintain a consistent cold environment for food storage.

Causes of a bad temperature sensor can include wear from years of use, moisture damage impairing sensor function, or physical impact affecting circuit integrity.

Symptoms of a bad temperature sensor include:

• Inability to regulate freezer temperatures properly
• Wide temperature fluctuations outside of set range
• Repeated ice maker or cooling failures
• Error codes indicating temperature control issues

This OEM LG replacement sensor is also compatible with some Kenmore models.
