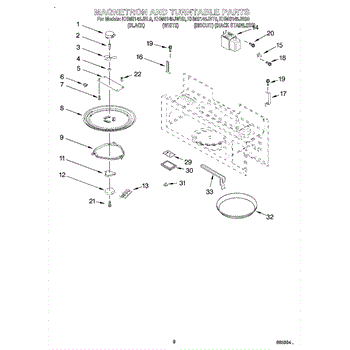

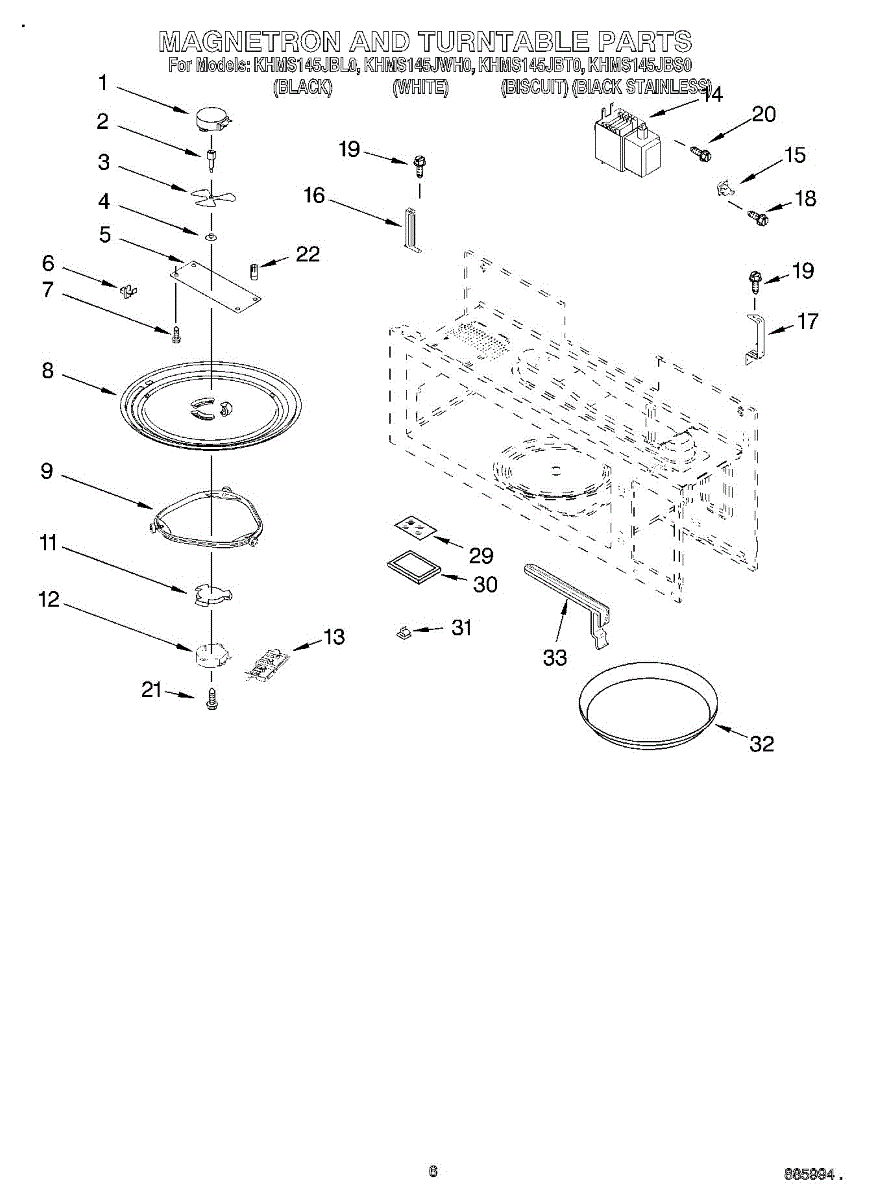

Parts for Kitchenaid KHMS145JBS0: 05 - Magnetron And Turntable Parts

Includes new motor, stirrer cover, plastic rivets and hardware to install upgrade kit.

Comes with 4 supports. Color: chrome.

*** Note: This glass tray has 3 partial-circles to engage the coupler. In some cases, the factory used a tray that has 3 triangles. For that glass tray use part# W11367904. ***

The Cooking Tray is an OEM part for Whirlpool microwaves. This glass tray sits on the turntable support and rotates to ensure that food heats evenly throughout the cooking cycle. It is designed to fit securely within the microwave, providing a stable platform for various dishes and containers.

Over time, the cooking tray can become damaged due to regular use, drops, or exposure to extreme temperatures. If the tray is cracked or broken, it can lead to uneven cooking and potential safety hazards.

Symptoms of a bad cooking tray include:

• Visible cracks or chips on the glass surface
• The tray not rotating properly
• Uneven heating or cooking of food
• The tray wobbling or not fitting securely on the turntable support

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Ring-Turn is an OEM part for Whirlpool microwaves. Designed with precision, this component plays a crucial role in the microwave's turntable system, supporting the glass plate and ensuring it rotates smoothly during operation. The ring-turn's seamless integration with the microwave design allows for the even distribution of microwave energy, which is essential for consistent cooking and heating results.

Causes of a bad Turntable Ring can include cracks or breaks developing from years of use rotating the turntable back and forth under high heat levels.

Symptoms of a bad Ring-Turn include:

• The microwave turntable not rotating properly
• Unusual noises during operation, indicating a misalignment or damage
• The glass plate not sitting flat or slipping during use
• Uneven or partially cooked food, resulting from improper rotation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Cooking Tray Coupler is an OEM part replacement part for Whirlpool microwaves. It securely connects the two halves of the microwave cooking tray together, allowing for easy placement and removal of food items.

Symptoms of a bad cooking tray coupler include:

• The cooking tray separating into two loose pieces that do not stay connected
• Food sliding off or falling through gaps in the disconnected tray halves
• Inability to use the microwave cooking tray properly

Causes of a bad coupler can be cracks, breaks, or wear over time that compromises its connecting ability.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: This coupler is compatible with the glass tray that has the 3 half circles that engage the coupler. In some cases, the factory used a tray that has 3 triangles. For that coupler, use part# W11245707.

This microwave turntable motor drives the glass tray to rotate food for more even heating. Replacing the motor restores smooth, consistent rotation and dependable cooking performance.

• Drives the turntable during cook/defrost cycles for more uniform heating
• Turntable won't turn or only turns intermittently
• Jerky movement or tray requires a push to start
• Humming, grinding, or clicking from beneath the tray area

• Disconnect power by unplugging the microwave or switching off the breaker before servicing; microwaves contain high-voltage components that can retain a charge
• Remove the glass tray and support ring before accessing the motor
• Access is typically from the bottom panel; note wire connections and motor orientation before removal
• After installation, ensure the coupler engages properly and the tray spins freely

The Magnetron is an OEM part for Whirlpool microwaves. This part generates the microwave energy necessary for cooking and heating food.

Causes of a bad Magnetron can include normal wear and tear over time, power surges or electrical issues, or physical damage from impact or mishandling.

Symptoms of a bad Magnetron include:

• The microwave not heating or cooking food properly
• Arcing or sparking inside the microwave cavity
• Strange noises or buzzing sounds during operation
• Burning smells or smoke coming from the microwave

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This is a genuine replacement screw used to fasten appliance panels, trim, and components. It restores secure attachment and helps eliminate rattles or loose parts for safe, reliable operation. What it does:

• Secures panels, brackets, trim pieces, or internal components
• Stops vibration-related noise caused by loose or missing fasteners
• Restores proper alignment and fit of assembled parts
• Provides the correct thread and length for the intended factory location

• One screw

• Use the correct screwdriver or bit to avoid stripping the head
• Hand-start the screw to ensure correct thread engagement before final tightening
• Tighten until snug; avoid over-tightening which can strip threads or crack plastic
• Disconnect power to the appliance before working in areas near electrical components

This replacement screw secures appliance components and panels in their proper position. Replacing worn, stripped, or missing hardware restores a tight fit, reduces vibration or rattles, and helps maintain safe, reliable operation per the manufacturer's design. What it does:

• Fastens panels, brackets, or assemblies where specified in the model's parts diagram
• Replaces missing, rusted, or stripped hardware
• Helps eliminate looseness, rattling, or vibration
• Restores secure alignment of mounted components

• 1 screw

• Disconnect power and shut off water/gas before servicing.
• Verify the exact location in your model's parts diagram and replace screws one at a time to maintain alignment.
• Use the correct driver/bit; start threads by hand to avoid cross-threading and do not overtighten.
• Inspect mating holes/clips for damage; repair or replace related hardware if threads are compromised.

A replacement mounting screw used to secure appliance panels and components. This OEM-style screw helps restore proper fit and reduces rattling or loose parts for a finished, secure assembly. What it does:

• Fastens control panels, brackets, or interior trim to the appliance frame
• Restores proper alignment when an original screw is missing or stripped
• Stops rattling or vibration caused by loose fasteners
• Matches OEM fit for reliable fastening when the correct screw is used

• Turn power off at the breaker before servicing electrical appliances
• Match screw length, head style and thread to the removed fastener before installation
• Use the correct screwdriver or bit to avoid cam-out or head damage
• Do not overtighten; snug until secure to avoid stripping threads or cracking components

This Pan-Crisp is a replacement oven crisping tray that helps brown and crisp foods for better texture and finish. It restores the oven's ability to deliver even surface browning for items like pizzas, fries, and handhelds. What it does:

• Provides a flat, heat-conductive surface to promote browning and crisping of baked or roasted foods
• Helps improve finish and texture when original pan is warped, dented, or missing
• Reduces soggy bottoms by elevating food for better air circulation
• Compatible with convection and conventional bake modes where a crisping tray is specified

• 1 Pan-Crisp replacement tray

• Allow oven to fully cool and disconnect power before removing or installing the tray
• Slide into the oven rack supports; no tools required for typical tray exchange
• Inspect supports and mounting rails for damage before use; replace if unstable
• Clean per manufacturer recommendations; avoid abrasive cleaners that can damage the surface
