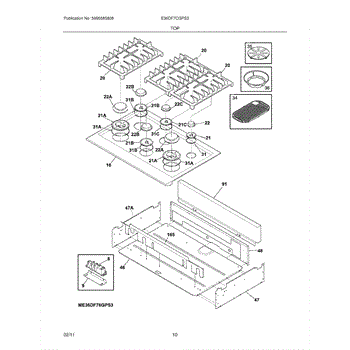

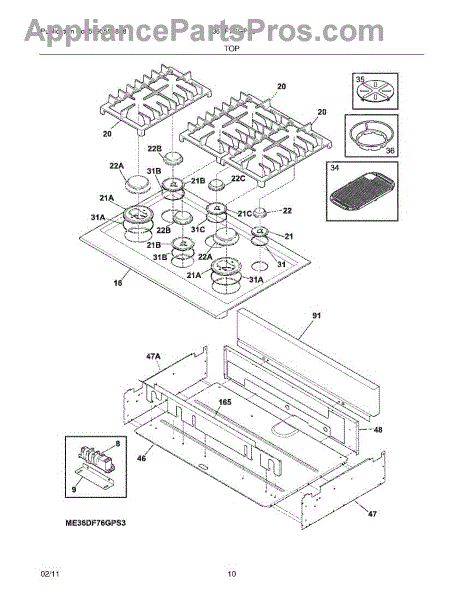

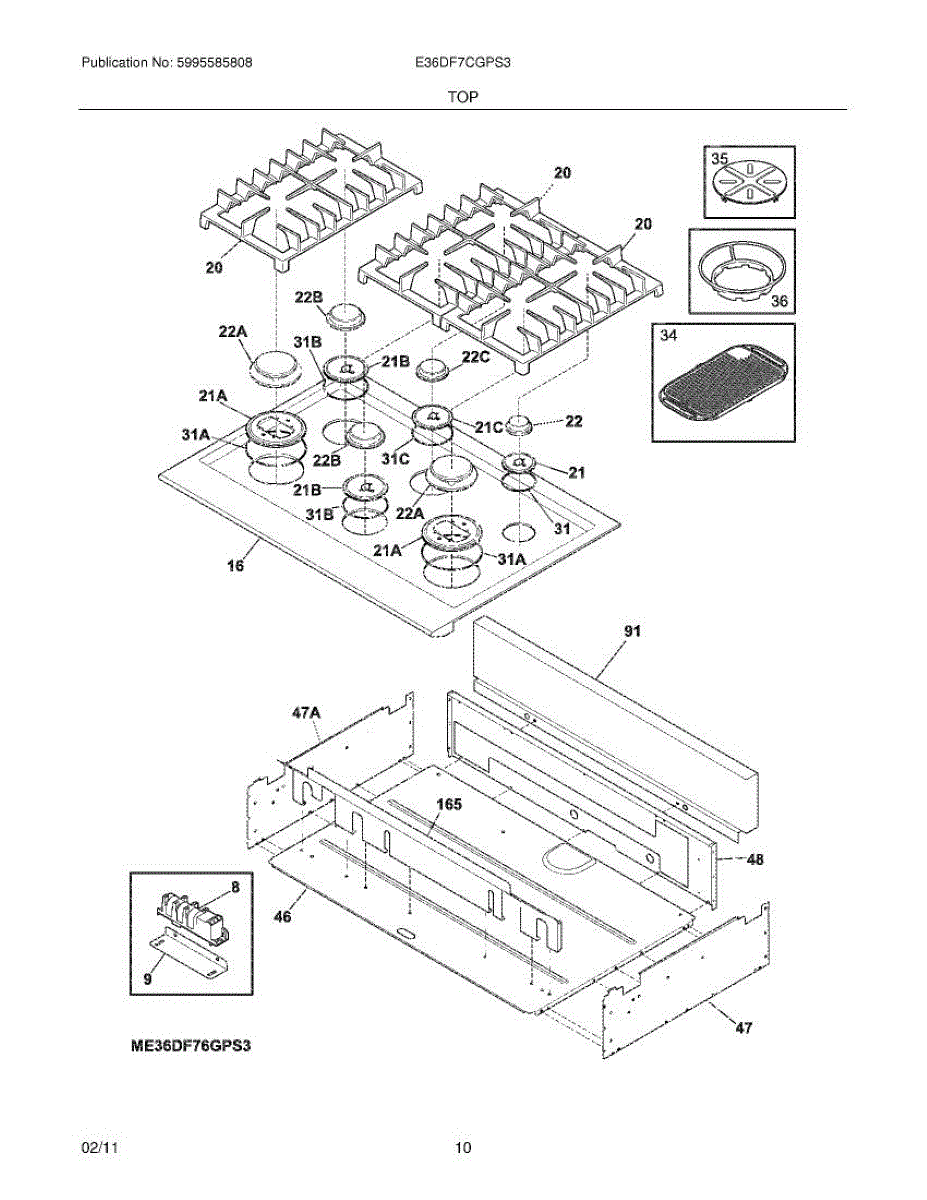

Parts for Electrolux E36DF7CGPS3: 09 - Main Top Parts

The Spark Module is an OEM part for Frigidaire cooktops and ranges. It is responsible for generating the electrical spark that ignites the gas burners. This module sends a high-voltage signal to the igniters, ensuring the burners light up quickly and reliably when you turn the knobs.

Causes of a bad spark module can include electrical surges, wear and tear from regular use, or exposure to moisture, which can lead to corrosion or short-circuits.

Symptoms of a bad spark module include:

• Burners not igniting
• Weak or intermittent spark
• Clicking sound without ignition
• Some burners working while others do not

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement skirt is the lower front kick panel that restores the appliance's finished appearance and protects internal components at the base. It gives a clean look and covers vents, trim, and access openings. What it does:

• Replaces a cracked, dented, or missing lower front panel to improve appearance
• Protects base-mounted components and wiring from accidental contact and debris
• Helps maintain proper airflow through the lower front area by covering openings as designed
• Prevents drafts and keeps pets/children from accessing internal openings

• Disconnect power (and water if applicable) before beginning any work
• Typically fastens with clips or screws; have basic hand tools (screwdriver) ready
• Align tabs/clips and press or fasten securely; avoid overtightening to prevent damage

This burner cap is the replacement top piece for a surface gas burner, restoring proper flame shape and heat distribution for reliable cooking. It helps protect the burner head and keeps the flame centered for consistent performance. What it does

• Centers and shapes the burner flame for even heating across cookware
• Protects the burner head from spills and debris that can block ports
• Helps prevent yellow or irregular flames caused by a damaged or misaligned cap
• Common symptom: uneven or weak flame, burner flame that drifts or won't stay lit

• Turn off the range and ensure all surfaces are cool before servicing
• Lift off the old cap from the burner head; no tools are typically required
• Set the new cap flat and centered on the burner head so it sits flush
• If problems persist after replacement, inspect the burner head and ports for blockage

This burner seal is a replacement gasket that fits around a surface burner to help keep food and liquids out of the cooktop cavity and make cleanup easier. Simple wear replacement for torn or collapsed seals. What it does:

• Forms a protective gasket between the surface burner and cooktop to limit spills and debris entering the cavity
• Helps keep the burner cap seated correctly and reduces grime buildup around the burner area
• Makes routine cleaning faster by preventing trapped food and liquid
• Common signs you need this part: visible gap or torn seal around the burner, frequent debris buildup, or a burner cap that sits uneven

• Turn off the cooktop and gas supply and allow all parts to fully cool before starting.
• Remove the burner cap and lift out the old seal; align and press the new seal into place around the burner opening.
• Reinstall the burner cap, restore power/gas, and test burner operation for correct seating and appearance.

This burner seal is a replacement gasket that fits around a cooktop burner to help keep the burner area sealed and easier to clean. It helps maintain a proper seal between the burner base and the cooktop surface. What it does:

• Seals the gap between the burner and cooktop to limit food, grease and liquid from entering the burner cavity
• Helps keep the burner seated and reduces wobble or misalignment
• Supports cleaner cooktop surfaces and simplifies wipe-downs
• Can help maintain consistent ignition area by keeping debris away from the burner base

• Turn off power to the appliance and ensure the cooktop is completely cool before starting.
• Remove burner grate and lift off the burner cap and burner head as needed to access the seal.
• Clean the seating area of any grease or debris, then press the new seal evenly into place before reassembling.

This surface burner seal sits between the burner and the cooktop opening to block spills and air leaks, helping the burner seat correctly and keeping the cooktop area cleaner.

• Creates a tight seal between the surface burner and the cooktop opening
• Helps prevent liquids and debris from getting under the cooktop
• Supports proper burner alignment and consistent heat/flame
• Replace if torn, brittle, swollen, or permanently compressed; common signs include seepage under the top, uneven heating/flame, or the burner not sitting level

• Disconnect power; for gas ranges, also shut off the gas supply. Allow the cooktop to cool completely.
• Remove grates, burner cap, and burner head/base as applicable; lift off the old seal.
• Clean the mating surfaces; position the new seal evenly around the opening.
• Reassemble burner parts and test for proper seating and even heating/flame.

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

This spacer sets the correct gap between mating parts in your appliance's assembly, preventing rubbing and misalignment. Replace a missing or worn spacer to restore a solid fit, reduce noise, and protect surrounding components.

• Maintains proper spacing between components for correct alignment and operation
• Reduces metal-to-metal contact, squeaks, and premature wear
• Helps fasteners and panels seat securely
• Typical symptoms when failed: loose or rattling parts, uneven gaps, or visible wear marks

• Disconnect power; for gas models, shut off the gas. Allow the appliance to cool completely.
• Access the assembly per your model's diagram; note the original orientation/stack-up before removal.
• Reuse original fasteners if serviceable; hand-start threads and tighten snugly to avoid damaging the spacer.
• Verify alignment and clearances before fully reassembling. Quantity and location vary by model.

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.
