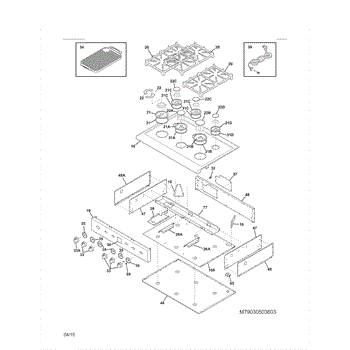

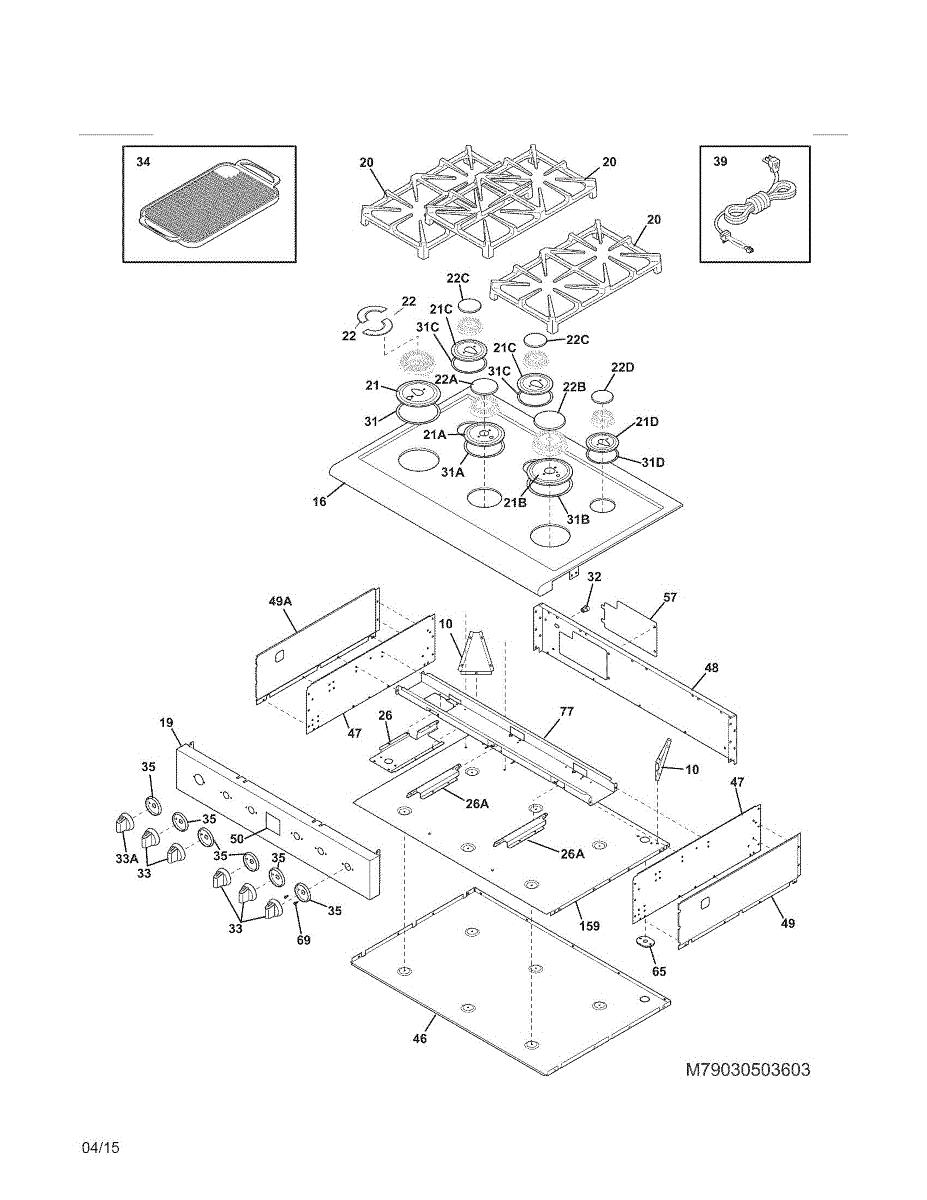

Parts for Kenmore 790.30503603 (79030503603, 790 30503603): Main Top Parts

Protective cap that covers a terminal or post on select Frigidaire appliances, helping keep dirt, moisture and accidental contact away from electrical connections for safer operation and longer component life. What it does:

• Covers and protects electrical terminals/posts from dust, moisture and corrosion
• Helps reduce the risk of shorting from accidental contact with nearby metal parts
• Maintains a secure, insulated connection where a terminal or post is exposed
• Useful when replacing damaged or missing covers to restore normal protection

• Disconnect power to the appliance before inspecting or replacing electrical components
• Remove the old or damaged cap and press the replacement firmly over the terminal/post until fully seated
• Inspect surrounding wiring and terminals for corrosion or damage; replace if needed

The Surface Burner Cap is an essential OEM component for Frigidaire gas cooktop ranges. It regulates flame spread and directs heat precisely to pots and pans placed above each burner coil.

Causes of burner cap failure include warping or discoloration from continuous exposure to open flames and high cooking temperatures over time. Accidental impacts could also crack or fray burner cap edges.

Symptoms of a faulty burner cap include:

• Irregular or uneven flame patterns beneath cooking vessels
• Visible yellow or blue flames indicating poor combustion
• Signs of cracked porcelain or scorched burner bases
• Reduced burner efficiency and poor heat distribution

This authentic OEM replacement is compatible with Electrolux, Gibson, Kelvinator and select Kenmore models.

The Range Cap is an OEM part for Frigidaire ranges and cooktops. This cap covers the burner head, protecting it from spills and ensuring an even distribution of heat. It is designed to fit securely over the burner, maintaining both the efficiency and safety of the cooking process.

Causes of a bad range cap include cracking, chipping, or discoloration from repeated use, which can compromise its function and appearance.

Symptoms of a bad range cap include:

• Uneven flame distribution
• Visible cracks or chips
• Discoloration or burnt spots
• Difficulty in fitting the cap securely over the burner

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Burner Cap is an OEM part for Frigidaire cooktops and ranges. It is designed to cover the burner head, ensuring an even distribution of the flame for efficient cooking. The burner cap also protects the burner head from spills and debris, which can affect performance.

You should replace the burner cap if it becomes damaged or worn out. Causes of a bad burner cap can include exposure to high heat, buildup of food residue, or accidental impacts. A compromised burner cap can lead to uneven flames, inefficient cooking, or difficulty in lighting the burner.

Symptoms of a bad burner cap include:

• Uneven or yellow flames
• Difficulty in igniting the burner
• The burner cap being cracked, chipped, or discolored
• Poor cooking performance or hotspots on cookware

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Surface Burner Cap is an OEM part for Frigidaire gas ranges. It sits atop the surface burner and helps to distribute the gas flame evenly for consistent cooking performance. The cap also protects the burner head from spills and debris.

You should replace this surface burner cap if it becomes damaged or worn out. Signs of damage include chipping, cracking, or discoloration due to prolonged exposure to high temperatures or cleaning agents.

Symptoms of a bad surface burner cap include:

• Uneven or unstable flame
• Difficulty in igniting the burner
• Visible cracks or chips on the cap
• Food cooking unevenly

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This burner seal is a replacement gasket that fits around a surface burner to help keep food and liquids out of the cooktop cavity and make cleanup easier. Simple wear replacement for torn or collapsed seals. What it does:

• Forms a protective gasket between the surface burner and cooktop to limit spills and debris entering the cavity
• Helps keep the burner cap seated correctly and reduces grime buildup around the burner area
• Makes routine cleaning faster by preventing trapped food and liquid
• Common signs you need this part: visible gap or torn seal around the burner, frequent debris buildup, or a burner cap that sits uneven

• Turn off the cooktop and gas supply and allow all parts to fully cool before starting.
• Remove the burner cap and lift out the old seal; align and press the new seal into place around the burner opening.
• Reinstall the burner cap, restore power/gas, and test burner operation for correct seating and appearance.

This burner seal fits the 17k burner to restore a snug seal between the burner and cooktop, helping keep spills out of the burner assembly and keeping the flame properly aligned. Ideal for restoring a cleaner, more reliable cooktop surface. What it does:

• Creates a tight seal around the 17k burner to help prevent food and liquid from entering the burner cavity
• Keeps burner head seated correctly so the flame pattern stays consistent
• Helps reduce soot and residue buildup around the burner area
• Useful when the original seal is cracked, compressed, or missing

• One burner seal for a 17k burner (single piece)

• Always shut off power and gas supply before servicing the range
• Remove burner head and clean mating surfaces before installing the new seal
• Fit the seal in the correct orientation so the burner seats evenly; reassemble parts in reverse order
• After installation, restore power/gas and verify proper burner operation; follow manufacturer's instructions for leak checks and testing

This burner seal is a replacement gasket that fits around a cooktop burner to help keep the burner area sealed and easier to clean. It helps maintain a proper seal between the burner base and the cooktop surface. What it does:

• Seals the gap between the burner and cooktop to limit food, grease and liquid from entering the burner cavity
• Helps keep the burner seated and reduces wobble or misalignment
• Supports cleaner cooktop surfaces and simplifies wipe-downs
• Can help maintain consistent ignition area by keeping debris away from the burner base

• Turn off power to the appliance and ensure the cooktop is completely cool before starting.
• Remove burner grate and lift off the burner cap and burner head as needed to access the seal.
• Clean the seating area of any grease or debris, then press the new seal evenly into place before reassembling.

This surface burner seal sits between the burner and the cooktop opening to block spills and air leaks, helping the burner seat correctly and keeping the cooktop area cleaner.

• Creates a tight seal between the surface burner and the cooktop opening
• Helps prevent liquids and debris from getting under the cooktop
• Supports proper burner alignment and consistent heat/flame
• Replace if torn, brittle, swollen, or permanently compressed; common signs include seepage under the top, uneven heating/flame, or the burner not sitting level

• Disconnect power; for gas ranges, also shut off the gas supply. Allow the cooktop to cool completely.
• Remove grates, burner cap, and burner head/base as applicable; lift off the old seal.
• Clean the mating surfaces; position the new seal evenly around the opening.
• Reassemble burner parts and test for proper seating and even heating/flame.

This control panel is the replacement user interface cover that houses the appliance controls and display, restoring a clean, functional front surface and protecting the underlying electronics from damage. What it does

• Provides the visible control surface and button area for user operation
• Protects internal control boards and wiring from spills, dust, and impact
• Restores proper fit and appearance when the original panel is cracked or damaged
• Can resolve symptoms such as unresponsive buttons, missing/obscured indicators, or loose trim around the controls

• One control panel

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Handle panel edges carefully; some panels have sharp edges or fragile clips
• Installation typically requires removing trim/screws and carefully disconnecting/reconnecting any button membranes or display assemblies

This replacement door gasket creates a tight seal around the refrigerator or freezer door to help maintain interior temperature and reduce energy loss. It restores proper door closure for better cooling and frost prevention. What it does:

• Seals the door perimeter to keep cold air in and warm air out
• Helps maintain consistent internal temperatures for food safety
• Reduces frost build-up and compressor runtime due to air leaks
• Restores proper door alignment and closing performance

• Remove old gasket and clean the door mating surface before installing the new gasket
• Start installation at a corner and work around the door to ensure an even fit
• Gasket may be warmed slightly (hot water or hair dryer on low, if needed) to improve flexibility for positioning
• Unplug or disconnect power to the appliance before beginning work

This stainless steel cleaner restores and protects stainless surfaces, removing fingerprints, smudges and light soils to improve appearance and make routine cleaning easier. Safe for finished stainless when used as directed. What it does:

• Cleans away fingerprints, grease, and light residue from stainless surfaces
• Restores a streak-free shine and improves overall appearance
• Helps reduce visible smudges for easier routine maintenance
• Leaves a light protective finish that helps resist fingerprints between applications

• Read and follow the product label before use; test on an inconspicuous area first
• Apply to a soft cloth and wipe with the grain of the stainless; avoid abrasive pads
• Do not use on hot surfaces, painted finishes, or unsealed metals unless manufacturer approves
• Keep out of reach of children and avoid contact with eyes; if contact occurs, rinse thoroughly

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts
