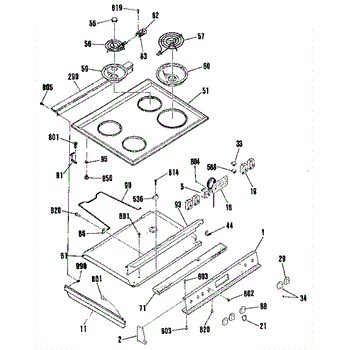

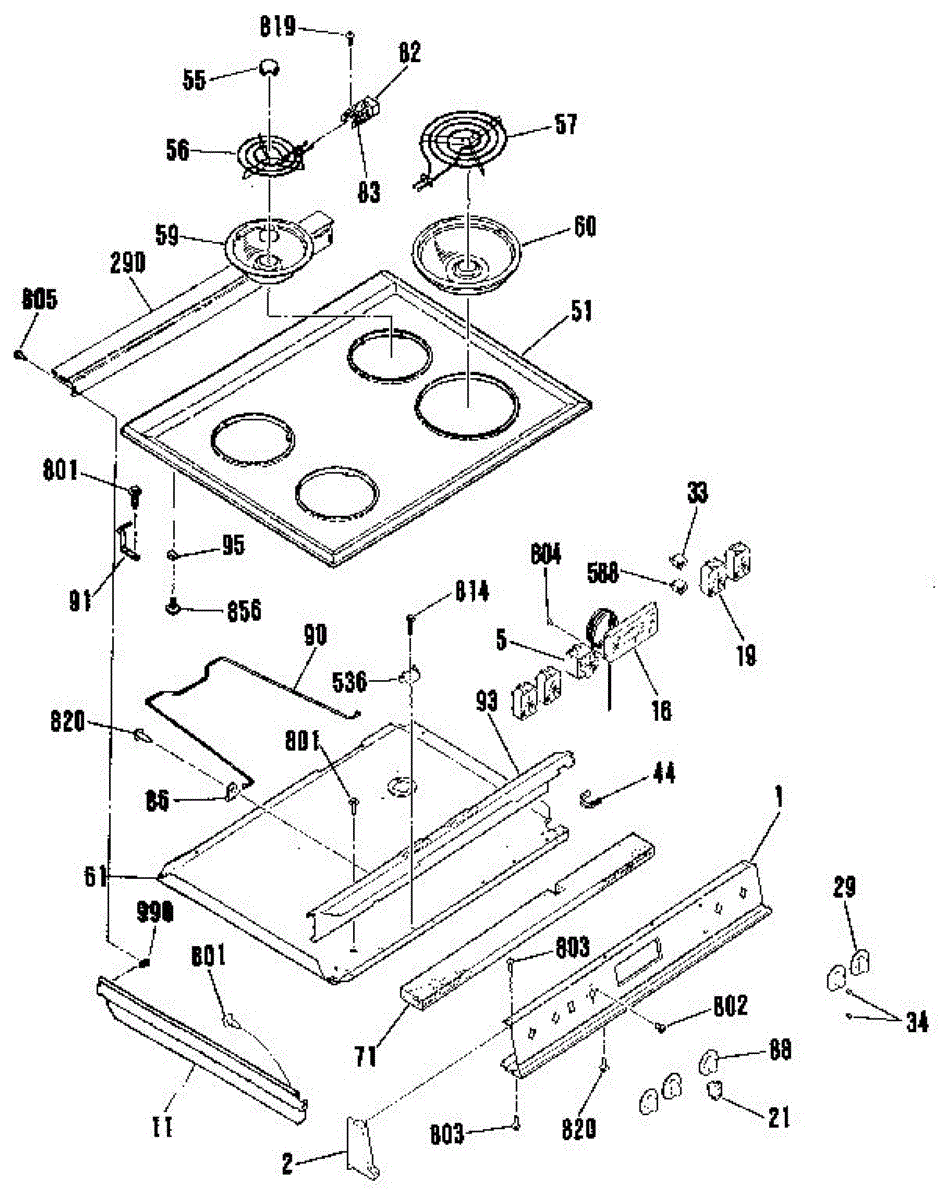

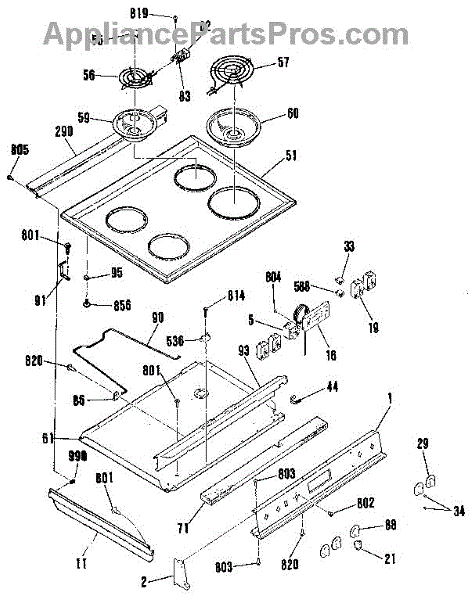

Parts for Kenmore 911.4622190 (9114622190, 911 4622190): Main Top Section Parts

6" element switch

Burner won't stay at set temperature or jumps to high? The infinite switch controls power to heating elements. Easy DIY repair, takes under 30 minutes.

Color: Black

Range indicator light shows when your oven is heating or in operation. Replace if the light fails to illuminate or stays on constantly. Verify fit with your model.

Oven indicator light not working? This control panel lamp shows when heating elements are active. Simple DIY fix restores visual status feedback.

Indicator light lens covers and diffuses the panel light on your range or oven. Replace when cracked, discolored, or missing to restore visibility.

Burner not heating or heating unevenly? This 6-inch surface coil element restores consistent heat to your range's small burner. Simple plug-in install.

If your burner won't heat or has stopped working, this 8-inch surface heating element restores cooktop function. Easy plug-in installation in minutes.

Chrome drip bowl that sits under your range's 6-inch surface burner. Replaces cracked, warped, or discolored pans. Measures 8 inches across at top rim.

Replacement drip pan sits beneath the heating element on electric ranges and cooktops. Catches spills and overflow. Replaces cracked, warped, or worn pans.

Insulation pad that installs behind the range control panel to reduce heat and dampen sound. Replace if cracked, compressed, or missing for proper protection.

Burner not heating or making poor contact? A damaged terminal block disrupts power to heating elements. DIY-friendly repair, takes about 10 minutes.

Fix loose or wobbly burner connections with this terminal block mounting bracket. Secures the element receptacle so coils plug in firmly and heat properly.

Support rod clip secures internal components in your range. Replace if loose, broken, or causing rattling noises. Verify fit with your model number.

Right-side hinge for range oven doors. Installs on the door frame to support opening and closing. Replace if cracked, bent, or causing door misalignment.

Range hinge bracket that secures the oven door hinge assembly. Replace this mounting bracket if it's cracked, broken, or bent causing door misalignment.

ST10-16 X 7/16"

Mounting screw for ranges and ovens. Secures panels, brackets, or internal components. Replace if stripped, missing, or damaged during repair work.

Replacement mounting screw secures panels, brackets, and components in place. Needed when original fasteners are missing, stripped, or damaged.

Replacement screw for securing components inside your range or oven. Needed when original fasteners are stripped, lost, or damaged during repairs.

Nickel

Package of 12

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

This user manual is a replacement booklet that provides basic operating guidance, safety information, and maintenance tips so owners can use their appliance correctly and safely. Ideal when the original manual is lost or damaged. What it does:

• Explains normal operation and control functions in plain language
• Summarizes important safety warnings and recommended precautions
• Outlines routine care and cleaning to help maintain performance
• Offers basic troubleshooting steps to identify common user-level issues

• This is a reference document, not a service or hardware part; keep for ongoing reference
• Read all safety warnings before operating the appliance
• Follow the manual's servicing guidance and disconnect power before any repair
