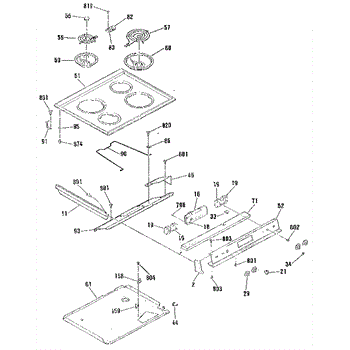

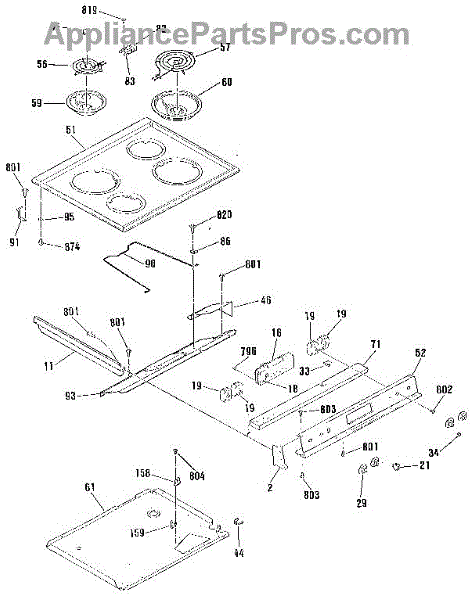

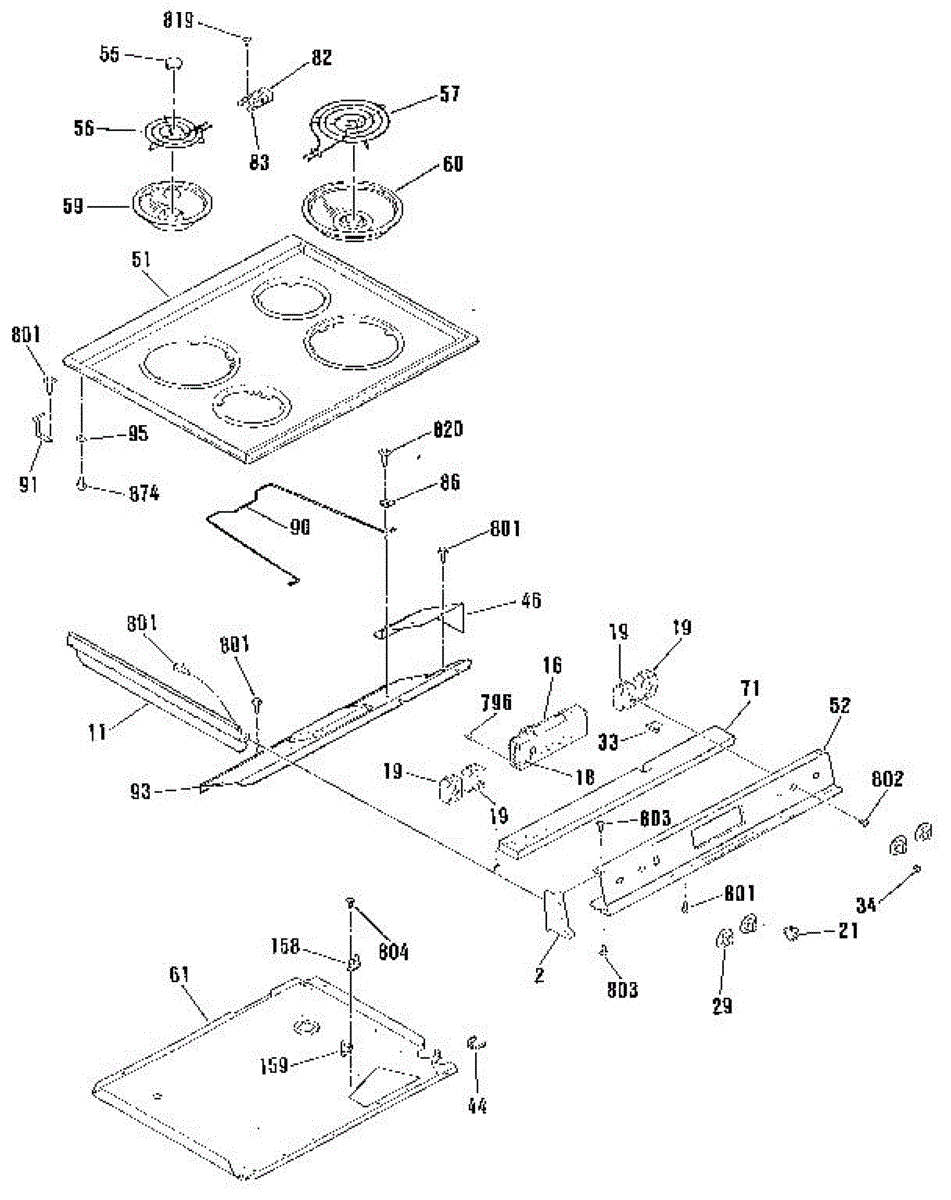

Parts for Kenmore 911.4652190 (9114652190, 911 4652190): Main Top Section Parts

6" element switch

Burner won't stay at set temperature or jumps to high? The infinite switch controls power to heating elements. Easy DIY repair, takes under 30 minutes.

Color: Black

Oven light switch.

Range indicator light shows when your oven is heating or in operation. Replace if the light fails to illuminate or stays on constantly. Verify fit with your model.

Indicator light lens covers and diffuses the panel light on your range or oven. Replace when cracked, discolored, or missing to restore visibility.

6-inch burner won't heat? This surface element coil restores steady heat for boiling and simmering. DIY-friendly replacement takes about 5-15 minutes.

Surface element not heating or won't turn on? This 8-inch coil burner fits ranges and cooktops. Simple plug-in replacement takes under 5 minutes.

Chrome drip bowl that sits under your range's 6-inch surface burner. Replaces cracked, warped, or discolored pans. Measures 8 inches across at top rim.

This 8-inch chrome drip pan sits directly beneath a large surface burner on an electric range, catching spills and food drips before they reach the stovetop cavity below. It reflects heat upward toward your cookware, improving cooking efficiency. Replace it when your existing pan is warped, heavily stained, or so corroded that it can no longer be cleaned.

Burner not heating? This receptacle kit restores electrical connection to cooktop elements. Most DIYers complete this repair in under 30 minutes.

Fix loose or wobbly burner connections with this terminal block mounting bracket. Secures the element receptacle so coils plug in firmly and heat properly.

Support rod clip secures internal components in your range. Replace if loose, broken, or causing rattling noises. Verify fit with your model number.

Right-side hinge for range oven doors. Installs on the door frame to support opening and closing. Replace if cracked, bent, or causing door misalignment.

Range hinge bracket that secures the oven door hinge assembly. Replace this mounting bracket if it's cracked, broken, or bent causing door misalignment.

ST10-16 X 7/16"

Replacement screw for securing panels, trim, and mounting brackets on appliances. Use when original fastener is lost, stripped, or damaged.

Mounting screw for ranges and ovens. Secures panels, brackets, or internal components. Replace if stripped, missing, or damaged during repair work.

Replacement mounting screw secures panels, brackets, and components in place. Needed when original fasteners are missing, stripped, or damaged.

Nickel

Package of 12
