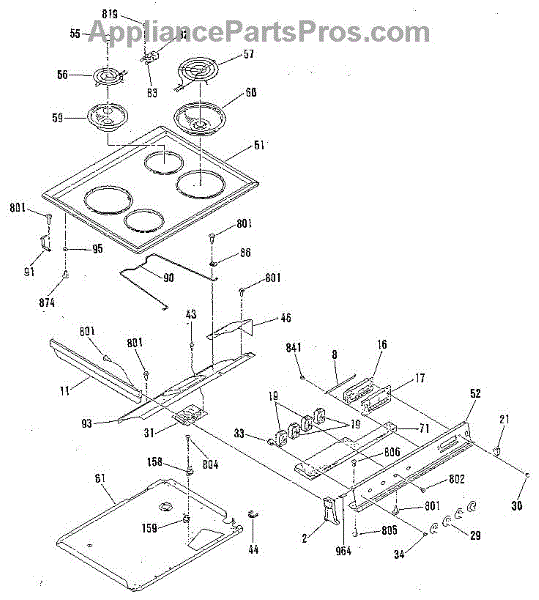

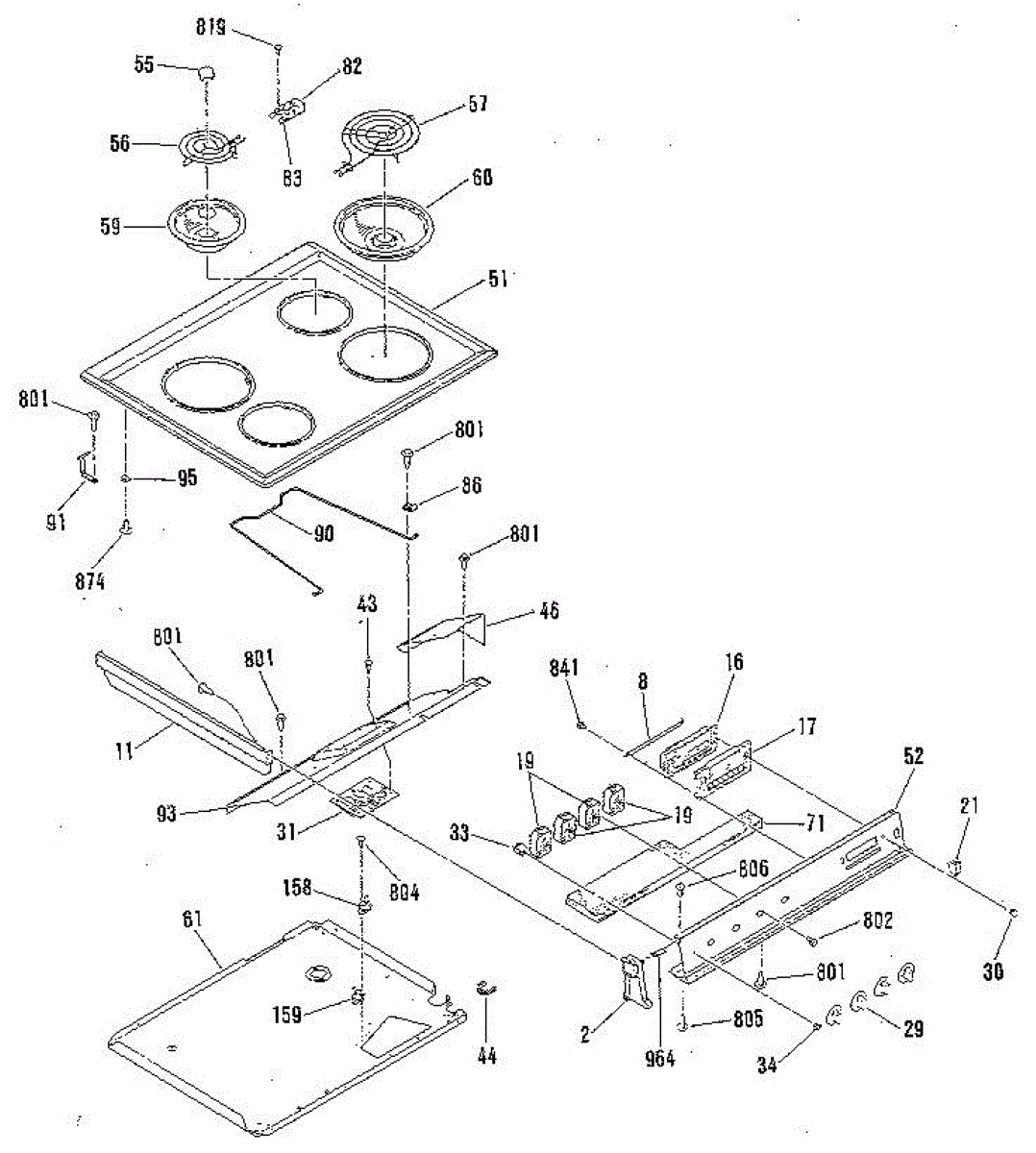

Parts for Kenmore 911.4658815 (9114658815, 911 4658815): Main Top Section Parts

6" element switch

The Infinite Switch is an OEM part for Whirlpool cooktops and ranges, designed to control the temperature of the burners. This critical component allows for the precise adjustment of heat levels, providing the flexibility needed for various cooking tasks, from simmering sauces to boiling water.

Causes of these symptoms can vary from electrical issues within the switch, such as faulty contacts or internal components, to physical damage from wear and tear or overheating. It's essential to address these issues promptly to maintain the safety and functionality of your cooktop or range.

Symptoms of a bad Infinite Switch include:

• Burners not heating to the set temperature
• Inability to adjust the heat level of the burner, resulting in it being stuck on high, low, or off
• The burner not turning on at all

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black

A light indicator is installed on ranges and wall ovens as a safety feature. The purpose of the light indicator is to tell the user when the appliance is in operation. When the unit is heating up or running, the light indicator will illuminate. A replacement part is necessary if the component is no longer functioning.A visual inspection will determine if the light indicator is working. Turn the oven on, and if the light doesn't glow, it's broken. Replacing the light indicator is a quick and easy process. Unplug the range from its power source before starting. An adjustable wrench or nut driver is required to make the replacement. The light indicator is located inside the cover plate of the appliance.This light indicator is an authentic OEM replacement part. It is sold as an individual unit. It comes sourced directly from the manufacturer. The light indicator is made of durable, high-quality materials. The component is compatible with several models of ranges. It fits into products produced by General Electric, RCA, and Hotpoint.

This part is the lens for a small appliance light on select GE cooking products. It covers and diffuses the lamp, protecting the opening and restoring a clean, finished appearance so status illumination is easy to see.

• Covers and diffuses a panel/indicator light so it's visible without glare
• Helps shield the lamp cavity from grease, moisture, and debris
• Restores proper appearance if the original lens is cracked, missing, or discolored
• Common symptoms: missing or broken lens, cloudy/yellowed lens, exposed indicator lamp

• Disconnect power to the appliance before servicing
• Access the lens from the rear of the panel or mounting area; release retaining tabs or hardware
• Seat the new lens fully and align any tabs before securing
• Restore power and verify the indicator light shines through clearly

This 6-inch surface element restores steady, even heat to the small burner on your electric range. Replace a burned-out coil to get back to reliable boiling, simmering, and everyday cooking performance.

• Converts electrical power into heat at the 6-inch burner position
• Helps when the small surface burner won't heat or heats unevenly
• Common signs include visible hot spots, blistering, or burned/loose terminals
• Seats in the drip bowl and connects to the proper surface element receptacle

• Disconnect power at the breaker or unplug the range; allow the element to cool before servicing
• Lift the old element from the drip bowl and pull straight out from the receptacle; avoid twisting or bending the coil
• Inspect the element receptacle for heat damage; replace the receptacle if contacts are burned or loose
• Fully seat the new element and ensure it sits level in the drip bowl before use

This 8-inch surface burner element is the plug-in coil used on many electric ranges. Replacing a worn or failed element restores reliable heating and more even cooking performance on your stovetop.

• Provides heat to pots and pans when energized by the surface control
• Common fix for an element that won't heat or only heats partially
• Addresses visible coil damage such as breaks, blisters, or burned spots
• Corrects intermittent heating caused by an open or failing element

• Disconnect power to the range/unplug before servicing and ensure the element is cool
• Lift the old coil slightly, then pull straight out from the receptacle
• Inspect the receptacle/terminal block and drip bowl; replace if overheated or damaged
• Fully insert the new element terminals into the receptacle, seat the coil level, and test

The 6 Inch Small Drip Pan is an OEM part for GE ranges and stovetops. It is designed to sit beneath the burner element to catch spills and drips that occur during cooking. This helps keep the stovetop clean and reduces the risk of burns and fire by preventing spills from coming into direct contact with the heating elements. For the 8-inch large drip bowl order WB32X106

Symptoms of a bad Drip Pan include:

• Rust or corrosion that can no longer be cleaned off
• Warping or changes in shape that prevent it from fitting properly under the burner
• Accumulation of stubborn residues that can't be removed, leading to smoke and odors during cooking

Common causes for replacing the drip pan include prolonged exposure to high heat which can cause discoloration and deformation, as well as accidental damage during cleaning or heavy use.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The 8-Inch Large Drip Pan is an OEM part for GE ranges and cooktops. This drip pan is designed to sit beneath the heating element, catching any spills, drips, or overflow that occurs during cooking. It helps to protect the range from food debris and liquids, making cleaning easier and preventing damage to the stove's surface.

Symptoms of a failing Drip Pan include:

• Visible wear, rust, or corrosion on the pan
• Difficulty in fitting the pan securely beneath the heating element
• Accumulation of burnt food or discoloration that cannot be cleaned
• The pan becoming warped or damaged from high heat exposure

Causes of a bad drip pan can include regular wear and tear from frequent use, exposure to high temperatures, and spills from cooking. Over time, these factors can lead to rust, corrosion, and other forms of damage that necessitate replacement.

This OEM GE part is also compatible with some models from Hotpoint, RCA, and Kenmore.

The Top Burner Receptacle Kit is an OEM part for Whirlpool ranges and cooktops designed to provide a reliable electrical connection between the stove's top burners and the power source. This kit typically includes receptacles, wire terminals, and mounting hardware necessary for the installation, ensuring that each burner receives the proper electrical current to heat efficiently.

Causes of a bad top burner receptacle can include corrosion due to spills or moisture, physical damage from heavy use, or natural wear and tear over time.

Symptoms of a bad Top Burner Receptacle Kit include:

• A burner that doesn't heat up
• Intermittent heating or fluctuating temperatures
• Visible signs of damage or corrosion on the receptacle
• Sparks or short circuits when attempting to use a burner

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Nickel
