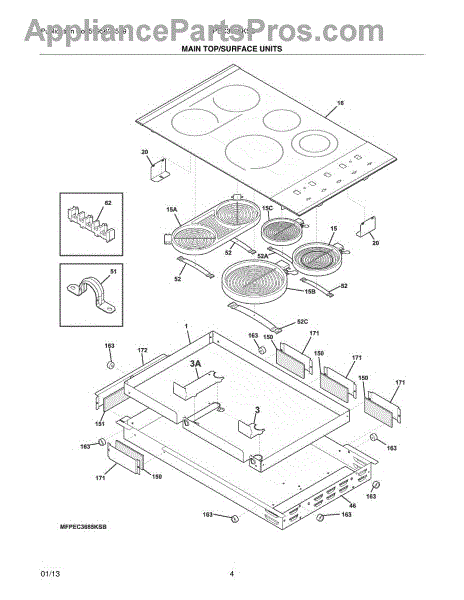

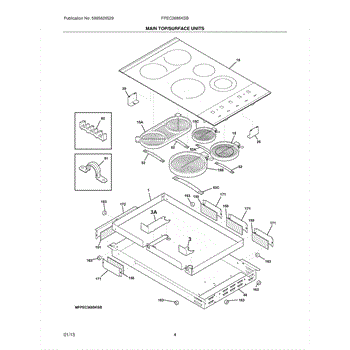

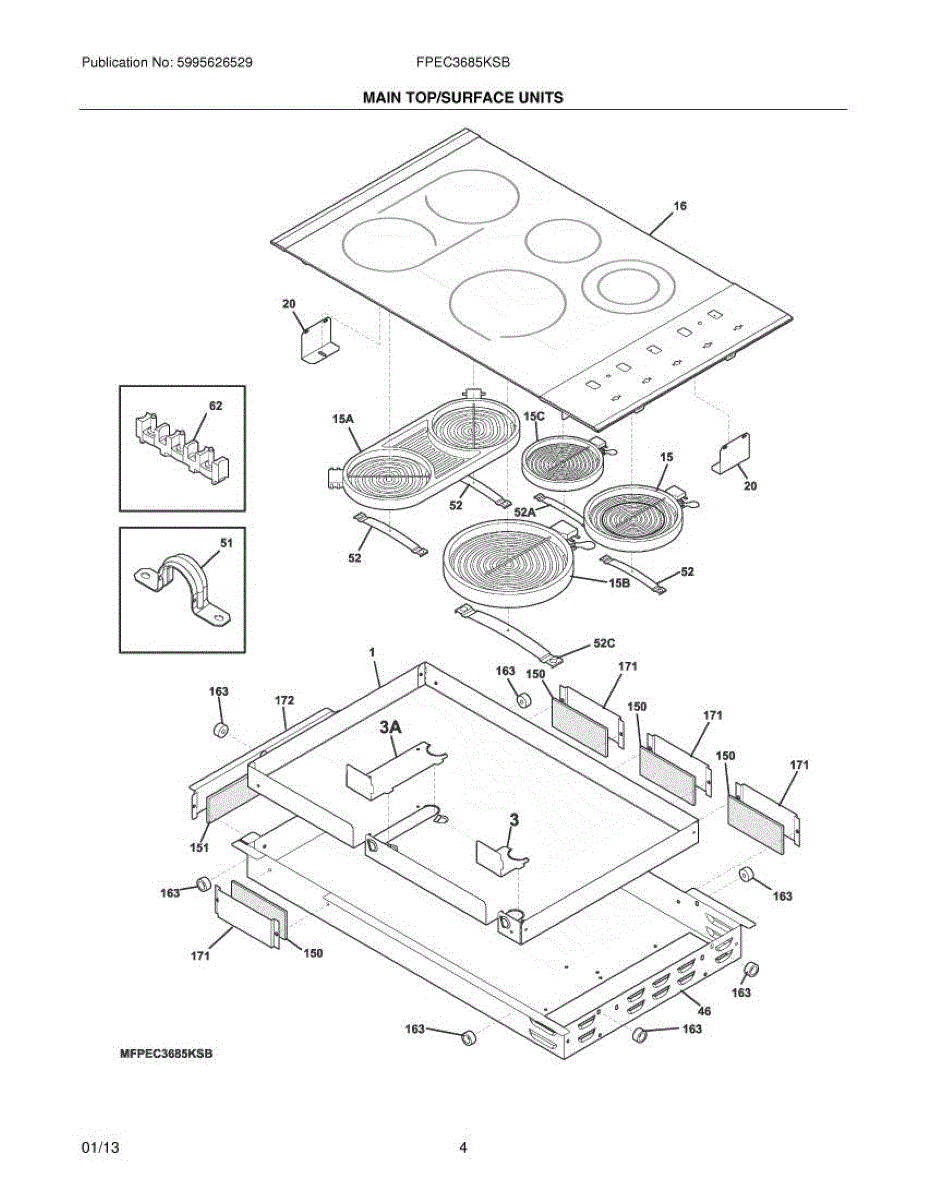

Parts for Frigidaire FPEC3685KSB: 05 - Main Top / Surface Units Parts

This replacement bake element heats the lower oven cavity so your range can bake and roast food at set temperatures. Restores normal baking performance when the oven isn't heating properly. What it does:

• Heats the oven's lower cavity to reach and maintain baking temperatures
• Replaces a burned-out, warped, or visibly damaged element
• Helps correct symptoms like no heat or uneven baking results
• Works with the oven control to provide consistent interior temperatures

• Disconnect power to the appliance before any service to avoid shock
• Handle element carefully; sharp edges and fragile terminals can be damaged
• Verify proper terminal connection and secure mounting during installation

This oven bake element is the heating element that warms the oven cavity for baking and roasting. Replacing a damaged element restores proper oven heating and helps return cooking performance to normal. What it does:

• Heats the oven interior for baking, roasting and browning.
• Replaces elements that are visibly burnt, cracked, broken, or no longer glow when the oven is on.
• Common symptoms it can fix: little or no heat from the oven, uneven cooking, or an element that sparks or shows burn spots.
• Works as the direct heater inside the oven cavity; connects to the oven terminal block.

• Disconnect power at the breaker or unplug the appliance before starting any repair.
• Access typically requires removing the oven interior panels or rear access panel; support the element while disconnecting terminals.
• Handle terminals and sharp sheet metal carefully; use insulated tools and secure terminal connections.

The Surface Element is an OEM part for Frigidaire ranges. The small surface element is responsible for providing direct heat to the cookware placed on the corresponding burner of the electric cooktop or range. This element is typically located underneath the glass surface of the cooktop or range, ensuring efficient and even heat distribution for cooking.

Symptoms of a failing Surface Element include:

• The element not heating up at all
• Heating unevenly or only partially
• Noticeable damage or blistering on the element itself
• The control switch not regulating the temperature properly

Causes of a bad surface element can include a burnt-out coil, a break in the element's continuity, or problems with the connection points such as corrosion or loosening. Regular wear and tear from cooking can also lead to degradation over time.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Used on the 1200 watt element

This element mounting spring secures a surface cooktop heating element to the range, keeping the element stable and ensuring consistent electrical contact for reliable heating. Replaces a worn or missing spring to restore proper element fit. What it does

• Holds the surface heating element in place under the cooktop or in the drip pan.
• Maintains stable mechanical and electrical contact so the element heats evenly.
• Prevents element wobble, movement, or poor seating that can cause intermittent heating.
• Commonly needed when an element drops, rattles, or fails to make solid contact.

• Disconnect power to the appliance before starting any repair.
• Remove the element and/or drip pan per the range service instructions to access the spring.
• Install the spring in the same orientation as the original; ensure the element seats fully and securely.

Used on the 2500 watt element

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

These are replacement countertop mounting screws that secure the appliance to the countertop or cabinet, restoring a stable, flush fit and preventing movement or gaps. Sold as a 2-pack for quick, direct replacement. What it does

• Secures the appliance countertop or trim to the cabinet or counter to keep the unit from shifting.
• Helps eliminate rocking, gaps, or uneven alignment caused by missing or loose mounting screws.
• Restores proper fit and finish where original mounting hardware has been lost or damaged.
• Works with factory mounting points and standard driver heads for straightforward replacement.

• Two countertop mounting screws.

• Use the correct-size driver to avoid stripping the screw head.
• Tighten until snug; avoid over-tightening which can strip threads or damage the cabinet/countertop.
• Keep original brackets and hardware; replace only the missing or damaged screws as needed.

This replacement mesh screen captures lint and debris to help protect airflow and components in the appliance. It restores proper filtering where a torn or clogged screen causes reduced performance or visible debris buildup. What it does:

• Acts as a fine mesh filter to catch lint, fibers, and large particles before they reach internal components
• Helps maintain proper airflow and reduces risk of blockages that can cause reduced performance
• Common symptom: visible lint or debris passing through, restricted airflow, or a damaged/tear in the existing screen
• Straightforward, passive part with no electronics or moving pieces

• One replacement mesh screen

• Inspect surrounding housing and mating surfaces; replace with matching part orientation
• Typically installs by snapping or sliding into a dedicated frame—no specialized tools usually required
• Clean nearby areas of lint and debris before installing the new screen
• Always disconnect power to the appliance before performing service to avoid injury

Specs: 10-32 X 0.375

This hex flange nut secures components where a broader bearing surface is needed to resist loosening and distribute load. It fits 10-32 threaded studs and is used on fastened assemblies in appliances. What it does:

• Provides a secure threaded connection for 10-32 screws and studs
• Flange spreads clamping force to reduce panel or bracket damage
• Hex shape allows tightening with a wrench for a reliable hold
• Commonly replaces worn or missing nuts that cause loose panels or rattling

• One hex flange nut

• Use the correct 10-32 screw or stud and hand-start threads to avoid cross-threading
• Tighten with an appropriately sized wrench; do not overtighten to prevent thread or part damage
• Disconnect power and follow appliance safety instructions before servicing
• Replace only like-for-like; confirm size and thread match your application

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.
