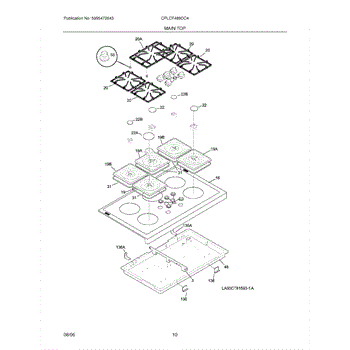

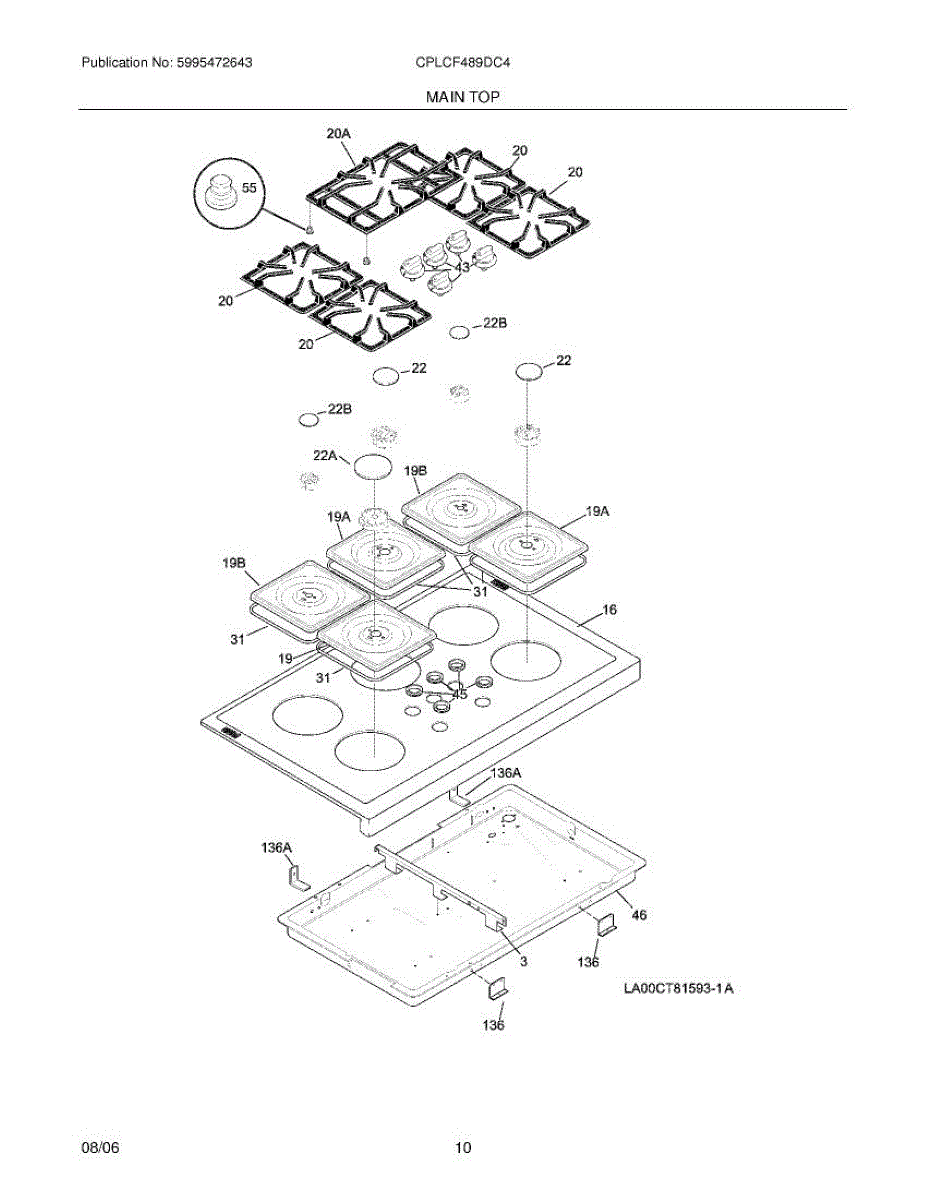

Parts for Frigidaire CPLCF489DC4: 09 - Maintop Parts

This is a medium burner pan that is used with ranges and stoves. The burner pan is located under the heating unit to catch any drips and spills. This prevents the drips from reaching the internal components of the stove where they could cause additional damage. Over time, the burner pan can be overly soiled and damaged and may need to be replaced. The process of replacing the medium burner pan takes only a few minutes. The first step is to unplug the stove or range. Next, the elements on the cooktop need to be lifted to access the parts underneath. The burner pan will be found in one of the cavities under the burners. These can be removed by hand and set aside. When replacing the burner pan, make sure the hole on the side is oriented to fit the terminals. Plug the elements back in and plug in the stove.The medium burner pan is made for use with ovens, ranges, and stoves manufactured by Kenmore and Frigidaire. It is sold as an individual product. This is an authentic OEM replacement part that is sourced directly from the manufacturer.

Color: Black.

The Cap-Burner is an OEM replacement part for Frigidaire cooktops and ranges. It is a crucial component that covers and protects the gas burner assembly, while also distributing the flame evenly for optimal cooking performance.

Symptoms of a bad Cap-Burner:

• Uneven or irregular flame patterns
• Difficulty in igniting or maintaining a steady flame
• Discoloration or warping of the cap due to excessive heat exposure
• Clogged or obstructed gas flow, leading to poor burner performance

Causes of a defective Cap-Burner can include prolonged exposure to high temperatures, impact damage, or general wear and tear over time.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore cooktops and ranges.

This door gasket seals the refrigerator door to help keep cold air in and warm, humid air out—reducing frost build-up and helping the appliance run more efficiently. Fits where a full perimeter door seal is required. What it does:

• Creates an airtight seal around the refrigerator door to maintain consistent internal temperatures.
• Helps prevent warm air infiltration, moisture, and frost accumulation inside the compartment.
• Reduces energy waste caused by a failing or damaged door seal.
• Common symptoms of a bad seal: condensation at the door, frost on shelves, fluctuating temperatures, or higher energy use.

• Disconnect power to the appliance before attempting any service.
• Remove the old gasket carefully; replacement typically seats into the door channel around the full perimeter.
• Inspect and, if needed, adjust door alignment and hinge condition to ensure a proper seal.

Color: black. Measures about 2-1/2 inches in diameter.

This is a mounting bracket that secures internal components to the appliance chassis, helping maintain proper alignment and stable operation. It replaces damaged or bent brackets to restore secure support. What it does:

• Provides a secure mounting point for internal parts to prevent movement and rattling
• Restores proper alignment when a bracket is bent, cracked, or broken
• Helps reduce vibration-related noise from loose components
• Supports safe, reliable operation by keeping components fixed in place

• One mounting bracket

• Disconnect power to the appliance before starting any repair
• Use basic hand tools; avoid over-tightening fasteners which can strip threads or warp the bracket
• Handle edges carefully; brackets can have sharp metal edges

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts
