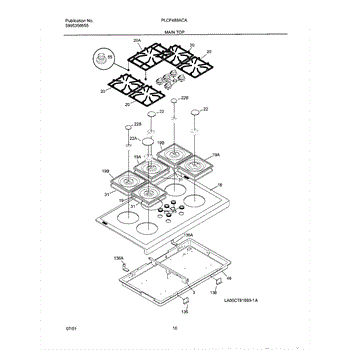

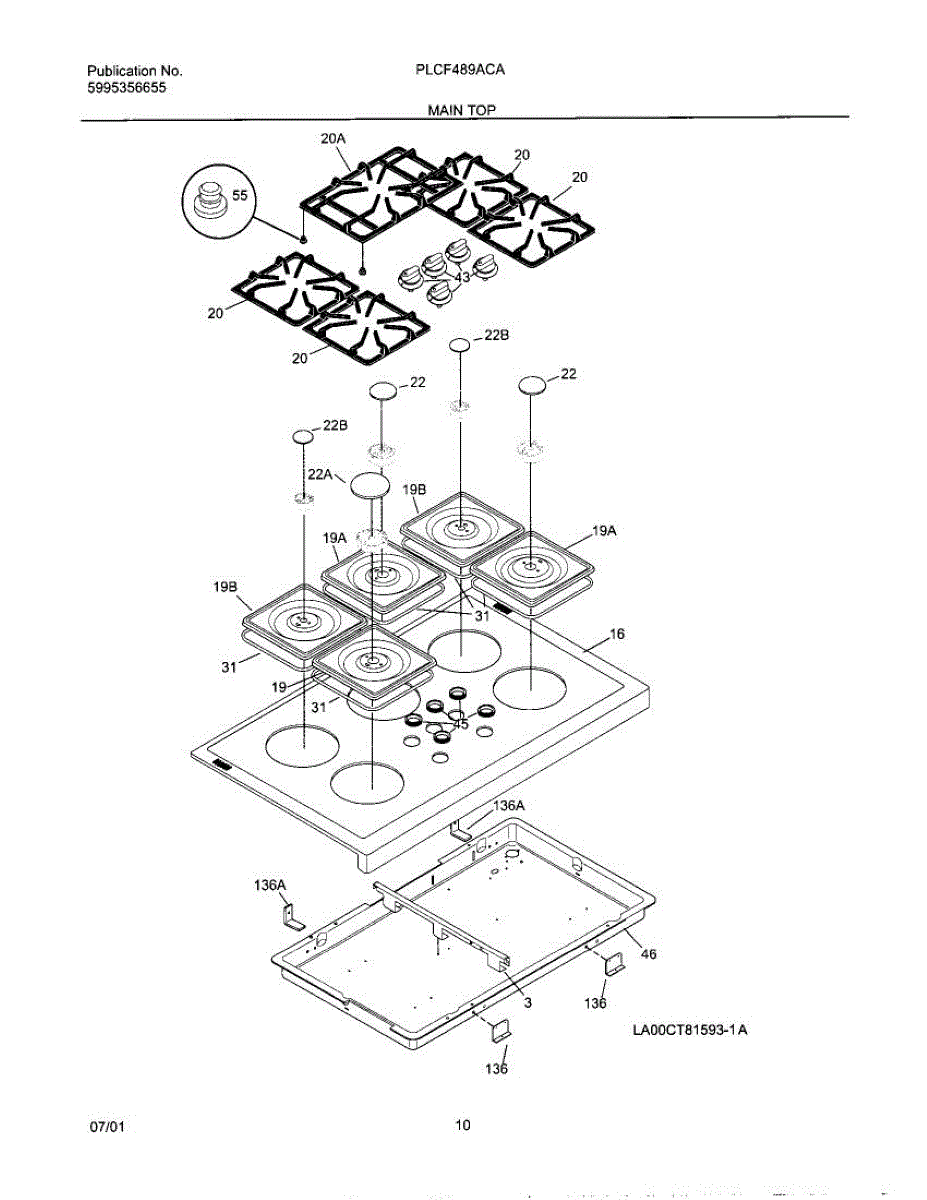

Parts for Frigidaire PLCF489ACA: 09 - Maintop Parts

Medium burner drip pan installs under the heating element to catch spills. Replace when cracked, stained, or worn to restore your range's appearance.

Color: Black.

Burner cap sits on top of the gas burner assembly to distribute flame evenly. Replace if cracked, chipped, discolored, or missing for proper cooking.

This is a seal gasket that fits around the burner drip pan on a cooktop or range. It creates a tight seal between the drip pan and the cooktop surface to prevent spills and debris from falling beneath the burner area. Replace this gasket if it is cracked, hardened, or no longer sealing properly, which can allow grease and liquids to leak below the cooktop.

Color: black. Measures about 2-1/2 inches in diameter.

This snap bushing is a push-in panel grommet that protects and secures wiring where harnesses pass through metal or plastic panels. It prevents chafing and helps keep wire routing neat for safer operation. What it does:

• Cushions and shields wires from sharp panel edges to reduce abrasion and shorts
• Secures wiring harnesses in place to prevent unwanted movement or snagging
• Provides a finished, vibration-resistant pass-through for electrical leads
• Commonly replaced when the original bushing is cracked, broken, or missing

• One snap bushing

• Disconnect power before servicing electrical components
• Press-fit into the panel hole until the bushing snaps into place; confirm a secure fit
• Replace if brittle, torn, or deformed; do not use a damaged bushing
• Use pliers for removal if needed; avoid forcing or enlarging the hole

This snap bushing is a push-in panel grommet that protects and secures wiring where harnesses pass through metal or plastic panels. It prevents chafing and helps keep wire routing neat for safer operation. What it does:

• Cushions and shields wires from sharp panel edges to reduce abrasion and shorts
• Secures wiring harnesses in place to prevent unwanted movement or snagging
• Provides a finished, vibration-resistant pass-through for electrical leads
• Commonly replaced when the original bushing is cracked, broken, or missing

• One snap bushing

• Disconnect power before servicing electrical components
• Press-fit into the panel hole until the bushing snaps into place; confirm a secure fit
• Replace if brittle, torn, or deformed; do not use a damaged bushing
• Use pliers for removal if needed; avoid forcing or enlarging the hole

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500
