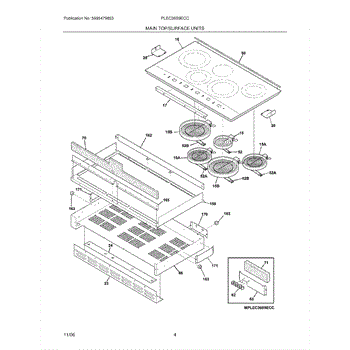

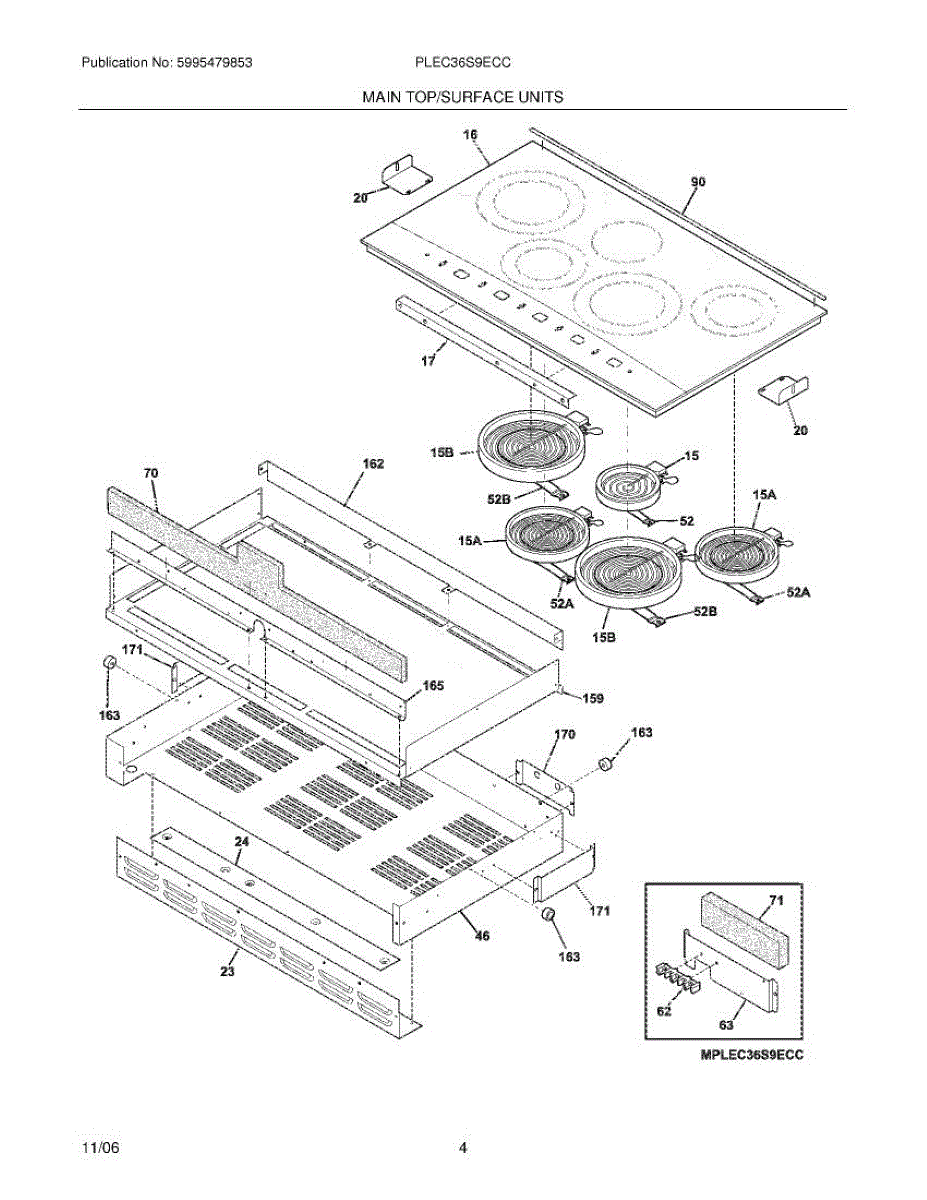

Parts for Frigidaire PLEC36S9ECC: 05 - Maintop Parts

This oven bake element is the heating element that warms the oven cavity for baking and roasting. Replacing a damaged element restores proper oven heating and helps return cooking performance to normal. What it does:

• Heats the oven interior for baking, roasting and browning.
• Replaces elements that are visibly burnt, cracked, broken, or no longer glow when the oven is on.
• Common symptoms it can fix: little or no heat from the oven, uneven cooking, or an element that sparks or shows burn spots.
• Works as the direct heater inside the oven cavity; connects to the oven terminal block.

• Disconnect power at the breaker or unplug the appliance before starting any repair.
• Access typically requires removing the oven interior panels or rear access panel; support the element while disconnecting terminals.
• Handle terminals and sharp sheet metal carefully; use insulated tools and secure terminal connections.

The Surface Element is an OEM part for Frigidaire ranges. The small surface element is responsible for providing direct heat to the cookware placed on the corresponding burner of the electric cooktop or range. This element is typically located underneath the glass surface of the cooktop or range, ensuring efficient and even heat distribution for cooking.

Symptoms of a failing Surface Element include:

• The element not heating up at all
• Heating unevenly or only partially
• Noticeable damage or blistering on the element itself
• The control switch not regulating the temperature properly

Causes of a bad surface element can include a burnt-out coil, a break in the element's continuity, or problems with the connection points such as corrosion or loosening. Regular wear and tear from cooking can also lead to degradation over time.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Dual Element is an OEM part for Frigidaire ranges. This element features two heating zones, allowing for versatile cooking options by providing both high and low heat settings on the same burner. It ensures efficient and consistent heating, making it ideal for various cooking tasks. It contains a 9-inch, 1200-watt element and a 6-inch, 1300-watt element, combining for 2500 watts at 240 volts

Causes of a bad dual element can include electrical issues, wear and tear from regular use, or physical damage such as cracks or breaks in the heating element. These issues can lead to inconsistent heating or complete failure of the element.

Symptoms of a bad dual element include:

• Burner not heating up
• Inconsistent or uneven heating
• Element not switching between high and low heat
• Visible damage to the element

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This control panel is the front-facing interface that houses the oven or range controls and button/keypad area, restoring a clean, usable control surface and reliable button response. What it does:

• Provides the mounting surface and button openings for the appliance control buttons and display
• Restores tactile button/keypad operation when the original panel is cracked, warped, or damaged
• Helps prevent dirt and moisture from reaching the underlying control electronics
• Can improve user access when worn or cosmetically damaged buttons affect operation

• One control panel/console

• Disconnect power to the appliance before beginning any service
• Removal typically requires access to the console area and removal of retaining screws or clips; keep fasteners for reassembly
• Handle edges and any glass/laminate finish carefully to avoid damage or cuts
• If control buttons, overlays, or electronic modules are damaged, inspect and replace those components as needed.

Used on the 1200 watt element

This element mounting spring secures a surface cooktop heating element to the range, keeping the element stable and ensuring consistent electrical contact for reliable heating. Replaces a worn or missing spring to restore proper element fit. What it does

• Holds the surface heating element in place under the cooktop or in the drip pan.
• Maintains stable mechanical and electrical contact so the element heats evenly.
• Prevents element wobble, movement, or poor seating that can cause intermittent heating.
• Commonly needed when an element drops, rattles, or fails to make solid contact.

• Disconnect power to the appliance before starting any repair.
• Remove the element and/or drip pan per the range service instructions to access the spring.
• Install the spring in the same orientation as the original; ensure the element seats fully and securely.

Used on the 2500 watt element

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Specs: 10-32 X 0.375
