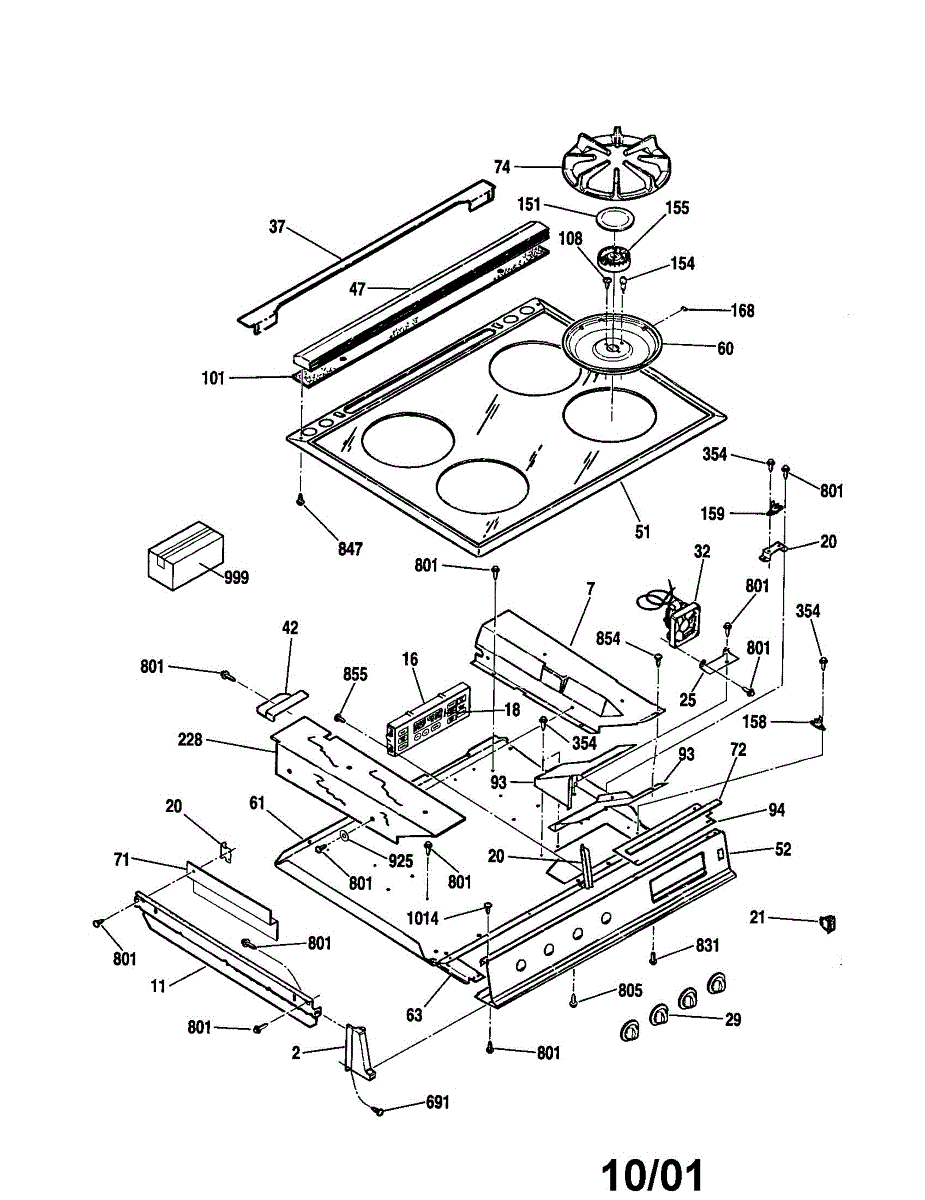

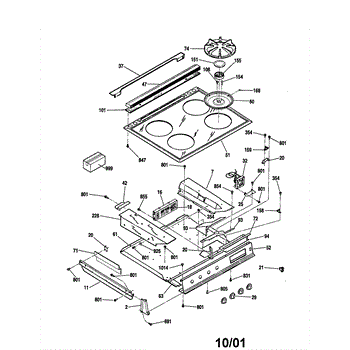

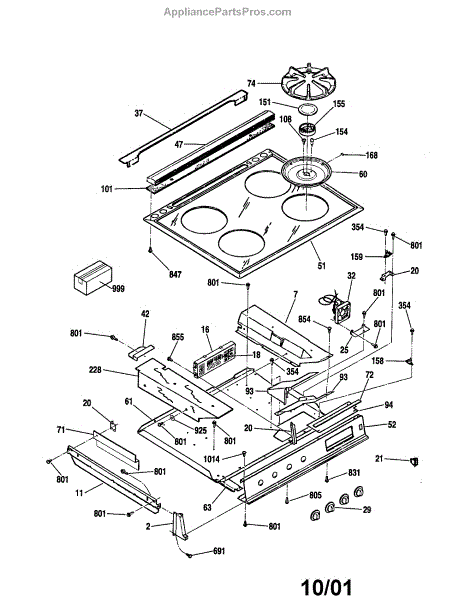

Parts for Kenmore 911.36769892 (91136769892, 911 36769892): Maintop Parts

Color: Black

Oven light switch.

This fan bracket is the mounting support that secures a range/vent/evaporator blower assembly so the fan stays aligned and operates quietly. It restores proper fan placement to reduce wobble and intermittent contact. What it does

• Holds the fan or blower motor assembly in the correct position to maintain stable rotation.
• Prevents the fan from rubbing or vibrating against the housing, which can cause noise.
• Helps restore airflow path when a damaged bracket allows the fan to shift.
• Addresses symptoms such as noisy or rubbing fan operation, intermittent fan contact, or reduced airflow due to misalignment.

• One fan bracket as shown.

• Disconnect power to the appliance before starting any work.
• Access typically requires removing panels or the blower housing—keep fasteners organized.
• Inspect surrounding mounting points and replace any damaged screws or clips for a secure fit.

Color: Bisque (Large)

Color: Black

Small burner bowl sits beneath surface coil element to catch spills and shield internal components. Replace if cracked, chipped, stained, or worn.

This is a medium burner bowl, also sometimes known as a drip pan, and it is made for ranges, stoves, and cooktops. This is a genuine replacement part made by General Electric. The burner bowl is situated underneath the heating element and is able to catch any food or debris that falls when cooking. The bowl or drop pan is there to catch any and all waste so that the user may easily clean up after the heat is turned off and the appliance is cooled down.A new medium burner bowl might be needed if the current one is damaged in any way including being broken or bent so that is it not fully secure under the burner. This is an OEM part sourced directly from the manufacturer. It is sold individually and is compatible with ranges, stoves, or cooktops made by General Electric.

This is a large burner bowl replacement that can work with many models of stoves and ranges. Another term for these bowls is drip pan. The purpose of the drip pans is to protect the inner workings of the stove. They catch spills and drips when cooking. The stove shouldn't be used if the drip pans are damaged or missing.The main reason that the burner bowl might need to be replaced is that it has become dirty and can't be easily cleaned. Additionally, there is the chance that the burner bowls could eventually start to rust. This is a simple repair and should take only a few minutes. Be sure to unplug the stove or turn off the gas before starting a repair.The large burner bowl is for use with certain models of range from Whirlpool, General Electric, Kenmore, and Hotpoint. It is a genuine OEM replacement part sourced from the manufacturer. It is sold individually.

The Burner Bowl Large is an OEM component for GE gas cooktops and ranges. It refers to the metal pan that sits beneath one of the large front burners on the appliance.

Over time and with heavy use, exposed burner bowls can develop warping from intense heat. Grease and food residue buildup inside the bowl is also common and causes reduced performance if not cleaned regularly.

Symptoms of a warped or clogged burner bowl include:

• Uneven or abnormal burner flame patterns
• Slow boiling or heating of cookware placed above
• Potential gas smells if warping allows leaks around the bowl
• Residue that cannot be removed with regular cleaning

This burner bowl is also compatible with some Kenmore, Hotpoint, and RCA gas ranges.

The Burner Bowl MD is an OEM part for GE ranges and cooktops. It is designed to sit beneath the burner element, catching spills and drips during cooking while also helping to direct heat upwards towards the cookware. This component helps maintain cleanliness and efficiency in the cooking area.

Causes of a bad burner bowl can include wear and tear from frequent use, staining or charring from spills, and corrosion from exposure to moisture and cleaning chemicals. Physical damage or warping from high heat can also impair its functionality.

Symptoms of a bad Burner Bowl MD include:

• Visible rust or corrosion
• Difficulty in properly fitting the burner element
• Accumulation of food debris or stains that are hard to clean
• Heat being unevenly distributed or directed away from cookware

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This right-side burner-box stiffener reinforces the cooktop's burner box to help maintain alignment and structural stability. It restores proper support for burners and associated components for safe, reliable operation. What it does:

• Reinforces the right side of the range/oven burner box to reduce flexing or distortion
• Helps keep burners, igniters and gas line fittings properly aligned
• Commonly replaced when the burner box is bent, damaged or producing rubbing/vibration noises
• Supports long-term fit and seal of the cooktop assembly to help prevent gaps or misalignment

• One right-side burner-box stiffener

• Disconnect power and gas supply before beginning any service
• Requires removing the cooktop/burner box access panels; basic hand tools are typically needed
• Handle carefully to avoid bending the replacement part or damaging adjacent components

Cast iron grate that sits over range burners to support cookware. Replace when chipped, cracked, or scratched from wear. Installs on cooktop surface.

Cast iron grate that sits over range burners to support cookware. Replace when chipped, cracked, or scratched from wear. Installs on cooktop surface.

Replace your cracked, broken, or missing range burner grate. This cast iron grate supports cookware above the burner for stable cooking surface.

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

Fix burners that won't light or click continuously. This igniter electrode sparks to light gas burners. Easy 5-10 minute repair with a screwdriver.

If your oven won't heat but the igniter glows, the thermal limit switch may have tripped. This safety cutoff prevents overheating. DIY-friendly repair.

This small metal clip secures the surface burner spark electrode to its bracket or burner base, holding the tip at the proper gap for reliable ignition. Replace a missing, bent, or corroded clip to help restore consistent sparking.

• Holds the surface burner spark electrode firmly in position near the burner head
• Maintains correct alignment and gap so the igniter can spark to the burner
• Can help with delayed ignition, intermittent sparking, or a burner that won't light
• Typical signs include a loose/wobbly electrode, visible damage, or a missing clip

What's included: 1 mounting clip Install notes:

• Disconnect power and shut off gas before servicing
• Lift the cooktop or remove burner components to access the electrode; note clip orientation
• Transfer the electrode into the new clip and seat the clip securely in its bracket or base
• Avoid stressing the electrode's ceramic insulator; verify the tip is aimed at the burner rim and test ignition

Insulation sleeve for range oven fan duct system. Replaces worn, damaged, or missing insulation that wraps around the ventilation ductwork.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

White trim screw for ovens and ranges. Secures trim panels and decorative components. Replace missing, stripped, or damaged screws during repairs.

Replacement trim screw for securing exterior trim pieces and panels on ovens and ranges. Restores proper fit when original screw is missing or stripped.

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

ST10-16 X 7/16"

Nickel

Replacement screw for securing panels, trim, and mounting brackets on appliances. Use when original fastener is lost, stripped, or damaged.

This flat washer (.250 inch inner diameter x .812 inch outer diameter) is a simple replacement part that helps distribute load from a fastener and protects mating surfaces for reliable appliance operation. What it does:

• Provides a stable bearing surface for screws, bolts or studs to reduce wear on parts
• Helps distribute clamping force to prevent pull-through or deformation of softer materials
• Reduces vibration and movement at the joint when installed correctly
• Missing or damaged washers can lead to loose fasteners, increased vibration or component misalignment

• Disconnect power and water before servicing the appliance
• Replace like-for-like: inner/outer diameters and thickness match the original washer
• Inspect mating hardware and surfaces for damage; replace corroded or deformed fasteners as needed
• Tighten fasteners evenly and avoid over-torquing to prevent washer or component damage

Mounting screw for ranges and ovens. Secures panels, brackets, or internal components. Replace if stripped, missing, or damaged during repair work.
