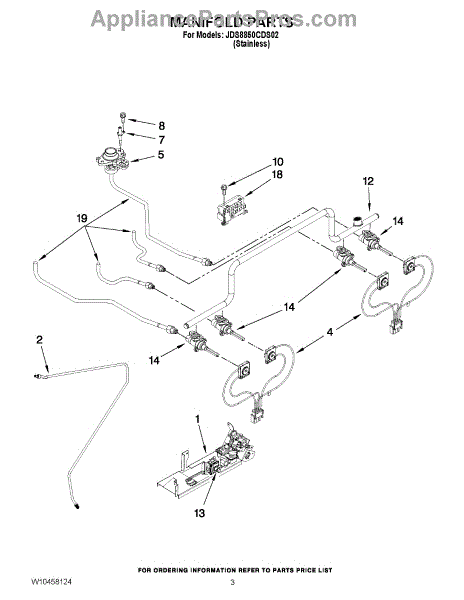

Parts for Jenn-Air JDS8850CDS02: 03 - Manifold Parts

This switch harness assembly routes signals from a left-side switch to the appliance control so the machine detects door/lid or control inputs and operates correctly. It restores reliable electrical connection between the switch and main wiring. What it does:

• Provides the factory-style wiring connection between a left-side switch and the main control board
• Carries switch signals so the appliance recognizes door/lid position or user inputs
• Commonly replaced when an appliance won't start, doesn't register switch actions, or has intermittent control behavior
• Maintains correct wire routing and secure terminal connections to prevent loose or shorted circuits

• Disconnect power (unplug or shut off breaker) before starting any repair
• Inspect connectors and match terminals to factory routing before final assembly
• May require access by removing a control panel or cabinet trim; keep small fasteners and clips organized

This switch harness assembly connects control panel switches to the appliance's main wiring, restoring reliable switch-to-board communication and control. It's a direct-fit electrical harness used to replace damaged or worn wiring for normal operation. What it does:

• Routes electrical signals from control switches to the appliance control board or connector block
• Replaces frayed, burned, or broken harness wiring that can cause intermittent or failed controls
• Helps resolve symptoms like unresponsive buttons, intermittent operation, or visible wiring damage
• Maintains factory wire lengths and connector locations for correct fit and function

• Disconnect power (unplug or shut off breaker) before servicing to avoid shock or injury
• Inspect connectors and routing before installation; match connector shapes and wire colors for proper connection
• Secure harness away from moving parts, sharp edges, and heat sources to prevent future wear

This dual orifice holder secures two burner orifices in gas ranges, keeping the burner orifices aligned for proper gas flow and stable flames. It helps restore consistent ignition and even heat across affected burners. What it does:

• Holds and positions two burner orifices in the manifold or burner assembly
• Keeps orifices aligned to ensure proper gas flow to each burner
• Can resolve symptoms like weak, uneven, or inconsistent burner flames and ignition problems
• Works as a replacement for damaged, corroded, or bent orifice mounting hardware

• One dual orifice holder

• Turn off gas supply and electrical power before servicing; follow local codes
• Remove burner caps and access the orifice area per your model's service instructions
• Retain correct orientation when installing; avoid bending or stressing the orifice

This orifice holder secures the gas orifice in a burner assembly to ensure proper alignment and gas flow for reliable ignition and flame performance. It fits the specified burner configuration and replaces a damaged or missing holder. What it does:

• Holds the burner orifice in place so the burner can ignite correctly
• Maintains correct orifice alignment for consistent flame shape and heat output
• Common symptom fix: burner won't light or produces a weak/uneven flame
• Works with the matching orifice sized for the listed burner application

• Turn off gas supply and electrical power before servicing the appliance
• Handle small parts carefully and confirm correct orientation during reassembly
• Check surrounding gaskets and seals and replace if deteriorated

This gas surface-burner orifice holder serves the 15K burner position on many cooktops/ranges. It routes gas from the valve to the burner orifice and keeps the burner properly aligned for consistent ignition and flame.

• Channels gas from the surface valve to the orifice for the 15K burner
• Rigidly locates the burner base and orifice for correct flame pattern and ignition
• Common symptoms of a failed holder include: burner clicking but not lighting, weak/small or uneven flame, or intermittent ignition on that burner
• Replacement restores proper alignment and gas flow at the affected burner

• Shut off gas supply and disconnect power; allow the appliance to cool
• Remove grates, caps, and burner heads; lift/open the top to access the holder
• Note orientation, disconnect tubing, remove mounting screws, and install the new holder in the same position; transfer any fittings as needed
• After reassembly, perform a soap-and-water leak check at all serviced connections before use

The Top Burner Igniter is an OEM part for Whirlpool gas cooktops and ranges. This thin metal coil provides the spark to light the burner flames during startup. It is a spark electrode with a male spade connection.

Causes involve cracking of fragile ceramic insulator casings allowing moisture ingress, compromised electrical connections cutting off sparking ability, or general wear reducing spark output strength.

Symptoms of failure consist of:

• Inability to light one or more front gas burners
• Click sounds but no flame present when turning burner knob
• Safety issues arising from unlit gas accumulating

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.

Size: 10-24X5/16-NI

5K. Mueller

9K. Mueller.

This spark module controls ignition for four surface burners and provides automatic reignition if a flame goes out. It generates the high-voltage spark and monitors flame for dependable lighting and consistent cooktop performance.

• Generates high-voltage pulses to ignite up to four surface burners
• Senses flame presence and automatically re-sparks if a flame is lost
• Helps stop sparking once flame is detected to reduce clicking
• Symptoms this part is involved with include: no spark on any burner, intermittent or weak spark, or continuous clicking after lighting

• Disconnect power and shut off gas before servicing
• Access is typically under the cooktop or behind a panel; mount the module securely away from heat and moisture
• Transfer wires one at a time to matching terminals; ensure ground/neutral connections are secure for proper flame sensing
• After reassembly, restore power and test each burner for ignition and that clicking stops when flame is present
