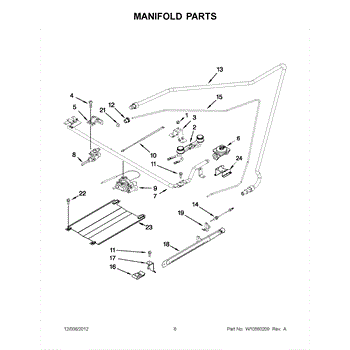

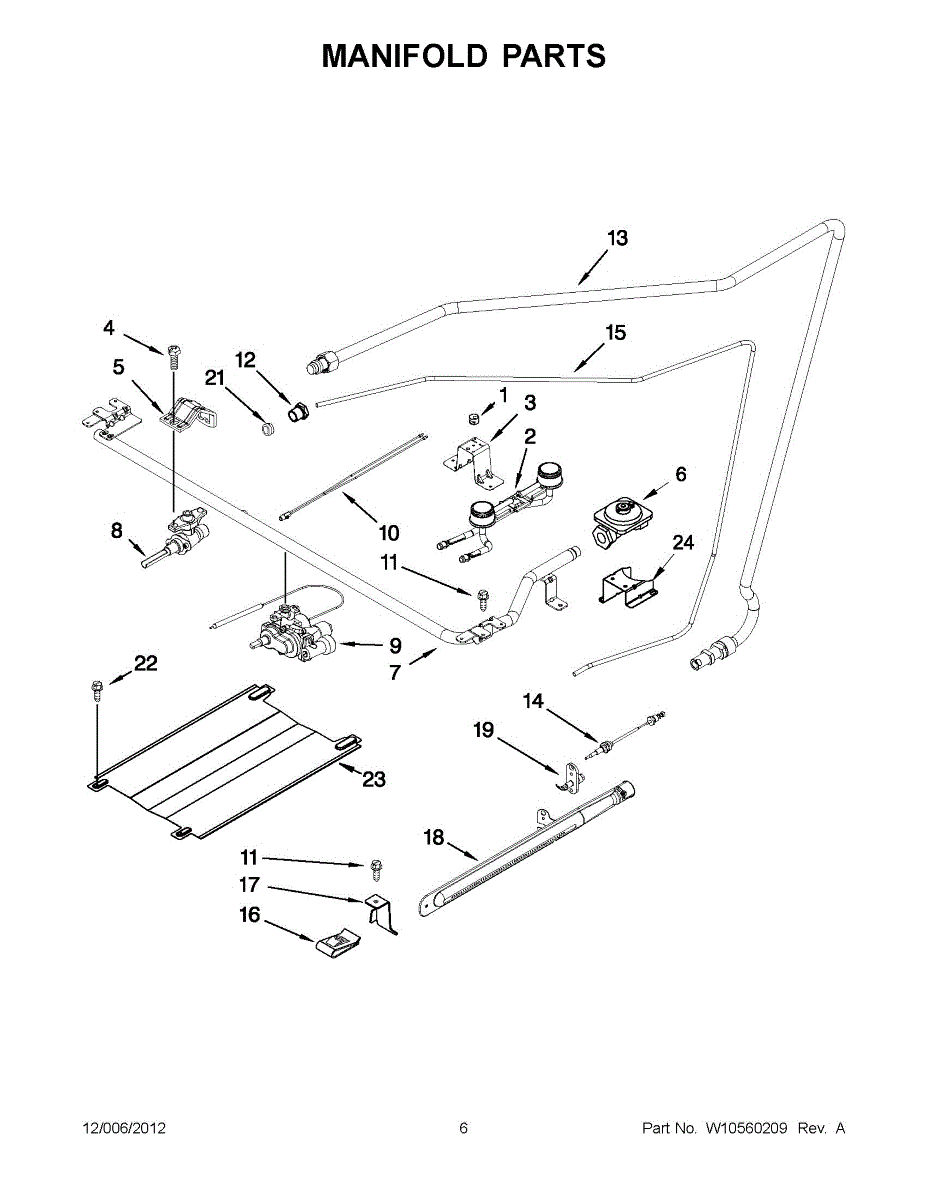

Parts for Maytag CGR3300XDW0: 03 - Manifold Parts

Factory replacement screw that secures appliance components and hardware. Use it to replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and help prevent loosening or damage from vibration.

• Fastens brackets, panels, or internal parts at the original mounting points
• Replaces worn or missing hardware to correct loose or misaligned components
• Helps reduce vibration-related noise and movement
• Matches the original thread and length specified for the application

• Disconnect power; shut off water or gas if applicable before servicing
• Compare to the original for thread and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Reuse any original spacers/washers if present; replace if damaged

This fitting tube connects a section of appliance tubing to the service plumbing to restore a sealed fluid path and prevent leaks. It's a direct-replacement plumbing fitting used where small-diameter tubing joins a fixed port. What it does

• Forms a secure connection between tubing and a plumbing port to maintain water/condensate flow
• Stops symptoms like visible leaks, pooling water, or reduced fill/drain performance when the original fitting is damaged
• Provides the proper interface for OEM tubing size and routing in the appliance
• Helps restore normal operation without altering factory plumbing

• One fitting tube

• Disconnect power and shut off water supply before servicing
• Drain remaining water from lines to reduce mess and pressure before removing old fitting
• Hand-start fittings then tighten to OEM torque; avoid over-tightening which can crack ports or tubing
• Inspect connections for leaks after restoring water and power; re-tighten if needed

This metal gas tubing connects the appliance's gas supply components to deliver fuel safely to burners or the oven. It restores proper fuel routing for reliable ignition and consistent burner performance. What it does:

• Provides a sealed pathway for natural gas or LP from the valve to the manifold or burner assembly
• Restores proper gas flow when tubing is cracked, corroded, or visibly damaged
• Helps stop symptoms such as gas odor near the appliance, weak or no burner ignition, or inconsistent flame
• Designed to match OEM shape and fittings for a correct fit and secure connection

• Turn off the gas supply and electricity to the appliance before starting work
• Only install where tubing and fittings match the original; use correct flare/nipple fittings as required
• Tighten connections per manufacturer guidance; check all joints with a soap solution or approved leak detector (do not use an open flame)

This pilot thermocouple monitors the standing pilot flame and signals the safety valve so gas only flows when a flame is present. Replacing a weak or failed thermocouple helps restore dependable pilot hold-in and consistent burner ignition.

• Senses the pilot flame and generates a small signal to keep the safety valve/magnet energized
• Helps prevent gas flow if the pilot goes out
• Common symptoms: pilot won't stay lit, oven/burner won't ignite, intermittent flame dropout
• Resolve intermittent heating caused by a weak or mispositioned pilot signal

• Shut off gas supply and disconnect power; allow the appliance to cool completely
• Access the pilot assembly; disconnect the old thermocouple from the safety valve and pilot bracket
• Route the new thermocouple along the original path; start all threads by hand to avoid cross-threading and do not overtighten
• Restore gas and check all connections with a non-corrosive leak-detection solution; relight/adjust the pilot per the manufacturer's instructions

This pilot thermostat is the oven temperature control that senses heat and helps regulate burner operation for consistent cooking. It replaces a worn or faulty thermostat to restore accurate temperature response and reliable oven ignition. What it does:

• Senses oven temperature and signals the burner/pilot system to maintain set heat levels
• Helps the oven light and hold temperature when the pilot or main burner is used
• Commonly used when the oven won't heat, cycles excessively, or fails to maintain consistent temperature
• Works as the temperature-sensing control element in gas oven pilot systems

• One pilot thermostat

• Turn off power and shut off gas supply before starting any service
• Handle thermostat gently; avoid bending or stressing the sensing element or capillary tube
• Verify wiring connections match the old part; replace like-for-like

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This oven burner baffle is a metal heat shield that directs heat and protects the oven floor and internal components for reliable cooking performance. It helps maintain even heating and keeps burner flames contained away from oven panels. What it does:

• Shields oven bottom and internal components from direct flame and high heat
• Helps stabilize burner flames for more consistent cooking and baking
• Prevents heat-related damage to oven floor and nearby parts
• Reduces hotspots that can cause uneven baking or browning

• One oven burner baffle

• Disconnect power and shut off gas supply before servicing;
• Handle carefully—edges may be sharp; wear gloves and eye protection
• Ensure the baffle is seated and secured per the oven's parts diagram to avoid rattling or interference with the burner
