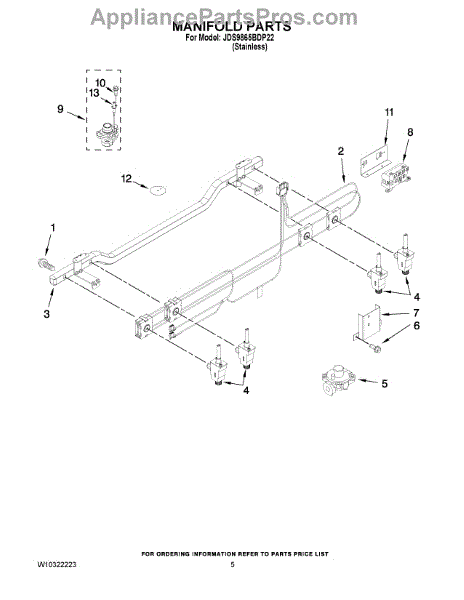

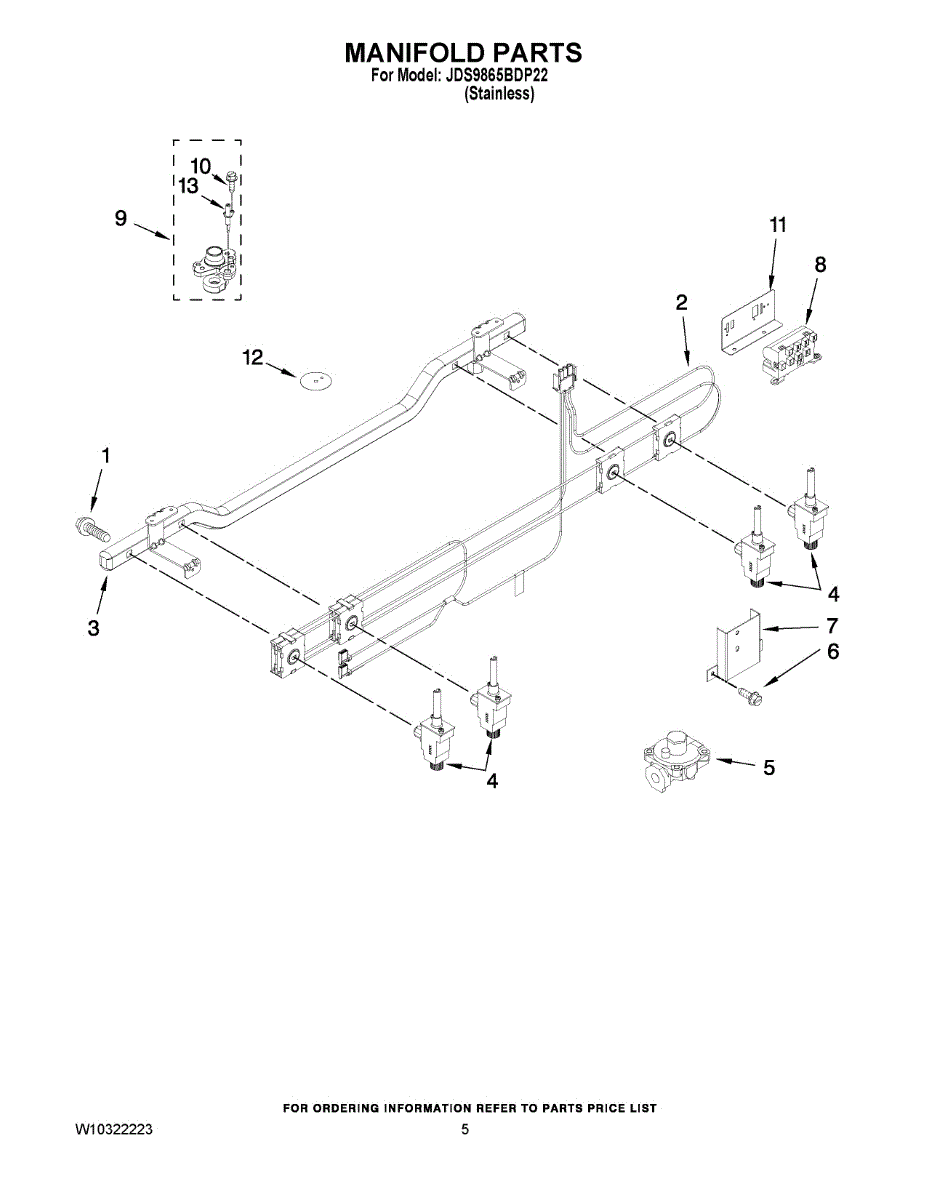

Parts for Maytag JDS9865BDP22: 04 - Manifold Parts

A set of four valve mounting screws used to secure the water/ice valve or valve bracket in place. These OEM-style screws restore proper valve alignment and fasten valve assemblies for reliable operation. What it does:

• Secures the valve or valve bracket to the appliance chassis to prevent movement during operation
• Helps maintain a tight seal at valve mounting points to reduce risk of leaks
• Replaces missing, stripped, or corroded valve mounting fasteners
• Restores stable valve positioning that can prevent rattling or vibration

• Disconnect power and shut off the water supply before beginning any work
• Use the correct screwdriver or bit to avoid stripping the screw heads
• Thread screws in by hand first, then tighten snugly—do not overtighten to avoid damaging the valve or mounting threads
• If existing threads are damaged, inspect the mounting boss and replace as needed

This wire harness connects key components so your appliance controls and sensors communicate reliably. Replaces a damaged or frayed harness to restore normal electrical connections and help resolve intermittent power or control issues. What it does:

• Routes power and signal connections between the control board, switches, and sensors
• Restores missing or intermittent electrical continuity caused by broken or burned wires
• Helps stop erratic operation, control failures, or no-power conditions linked to damaged wiring
• Matches OEM connector and terminal locations for a direct replacement

• Disconnect power at the breaker or unplug the appliance before starting any work
• Handle connectors gently; match keyed plugs and secure all wire routing away from moving parts and sharp edges
• If terminals are corroded or connectors are damaged, replace connectors

5K. Mueller

Size: 10-24X5/16-NI

This 4-spark ignition module controls the spark for gas burners so your cooktop or range lights reliably. It replaces a worn or failed module to restore consistent ignition and reduce click/no-spark issues. What it does:

• Sends timed spark to up to four burner electrodes for ignition
• Enables safe ignition sequence when burner control is turned on
• Helps eliminate symptoms like intermittent sparking, no spark, or continuous clicking
• Works with the range/cooktop's control system to coordinate ignition

• One 4-spark ignition module

• Disconnect power and shut off gas before attempting service
• Handle module and wiring harnesses carefully to avoid damage to connectors
• Verify proper electrode gap and burner alignment when reassembling

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This valve switch cover protects the appliance's valve switch assembly and wiring, keeping components secure and shielding them from moisture, dust, and accidental contact. Replacing a damaged cover helps restore proper fit and reduces the risk of electrical or valve issues. What it does:

• Shields the valve switch and connector from moisture, dirt, and physical damage
• Secures the electrical connector and switch in the correct position
• Helps prevent intermittent valve operation caused by loose or exposed connections
• Reduces the chance of wiring abrasion or shorting near the valve area

• Disconnect power to the appliance before starting any work
• Turn off the water supply if working near water valves
• Handle electrical connectors and wiring gently; avoid pulling on wires
• Use basic hand tools and follow OEM diagram for correct reassembly

This burner spark igniter produces the electrical arc that lights the gas flame on your range or cooktop. Replacing a worn electrode restores quick, dependable ignition and helps stop continuous clicking when a burner won't light.

• Generates the high-voltage spark that ignites the gas at the burner
• Works with the ignition module to light the burner when the knob is turned
• Common symptoms of a failing igniter: clicking but no flame, no visible spark, burner lights only with a match, intermittent or delayed ignition
• Restores fast, reliable lighting performance at the burner

• Disconnect power and shut off gas; allow the appliance to cool before servicing
• Access the electrode at its burner location; note its position and gap relative to the burner before removal
• Handle the ceramic insulator carefully and reuse original mounting hardware if applicable
• Reconnect the spark wire securely, reassemble, and test for proper spark and ignition

The Surface Burner Spark Electrode is an OEM part for Whirlpool gas ranges. This electrode is responsible for generating the spark that ignites the gas burner, allowing the burner to produce a flame for cooking.

Over time, the spark electrode can become faulty due to exposure to high temperatures, grease, and general wear and tear. This can lead to unreliable ignition or complete failure to ignite the burner.

Symptoms of a bad surface burner spark electrode include:

• The burner not igniting
• Weak or intermittent spark
• Clicking sound without ignition
• Burner flame going out soon after ignition

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
