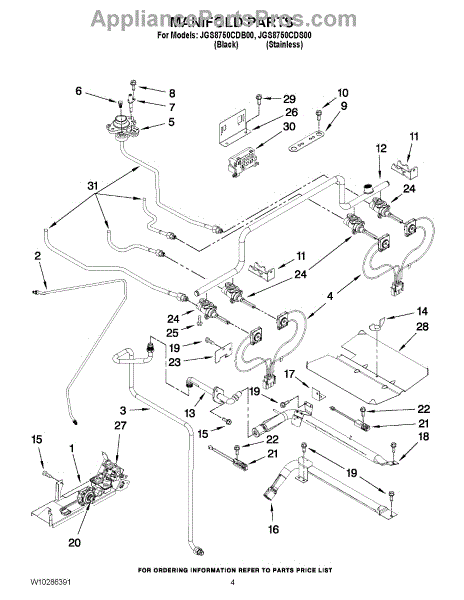

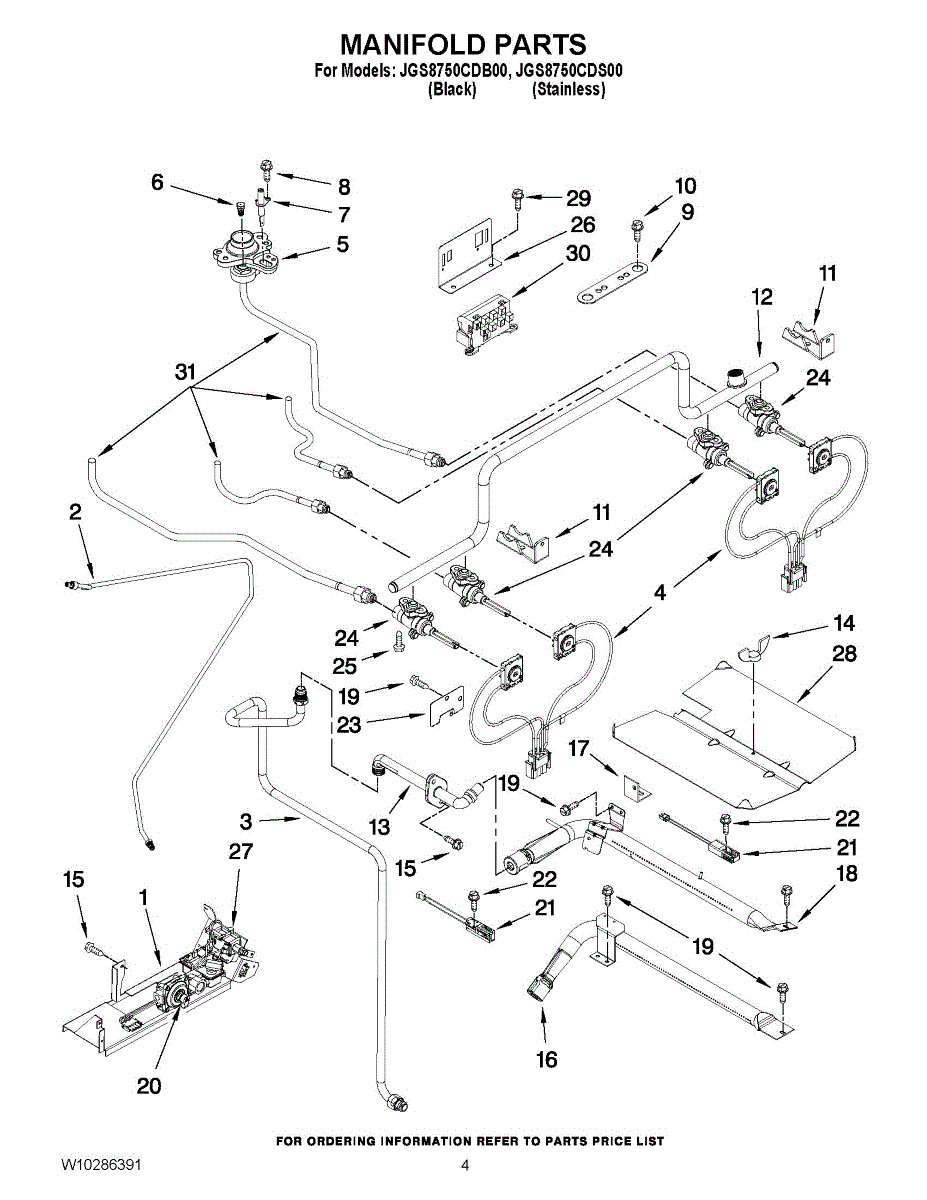

Parts for Maytag JGS8750CDS00: 03 - Manifold Parts

This switch harness assembly routes signals from a left-side switch to the appliance control so the machine detects door/lid or control inputs and operates correctly. It restores reliable electrical connection between the switch and main wiring. What it does:

• Provides the factory-style wiring connection between a left-side switch and the main control board
• Carries switch signals so the appliance recognizes door/lid position or user inputs
• Commonly replaced when an appliance won't start, doesn't register switch actions, or has intermittent control behavior
• Maintains correct wire routing and secure terminal connections to prevent loose or shorted circuits

• Disconnect power (unplug or shut off breaker) before starting any repair
• Inspect connectors and match terminals to factory routing before final assembly
• May require access by removing a control panel or cabinet trim; keep small fasteners and clips organized

This switch harness assembly connects control panel switches to the appliance's main wiring, restoring reliable switch-to-board communication and control. It's a direct-fit electrical harness used to replace damaged or worn wiring for normal operation. What it does:

• Routes electrical signals from control switches to the appliance control board or connector block
• Replaces frayed, burned, or broken harness wiring that can cause intermittent or failed controls
• Helps resolve symptoms like unresponsive buttons, intermittent operation, or visible wiring damage
• Maintains factory wire lengths and connector locations for correct fit and function

• Disconnect power (unplug or shut off breaker) before servicing to avoid shock or injury
• Inspect connectors and routing before installation; match connector shapes and wire colors for proper connection
• Secure harness away from moving parts, sharp edges, and heat sources to prevent future wear

This orifice holder secures the gas orifice in a cooktop/range burner assembly to keep the burner positioned for proper gas flow and ignition. It helps restore stable burner operation after a damaged or missing holder. What it does:

• Holds the burner orifice steady in the burner tube so gas flows through the correct opening
• Helps maintain a consistent flame; a worn or broken holder can cause weak or uneven flames
• Keeps the orifice aligned for reliable ignition and burner lighting
• Prevents orifice movement that can lead to noisy or irregular burner performance

• Turn off gas supply and power to the appliance before servicing
• Handle orifice and holder carefully to avoid damage to small parts and threads
• Clean surrounding burner parts and replace any damaged orifices or gaskets as needed

This orifice holder secures the gas orifice in a burner assembly to ensure proper alignment and gas flow for reliable ignition and flame performance. It fits the specified burner configuration and replaces a damaged or missing holder. What it does:

• Holds the burner orifice in place so the burner can ignite correctly
• Maintains correct orifice alignment for consistent flame shape and heat output
• Common symptom fix: burner won't light or produces a weak/uneven flame
• Works with the matching orifice sized for the listed burner application

• Turn off gas supply and electrical power before servicing the appliance
• Handle small parts carefully and confirm correct orientation during reassembly
• Check surrounding gaskets and seals and replace if deteriorated

This gas surface-burner orifice holder serves the 15K burner position on many cooktops/ranges. It routes gas from the valve to the burner orifice and keeps the burner properly aligned for consistent ignition and flame.

• Channels gas from the surface valve to the orifice for the 15K burner
• Rigidly locates the burner base and orifice for correct flame pattern and ignition
• Common symptoms of a failed holder include: burner clicking but not lighting, weak/small or uneven flame, or intermittent ignition on that burner
• Replacement restores proper alignment and gas flow at the affected burner

• Shut off gas supply and disconnect power; allow the appliance to cool
• Remove grates, caps, and burner heads; lift/open the top to access the holder
• Note orientation, disconnect tubing, remove mounting screws, and install the new holder in the same position; transfer any fittings as needed
• After reassembly, perform a soap-and-water leak check at all serviced connections before use

G4 orifice holder secures the gas orifice to the burner tube, keeping the orifice aligned for reliable ignition and a consistent flame. Replaces a damaged or worn holder to help restore proper burner flame behavior. What it does:

• Holds and positions the gas orifice in the burner tube for correct flame pattern and stability.
• Ensures consistent ignition and steady flame when the burner is operating normally.
• Common symptom indicators: burner won't light reliably, flame is weak or uneven, or burner performance is inconsistent.

• Turn off the appliance power and shut off the gas supply before beginning work.
• Inspect the orifice and burner tube for debris and proper alignment during installation.
• Tighten fasteners snugly but avoid overtightening; ensure the orifice is properly seated and oriented.
• After installation, check for correct ignition and perform a gas-leak check.

This orifice holder secures and positions the gas orifice at the burner, helping restore correct gas flow and consistent flame performance for compatible gas cooktop/range burners. Use it to replace cracked, warped, or missing holders. What it does:

• Holds the burner orifice in the proper position for accurate gas metering
• Helps maintain a steady burner flame and reliable ignition
• Replaces damaged or worn holders that can cause weak or inconsistent flames
• Works with surface burners and orifice assemblies where this holder is specified

• Turn off gas supply and unplug the appliance before servicing.
• Remove burner components and replace the holder with the matching OEM part.
• Inspect the orifice and surrounding tubing for damage; tighten fittings per manufacturer guidance.

The Top Burner Igniter is an OEM part for Whirlpool gas cooktops and ranges. This thin metal coil provides the spark to light the burner flames during startup. It is a spark electrode with a male spade connection.

Causes involve cracking of fragile ceramic insulator casings allowing moisture ingress, compromised electrical connections cutting off sparking ability, or general wear reducing spark output strength.

Symptoms of failure consist of:

• Inability to light one or more front gas burners
• Click sounds but no flame present when turning burner knob
• Safety issues arising from unlit gas accumulating

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.

Size: 10-24X5/16-NI

This wing nut is a hand-tightening fastener used to secure small appliance components for easy tool-free adjustment or removal. It offers a simple replacement when the original nut is lost, stripped, or broken. What it does:

• Secures panels, brackets, or components that require occasional removal or adjustment
• Allows tool-free tightening and loosening with built-in wings for finger grip
• Restores proper fit where a missing or damaged nut causes rattling, looseness, or instability
• Designed for repeated hand-operation without specialized tools

• Disconnect power to the appliance before performing any work to avoid shock or injury
• Thread by hand until snug; avoid overtightening to prevent stripping threads or cracking surrounding parts
• Inspect mating threads and replace if damaged to ensure secure fastening
• Use appropriate size and thread type—do not force a mismatched nut onto the stud

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. It's a direct-fit fastening part used where the original OEM screw is specified. What it does:

• Secures trim, access panels, or internal components to maintain structural fit
• Prevents vibration noise and loose parts by holding assemblies firmly
• Matches OEM fit and threading for correct engagement when used in original locations
• Intended for repairs that require the exact replacement fastener

• Disconnect power and unplug the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; avoid over-tightening which can strip threads or crack plastic

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This pressure regulator controls the appliance's gas flow to maintain stable burner performance and consistent flames. Use this replacement regulator to address pressure-related burner or ignition issues and help restore normal operation. What it does:

• Regulates incoming gas pressure to the oven/range burners for steady flame height and even heating.
• Helps maintain reliable ignition and consistent cooking temperatures.
• Commonly used when burners sputter, flame height is too high or too low, or ignition is intermittent.
• Works as the pressure-control component in the appliance's gas supply path.

• Turn off the appliance, shut off the gas supply, and disconnect power before servicing.
• Use proper fittings and thread sealant rated for gas; tighten connections to OEM torque specs if available.
• After installation, test all fittings for leaks with an approved method (soap solution or gas leak detector) and restore gas and power only when safe.

The Oven Igniter is an OEM part for Whirlpool ovens, designed to ignite the gas in the oven burner, allowing it to heat. This crucial component is responsible for creating the spark that starts the combustion process, enabling your oven to reach the desired temperature for baking or broiling.

Causes of a bad oven igniter include wear and tear from regular use, a buildup of residue that can inhibit the igniter's ability to heat properly, or electrical issues that prevent the igniter from drawing enough current.

Symptoms of a bad Oven Igniter include:

• Oven not heating up at all
• Oven takes longer than usual to heat up
• Gas smell when the oven is turned on, indicating gas is not igniting

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Size: 10-24X5/16-NI

5K. Mueller

9K. Mueller.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Oven valve that controls gas flow to the oven burner, restoring proper ignition and heat so the oven reaches and holds cooking temperature reliably. Replaces a failed valve assembly to recover normal oven operation. What it does:

• Regulates gas to the bake/broil burner so the oven can heat when the ignition system calls for flame.
• Replaces a worn or leaking valve that can cause no-heat or intermittent heating issues.
• Stops or starts gas flow in response to the oven control for safe temperature control.
• Fits the factory mounting and fuel connections used on the original assembly.

• Always shut off electrical power and the gas supply before beginning service.
• After installation, check all gas connections for leaks and verify proper ignition and oven operation before regular use.

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This spark module controls ignition for four surface burners and provides automatic reignition if a flame goes out. It generates the high-voltage spark and monitors flame for dependable lighting and consistent cooktop performance.

• Generates high-voltage pulses to ignite up to four surface burners
• Senses flame presence and automatically re-sparks if a flame is lost
• Helps stop sparking once flame is detected to reduce clicking
• Symptoms this part is involved with include: no spark on any burner, intermittent or weak spark, or continuous clicking after lighting

• Disconnect power and shut off gas before servicing
• Access is typically under the cooktop or behind a panel; mount the module securely away from heat and moisture
• Transfer wires one at a time to matching terminals; ensure ground/neutral connections are secure for proper flame sensing
• After reassembly, restore power and test each burner for ignition and that clicking stops when flame is present
