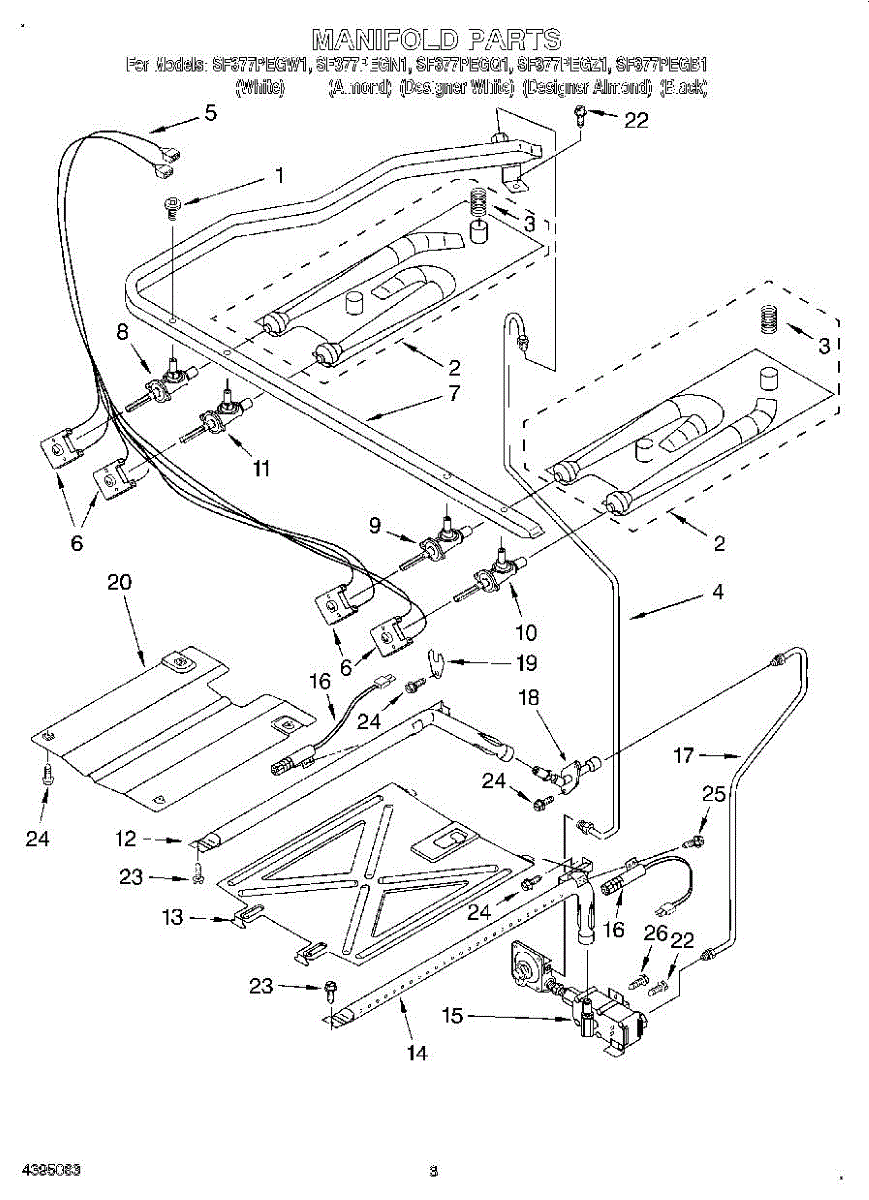

Parts for Whirlpool SF377PEGQ1: 03 - Manifold Parts

Fix gas burner control issues with this valve screw. Essential for securing gas valves on cooktops and ranges. Simple repair, typically 15 minutes.

Tubing for thermostat to manifold.

This wiring assembly connects the spark ignition system to each burner, providing electrical current for automatic lighting. Located beneath the cooktop connecting to each burner, replace it if burners require manual lighting or produce weak, intermittent sparks.

7500 BTU. Location: Left rear.

9500 BTU. Location: Left front, right front.

6500 BTU. Location: Right rear.

Oven safety valve and gas pressure regulator assembly.

Oven won't heat or light? This igniter powers both bake and broil burners. Most DIYers replace it in 10-25 minutes with basic hand tools.

Tubing for valve to broiler fitting.

Burner baffle for gas ranges. Sits under the burner cap to distribute flames evenly. Replace if cracked, warped, or corroded for proper heat distribution.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Mounting screw for gas ranges. Secures components and panels in place. Order a replacement if your original screw is lost, stripped, or damaged.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Replacement mounting screw for securing panels, brackets, and internal components. Needed when original screws are stripped, missing, or damaged during repair.

L.P. kit.

Natural gas, kit of 4.

This 10-32 x 3/8 machine screw secures appliance components. It keeps panels, brackets, and trim firmly attached so everything stays aligned and quiet during operation.

• Fastens metal parts using a 10-32 thread in pre-tapped holes or with a matching 10-32 nut
• Maintains proper alignment of panels, brackets, and trim to reduce vibration and rattling
• Replace if the original screw is missing, stripped, rusted, or damaged
• Using the correct hardware helps restore a secure, factory-tight fit

• Disconnect power; shut off gas supply if applicable. Allow the appliance to cool completely before servicing
• Note screw locations/lengths and replace like-for-like
• Start threads by hand to avoid cross-threading; snug with the appropriate driver—do not overtighten
• If the receiving threads are damaged, repair or replace the mating component before installing
