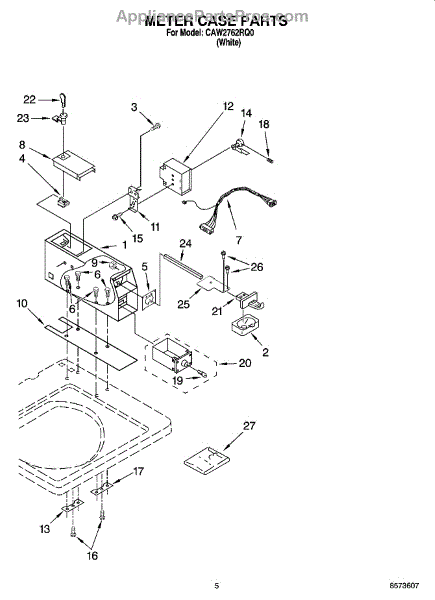

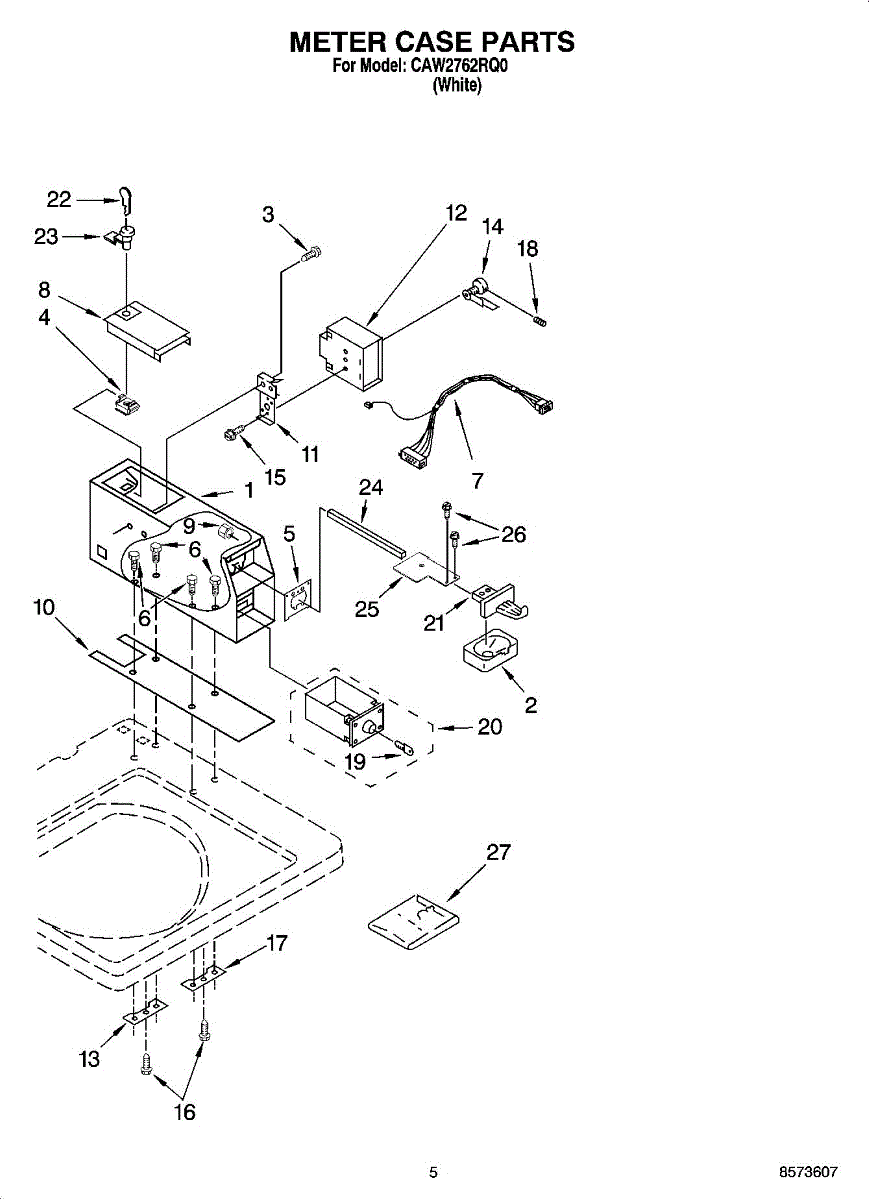

Parts for Whirlpool CAW2762RQ0: 03 - Meter Case Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This coin funnel channels coins from the coin slide/drop into the collection box on coin-operated laundry equipment. Replacing a damaged or missing funnel restores smooth coin flow and helps prevent jams and lost coins inside the cabinet.

• Guides coins from the slide/drop into the collection/coin box
• Helps prevent coins from spilling into the cabinet and causing jams
• Cracks, warping, or misalignment can cause coin back-ups or coins showing up inside the machine
• Visible damage or frequent coin jams indicate the funnel should be replaced

• Disconnect electrical power before servicing; for gas dryers, also shut off gas supply
• Remove coin box and open the meter case/console to access the funnel
• Reuse existing mounting hardware; install the new funnel in the same orientation
• Clear debris and test coin travel by hand before reassembly and returning to service

This cage nut has 5/16-18 threads and clips into a panel or frame opening to create a durable, replaceable threaded anchor. It restores a solid mounting point so screws can securely fasten panels, brackets, or hardware.

• Provides a 5/16-18 threaded anchor in thin sheet metal or chassis openings
• Secures panels, brackets, and components where factory threads are not possible or have stripped
• Helps eliminate looseness, rattling, or misalignment when a mounting point fails
• Symptoms of a failed/missing cage nut include a screw that won't tighten or hold, loose panels, and vibration noises

• Disconnect power and allow moving parts to stop before servicing
• Remove the screw and old cage nut; compress the new nut's tabs and snap it fully into the opening
• Align threads and start the screw by hand to avoid cross-threading
• Tighten the screw until snug; do not overtighten into sheet metal

This is the factory replacement microwave door assembly. It restores a smooth, secure door closure and proper operation so the unit can open and close reliably and look like new. What it does:

• Provides a complete, aligned door to open/close the cavity smoothly
• Ensures latch hooks engage properly so the appliance can operate
• Replaces doors that are cracked, warped, or have broken handle mounts
• Addresses issues like the unit not starting unless the door is pressed, or stopping when the door is moved
• Helps resolve sparking/arcing around the door opening caused by a damaged door choke or screen

• One door assembly

• Disconnect power at the breaker before servicing; microwaves contain high-voltage components
• For over-the-range units, support or remove the microwave from the wall to safely access and handle the door
• Transfer any reusable hardware/hinge pins/trim from the original door as needed
• Align the hinges and verify the door closes, latches, and opens smoothly before remounting

Size: 10-32

This mechanical cycle timer controls the sequence and duration of each program. Replacing a worn or stuck timer restores proper cycle advancement and dependable operation so the appliance starts, progresses, and finishes each step at the correct time.

• Governs cycle timing and advances the dial automatically
• Routes power to components at the correct time during each step
• Symptoms: cycle won't advance or stalls on one position
• Symptoms: runs endlessly or ends too soon
• Symptoms: won't start when set; dial doesn't move or only clicks

• Disconnect power; shut off gas supply before service
• Photograph wiring and transfer one wire at a time to the matching terminals on the new timer
• Move any brackets/screws from the original timer; mount securely without overtightening
• Align the timer shaft with the dial/knob during reassembly—do not force the shaft

The Idler Shaft Retaining Ring is an OEM replacement part for Whirlpool dryers. Also called an "E" ring, it is a sealing gasket positioned between the front and rear housing omponents. Maintaining an airtight seal prevents gas leakage and promotes efficient drying performance.

Causes of a bad retaining ring commonly involve compression loss of the rubber gasket material over many years of heating cycles. Exposure to petroleum-based cleaners may prematurely deteriorate the seal as well.

Symptoms of a failed 'E' ring include:

• Gas leaks emitting foul odors around seams or vents
• Reduced heat conductivity hampering dryer functioning
• Moisture accumulation shortens fabric lifespan
•  Drafts compromising indoor air quality and energy bills

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas dryer models.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This genuine replacement screw fastens appliance panels and components where a 10-32 thread is required, restoring secure connections and reducing rattling or loose parts. It's a simple, reliable fix for loose trim, panels, or brackets. What it does:

• Replaces stripped, lost or corroded 10-32 threaded screws used on panels, brackets, and trim
• Restores secure attachment to stop vibration, movement, or rattling
• Matches OEM thread form for correct fit and engagement
• Used where a short 10-32 machine screw is specified by the manufacturer

• One 10-32 x 3/8 screw

• Disconnect power and/or water to the appliance before starting any repair
• Use the correct screwdriver or nut driver to avoid cam-out and head damage
• Thread by hand to start, then snug—avoid over-tightening to prevent stripped threads or cracked parts
• If screw engages metal-to-metal, apply appropriate torque and secure fit before reassembling panels

The Door Switch Kit is an OEM part for Whirlpool dryers. This kit includes a door switch that plays a crucial safety and operational role in the dryer's function. It ensures that the dryer operates only when the door is firmly closed, preventing the machine from running with an open door, which could pose safety risks and inefficiency in the drying process.

The causes of door switch failure often include physical damage from slamming the dryer door, wear and tear over time, or electrical issues such as short circuits.

Symptoms of a faulty Dryer Door Switch include:

• The dryer not starting when the door is closed
• The dryer continuing to run when the door is opened, which poses a significant safety hazard.
• Unusual noises from the switch area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Coin Box is an OEM replacement part for Whirlpool combo washer/dryers. It provides a storage space for coins used to operate the unit. The coin box slots ensure collected change remains safe and secures payments for laundry cycles.

Causes of a bad coin box can be normal wear from hundreds of deposits, minerals clogging slots, or physical damage compromising security.

Symptoms of a bad coin box include:

• Coins not being accepted or properly collected
• Box distorting shape or developing cracks over time
• Change falling out or going missing

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Coin Slide is an OEM replacement part for Whirlpool washers. It is vertical 8 coin chute for payment in commercial or coin-operated laundry washers. It provides a secure and reliable mechanism for accepting coins, ensuring smooth operation and hassle-free lock box transactions.

Symptoms of a bad coin slide include:

• Coins getting stuck or not sliding smoothly
• Failure to register or accept coins
• Inconsistent or unreliable coin acceptance

A faulty coin slide can occur due to regular use, jammed coins, or damage to the internal components. If you experience issues such as coins getting stuck or not registering, it may be time to replace the coin slide.

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This replacement key engages the appliance's keyed lock or actuator so the mechanism can be operated or secured. It restores function when the original key is lost, worn, or broken, helping keep the unit safe and usable.

• Engages a keyed lock or control as designed by the manufacturer
• Allows operation or release of the keyed mechanism when inserted and turned
• Helps prevent unintended use when removed
• Common symptoms: missing key, damaged key, lock won't turn or engage

• Disconnect power before servicing and ensure the appliance is at rest
• Align the key with the lock/actuator; insert fully and turn as indicated on the product
• Do not force; if binding occurs, inspect the lock cylinder for damage or obstruction
• Store a spare key in a safe location

This lock cam is a small actuator that drives the appliance's door-lock mechanism. It translates the lock actuator's movement into a positive latch, helping the door lock securely when required and release correctly so cycles start and finish properly.

• Interfaces with the lock actuator and latch to engage and release the lock
• Wear, cracking, or rounding can cause the lock not to engage or to stick
• Common symptoms include a door/lid that won't lock or unlock, loose lock lever, clicking without latching, or door/lock-related error messages
• Restores proper linkage travel and switch actuation when the original cam is worn or damaged

• Disconnect power to the appliance before servicing
• Access the lock mechanism per your model; note the cam's orientation and any springs/linkages
• Install the new cam fully seated and ensure it engages the actuator and latch smoothly
• Reassemble, restore power, and test lock operation

This 1/4-20 bolt secures appliance panels, brackets, and components to keep assemblies stable and aligned. It's a direct-fit fastener used where a standard 1/4-20 machine screw is required. What it does:

• Fastens panels, mounting brackets, and internal components to the appliance frame
• Prevents parts from shifting, vibrating, or producing rattling noises
• Restores proper alignment for components that won't sit flush or move under load
• Replaces corroded, stripped, or missing hardware that can cause loose assemblies

• One 1/4-20 bolt

• Disconnect power to the appliance before performing any repairs
• Use the correct socket or wrench for a secure fit; avoid rounded fasteners
• Tighten snugly but avoid over-torquing to prevent thread damage or stripped holes
• Ensure mating threads are clean and free of debris

Kit includes six stickers: $0.75, $1.00, $1.25, $1.50, $1.75, $2.00.
