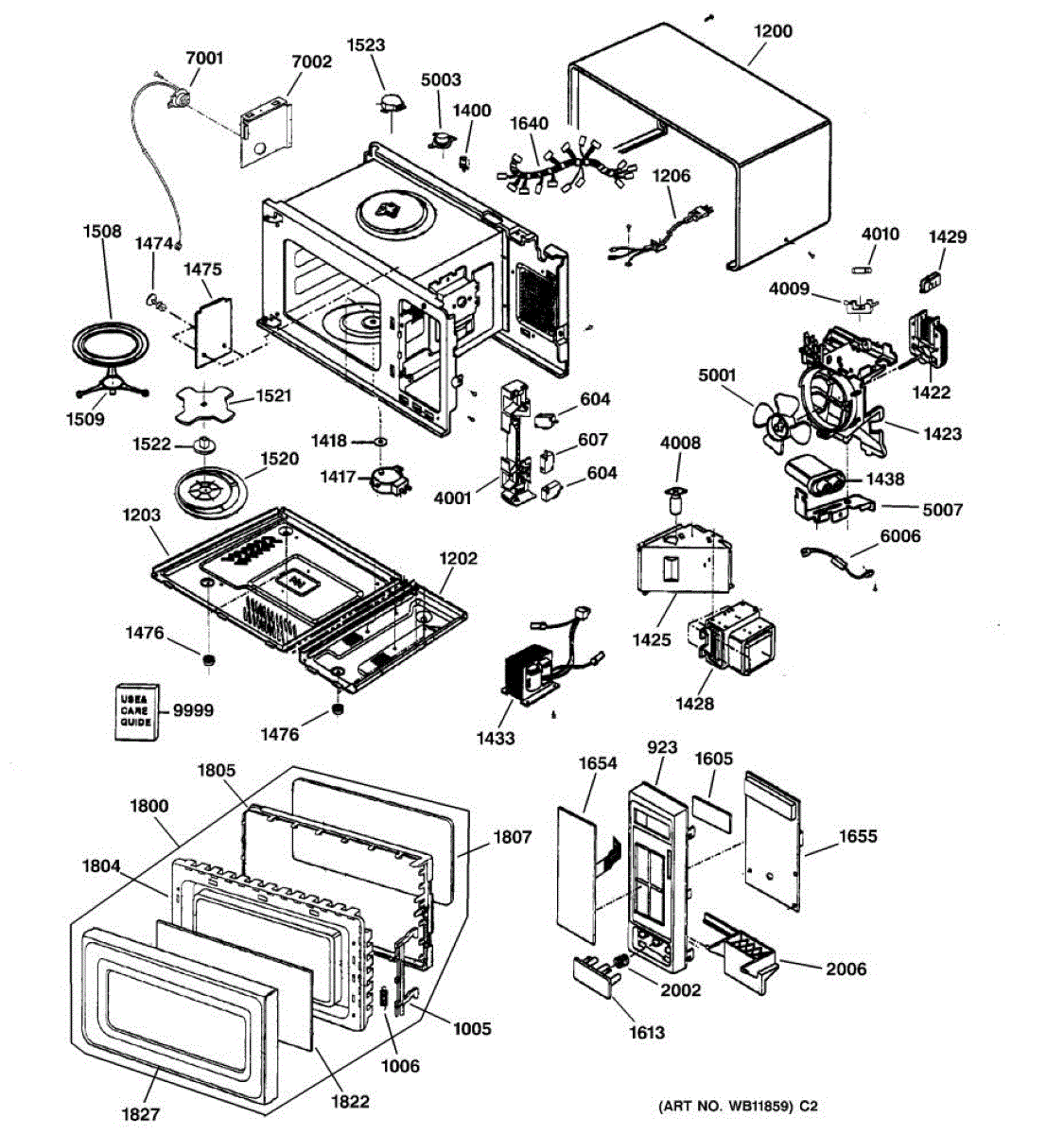

Parts for Ge JE1860CB003: 01 - Microwave Parts

The Door Interlock Switch is an OEM part for GE microwaves. It ensures the safety of the microwave by preventing the appliance from operating while the door is open. This switch is part of a microwave's safety mechanism, which includes multiple interlock systems designed to stop the generation of microwaves immediately once the door is opened, thereby protecting users from exposure to microwave radiation.

Signs that it's time to replace your door interlock switch include the microwave not starting or stopping unexpectedly, the microwave continuing to operate with the door open, or a failure to heat food even though the appliance seems to be running.

Symptoms of a bad Door Interlock Switch include:

• Microwave does not start
• Microwave stops unexpectedly
• The microwave operates with the door open
• Microwave turns on but does not heat food

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Switch Monitor Interlock is an OEM replacement part for GE microwaves. This safety component ensures that the microwave operates only when the door is securely closed. It prevents the microwave from running if the door is open, providing a critical safety feature to protect users from exposure to microwave radiation.

Causes of a bad switch monitor interlock can include wear and tear over time, mechanical damage from frequent door opening and closing, or electrical malfunctions that impact its performance.

Symptoms of a bad Switch Monitor Interlock include:

• The microwave not starting or operating intermittently
• The microwave running with the door open
• Error messages or safety warnings displayed on the control panel
• Unusual clicking or buzzing noises when the microwave door is opened or closed

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A replacement door latch assembly that secures the appliance door and allows the door to lock and unlock properly for normal operation and safety. Restores proper door closure and appliance cycling when the latch is faulty. What it does:

• Engages and holds the door closed so the appliance can operate and complete cycles
• Triggers the appliance's door switch/lock mechanism when closed
• Helps prevent water/heat escape by ensuring a tight door seal during use
• Common symptom: door won't stay closed, won't latch, or appliance won't start/cycle

• Disconnect power (and water if applicable) before servicing to avoid shock or injury
• Access usually requires removing the door or front panel; follow your model's service manual
• Keep screws and small parts organized; test latch operation before reassembling completely

This wire holder is a small retaining clip that secures wiring or harnesses to the appliance chassis to prevent rubbing, strain, and accidental disconnection. It helps keep wiring routed neatly for reliable operation and safer service. What it does:

• Secures a wire or wiring harness to a mounting point to reduce movement and abrasion
• Helps prevent loose or chafed wires that can cause intermittent operation or electrical arcing
• Keeps wiring routed away from hot or moving components
• Restores proper harness placement after service or if the original clip is broken

• Always disconnect power to the appliance before servicing electrical components
• Inspect surrounding wiring and connectors for damage; replace any frayed or exposed wires
• Clip typically installs into the factory mounting location; basic hand tools may be needed

Turntable drive motor.

The Magnetron is an OEM component specifically designed for GE microwaves. The magnetron is responsible for generating microwave radiation that cooks food by utilizing electromagnetic energy. It works by accelerating electrons within a vacuum tube using a magnet to generate microwave emissions.

Causes of a bad magnetron can include overuse, excessive cooking times, damage from arcing due to sparks, or general wear and tear over time.

Symptoms of a bad magnetron include:

• Inefficient or inconsistent cooking and heating
• Longer cook times required
• Food not cooking thoroughly or remaining cold in spots
• The microwave making buzzing or humming noises during use

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Capacitor High Voltage is an OEM part for GE microwaves. It stores and releases high voltage electrical energy to power the magnetron, which generates the microwaves for cooking.

Over time, capacitors can deteriorate due to prolonged exposure to high voltage, excessive heat, or electrical surges. A malfunctioning capacitor can lead to inefficient cooking or complete failure of the microwave.

Symptoms of a bad capacitor include:

• The microwave not heating food properly
• A loud humming or buzzing noise during operation
• The microwave shutting down unexpectedly
• Visible damage or leakage from the capacitor

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This rivet assembly is a direct-replacement fastening piece used to secure appliance panels and components, restoring a stable, rattle-free fit and preventing movement caused by worn or broken rivets. What it does:

• Secures panels, brackets, or component mounts to restore proper alignment and support
• Stops rattling, vibration, or loose hardware caused by damaged or missing rivets
• Provides a durable mechanical fastener where original rivets have sheared or loosened
• Helps maintain safe operation by keeping parts properly retained

• Disconnect power (and gas/water if applicable) before attempting any repairs
• Removal may require drilling out the old rivet; installation typically needs a rivet gun or equivalent tool
• Keep hardware orientation the same as the original; replace any damaged surrounding parts

This molded resin cover is a protective plastic shield used inside the microwave. It helps protect internal components and ducting from splatter and debris and restores a secure, finished fit when the original cover is cracked or missing. What it does:

• Shields internal components from grease, steam, and food splatter inside the unit
• Helps maintain proper airflow paths and a snug, rattle-free fit
• Common replacement when the original cover is cracked, warped, loose, or missing
• Visual cue: exposed internal parts or a cover that won't stay secured

• One resin (plastic) cover

• Disconnect power (unplug or switch off the breaker) and allow the unit to cool
• Access the cover location; remove retaining screws/clips and keep hardware for reuse
• Align the new cover and secure it without overtightening
• Ensure the cover is fully seated and not contacting nearby moving parts before restoring power

Stirrer motor

The Switch Holder is an OEM component specifically designed for GE microwaves. Located inside the microwave cavity, this holder securely mounts interaction switches, sensors, and buttons.

Causes of a faulty switch holder include cracks or breaks developing from years of normal vibration and use.

Symptoms of a bad switch holder include:

• Switches, sensors, or buttons becoming loose, detached, or misaligned
• The microwave fails to register user input or respond appropriately
• Potential shock or short circuit risks if connections are exposed
• Reduced lifespan of mounted components through excessive movement

This genuine GE part is compatible with models including Profile, Hotpoint, RCA, and Kenmore.

The Fuse is an OEM part for GE microwaves. It serves as a safety device designed to protect the microwave from excessive current that can cause overheating and potential fire hazards. When the current flowing through the microwave circuit exceeds a certain level, the fuse blows or breaks, cutting off the power to prevent damage or fire.

Common causes for a fuse to blow include power surges, faulty wiring within the appliance, or the use of microwave inappropriate containers that cause sparks. It is essential to address these issues not only to replace the fuse but also to correct the underlying problems to prevent future failures.

Symptoms of a bad fuse include:

• The microwave suddenly stops working.
• No signs of power or response even when the microwave door is closed and the start button is pressed.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This propeller fan blade moves air through the appliance to support proper airflow and temperature control. Replacing a worn or damaged propeller restores circulation and helps the appliance run quietly and efficiently. What it does:

• Circulates air across coils, vents, or heat sources to maintain even temperatures
• Helps prevent hot or cold spots and reduces frost buildup from poor airflow
• Stops or reduces vibration and scraping noises caused by cracked or warped blades
• Restores proper fan operation when the original blade is broken, chipped, or missing

• Disconnect power before accessing internal panels or the fan assembly
• Inspect the mating hub and mounting hardware; replace any damaged clips or retainers
• Ensure correct blade orientation and secure attachment to avoid imbalance

The Diode Assembly is an OEM part for GE microwaves. It plays a crucial role in converting alternating current (AC) to direct current (DC), which is essential for the microwave’s high-voltage functions, including powering the magnetron to generate microwave energy.

Over time, diodes can fail due to electrical surges, excessive heat, or wear and tear. A faulty diode assembly can lead to inefficient or non-functional microwave operation, impacting its ability to heat food properly.

Symptoms of a bad diode assembly include:

• Microwave not heating food
• Sparking or arcing inside the microwave
• Burning smell or unusual noises during operation
• Microwave turning on but failing to generate heat

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
