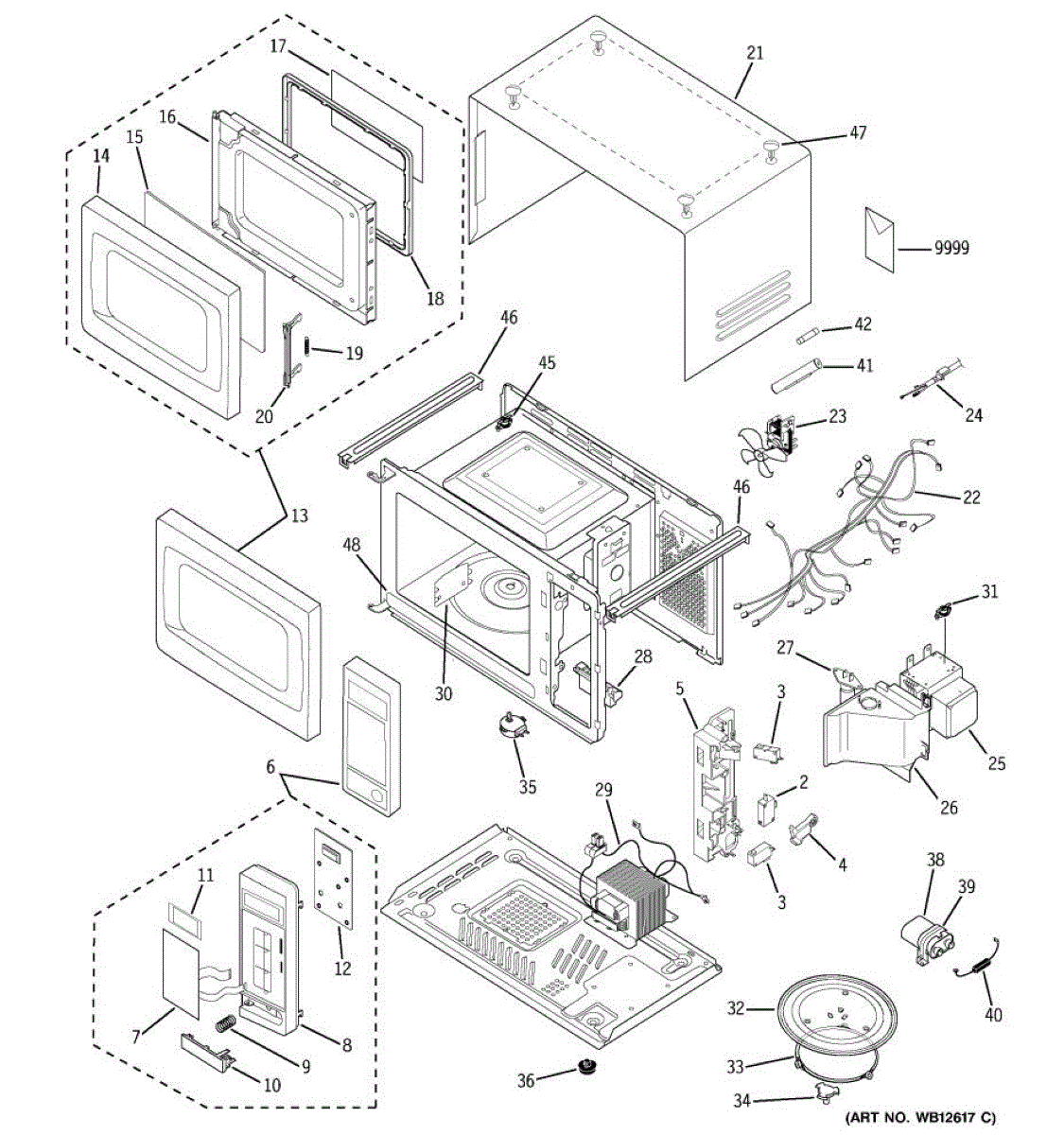

Parts for Ge JE620WF001: 01 - Microwave Parts

The Monitor Switch is an OEM replacement part for GE microwave ovens. Located internally on the turntable control circuit board, this switch monitors rotation of the turntable during cooking cycles.

Causes of failure involve degradation of the electrical contacts from continuous arcing loads over years of use combined with vibration stresses.

Symptoms of a faulty monitor switch include:

• The turntable no longer rotates or spinning intermittently
• Cooking cycles aborting prematurely with error messages
• Screeching or grinding noises emanating from beneath cavity
• Visible burnt spots on turntable drive assembly

This genuine GE switch is also compatible with select Hotpoint and RCA models.

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This film door is the thin protective window/cover film used on the appliance door to restore a clear view and protect the underlying glass or display surface from scratches and wear. It replaces damaged or peeled door film for a like-new appearance. What it does:

• Protects the door window or display surface from scratches, scuffs, and wear
• Restores a clear, unobstructed view when existing film is cloudy, scratched, or peeling
• Helps maintain the finished appearance of the door and prevents further surface damage
• Functions as the cosmetic/protective layer only — not a structural door component

• One film door

• Peel-and-stick or snap-on installation; follow manufacturer instructions and work on a clean, dry surface
• Clean glass or panel thoroughly before applying to avoid bubbles and trapped debris
• Avoid sharp tools that could damage the film during installation

This outer case is the exterior cabinet panel that protects internal components and gives the appliance a finished appearance. It restores the unit's exterior fit and helps keep internal parts shielded from damage and debris. What it does:

• Replaces a cracked, dented, or warped exterior panel to restore a clean, secure outer shell
• Protects internal components from dust, spills, and physical impact
• Eliminates gaps or loose panels that can cause rattling or uneven door/console alignment
• Restores proper mounting points for adjacent trim and controls

• One outer case panel as pictured

• Disconnect power to the appliance before beginning any work
• Some trimming or seal gaskets from the old panel may need transfer; verify fastener locations before removal
• Use appropriate hand tools; support the panel during removal/installation to avoid damage or injury

This interior oven lamp provides bright, direct lighting inside the oven cavity so you can monitor cooking without opening the door. Direct replacement designed for compatible GE ovens and ranges. What it does:

• Lights the oven interior so you can check food without releasing heat
• Replaces a dim, flickering, or burned-out oven light
• Restores safe visibility when checking racks, pans, and broiling items
• Fits standard oven lamp sockets used in many GE appliances

• Always disconnect power to the appliance before replacing the lamp
• Allow the oven to cool completely to avoid burns
• Remove protective cover or lens per your owner's manual before swapping the bulb
• Hand-tighten the lamp; do not overtighten.

The microwave switch lever is a small plastic arm inside the door latch assembly that activates the door interlock switches when the door is closed. These switches signal the microwave that the door is securely shut before allowing it to operate. Replace this part if the microwave won't start, runs with the door open, or the door doesn't latch and release properly.

Replacement thermostat that senses and controls the appliance heating system to restore accurate heating and stable temperature cycles, helping the appliance reach and maintain the set temperature. What it does:

• Senses temperature and signals the heating element or valve to turn on/off to maintain set temperature.
• Commonly linked to symptoms such as failure to reach set temperature, temperature fluctuating or cycling erratically, or continuous heating.
• Works as the temperature-regulation component in the appliance's control pathway to stabilize performance.
• Matches the OEM function for temperature control; use when thermostat diagnostics indicate a failed or inaccurate sensor.

• Disconnect power to the appliance before attempting removal or installation to avoid shock or ignition hazards.
• Handle the sensing element and terminals carefully to avoid damage; ensure secure electrical connections and proper routing of any capillary or sensor lead.
• After installation, test the appliance through a full heat cycle to confirm correct operation.

This cooking tray is the oven broiler/drip pan that catches drips and holds food while broiling, helping keep the oven interior cleaner and making broiling tasks easier. It provides a stable surface for broiling and roasting. What it does:

• Catches grease, juices and food debris to help prevent spills and reduce smoking
• Supports pans or food under the broiler for even browning and crisping
• Helps contain messes for easier cleanup after cooking
• Restores proper fit and function when the original tray is damaged or warped

• One cooking tray

• Install on the broiler rack or designated support slots; ensure tray sits flat and secure before use
• Allow the oven to fully cool before removing or installing the tray to avoid burns
• Clean with warm, soapy water and avoid abrasive cleaners that can damage the finish
• Inspect regularly for heavy warping or damage; replace if it no longer fits securely

Color: brown. Measures about 8 inches in diameter.

Microwave turntable stopped spinning or rotating? This turntable motor drives the glass tray for even heating. DIY-friendly replacement restores rotation.

Black plastic foot that supports and stabilizes your microwave. Installs on the bottom corners. Replace if cracked, broken, or missing for proper leveling.

This Bracket HVC is the OEM mounting bracket that secures the HVC assembly in place, keeping related components aligned and reducing vibration or movement for reliable operation. What it does

• Secures the HVC assembly or housing to the appliance frame to prevent shifting or loosening
• Helps maintain proper alignment of adjacent components for consistent performance
• Reduces vibration and rattling that can occur when a bracket is missing or damaged
• Commonly replaced when the HVC housing is loose, noisy, or does not sit flush

• One Bracket HVC mounting bracket

• Disconnect power to the appliance before beginning any work to avoid electrical shock
• Basic hand tools are typically required; handle metal edges carefully to avoid cuts
• Inspect mounting screws or clips and replace if worn to ensure a secure fit

Microwave not heating but lights and timer work? The high voltage diode converts AC to DC for the magnetron. DIY repair in 1-2 hours with basic tools.

This 250V 15A safety fuse protects the appliance's line circuit from overcurrent. When the original fuse has blown, replacing it can restore power and help safeguard internal components from further damage.

• Opens the circuit if excessive current or a short occurs, protecting internal parts
• Common symptom: unit completely dead—no display, lights, or response to controls
• Blown fuse will test open (no continuity) with a multimeter
• If a new fuse blows again, another component may be shorted and needs diagnosis

• Unplug the appliance before servicing; microwaves can retain a dangerous charge—discharge the high-voltage capacitor
• Access the fuse near the line filter/control area; note clip orientation
• Replace only with the same 250V 15A rating; never bypass or upsize the fuse
• If the replacement fuse blows immediately, stop and troubleshoot the root cause

This microwave thermostat monitors the internal temperature and automatically shuts off the microwave when it reaches 105 degrees Celsius to prevent overheating. It protects your microwave from damage caused by excessive heat buildup. Replace this part if your microwave shuts off unexpectedly during normal operation or if it overheats frequently.

White plastic clip plug for microwave interior. Installs to secure components or cover mounting holes. Order a replacement if original is cracked or missing.
