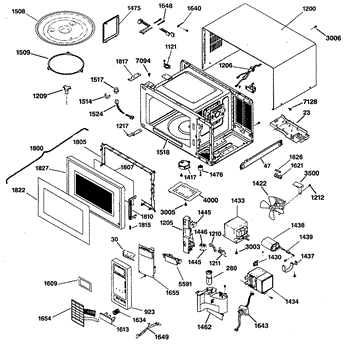

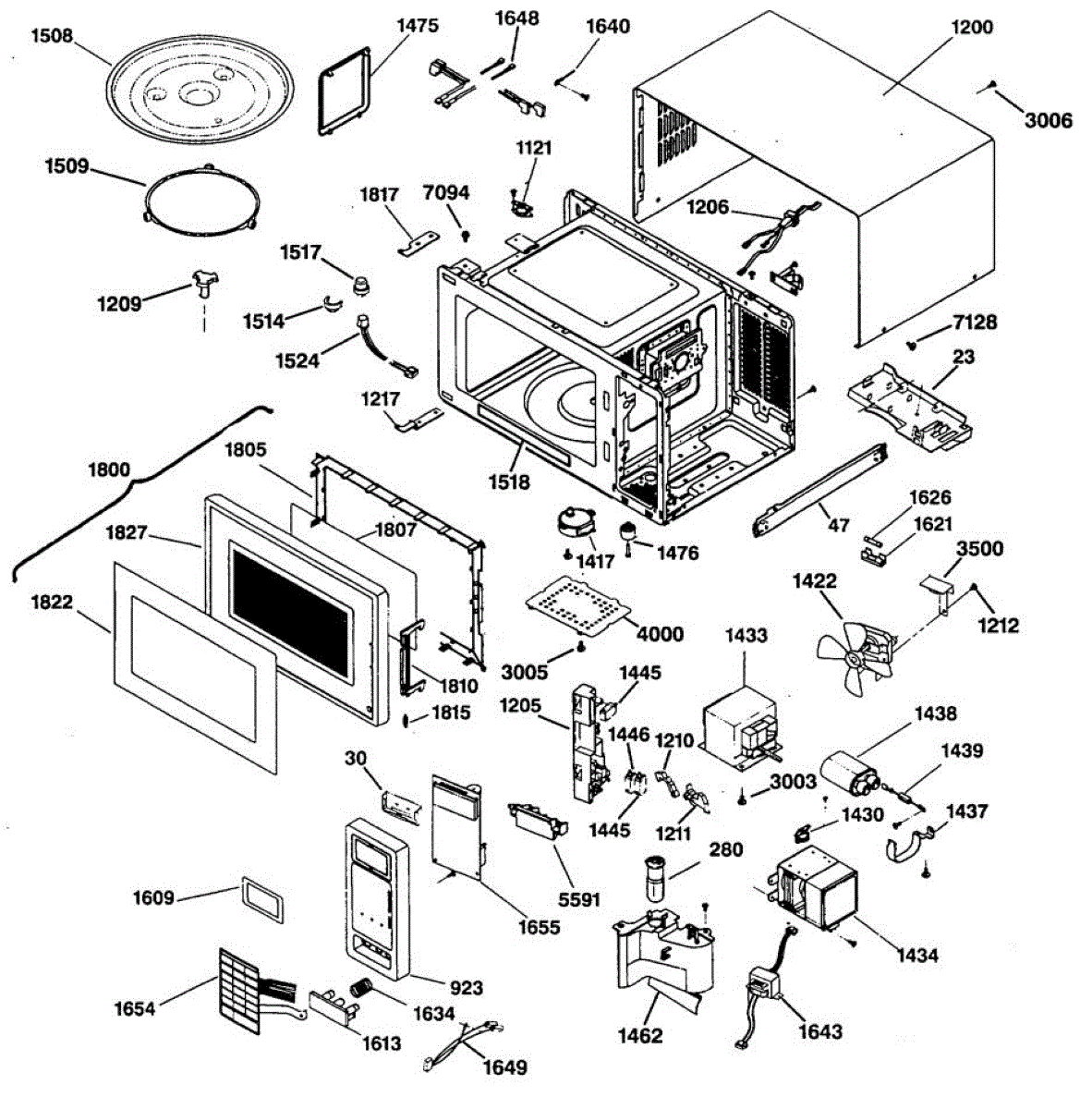

Parts for Ge JE950GV02: 01 - Section1 Parts

Turntable motor that rotates the microwave's glass tray to promote even cooking and restore proper tray movement. Replacing a worn motor helps eliminate stalling, grinding, or no-spin problems. What it does:

• Turns the glass turntable so food rotates for even heating.
• Replaces a motor that causes the tray to stop rotating or to spin intermittently.
• Addresses motor noises such as humming, grinding, or clicking tied to a failing drive.
• Restores smooth, consistent rotation when the original motor has worn out.

• Disconnect power before servicing and remove the glass tray and roller ring first.
• Access the motor from the cavity floor or rear panel depending on model; unplug the motor connector and remove mounting fasteners before swapping.
• Test rotation with the microwave empty and power restored before final reassembly.

This high-voltage rectifier diode is used in the microwave's high-voltage circuit. It converts AC to DC so the magnetron can produce heat. A failed diode can cause no heat, loud humming, or a blown fuse when starting. What it does:

• Rectifies high-voltage AC to DC to power the magnetron
• Blocks reverse voltage in the HV circuit
• Common failure symptoms can include: runs but doesn't heat; loud hum then shutdown; line fuse blows at startup

• 1 high-voltage diode

• Unplug the microwave and properly discharge the high-voltage capacitor before servicing—dangerous voltage can remain even when unplugged
• Match diode orientation/polarity to the original and ensure a solid chassis ground connection where used
• Route leads and reinstall any clamps/insulators exactly as found; keep wiring clear of sharp edges and hot components
• If the original diode failed, inspect the HV capacitor and transformer for related issues before reassembly

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Monitor Switch is an OEM replacement part for GE microwave ovens. Located internally on the turntable control circuit board, this switch monitors rotation of the turntable during cooking cycles.

Causes of failure involve degradation of the electrical contacts from continuous arcing loads over years of use combined with vibration stresses.

Symptoms of a faulty monitor switch include:

• The turntable no longer rotates or spinning intermittently
• Cooking cycles aborting prematurely with error messages
• Screeching or grinding noises emanating from beneath cavity
• Visible burnt spots on turntable drive assembly

This genuine GE switch is also compatible with select Hotpoint and RCA models.

This part has been discontinued and is no longer available.

The Cooking Tray is an OEM replacement part for GE microwaves, designed to support and rotate food for even cooking. This glass tray fits within GE microwave models, allowing for the optimal distribution of microwave energy throughout the food. By rotating, it ensures that meals are evenly heated, preventing cold spots and promoting a uniform cooking process. Microwave Glass Turntable Tray, 12 1/2" Dia. Might Be Smaller Than Original.

Causes of a bad Microwave Cooking Tray can include cracking, chipping, or breaking due to accidental drops or heavy impact. Over time, repeated use can also wear down the tray, potentially compromising its structural integrity.

Symptoms of a bad Microwave Cooking Tray include:

• Inability to rotate, affecting the microwave's ability to cook food evenly.
• Unstable movement or wobbling during operation.
• Cracks or breaks in the tray, which can lead to unsafe conditions or further damage to the microwave.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This gas flame sensor detects whether a burner's flame is present so the range/oven's gas valve and ignition control can operate safely. It helps restore reliable ignition and prevents the valve from staying open when no flame is detected. What it does:

• Senses the presence of a gas flame and signals the control to keep the valve open
• Helps prevent gas flow if a flame is not detected
• Can stop ignition or cause the oven/range not to heat when failing
• Commonly replaced when burners won't stay lit or control shows ignition-related errors

• One gas flame sensor

• Turn off electrical power and shut off the gas supply before servicing
• Handle the sensor and its connector carefully to avoid damage
• Reinstall in the exact position and orientation; loose connections can cause false faults

This washered screw secures panels and internal components where a combined screw-and-washer fastener is required, restoring proper fit and stopping movement or rattling. Simple replacement with the correct fastener keeps assemblies aligned and stable. What it does

• Secures panels, brackets or components where a washered screw is specified
• Replaces missing, stripped or corroded fasteners that allow vibration or gaps
• Helps stop rattling, loose panels or misaligned parts caused by a failed screw
• Provides a sealed bearing surface to distribute load and prevent pull-through

• One washered screw

• Disconnect power and/or water to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid cam-out and fastener damage
• Align parts before tightening and snug; avoid over-tightening which can strip threads or crack plastic
