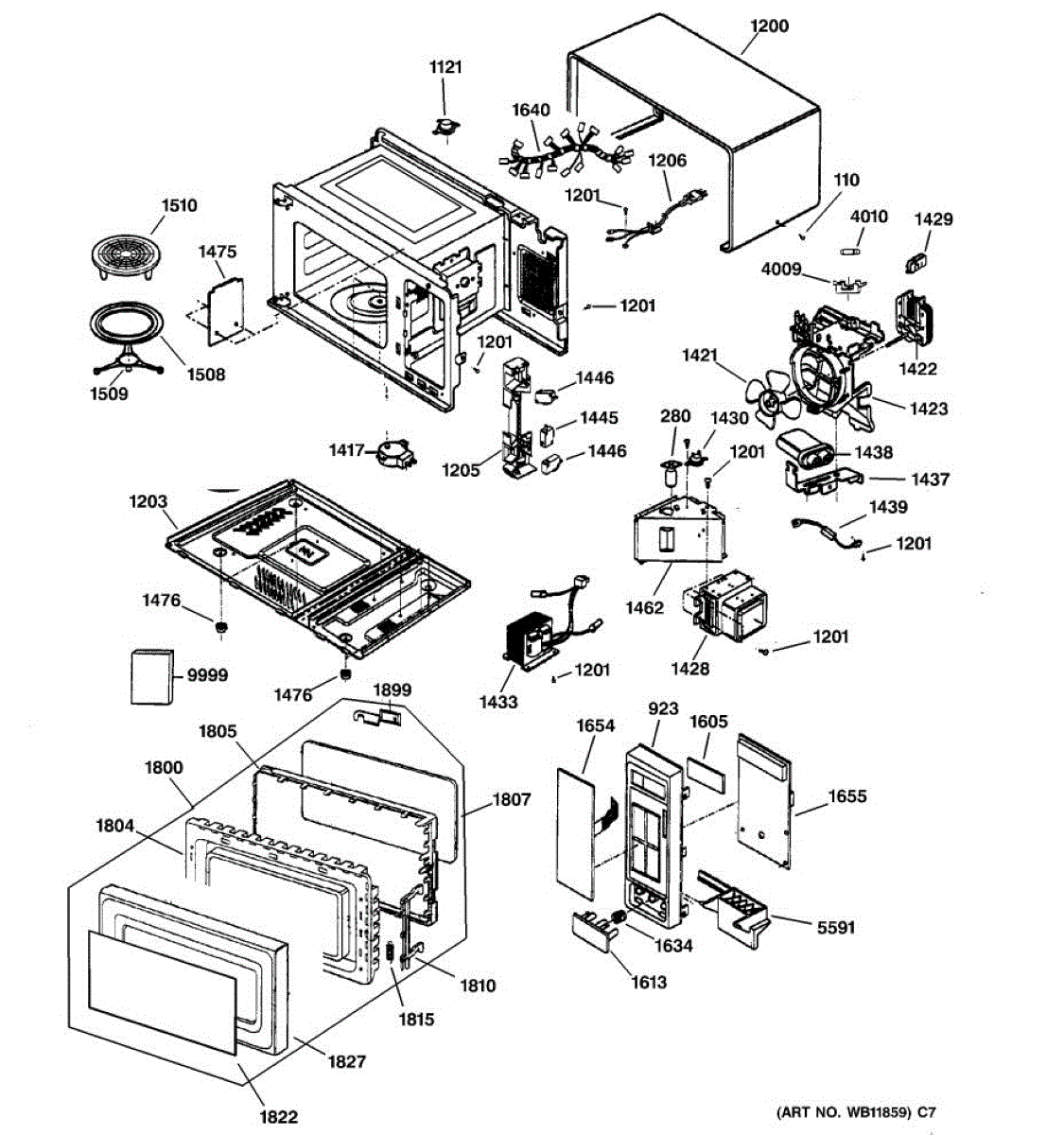

Parts for Ge JES1133WD01: 01 - Microwave Parts

A single truss-head tapping screw used to secure panels, brackets and components in appliances. Its wide head helps distribute load and reduces panel pull-through for a stable fit and quiet operation. What it does

• Fastens metal or plastic panels, trim pieces and small brackets
• Replaces missing or damaged screws that cause loose panels or rattling
• Designed to cut its own mating thread for secure engagement
• Wide truss head spreads load to protect soft or thin materials

• Use the correct-size screwdriver or bit to avoid stripping the head
• Start straight and apply steady pressure so the screw cuts clean threads
• Do not overtighten — stop when seated to avoid cracking plastic or stripping threads
• Disconnect power to the appliance before servicing and follow OEM safety guidance

This replacement microwave lamp restores proper lighting inside the cavity or over the cooktop. A working bulb improves visibility while cooking and checking doneness, and allows the light feature to operate as intended.

• Provides illumination when the door opens or when the light button is used
• Helps you see food during cooking and cleanup
• Typical failure symptoms: no light, flickering, or intermittent lighting
• Visible darkening or a broken filament indicates the bulb has failed

• Disconnect power at the breaker or unplug the appliance before replacing
• Allow the bulb and surrounding area to cool
• Match the base style and electrical rating to your original bulb per the owner's manual
• If your bulb is the halogen capsule style, handle with clean gloves or a cloth; avoid touching the glass

This is a binding-head screw used to fasten panels and components on compatible GE appliances. It provides secure, low-profile fastening where a binding head design is required for proper fit and alignment. What it does

• Secures panels, brackets, or small assemblies to prevent movement or rattling.
• Replaces a missing or stripped screw that causes loose parts or squeaks.
• Restores proper alignment for components that rely on the binding-head profile.
• Works where a shallow, rounded head and threaded shaft are specified.

• Use the correct driver size to avoid cam-out or head damage.
• Do not overtighten; snug until secure to avoid stripping threads or damaging parts.
• Disconnect power and follow all appliance-specific safety procedures before accessing panels.

The Magnetron is an OEM component specifically designed for GE microwaves. The magnetron is responsible for generating microwave radiation that cooks food by utilizing electromagnetic energy. It works by accelerating electrons within a vacuum tube using a magnet to generate microwave emissions.

Causes of a bad magnetron can include overuse, excessive cooking times, damage from arcing due to sparks, or general wear and tear over time.

Symptoms of a bad magnetron include:

• Inefficient or inconsistent cooking and heating
• Longer cook times required
• Food not cooking thoroughly or remaining cold in spots
• The microwave making buzzing or humming noises during use

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This HVC mounting bracket secures the HVC assembly inside the appliance to keep components aligned and stable during operation. It restores proper positioning and reduces noise or movement caused by a loose bracket. What it does:

• Provides a mounting point to hold the HVC assembly securely in place
• Prevents vibration and rattling from a loose or damaged bracket
• Keeps electrical and mechanical components aligned for reliable operation
• Helps stop intermittent contacts or shifting that can cause unusual noises

• One HVC mounting bracket

• Disconnect power to the appliance before beginning any repair
• Use basic hand tools; keep track of mounting hardware for reassembly
• Inspect surrounding parts and wiring for damage before reinstalling
• Replace corroded or stripped fasteners to ensure a secure fit

The Door Interlock Switch is an OEM part for GE microwaves. It ensures the safety of the microwave by preventing the appliance from operating while the door is open. This switch is part of a microwave's safety mechanism, which includes multiple interlock systems designed to stop the generation of microwaves immediately once the door is opened, thereby protecting users from exposure to microwave radiation.

Signs that it's time to replace your door interlock switch include the microwave not starting or stopping unexpectedly, the microwave continuing to operate with the door open, or a failure to heat food even though the appliance seems to be running.

Symptoms of a bad Door Interlock Switch include:

• Microwave does not start
• Microwave stops unexpectedly
• The microwave operates with the door open
• Microwave turns on but does not heat food

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This molded air duct directs cooled air inside the refrigerator to maintain even airflow and temperature distribution. Replacing a damaged duct restores proper circulation and helps reduce warm spots and uneven cooling. What it does:

• Routes conditioned air from the evaporator into cabinet compartments for consistent cooling
• Helps maintain temperature balance between freezer and fresh-food sections
• Prevents drafts or bypass that can cause localized warm spots or frost buildup
• Works with vents, fans and dampers to control internal airflow

• One air duct

• Disconnect power to the appliance before beginning any repair
• Access typically requires removing interior liners or shelves; handle plastic panels and clips carefully to avoid breakage
• Align tabs and mounting points; secure with original screws or clips
• If airflow problems persist after replacement, inspect related vents, dampers and the evaporator fan

This molded resin cover is a protective plastic shield used inside the microwave. It helps protect internal components and ducting from splatter and debris and restores a secure, finished fit when the original cover is cracked or missing. What it does:

• Shields internal components from grease, steam, and food splatter inside the unit
• Helps maintain proper airflow paths and a snug, rattle-free fit
• Common replacement when the original cover is cracked, warped, loose, or missing
• Visual cue: exposed internal parts or a cover that won't stay secured

• One resin (plastic) cover

• Disconnect power (unplug or switch off the breaker) and allow the unit to cool
• Access the cover location; remove retaining screws/clips and keep hardware for reuse
• Align the new cover and secure it without overtightening
• Ensure the cover is fully seated and not contacting nearby moving parts before restoring power

Color: brown. Each prong measures about 5 inches from the center.

A small replacement push-button spring that restores reliable button return and control feel on affected appliances. Replaces worn or broken button springs so controls snap back and operate more consistently. What it does:

• Provides tension behind a push button so the button returns to its original position after pressing
• Restores proper button feel and prevents buttons from sticking or remaining depressed
• Helps resolve intermittent or unresponsive control-button action caused by a weak or broken spring
• Used in push-button/control-panel assemblies where a compact compression spring is required

• Disconnect power to the appliance before accessing controls to reduce shock risk
• Remove the control panel or button assembly per your model's service instructions; keep small parts secure
• Note spring orientation and seating; use needle-nose pliers if needed to position the spring carefully

The Fuse is an OEM part for GE microwaves. It serves as a safety device designed to protect the microwave from excessive current that can cause overheating and potential fire hazards. When the current flowing through the microwave circuit exceeds a certain level, the fuse blows or breaks, cutting off the power to prevent damage or fire.

Common causes for a fuse to blow include power surges, faulty wiring within the appliance, or the use of microwave inappropriate containers that cause sparks. It is essential to address these issues not only to replace the fuse but also to correct the underlying problems to prevent future failures.

Symptoms of a bad fuse include:

• The microwave suddenly stops working.
• No signs of power or response even when the microwave door is closed and the start button is pressed.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
