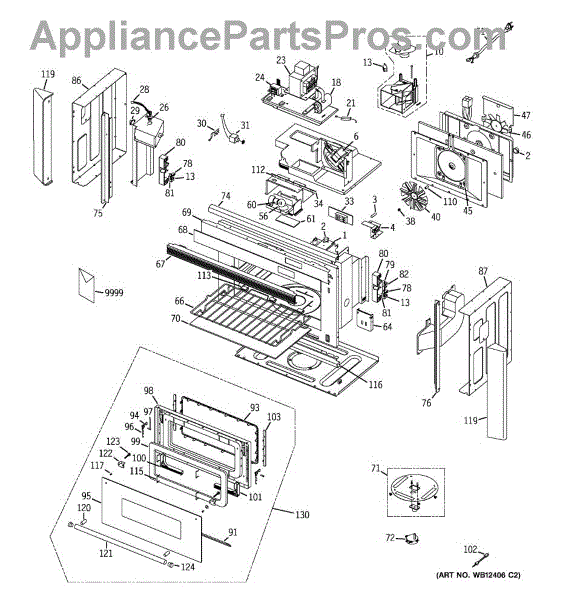

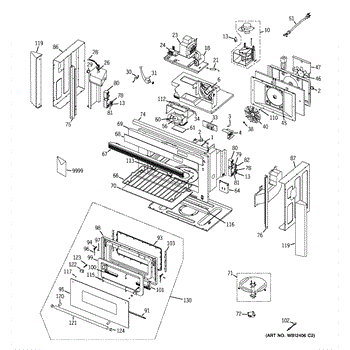

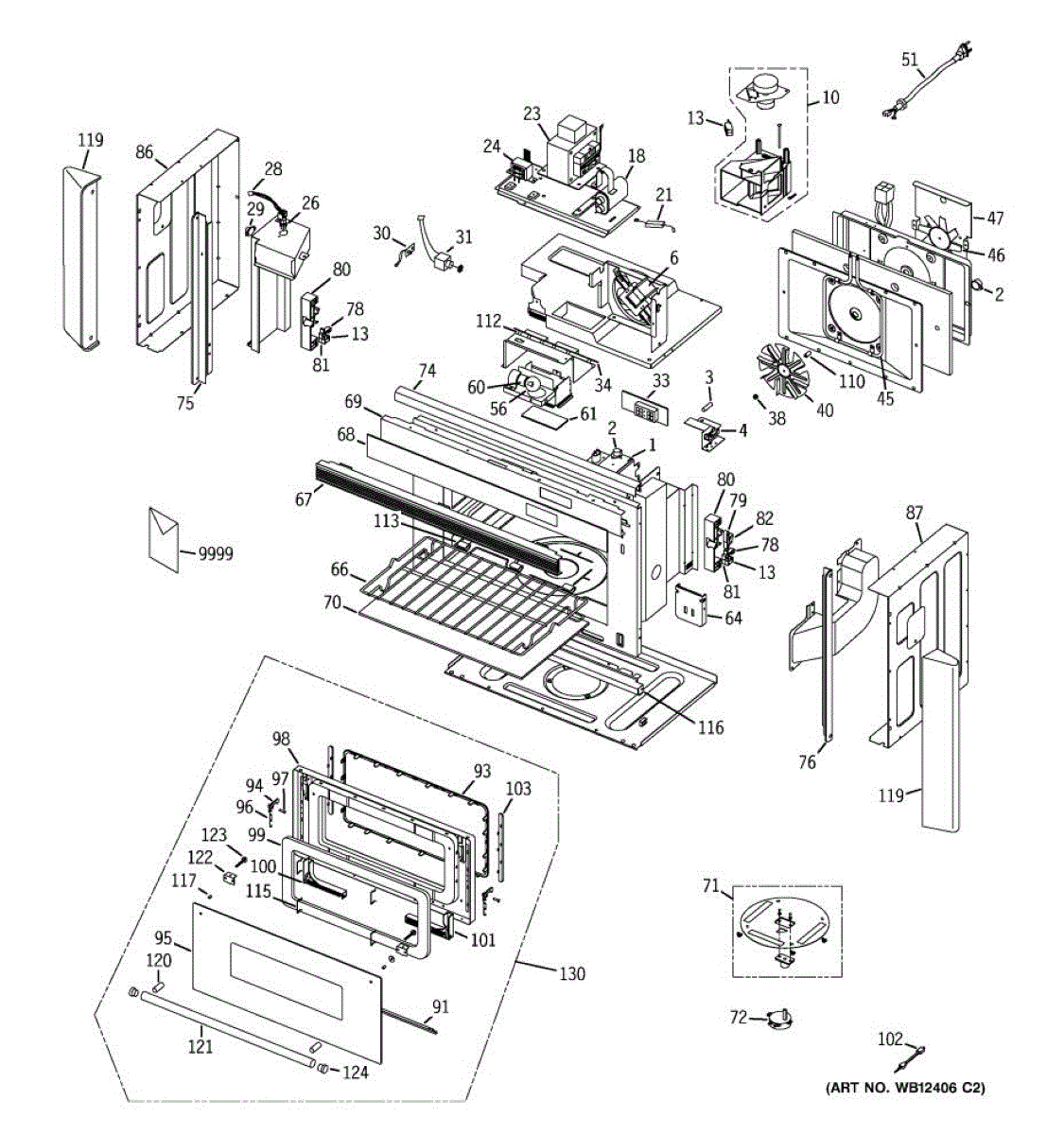

Parts for Ge ZMC1095BF001: 01 - Microwave Parts

If your microwave runs but won't heat food or makes grinding noises, the magnetron has likely failed. Moderate DIY repair requiring capacitor discharge.

This 250V 15A safety fuse protects the appliance's line circuit from overcurrent. When the original fuse has blown, replacing it can restore power and help safeguard internal components from further damage.

• Opens the circuit if excessive current or a short occurs, protecting internal parts
• Common symptom: unit completely dead—no display, lights, or response to controls
• Blown fuse will test open (no continuity) with a multimeter
• If a new fuse blows again, another component may be shorted and needs diagnosis

• Unplug the appliance before servicing; microwaves can retain a dangerous charge—discharge the high-voltage capacitor
• Access the fuse near the line filter/control area; note clip orientation
• Replace only with the same 250V 15A rating; never bypass or upsize the fuse
• If the replacement fuse blows immediately, stop and troubleshoot the root cause

Fix a microwave that won't heat or hums but doesn't start. This capacitor stores energy for the high-voltage circuit. Moderate DIY repair, 30-60 minutes.

Microwave not heating but lights and timer work? The high voltage diode converts AC to DC for the magnetron. DIY repair in 1-2 hours with basic tools.

This high-voltage transformer supplies the ignition voltage used to create sparks for gas burner/oven ignition. Replaces a worn or failed transformer to restore reliable spark firing and consistent burner ignition. What it does:

• Converts line voltage to the high-voltage pulse needed for spark ignition
• Sends ignition sparks to surface burners or oven igniters so gas will light
• Common symptom: clicking with no visible spark at the burner or burner(s) that fail to ignite
• Other symptom: intermittent ignition or weak sparking

• One high-voltage transformer

• Disconnect power to the appliance before servicing to avoid electrical shock
• Handle the transformer and high-voltage leads with care; do not operate with covers removed
• Verify correct diagnosis before replacing; check ignition module, wiring, and spark electrodes for faults

Fix sensor cook cycles that won't adjust properly or show sensor errors. This humidity sensor monitors moisture levels for automatic cooking adjustments.

Temperature probe socket for microwaves. Connects probe to control board. Replace if socket is cracked, broken, or fails to hold probe securely.

This main control board manages all electronic functions of your microwave including power levels, timer, and display. It processes input from the control panel and coordinates all microwave operations. Replace it if buttons don't work, the display shows error codes, or the microwave operates erratically.

Illuminates your microwave interior for monitoring food during cooking. Replace when bulb burns out or dims. Verify fit with your model number before ordering.

If your microwave buttons aren't responding or the control panel is unresponsive, this membrane switch restores touchpad functionality. Quick DIY fix.

Door latch lever slider for microwaves. Replaces cracked, broken, or worn sliders that prevent the door from closing securely or latching properly.

Replace your microwave's door slider lever if the original is broken, cracked, or missing. This lever component installs inside the door mechanism.

Fix a microwave that won't start or runs with the door open. This momentary contact switch restores reliable door sensing. Direct-fit replacement.

Inner door frame for microwave doors. Installs between the outer door panel and glass. Replace if cracked, damaged, or warped to restore door structure.

If your microwave door won't stay closed or latch properly, this door key actuator engages the latch assembly to restore secure closure during operation.

Replaces a cracked, broken, or missing door slot cover on your microwave. This protective guard installs on the door panel to maintain proper appearance.

Support plate that mounts and secures the power control module inside your microwave. Replace if cracked, broken, or missing to properly hold the control board.

Small spacer that positions and stabilizes the oven rack inside the microwave cavity. Replace when worn, missing, or cracked to restore proper rack height.
