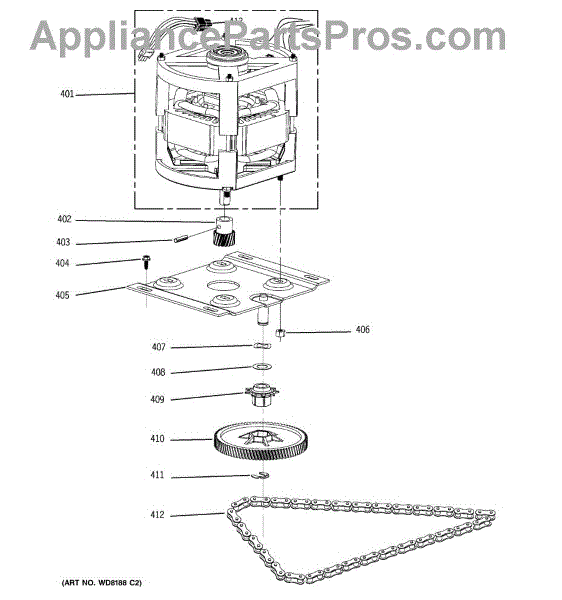

Parts for Ge GCG1500L0BB: 04 - Motor & Drive Parts

Please note: Possibility may exist that the blue and yellow wire may be reversed on the motor harness included in this kit. If so, they will need to be reversed before installation.

This slotted spring pin is a small retaining fastener that secures shafts, levers, and small assemblies so moving parts stay aligned and engaged. It restores proper mechanical retention in controls and linkages. What it does:

• Holds shafts, levers, and linkage components in place to prevent unintended movement or disengagement
• Keeps control knobs, actuator arms, and small rotating parts secured under normal operation
• Commonly replaced when the original pin is worn, bent, broken, or missing
• Helps eliminate symptoms like loose or disconnected knobs, slipping linkages, or intermittent mechanical engagement

• One spring slotted pin (single)

• Disconnect power (and water if applicable) to the appliance before servicing
• Remove the damaged pin and install the replacement using appropriate pliers or a pin punch; do not force metal parts
• Verify correct orientation and full engagement of the pin in the retaining hole before reassembling
• If the pin is difficult to seat, inspect mating parts for wear or distortion and replace any damaged components

This wave washer is a small metal spring-style washer that cushions and spaces rotating components to reduce vibration and maintain proper alignment. It helps restore smooth operation and prevents excess wear on adjacent parts. What it does:

• Acts as a spring spacer to maintain correct clearance between moving parts
• Absorbs minor vibration and shock to reduce noise during operation
• Helps keep shafts, pulleys, or seals aligned for proper function
• Worn or missing washers can cause noise, uneven spinning, or premature wear

• Disconnect power and water before servicing the appliance
• Inspect mating parts (shafts, pulleys, seals) and replace any damaged components
• Install with the correct orientation and seating; do not force or deform the washer
• Use the exact replacement part number for proper fit and function

A Teflon washer that provides a low-friction, wear-resistant bearing surface to protect mating parts and reduce noise from rubbing or binding. Ideal when a worn washer causes rough movement or squeaks. What it does:

• Provides a smooth, low-friction surface between moving or fastened parts
• Protects metal components from abrasive wear and galling
• Helps reduce noise such as squeaking or grinding from rubbing parts
• Maintains alignment and spacing where a thin, durable washer is required

• Replace only with the exact part number to ensure proper fit and function
• Inspect mating surfaces and fasteners for wear; clean before installing the new washer
• Hand-start fasteners to avoid cross-threading; tighten to the appliance manufacturer's recommended torque

This clip ring is a small retaining clip that secures shafts, hoses, or components in place to prevent movement or separation during operation. It provides a simple, durable hold to keep parts aligned and stable. What it does:

• Holds a shaft, hose, or assembly in position to prevent slipping or disengagement
• Keeps connected parts aligned to reduce vibration and wear
• Helps maintain seals and connections that can otherwise leak or come loose
• Commonly needed when a clip is broken, bent, or missing

• Disconnect power and water before beginning any repair
• Confirm correct orientation and seating before restoring operation
• Use appropriate hand tools (needle-nose pliers or retaining-clip tool) and avoid excessive force
• Replace any damaged fasteners or adjacent parts; do not reuse a deformed clip
