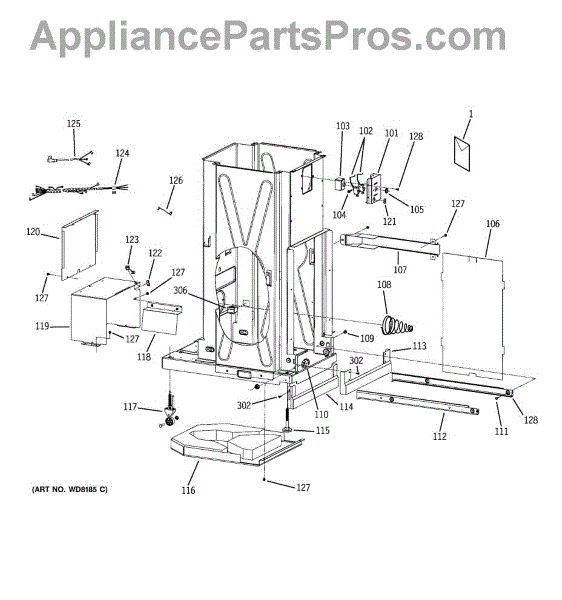

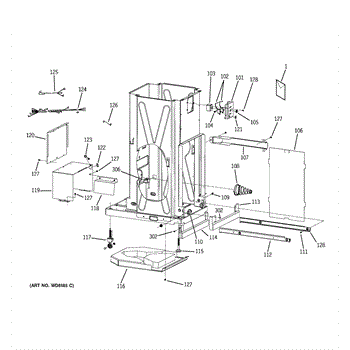

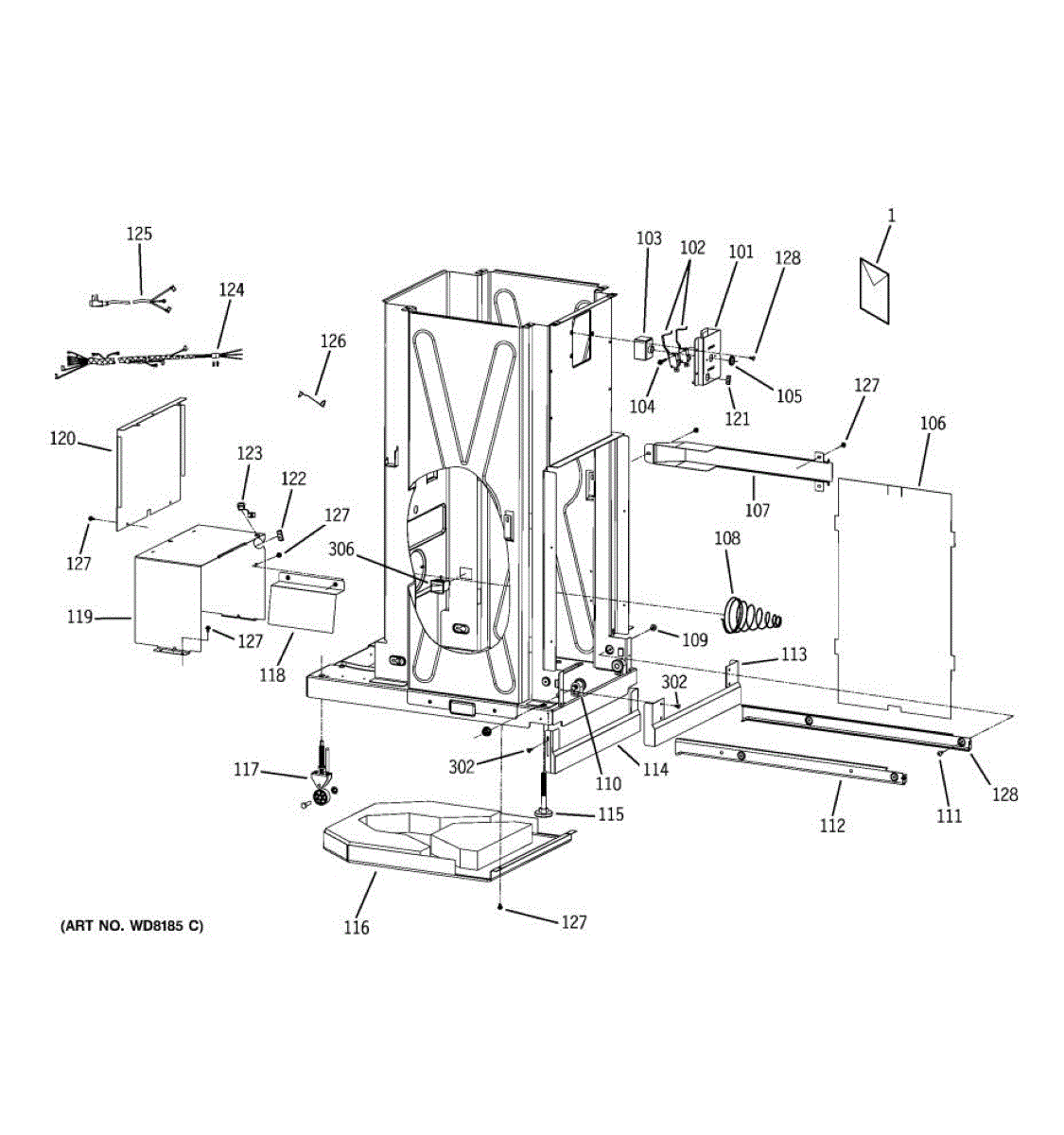

Parts for Ge GCG1500L0BB: 02 - Frame Parts

This mounting bracket holds a control switch securely in place so the switch operates reliably. Replaces a damaged or broken switch bracket to restore proper switch alignment and tactile operation. What it does:

• Secures the control or door switch to the appliance chassis so the switch can actuate consistently
• Prevents switch movement that can cause intermittent operation or failure to start
• Helps maintain correct switch alignment, reducing false triggers or stuck switches
• Useful when the original bracket is cracked, bent, or has broken mounting tabs

• One bracket switch (mounting bracket) as shown

• High-level replacement: remove power and access the switch area before replacing the bracket
• Check switch alignment and actuator engagement before reassembling the appliance

The Return Switch is an OEM part for GE trash compactors. This part ensures that the compacting ram returns to its starting position after each compaction cycle.

Causes of a malfunctioning return switch can vary from electrical issues, such as short circuits or worn-out connections, to mechanical problems, including physical damage from wear and tear or blockages preventing the switch's activation.

Symptoms of a faulty  Return Switch include:

• The compactor ram fails to return to its original position after a compaction cycle.
• The unit does not start or operate correctly, indicating issues with the cycle initiation.
• Unusual noises or behavior from the trash compactor, suggesting that the ram is not aligning or moving as expected.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a genuine GE mounting screw used to secure panels and components on compatible appliances. It replaces stripped or missing fasteners to restore proper fit and prevent rattling or loose parts. What it does:

• Secures appliance panels, brackets, or trim to maintain alignment and stability
• Stops vibration and noise caused by loose or missing screws
• Helps prevent component movement that can lead to wear or damage
• Matches original fastening points for a proper fit and reliable hold

• Use the correct size driver to avoid stripping the head; apply steady pressure while turning
• Do not overtighten; snug until secure to avoid cracking plastic or stripping threads
• Disconnect power or follow appliance safety instructions when working near electrical components

This frame spring secures and supports the appliance frame assembly to maintain proper alignment and reduce movement during operation. It helps keep frame panels seated so doors and components close and seal correctly. What it does

• Provides tension to hold a frame or panel in the correct position
• Absorbs and dampens movement to prevent rattles and misalignment
• Can reduce stress on adjacent hinges, latches, or trim
• Commonly replaced when a frame is loose, rattles, or won't stay aligned

• One frame spring

• High-level replacement — power off and unplug the appliance before starting
• Access may require removing outer panels or trim; keep fasteners organized
• Wear gloves and eye protection; spring tension can cause sudden movement

This nut secures components and hardware on compatible appliances, providing a reliable fastening point to keep panels and parts firmly in place during normal use. What it does:

• Threads onto the matching bolt or stud to hold parts together
• Prevents panels or assemblies from coming loose and causing rattling
• Restores proper fit where a nut is missing, stripped, or damaged
• Helps maintain alignment of mounted components when tightened correctly

• One nut

• Disconnect power and shut off water before servicing the appliance
• Use the correct socket or wrench size to avoid rounding the nut
• Tighten to a snug fit; avoid over-torquing which can strip threads or damage components
• Replace any associated damaged bolts/studs or use matching hardware for a secure repair

This frame roller assembly mounts to the appliance frame and supports a sliding drawer or rack. Replacing a worn roller restores smooth, aligned movement and helps reduce sticking or grinding noises during operation.

• Provides rolling support for the sliding drawer/rack along the frame
• Helps keep sliding components aligned to prevent binding and uneven travel
• Reduces friction for smoother, quieter operation
• Typical symptoms: hard-to-slide drawer/rack, wobbling or scraping, visible roller damage

• Disconnect power; turn off water supply before servicing
• Remove the drawer or rack to access the frame-mounted roller assembly
• Note orientation; transfer any reusable hardware and secure the new assembly in the same position
• Verify smooth, level travel before reassembly and returning to service

This drawer wheel assembly replaces a worn or broken roller that supports a sliding drawer inside your appliance. It restores smooth, aligned movement so the drawer rolls in and out easily without binding, wobbling, or dragging.

• Supports the drawer's load and guides it along its track
• Helps maintain alignment to prevent binding or coming off-track
• Restores smooth, quieter roll-in/roll-out operation
• Common symptoms: stiff opening/closing, wobble or uneven glide, scraping noise, cracked or missing wheel

• Disconnect power to the appliance; also shut off water.
• Remove the drawer to access the wheel location and note orientation before removal.
• Remove fastener(s), install the new wheel assembly, and securely tighten; reuse existing hardware.
• Reinstall the drawer, check alignment, and test movement before returning to service.

This replacement power cord provides the main AC connection that supplies electrical power to the appliance. Restores safe, reliable power delivery when the original cord is worn, damaged, or fails. What it does

• Carries household mains power to the appliance so controls and motors can operate.
• Replaces cords that show frayed wires, exposed conductors, or burn marks.
• Fixes intermittent power loss or an appliance that won't power on due to cord failure.
• Eliminates safety hazards from damaged or heat-damaged cords.

• One power cord

• Always disconnect the appliance from power at the breaker or unplug before servicing.
• Route cord and secure strain relief per the appliance's service instructions; avoid pinching or kinking.

This is a replacement mounting screw used to secure panels and components in appliances. It provides a simple, reliable fastener to restore proper fit and prevent loose parts or rattling. What it does

• Secures trim, panels, brackets, or small components to the appliance frame
• Helps stop rattling, vibration, or misaligned panels caused by missing or loose screws
• Matches OEM thread and length for correct fit when replacing the original fastener
• Small part that prevents larger components from shifting or loosening during use

• Power off and unplug the appliance before starting any repair
• Start screws by hand to avoid cross-threading; tighten snugly but do not overtighten
• Keep small parts away from children and dispose of damaged fasteners
