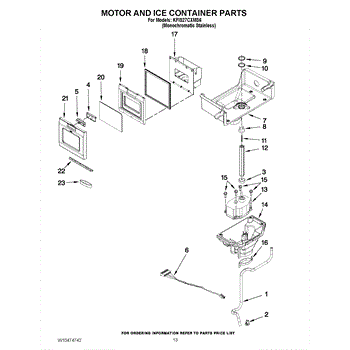

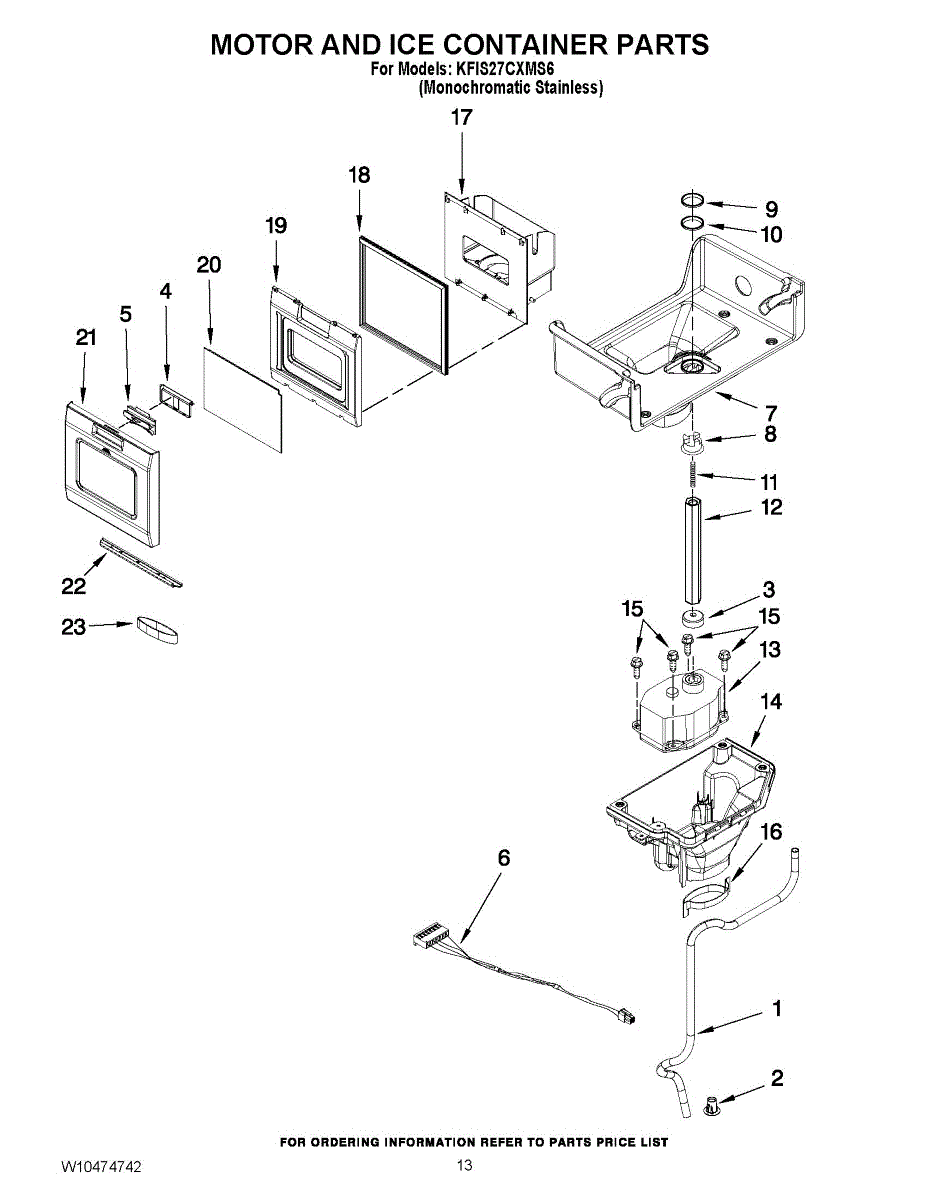

Parts for Kitchenaid KFIS27CXMS6: 07 - Motor And Ice Container Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This flat washer provides a firm, low-profile bearing surface for a fastener or shaft, helping distribute load and reduce wear on mating parts. It's a small replacement that restores proper spacing and secure assembly. What it does:

• Sits between a nut or bolt head and the mating surface to spread clamping force and prevent pull-through
• Helps maintain correct spacing and alignment of connected components
• Reduces friction and wear between rotating or tightened parts
• Can prevent loosening by protecting the mating surface from damage

• One flat washer

• Inspect mating surfaces and replace any damaged fasteners before reinstalling the washer
• Clean the area of debris or corrosion to ensure a flush fit
• Reuse fasteners only if they are undamaged; torque to the appliance manufacturer's specifications where available
• For electrical or safety-related repairs, disconnect power before starting work

The Ice Maker Coupler is an OEM part for Whirlpool refrigerators. It connects the ice maker drive motor to the auger shaft and gear assembly inside the ice storage bin. This allows rotational force to be transferred between components, ensuring efficient ice harvesting and delivery.

Symptoms of a bad ice maker coupler include:

• Slow or inconsistent dispensing of ice
• Improper filling of the storage bin
• Ice that is jammed or dispensed in clumps

Causes can involve normal wear and tear over time that leads to slippage between connected parts. Cracks or fractures in the coupler housing also inhibit smooth transmission of motor power throughout ice vending operations.

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drive Shaft Seal is an OEM part for Whirlpool washing machines. It plays a role in preventing water from leaking out of the tub and onto the drive system. This seal ensures that the connection between the drive shaft and the washing machine tub remains watertight, protecting the mechanical components from water damage and corrosion.

Causes of a bad drive shaft seal include aging and deterioration of the material, excessive load sizes that strain the washer, and foreign objects caught between the seal and the shaft, which can lead to tears or breaks.

Symptoms of a bad Drive Shaft Seal include:

• Water leakage from the underside of the washing machine
• Unusual noises during the spin cycle
• A visible tear or damage to the seal itself
• Increased vibration and movement of the machine during operation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Coupling is an OEM replacement part for Whirlpool French door bottom-mount refrigerators equipped with an interior automatic icemaker. As an internal part, this coupling connects the auger motor to the ice mold assembly, allowing the motor to transmit rotational force during the ice harvest cycle.

Causes of a damaged coupling can include regular wear from years of exposure to changing temperatures inside the refrigerator. Mineral deposits accumulating on surfaces over many harvest seasons have the potential to deteriorate plastic material. Physical obstructions lodged in the icemaker mechanism could potentially bend or crack the coupling.

Symptoms of a failing coupling involve:

• Inability of the auger motor to engage fully and eject frozen cubes
• Grinding or knocking sounds emitting from the icemaker
• Restricted or incomplete ice harvest that leaves cubes in molds

This OEM replacement is compatible with some Kenmore Elite French door models.

The Spring is an OEM part for Whirlpool refrigerators. It is a small but important internal part that applies pressure to dispense cubed or crushed ice from the refrigerator door. The spring is located within the ice dispenser mechanism and works with a lever to push ice out through the dispenser chute upon activation.

Causes of a bad spring can include wear and tear over time, putting undue pressure on the dispenser by jamming items into the chute, or damage from excessive force applied during dispensing.

Symptoms of a bad spring include:

• Ice cubes or crushed ice becoming jammed or failing to dispense properly
• The ice dispenser failing to push ice fully through the chute
• Excessive pressure needs to be applied to activate the dispenser
• Ice cubes are dispensed in irregular sizes or clumps rather than individual pieces

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Auger Motor is an OEM part for Whirlpool refrigerators. This motor powers the auger mechanism in the ice maker, which is responsible for dispensing ice through the door. The auger motor turns the auger blade, pushing ice from the bin through the chute to the dispenser.

Common causes of a bad auger motor include wear and tear from regular use, electrical failures, or damage from ice jams. A malfunctioning auger motor can lead to issues with ice dispensing and may prevent ice from being dispensed altogether.

Symptoms of a bad auger motor include:

• Ice not dispensing when the lever or button is pressed
• Unusual noises or grinding sounds during ice dispensing
• The auger not turning or moving intermittently
• No ice being pushed through the chute

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This replacement screw secures panels, brackets, and internal components within your appliance. Replacing a missing or damaged fastener restores a tight fit, reduces vibration and noise, and helps keep parts properly aligned during operation.

• Fastens panels, trim, brackets, or internal components to the chassis
• Maintains proper alignment and stability during normal use
• Replaces missing, rusted, or stripped hardware
• Common symptoms: loose or rattling panels, vibration, difficulty fastening, or a visibly missing screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Match length and thread to the original; replace one-for-one in the same location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving hole is stripped, repair threads or replace the clip/nut before installing
