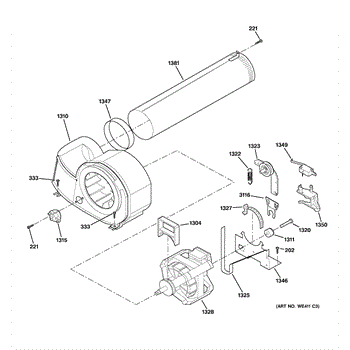

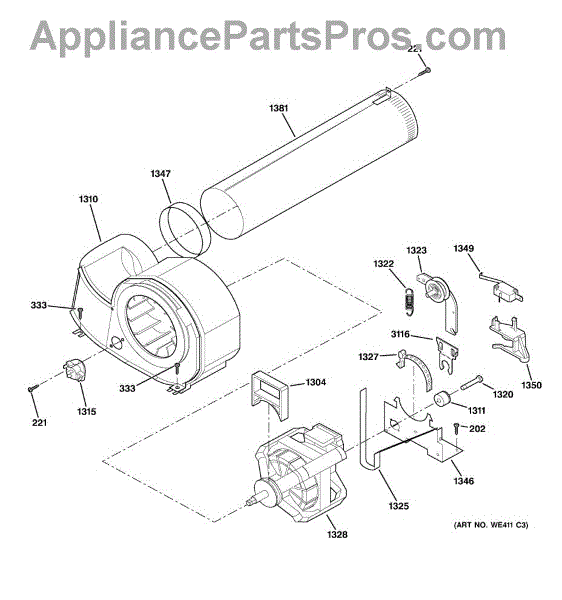

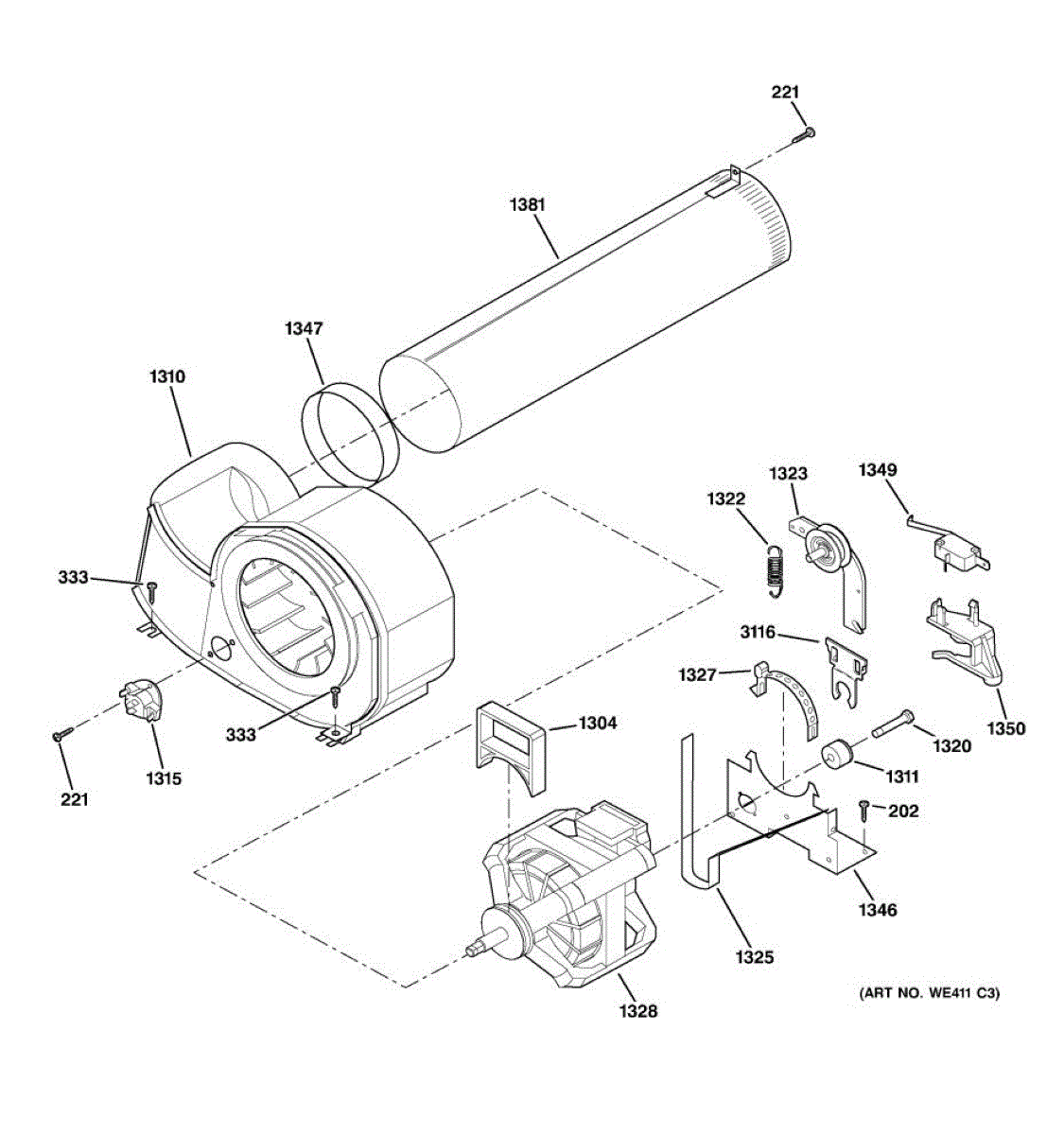

Parts for Ge DCD330EB3KC: 04 - Motor Parts

8 - 18 x 0.31

Replace missing or stripped pan head screws that fasten dryer panels, brackets, and trim. Standard #8 coarse thread, 3/8-inch length for secure assembly.

Mounting screw for dryers. Secures panels, components, and hardware inside the cabinet. Replace if stripped, missing, or damaged during repairs.

Fix a dryer that overheats or shuts off unexpectedly with this fan housing lock. Secures the fan assembly for proper airflow. Simple 15-minute repair.

Includes blower wheel, housing and cover. Not available seperate.

Dryer overheating or not heating properly? This cycling thermostat regulates temperature by turning the heating element on and off during the cycle.

Includes arm and pulley

Dryer drum belt wraps around drum and motor pulley to spin the drum. Replace if dryer won't start, makes squealing noise, or drum doesn't turn. Verify fit.

This dryer drive motor and pulley kit restores proper drum rotation by replacing a worn or seized motor. It delivers the torque to turn the drum via the belt so laundry tumbles evenly.

• Drives the drum through the belt for consistent tumbling
• Helps fix a drum that won't turn or starts then stalls
• Addresses humming or buzzing from the motor area
• Eliminates burning smells from a seized motor or pulley

• Unplug the dryer; for gas models, also shut off the gas supply
• Disconnect the vent and access the motor by removing panels
• Release belt tension, remove the old motor, and transfer bracket/pulley orientation and wiring positions
• After reassembly, hand-rotate the drum to ensure belt tracking before test run

Replace your dryer's exhaust duct hose if cracked, torn, or disconnected. This vent hose directs hot air from the dryer drum to the outside vent opening.
