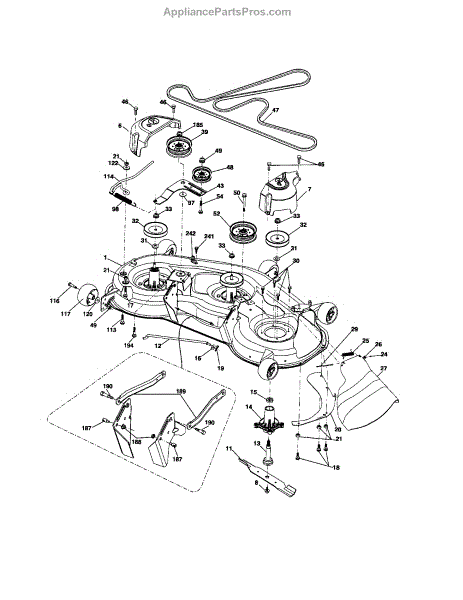

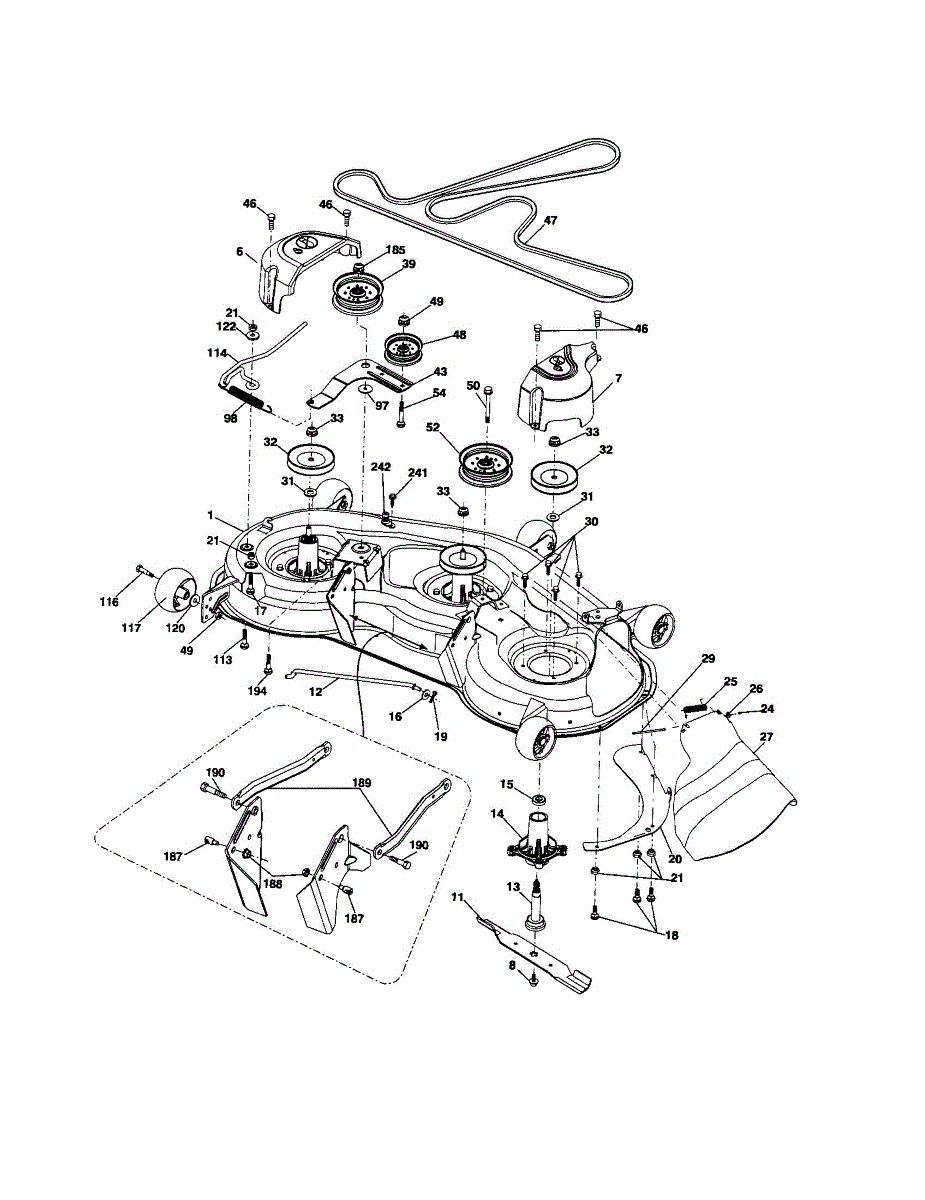

Parts for Husqvarna 917289570: Mower Deck Parts

This genuine Husqvarna bolt and washer replacement part is specifically engineered to hold and secure the lawnmower blade in place. The bolt is threaded while the washer has a curved or rounded headed. A washer is needed for even load distribution of the threaded bolt. Fastening the bolt without the fastener may cause stress to the material it's driven into. One of the warning signs that the bolt and washer are broken is if the lawnmower blade doesn't rotate properly. Instead of moving in one circular motion, it turns erratically and goes up and down. In some cases, it will make a loud grinding noise during cutting. The lawnmower blade may even fly out from its normal position. Replacing the worn-down bolt and washer is fast and straightforward. First, shut down the engine and let it cool. Then, take out the spark plug and turn the mower on its side. Use a socket to remove the old bolt and washer. Then, grab the replacement and insert it through the blade's hole. Tighten it using the socket. This original Husqvarna bolt and washer is only suitable for lawnmowers made by Husqvarna, Craftsman, and Weed Eater. It is also compatible with some Dixon and Poulan lawnmowers. This bolt and washer replacement is sold individually.

This is a greaseable mandrel kit, also called a blade spindle assembly. It is the part of a riding lawnmower where the blade assembly fits. It's attached to the bottom of the engine with four self-tapping screws, which assure the stability of the spindle when the blades are turning. The mandrel assembly is a part of the riding mower that is intentionally meant to be the most breakable. This is by design, so the other, more expensive, more challenging to repair parts are spared. As a result, mandrels often need to be replaced. If you have to replace the mandrel, first take off the blade assembly and the mandrel cover. After removing the nut holding the pulley in place, remove the pulley. From there, it’s just a matter of unscrewing the four bolts holding the mandrel to the cutting deck. Replace the original mandrel with the new unit and walk back through the disassembly instructions. This is a genuine OEM part manufactured by Husqvarna and Poulan. The mandrel is also compatible with Ariens, Dixon, and Craftsman. This OEM part is sold individually.

This mulching blade is a genuine Husqvarna part, sold individually. This mulching blade can be used as a replacement part in a lawn mower. The purpose of the mulching blade in a lawn mower is to chop grass clippings into mulch so that the mulch can be redistributed back into the lawn to keep it healthy.The mulching blade might be subject to damage from overuse and general wear and tear or as the result of a direct impact collision with a hard object. If the mulching blade is warped, dented, cracked, punctured, or otherwise damaged to the point that it cannot chop the fine grass clippings into mulch, the mulching blade should be removed and replaced by this genuine OEM replacement part. It is a simple replacement process that simply requires the user to swap out the old mulch blades for the new ones.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This mulching blade is compatible with the following outdoor appliance brands: Husqvarna, Craftsman, Poulan, Jonsered, and Dixon.

This hi-lift blade is a genuine OEM replacement for select 48-inch deck lawn mowers. The blade is attached to the deck using a bolt. When the engine is powered and the blade is engaged, it will rotate to cut the grass. With regular use, the blade can become worn beyond the point of sharpening. It can also become nicked or damaged from hitting rocks or other debris. When the blade is damaged, it needs to be replaced promptly for safe operation and optimal cutting. This genuine part can provide the replacement for compatible mowers. This OEM blade is manufactured by Husqvarna and designed specifically to be used in select mowers from the brand. It can also be used in models from Weed Eater, Craftsman/Sears, Poulan and Poulan Pro, and Roper. This blade features a 5/8-inch center hole for attaching and features a two-in-one operation that does not offer mulching. A mulching blade can be purchased if that feature is desired. Be sure to disengage the spark plug before going near the blade and wear gloves for hand protection at all times.

This spindle shaft assembly is a genuine Husqvarna part, sold individually. This spindle shaft assembly can be used as a replacement part for a lawn mower. The purpose of a spindle shaft assembly is to maintain the placement of the spindles so they can freely rotate along with the blades of the appliance.Damage could come in the form of puncturing, scraping, cracking, denting, or erosion. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement.This is an OEM part sourced directly from the manufacturer. It is sold individually. This spindle shaft assembly is compatible with the following outdoor appliance brands: Husqvarna, Craftsman, Poulan, Ariens, and Dixon.

This no grease mandrel assembly is the part that houses the shaft where the mower blade attaches. It is mounted to the deck of the mower by three bolts, which are sold separately. The mounting holes on the mandrel housing are not threaded, but the bolts used to secure the mandrel to the deck are self-tapping. If the lawnmower is no longer providing an even cut, there may be a problem with the mandrel assembly. A broken or damaged mandrel assembly can severely reduce the mower's cutting performance. Replace it as soon as possible. The mandrel shaft goes through the deck, and the pulleys are attached to them, then the belt that drives the mandrels is placed in the pulleys. A spacer must be installed under the pulley. Failing to use a spacer or installing it on top of the pulley will result in damage to the shaft and pulley. This mandrel assembly is compatible with Ariens, Craftsman, Husqvarna, Poulan, and Weed Eater lawn mower models. It is an OEM part sourced directly from the manufacturer and is sold individually. The mandrel assembly includes a housing, shaft assembly, bearing, and nut only; the pulley/washer and blade bolt/washers are not included.

This replacement part is a torsion spring. This is a genuine replacement part made by Husqvarna. This part works within a machine to provide torque to different parts so that the machine can run smoothly and properly. A new torsion spring might be needed if the current one is missing or damaged in any way including being dented or bent. Because of the nature of the spring, this part could snap under pressure and need to be replaced. Work gloves are recommended during this repair as springs can be dangerous if handled improperly. Be sure the engine is off before starting this repair as running parts may affect the installation.This part is sold individually and is sourced directly from the manufacturer to ensure proper fit. This part is a genuine OEM replacement part for long-lasting use.

This is the replacement washer head screw for a lawnmower or lawn tractor. It is black in color and is roughly 1.5 inches in length. With its hexagonal head and washer face, it is usually used as a fastener in outdoor power tools. It is self-tapping, meaning it can tap its own threads when screwed into either plastic, wood, or metal. When used with lawn tractors and lawnmowers, this screw is commonly employed for securing the mandrel housing to the mower deck. Replace the washer head screw if the old screw is damaged or missing. First, a pilot hole should be made that's slightly smaller than the diameter of this screw before driving it with a screwdriver. This is also a thread-forming type of self-tapping screw, and it does not have a pointed tip. It is compatible with specific products from major brands like Ariens, Craftsman, Husqvarna, Murray, Poulan, Ryobi, and Weed Eater. This part is sold individually and is a genuine OEM part sourced directly from the manufacturer.

This part is a genuine OEM replacement mandrel spacer washer usually used to line up drive pulleys on lawn tractors or riding mower engines. The drive pulley is an integral part of the transmission. As a type of washer, a mandrel spacer helps to distribute weight and pressure so that the link does not crack or bend. Compared to standard washers, though, mandrel spacers are quite thick, so they can take more of a load. The best time to replace a mandrel spacer washer is when making repairs to the drive pulleys. These parts take a lot of wear and tear and can corrode the connection over time. To prevent this from happening, replace the mandrel spacer washer as soon as it starts to look worn out or when conducting regular maintenance. This mandrel spacer washer is a top of the line replacement part for Ryobi, Jonsered, Weed Eater, Poulan, and Husqvarna engines. As such, this part comes sourced directly from its original manufacturer. This spacer washer does not ship with any additional hardware.

This top lock flange nut is a genuine Husqvarna part, sold individually. This top lock flange nut can be used as a replacement part for lawn mowers. The purpose of a top lock flange nut is to provide a fastening component, in conjunction with a bolt, through which two parts can be affixed to one another through clamping and rotation.The top lock flange nut is a small fastening component that can be easily lost and misplaced. If components come loose as a result of a lost top lock flange nut, the component should be replaced by this genuine OEM replacement part. Additionally, over time, a top lock flange nut can be stripped or eroded beyond functionality, in which case the component should be replaced. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This is an OEM part sourced directly from the manufacturer. It is sold individually. This top lock flange nut is compatible with the following outdoor appliance brands: Husqvarna, Craftsman, Weed Eater, Dixon, Poulan, and Aries.

This part is an idler arm that is designed for use on riding lawn mowers and lawn tractors. The idler arm secures and adjusts the pulley system. It is manufactured out of a high-quality metal material.A new idler arm may be needed if the lawnmower or lawn tractor pulls to one side when it is running. This can make the lawnmower or lawn tractor difficult to control. If the idler arm is cracked, broken, bent, or damaged in any way, it will need to be replaced. A wrench will be needed to replace this part. Remember to wear gloves when operating or performing care and maintenance on any outdoor power equipment.This idler arm is a genuine Husqvarna part. It is sold individually. This particular idler arm is compatible with lawn mowers and lawn tractors that are manufactured by Husqvarna, Poulan, and Craftsman.

This deck drive belt is an authentic OEM replacement part sourced directly from the manufacturer for use on lawnmowers. The deck drive belt connects the crankshaft to the lawnmower blades and causes the blades to turn to cut the grass. If the blade comes in contact with rocks or sharp objects during cutting, the deck drive belt could be damaged or break. If the belt is missing, the lawnmower blades will not turn and the lawnmower will not function correctly. If this occurs, the blades will not turn and the deck drive belt will need to be replaced.Before beginning the repair, take the spark plug out of the lawnmower and park it in a flat area. Remove the spark plug and take the key out of the ignition. Remove the mower deck from the lawnmower and prop the mower on blocks while the deck is off. Locate the deck drive pulley and loosen the idler pulley nuts to help remove the broken belt. Place the new deck belt on the pulley and tighten the nuts. Put the deck back on the lawnmower. Reinstall the spark plug. This deck drive belt is a nylon belt that is sold individually. It is designed for use in lawnmowers manufactured by Husqvarna.

This is an authentic idler pulley replacement for use with riding lawn mowers and tractors. It is the same version used on the machine when it was new. The idler pulley is used to provide tension to the belt. This ensures that the belt has the correct tension needed to drive the mower forward. The part is durable, but it may still need to be replaced at some point. It could become corroded over time, it could bend, or it could even break in some cases. If the part becomes damaged, it could mean that the belt no longer has proper tension. This can make it difficult or even impossible to use the machine. It should be replaced as soon as possible. This is an OEM part that comes straight from the manufacturer. It is sold individually and does not come with the hardware needed for replacement. The idler pulley is compatible with more than 150 models of riding tractors and mowers. Compatible brands include Husqvarna, Poulan, and Craftsman.

This replacement part is a screw and is intended for use in different types of lawn equipment. This is a genuine replacement part made by Husqvarna. A screw is a small part but is important to many devices. These parts are able to hold different areas of machinery together so that the device stays secure and safe. A new screw might be needed if the current ones are missing or damaged. If parts on the appliance are falling off or are loose, replacing a screw might be needed. To replace a screw the user must have access to common household tools. To replace a screw simply remove the old one and use a screwdriver to replace it with a new part. Reference the specific user manual for further directions. This screw is sold individually and is an OEM replacement part. Note that some devices require more than one screw so be sure to purchase the correct amount.

This flat idler pulley is an original OEM part sourced directly from the manufacturer, Husqvarna. It is sold individually. A flat idler pulley is used in conjunction with the belt to transfer power from the engine to the machine, specifically designed for use with outdoor lawn and garden power equipment such as lawn mowers. It is compatible with mowers by brands such as Husqvarna, Poulan, and Weed Eater.The flat idler pulley part is crucial for the proper functioning of the lawn mower. The purpose of the the flat idler pulley part is to connect to the idler bracket. When this process functions properly, the flat idler pulley will then apply tension to the v-belt. The replacement or repair process of the flat idler pulley should be straightforward, although the user replacing the part should plan on using a wrench. Always be sure to wear gloves during any assembly, replacement, or installation processes. The user should also refer to the owner's manual of their equipment and any guiding diagrams that clarify the placement location.This flat idler pulley is made out of metal.

This washer is a genuine Husqvarna part manufactured for use with lawnmowers. It is also compatible with lawn tractors, garden tractors, riding tractors, and other similar equipment. It is a hardened flat washer that is rather large compared to other washers. This washer is often used to attach the mower deck to the mower itself. Removing it is often part of a larger repair, and a screwdriver or socket wrench may be required to make this replacement. It is not unusual for washers and other hardware to experience wear and tear, especially if the mower gets heavy use. It may also need to be replaced if it becomes damaged while making other repairs.This washer is a genuine OEM part sourced directly from the manufacturer. It is sold individually, so be sure to check how many are needed and order accordingly. It is compatible with equipment manufactured by Ariens, Craftsman, Dixon, Husqvarna, Murray, and Craftsman.

The shoulder bolt has many applications in lawn equipment, but this model is designed for use in riding mowers. The job of this shoulder bolt is to keep the gauge wheel in the correct place. This part is often referred to as the roller bolt. Over time, this bolt can become worn from regular use. The threads on the bolt may strip or it may become damaged as a part of other repairs or incidents. In any situation, the best option would be to replace the bolt with this genuine OEM model from Husqvarna. This shoulder bolt is manufactured to exact specifications for replacement in the gauge wheel. This part is designed for use with riding lawn mowers from Poulan, Husqvarna, and Jonsered. It is compatible with several machines from these brands. This shoulder bolt is made of durable metal and requires a wrench for installation. It is sold as a single unit and does not include any other parts. Always wear gloves when replacing parts for hand protection. Be sure to disconnect the spark plug prior to doing engine work. This part includes a one-year warranty from the manufacturer.

When you are moving on uneven ground or simply turning, the gauge wheel is responsible for ensuring the machine doesn't hit the ground. It measures the distance between the surface and the deck. By doing so, the lawn tractor's deck is safe and sound on uneven surfaces. When it is deformed or broken, the tractor's deck is at a high risk of sustaining damage. A gauge wheel is broken if it doesn't touch the ground and doesn't wholly rotate. Replacing the gauge wheel is a straightforward procedure. First, turn off the tractor and take the key out. Use a socket and wrench to loosen the gauge wheel's bolt. Then, remove the old wheel. Insert the bolt and washer into the hole of the gauge wheel replacement. Then, attach the bolt to the mounting bracket. Use a socket wrench to secure. This gauge wheel from Husqvarna is specifically designed to fit and work with lawnmowers. This original Husqvarna replacement gauge wheel is for mower models from Poulan, Ariens, Craftsman, Dixon, and Husqvarna. It is sold individually and doesn't include a bolt and washer.

This replacement part is a flange nut. It is a fastening component used in conjunction with a screw or bolt to secure parts within equipment.A new flange nut might be needed if the current one has been stripped by overtightening. Small parts like this one may experience enough friction to be worn down with extended use. Be sure to wear work gloves when replacing small parts and working near the engine. This is a genuine OEM replacement part manufactured by Husqvarna. This part is sold individually.

This stud fastener is a genuine Husqvarna part, sold individually. This stud fastener can be used as a replacement part for a lawn mower. The purpose of a stud fastener is to fasten components to one another with a threaded bar that attaches at its ends to make a bolt.The stud fasteners within a lawn mower might have to be replaced if one or more of them are lost, misplaced, or worn out over time. This could occur if the stud fasteners fall out of the appliance, in which case they should be immediately replaced by this genuine OEM replacement part, or if they are stripped over time from general wear and tear from long-term use. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement.This is an OEM part sourced directly from the manufacturer. It is sold individually. This stud fastener is compatible with the following outdoor appliance brands: Husqvarna and Poulan.

This suspension mower arm is a genuine Husqvarna part, sold individually. This suspension mower arm can be used as a replacement part or a lawn tractor. The purpose of the suspension mower arm is to absorb the shock impact generated when the appliance is driven on bumpy ground.The suspension mower arm might have to be replaced if there is damage that renders the component beyond functionality. If the suspension mower arm is punctured, cracked, scraped, or eroded over time from general wear and tear or if the component is subject to a direct impact with a hard object that warps it, the component should be removed and replaced by this genuine OEM replacement part. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement.This is an OEM part sourced directly from the manufacturer. It is sold individually. This suspension mower arm is compatible with the following outdoor appliance brands: Husqvarna, Craftsman, Poulan, and Weed Eater.

The Husqvarna outdoor power equipment shoulder bolt is an OEM replacement part that attaches to the suspension arm and wheel bracket. It is primarily utilized for securing components and providing stability in the equipment's assembly.

This part fixes the following symptoms:

• Loose or wobbly components in the equipment
• Components not staying securely in place during operation
• Excessive vibration or rattling while using the equipment
• Difficulty in attaching or securing parts due to a damaged or worn-out bolt


This is a hex bolt used to secure components within a machine. Hex bolts like this one are typically installed in relatively easy to reach places, so replacing a damaged one should be easy. Replacing damaged or worn bolts makes for a safer machine and will often fix any loud rattling or loose fittings.This bolt is made to be compatible with machines from Husqvarna, Craftsman, or Poulan. While this hex bolt is primarily seen in heavy-duty lawn mowers or small lawn tractors, it is compatible with smaller lawn equipment like chainsaws, leaf blowers, or power cutters. This is an OEM bolt, sold individually and source directly from the manufacturer.

The washout port helps to make cleaning a mower deck easier and it is used on mowers and tractors. Users should wash the deck of the mower to reduce buildup. Doing so will help owners to extend the life of the mower deck. The washout port is the area that attaches to the deck of the machine. Owners can attach a hose and clean away grass and debris that have built up under the deck.The washout port is made from metal and is durable. However, there could still be a need to replace it in the event it becomes damaged or corroded. Replacement of the washout power is relatively simple. It will require the use of a socket set and a wrench set.This washout port is a genuine OEM replacement part for use with certain models of lawn tractors from Husqvarna, Craftsman, Jonsered, and Poulan. It is sold individually.
