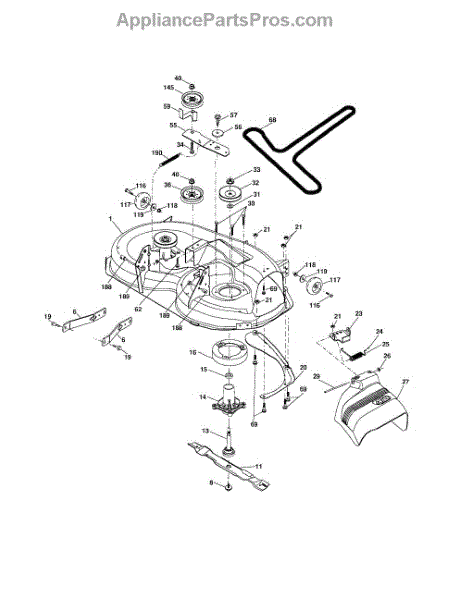

Parts for Husqvarna YTH20F42T: Mower Deck Parts

This genuine Husqvarna bolt and washer replacement part is specifically engineered to hold and secure the lawnmower blade in place. The bolt is threaded while the washer has a curved or rounded headed. A washer is needed for even load distribution of the threaded bolt. Fastening the bolt without the fastener may cause stress to the material it's driven into. One of the warning signs that the bolt and washer are broken is if the lawnmower blade doesn't rotate properly. Instead of moving in one circular motion, it turns erratically and goes up and down. In some cases, it will make a loud grinding noise during cutting. The lawnmower blade may even fly out from its normal position. Replacing the worn-down bolt and washer is fast and straightforward. First, shut down the engine and let it cool. Then, take out the spark plug and turn the mower on its side. Use a socket to remove the old bolt and washer. Then, grab the replacement and insert it through the blade's hole. Tighten it using the socket. This original Husqvarna bolt and washer is only suitable for lawnmowers made by Husqvarna, Craftsman, and Weed Eater. It is also compatible with some Dixon and Poulan lawnmowers. This bolt and washer replacement is sold individually.

This no grease mandrel assembly is the part that houses the shaft where the mower blade attaches. It is mounted to the deck of the mower by three bolts, which are sold separately. The mounting holes on the mandrel housing are not threaded, but the bolts used to secure the mandrel to the deck are self-tapping. If the lawnmower is no longer providing an even cut, there may be a problem with the mandrel assembly. A broken or damaged mandrel assembly can severely reduce the mower's cutting performance. Replace it as soon as possible. The mandrel shaft goes through the deck, and the pulleys are attached to them, then the belt that drives the mandrels is placed in the pulleys. A spacer must be installed under the pulley. Failing to use a spacer or installing it on top of the pulley will result in damage to the shaft and pulley. This mandrel assembly is compatible with Ariens, Craftsman, Husqvarna, Poulan, and Weed Eater lawn mower models. It is an OEM part sourced directly from the manufacturer and is sold individually. The mandrel assembly includes a housing, shaft assembly, bearing, and nut only; the pulley/washer and blade bolt/washers are not included.

This no grease mandrel assembly is the part that houses the shaft where the mower blade attaches. It is mounted to the deck of the mower by three bolts, which are sold separately. The mounting holes on the mandrel housing are not threaded, but the bolts used to secure the mandrel to the deck are self-tapping. If the lawnmower is no longer providing an even cut, there may be a problem with the mandrel assembly. A broken or damaged mandrel assembly can severely reduce the mower's cutting performance. Replace it as soon as possible. The mandrel shaft goes through the deck, and the pulleys are attached to them, then the belt that drives the mandrels is placed in the pulleys. A spacer must be installed under the pulley. Failing to use a spacer or installing it on top of the pulley will result in damage to the shaft and pulley. This mandrel assembly is compatible with Ariens, Craftsman, Husqvarna, Poulan, and Weed Eater lawn mower models. It is an OEM part sourced directly from the manufacturer and is sold individually. The mandrel assembly includes a housing, shaft assembly, bearing, and nut only; the pulley/washer and blade bolt/washers are not included.

This stripper mandrel is an original OEM part sourced directly from the manufacturer, Husqvarna. It is sold individually. A stripper mandrel is a type of mounting bracket. It is designed for use with outdoor lawn and garden power equipment, specifically for lawn mowers and lawn tractors. It is compatible with products by brands such as Craftsman, Husqvarna, Poulan, Murray, Ariens, and Dixon.The stripper mandrel part is crucial because it acts as a mounting bracket between the tractor's mandrel assembly and mower deck. It also is designed to protect the mandrel housing and bearing by blocking debris and preventing grass from building up on the mandrel housings. The purpose of the stripper mandrel is to keep the lawn mower or lawn tractor running optimally. The replacement or repair process of the stripper mandrel should be straightforward, but the user replacing the part should always be sure to wear gloves during any assembly, replacement, or installation processes. The user should also refer to the owner's manual of their equipment and any guiding diagrams that clarify the placement location.This stripper mandrel is black and round, and it is made out of metal.

A lock nut secures bolted joints with the creation of friction on the thread of the bolt. It prevents loosening of parts, which is a common occurence on lawn machines due to the tremendous amounts of vibration and wear, which can loosen connections between crucial components. This lock nut will prevent such issues. It will be necessary to have wrenches and other tools to make the repair or replacement. This OEM lock nut for Husqvarna and Craftsman fits garden machines that include tillers, lawnmowers, tractors, and other equipment. This durable part ships individually.

This is a push nut that is used in many different models of lawnmowers. It's a black nut made of durable metal. The push nut is used to secure various components in several locations on lawn and garden equipment. This component is made of strong materials but it can experience damage, wear and tear, or even break over time. This can cause the lawnmower to perform poorly or experience other issues. This is a small component that can be broken or lost and needs to be replaced to ensure the best performance from the lawnmower. A set of pliers and a screwdriver may be required to replace the push nut. The parts that will need to be removed before replacement vary based on the location of the push nut. Disassemble any components in the way before taking out the bad or damaged push nut. Place and tighten the new nut and reassemble the parts.This is a genuine OEM replacement push nut that is directly sourced from the manufacturer. It is sold as an individual component. The push nut is created for use with lawnmowers manufactured by Craftsman, Husqvarna, Weed Eater, Poulan, Murray, Ariens, and Dixon.

This is the replacement washer head screw for a lawnmower or lawn tractor. It is black in color and is roughly 1.5 inches in length. With its hexagonal head and washer face, it is usually used as a fastener in outdoor power tools. It is self-tapping, meaning it can tap its own threads when screwed into either plastic, wood, or metal. When used with lawn tractors and lawnmowers, this screw is commonly employed for securing the mandrel housing to the mower deck. Replace the washer head screw if the old screw is damaged or missing. First, a pilot hole should be made that's slightly smaller than the diameter of this screw before driving it with a screwdriver. This is also a thread-forming type of self-tapping screw, and it does not have a pointed tip. It is compatible with specific products from major brands like Ariens, Craftsman, Husqvarna, Murray, Poulan, Ryobi, and Weed Eater. This part is sold individually and is a genuine OEM part sourced directly from the manufacturer.

This top lock flange nut is a genuine Husqvarna part, sold individually. This top lock flange nut can be used as a replacement part for lawn mowers. The purpose of a top lock flange nut is to provide a fastening component, in conjunction with a bolt, through which two parts can be affixed to one another through clamping and rotation.The top lock flange nut is a small fastening component that can be easily lost and misplaced. If components come loose as a result of a lost top lock flange nut, the component should be replaced by this genuine OEM replacement part. Additionally, over time, a top lock flange nut can be stripped or eroded beyond functionality, in which case the component should be replaced. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This is an OEM part sourced directly from the manufacturer. It is sold individually. This top lock flange nut is compatible with the following outdoor appliance brands: Husqvarna, Craftsman, Weed Eater, Dixon, Poulan, and Aries.

This is an authentic idler pulley replacement for use with riding lawn mowers and tractors. It is the same version used on the machine when it was new. The idler pulley is used to provide tension to the belt. This ensures that the belt has the correct tension needed to drive the mower forward. The part is durable, but it may still need to be replaced at some point. It could become corroded over time, it could bend, or it could even break in some cases. If the part becomes damaged, it could mean that the belt no longer has proper tension. This can make it difficult or even impossible to use the machine. It should be replaced as soon as possible. This is an OEM part that comes straight from the manufacturer. It is sold individually and does not come with the hardware needed for replacement. The idler pulley is compatible with more than 150 models of riding tractors and mowers. Compatible brands include Husqvarna, Poulan, and Craftsman.

This flanged hex nut is used in various models of lawn and garden equipment. The nut is considered a standard hardware part that may have multiple applications on different units. It is typically used along with a bolt or screw to provide a secure hold for various components. This nut is a small part and can become lost in the process of other repairs. It can also break or strip the threads due to regular wear and tear, impact damage, or another issue. If this nut is broken or missing, it needs to be replaced immediately. Replacing the hex nut with a genuine OEM part will ensure equipment is always in proper working order. This OEM hex nut is designed for use in select Craftsman and Husqvarna equipment. It is manufactured by Husqvarna as an exact replacement for the original nuts that came with the machine. This part can fit on more than 150 machines, including lawn mowers, tractors, snow blowers, and trimmers from both brands. Owners will want to check their parts diagram for the exact location(s) and application(s) of this nut. Since it is standard hardware, some people purchase multiple quantities to keep extra parts on hand in case of emergency.

A V-belt is responsible for transmitting energy. It is made from a thick and sturdy rubber material. It features grooves for improved traction and measures ½ x 95-1/2. A worn-down v-belt can lead to inefficient energy loss, and therefore poor performance. Installing this v-belt requires pliers and a wrench. First, the spark plug wire needs to be removed. Then, position the mower deck to the lowest possible level. Move the machine's blade engagement level to OFF. Remove the belt found from the engine pulley. Don't forget to take out the bow-tie pins and blade engagement cable as well. Remove the bolt from the pulley cover and loosen the nuts found at the idler pulley. Put the new belt and then tighten the nuts on the idler pulleys. The deck can now be re-assembled to its original position. This Husqvarna 532144959 V-Belt OEM Replacement can help keep a lawnmower in top condition. This genuine Husqvarna made V-belt is specifically for driving the blades on a lawnmower. It is compatible with Ariens, Craftsman, Poulan Pro, Dixon, and Husqvarna mowers. This V-belt is sold individually.
