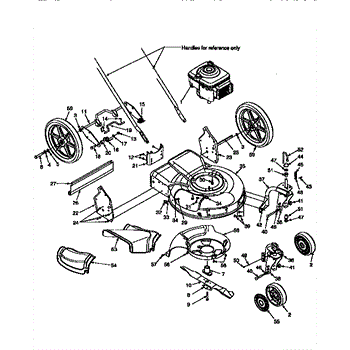

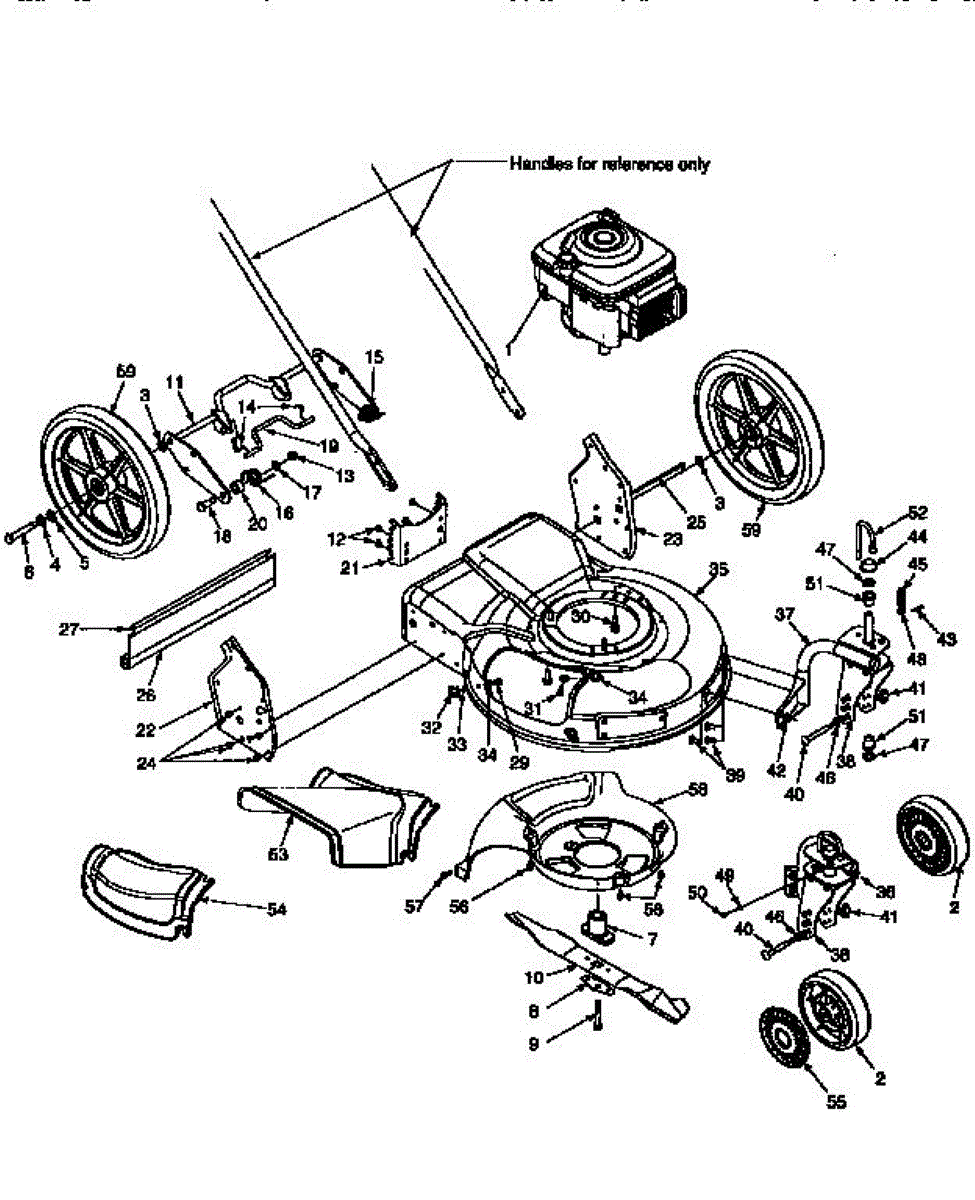

Parts for Mtd 11A-597F099: Mower Deck Parts

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

This is a .50 x 1.0 x .022 metal spring washer. It is designed to be used in lawnmowers, edgers, tillers, and other lawn and garden equipment that has vibrating parts due to movement or use. These spring washers are meant to be used between the nut and the surface of the attached part. For example, the wheel assembly bolt will have a spring washer installed before going through the wheel into the receiving nut.The spring washer will flatten out when tightened and dig into the surface it is attached to so that counter-clockwise rotation is prevented. This reduces or eliminates loosening due to vibrations. During routine maintenance, spring washers should be inspected to ensure they are intact and have not rusted or broken. Replacement of the washer does not require tools; however, the nut and wheel bolt assembly will have to be removed to access the washer and tools will be needed to remove these parts to access the washerThis is a genuine OEM part sourced directly from the manufacturer. It is sold individually. It is designed for use in Craftsman, Cub Cadet, Troy-Bilt, MTD, Husky, Bolens, Yard-Man, and other brand-names of outdoor lawn and garden equipment.

The blade support is found between the blade and the bolt. As its name suggests, it is designed to provide support for the blade to ensure it is secured to the base of the mower deck. It is made of metal and it will need a replacement if it becomes worn or damaged. To replace a blade support or blade spacer, first, the engine needs to be cool. Remove the wire and boot from the spark plug. Tip the mower back on its handle assembly and use a piece of wood or sturdy object to hold the cutting blade in place. Remove the old blade support and blade. When installing the new one, ensure that the blade's sharp edge faces away from the mower deck. Re-thread and torque the bolt between 40 and 50 ft-lbs. This is an original OEM replacement part for lawnmower blade support made by Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Bolens, Yard-Man, MasterCut. It is sold individually.

This hex screw can be used as a replacement part for the small engine of a lawn mower or a lawn tractor. The hex screw is a fastener with a six-sided head that is responsible for fastening components to one another. A hex screw might be lost or misplaced, which is a frequent occurrence in small engine appliances as a result of long-term usage. Hex screws are easily lost and misplaced as they are small components that do not necessarily cause damage upon unscrewing unless it results in the materials coming loose. If this is the case, or if the hex screw suffers from impact or corrosion to the metal material, the hex screw should be removed and replaced with this genuine OEM replacement for lawn mowers and lawn tractors. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This is an OEM part sourced directly from the manufacturer, MTD. It is sold individually. This hex screw is compatible with the following brands: MTD, Troy-Bilt, Yard Man, and Bolens.

A mulching blade has a unique curved or angled design that allows discharging, bagging, and mulching. If its edges are already dull, it can lead to longer mowing time and frayed and torn grass blades. Mulching blade installation is easy. First, unplug the spark plug wire. Then, position the lawnmower on its side. Get a woodblock, preferably 6 x 2 in size, and put it between the old blade and housing deck. Make sure that the wood will prevent the old blade from moving. Take a socket wrench and remove the blade’s nut and washer. Remove the old blade and put the new mulching blade in. Put the nut and washer back and tighten until it is secured. You can use the woodblock to prevent the replacement blade from moving when it is tightened. This mulching blade replacement s an original MTD product. This OEM mulching blade can be used for MTD, Craftsman, Cub Cadet, Murray, Yard-Man, and Bolens lawnmower models. This brand-new mulching blade is sold individually. The support blade and screw hex are sold separately.

This is a seven-inch cable tie that is used with different types of lawn and garden equipment. It is most commonly used to secure the cable onto the handle of the lawnmower or tiller so it is secure. The cable tie is made of durable plastic but can be damaged or break. When this happens, the tie will need to be replaced to ensure the cable stays on the handle.If the cable tie needs to be replaced, no tools are needed. In the situation where other parts need to be replaced at the same time, a basic set of tools and a pair of work gloves may be required. Turn off the yard equipment and place it on a stable surface before replacing the broken cable tie. The old tie can be removed so the new one can be installed before further use.This cable tie is an authentic OEM replacement part that is directly sourced from the manufacturer. This product is sold individually. The component is designed to be compatible with lawnmowers, lawn tractors, tillers, and snowblowers manufactured by MTD, Troy-Bilt, Yard-Man, and Yard Machines.

This part is a replacement rear skirt. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can replace a defective or detached rear skirt in lawn mowers.The rear skirt keeps the user's feet and legs protected from any debris or grass clippings that may be kicked up by the mower during use. This part will need to be replaced if worn, detached, or rendered ineffective in any way. Always ensure that the equipment is completely powered off and is cooled down before attempting to start the repair process. For more accurate information on the installation of this particular rear skirt, reference the owner's manual or equipment diagrams for specific instructions and part location. This is an authentic OEM part and as such is sold individually and made from durable and high-quality materials. This rear skirt can be used with a variety of lawn mower models manufactured by MTD, Craftsman, Troy-Bilt, and other brands.

This replacement part is a trailshield intended for use in lawn mowers. The trailshield attaches to the back of the lawn mower to ensure that the user is protected from the mower's blades. Trail shields may be torn or dented by impact, causing them to become loose or fall out of place. For safety, if this occurs, this part should be replaced as soon as possible. This is a genuine OEM replacement part manufactured by MTD. This part is sold individually.

This carriage screw is a replacement part for Craftsman, Yard-Man, MTD, and Yard Machines lawnmowers and snowblowers. Carriage screws are made from durable metal and have a flat tip with a round head and threading on a portion of the shank. These screws may also be called coach screws or plow screws and are corrosion resistant, strong, and resistant to scratches. If a carriage screw breaks or beings to become weak, replacement may be required. In many cases, it’s possible to inspect the screw to determine whether it is still doing its job. The screw might be rusted or appear beaten up, which means it should be replaced. In most cases, it can be removed using a wrench unless the rusting is extreme. The new screw can be placed into the original hole and tightened to keep your snowblower running correctly. This is a genuine OEM replacement component for use with lawn tractors and snowblowers. It’s made of metal and can be found in various locations depending on the tool model. The screw comes as an individual item and will require the use of a wrench to install.

This hex screw and lock washer are commonly used with lawn mowers and other small engines to secure a motor to the housing of the equipment. It is machined in such a way that it binds the manifold and frame permanently. There are occasions when these bolts have to be removed, typically when major repairs are performed on the engine. In those cases, users often find it advisable to replace the hex bolts and washers with new ones. It happens as well that these screws are so tightly fastened that they cannot be unscrewed and must be cut off. In those cases, it is necessary to replace the original screws. These replacement screws and lock washers are genuine OEM certified replacements that are manufactured to be identical to the hardware they are replacing. In addition to mowers, these hex screws are used to secure engines to devices such as log splitters, edgers, shredders, trimmers, and snowblowers. This screw is compatible with devices made by Husky, Yard-Man, Cub Cadet, Troy-Bilt, Ryobi, Bolens, and Yard Machines.

Carriage bolts are flat-tipped with round heads, and their function in small engine appliances is to fasten together components and to secure that connection with a nut. There are various reasons that a carriage bolt might have to be removed and replaced, among them misplacement of the small, easily lost part. Other reasons to replace a carriage bolt could include damage or erosion that prevents the bolt from attaching the materials to one another effectively. If a carriage bolt is subject to this kind of damage, it should be replaced before using the small engine appliance. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This genuine MTD carriage bolt can be used as a replacement part for several different kinds of appliances that require small engines, including lawnmowers, snowblowers, wood-chippers, tillers, string trimmers, leaf blowers, and edgers. The OEM carriage bolt is compatible with the following brands: Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut. This part is sold individually.

This is a genuine wing nut replacement designed for use in select walk-behind lawn mowers. Although some wing nuts are considered standard hardware on lawn mowers and other equipment, this specific wing nut connects to a bolt and secures the front baffle to the deck of the mower. Over time, this plastic wing nut can crack, fall off, or the threads may become damaged. This will result in the mover assembly being affected and the unit may not be able to be used until the nut has been properly replaced. This genuine replacement part will provide the exact fit for compatible mowers. This genuine OEM wing nut is manufactured to exact standards and comes from MTD. It can be used with hundreds of walk-behind lawn mower models from the brand, as well as those from Cub Cadet, Ryobi, Troy-Bilt, Bolens, Yard Man, Yard Machines, and Huskee. This plastic wing nut is sold individually. The carriage bolt that it connects to will need to be purchased separately if that also needs to be replaced. No tools are required for this installation, as it can simply be hand-tightened into place. Wear gloves for hand protection when performing equipment repairs.

This genuine replacement part is a MTD flat washer flange sized .339 X .640 inch X .033 inch. This MTD flat metal washer flange has a variety of applications for many types of equipment including lawn mowers, snow blowers, tillers, edgers, and log splitters. Washers are important to the proper functioning of the product. They spread the load of a threaded fastener, such as a bolt or nut, or can be used as a spacer. However, they can often wear down or become damaged through extended normal use and may not last the full life cycle of the product, leading to improper operation. This high quality OEM replacement part is sourced directly from the manufacturer, and is sold individually. This MTD flat washer flange has multiple applications in a wide range of products from Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, MTD, Huskee, Montgomery, Wards, Bolens, Yard-Man, Turf King, MasterCut, and more. Please note: original part number 166763 is now obsolete, and manufacturer has replaced the original part number with this part.

This carriage bolt is a self-locking fastener made for use in round or square holes to attach metal to metal in outdoor equipment. These bolts provide an added safety feature because they can only be removed from one side. Carriage bolts can carry a large amount of weight, which makes them ideal for use in outdoor yard equipment. Carriage bolts may be used to attach a lawn mower's arm to the side support and other similar applications. If the bolt needs to be replaced, removal and installation are simple. Use a wrench to loosen the nut holding the washer and bolt in place. Once the nut is loose, the bolt can be unthreaded by hand and pulled out of the hole. To install, push the bolt back through the hole. If the fit is too tight to install by hand, use a hammer to tap it in place. Reinstall the washer and nut and tighten with a wrench.This carriage bolt is designed for use in lawnmowers, snowblowers, and lawn tractors manufactured by Craftsman, Bolens, Yard Machines, Yard-Man, and MTD. This is a genuine OEM product that comes directly from the manufacturer. Note: It does not come with a nut or washer.

This caster axle is a genuine MTD part, sold individually. This caster axle can be used as a replacement part for a lawn mower. The purpose of the caster axle is to provide bolstering and support for the rotation of the wheels of the lawn mower.The caster axle might have to be replaced if it can no longer properly support the wheel of the appliance. If the caster axle is cracked, punctured, scraped, or eroded to the point that the wheel or the caster axle itself comes loose, the component will have to be replaced by this genuine OEM replacement part. It is a simple replacement process that will require only basic tools to perform. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement.This is an OEM part sourced directly from the manufacturer. It is sold individually. This caster axle is compatible with the following outdoor appliance brands: MTD, Yard-Man, Troy-Bilt, Craftsman, and Cub Cadet.

This is a flange nut that can be used in a variety of lawn and garden equipment from different manufacturers. The nut is made of metal, measures 5/16x18, and is used to secure components in place. It also assists with preventing backing out caused by vibration. Over time, the flange nut can become damaged and will need to be replaced. If the flange nut in lawn and garden equipment has become damaged, is loose, or gets lost, then replacement is required. The level of difficulty of replacing a flange nut depends on which parts it's securing and what kind of equipment it is installed on. This flange nut is an OEM replacement part that can be used with lawn mowers, snowblowers, wood chippers, tillers, log splitters, leaf blowers, and edgers by MasterCut, Craftsman, Yard-Man, Toro, Bolens, Cub Cadet, Montgomery Wards, Ryobi, Huskee, Troy-Bilt, MTD, and Yard Machines. It is sold individually and will require a wrench or socket for installation.

This OEM replacement push cap can be used in a variety of lawn and garden equipment. The push cap is secured to the end of a shaft, providing protection to the user from the sharp metal edge of the shaft. The push caps that are included with the machines may wear out over time or fall off in some cases, creating an injury risk involving sharp metal edges. These push caps are high-quality and made from durable plastic. They are easy to install. The OEM push cap is a genuine part made by the original manufacturer, to ensure quality and s proper fit. The push caps can be used on lawn tractors, chippers, shredders, log splitters, and other equipment. Some of the brands that this push cap is compatible with include MTD, Husky, Yard-Man, Bolens, Troy-Bilt, Ryobi, Yard Machines, and cub Cadet.

This washer is a genuine MTD part, sold individually. This washer can be used as a replacement part for a variety of small engine outdoor appliances including lawn mowers, snowblowers, tillers, leaf blowers, log splitters, wood chippers, and edgers. The purpose of a washer for such outdoor appliances is to provide separation and sealing between fastening components of the appliance so the fastening components are not damaged from friction.The washer is a small component that can be easily lost or misplaced. Additionally, it may become warped or damaged. If any of these things occur, this genuine OEM replacement part should be ordered. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement.This is an OEM part sourced directly from the manufacturer. It is sold individually. This washer is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Yard Machines, Yard-Man, and Troy-Bilt.

This grease fitting attaches to the cast pivot bar on many types of garden and lawn equipment. It is made of durable metal and ensures that internal parts of the equipment are lubricated so they operate at their full potential. Sometimes a grease fitting can become worn damaged and need to be replaced.If a lawn tool no longer seems to be properly lubricated, the grease fitting could be the cause. A pair of pliers will be required to make the replacement. Clean the area near the grease fitting and then use a hex wrench to remove it from the machine. Take the new fitting and place it into the hole and tighten it before applying grease.This is a genuine OEM replacement grease fitting that is sourced directly from the manufacturer. The part is sold individually. The fitting is compatible with chipper shredders, lawn tractors, snowblowers, string trimmers, edgers, chainsaws, and lawnmowers manufactured by Yard-Man, Cub Cadet, Troy-Bilt, Craftsman, Ryobi, Murray, Broan, Yard Machines, Huskee, Montgomery Wards, Bolens, MasterCut, and MTD.

This replacement part is a mulch cover and is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. Mulch covers are found on different types of lawn mowers and are able to help protect the main area of the machine as well as the user from mulch and other debris that could fly about during use. A new mulch cover might be needed if the current one is visibly damaged or missing. It is possible that rough debris can come in contact with this part and can cause normal damages. This can include being dented, cracked, or chipped. This cover is made of a durable plastic and should last a long time. This should be a simple repair and not require any additional tools. This replacement part is sold individually and is sourced directly from the manufacture. This part is a genuine OEM replacement part.
