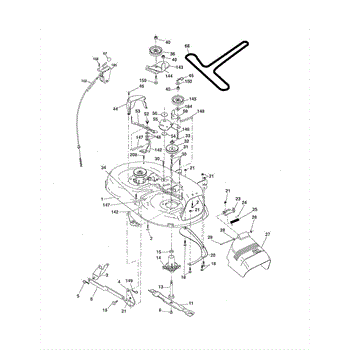

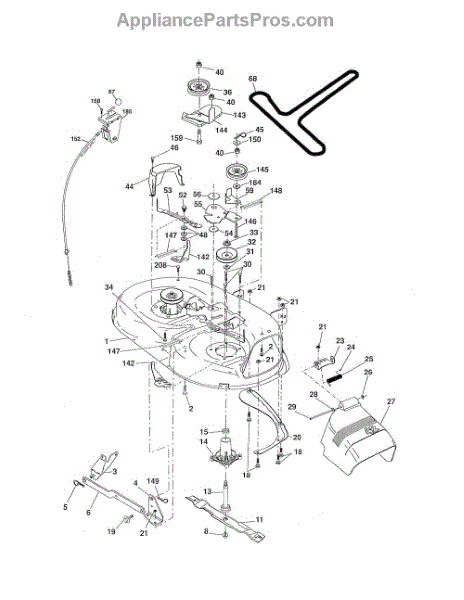

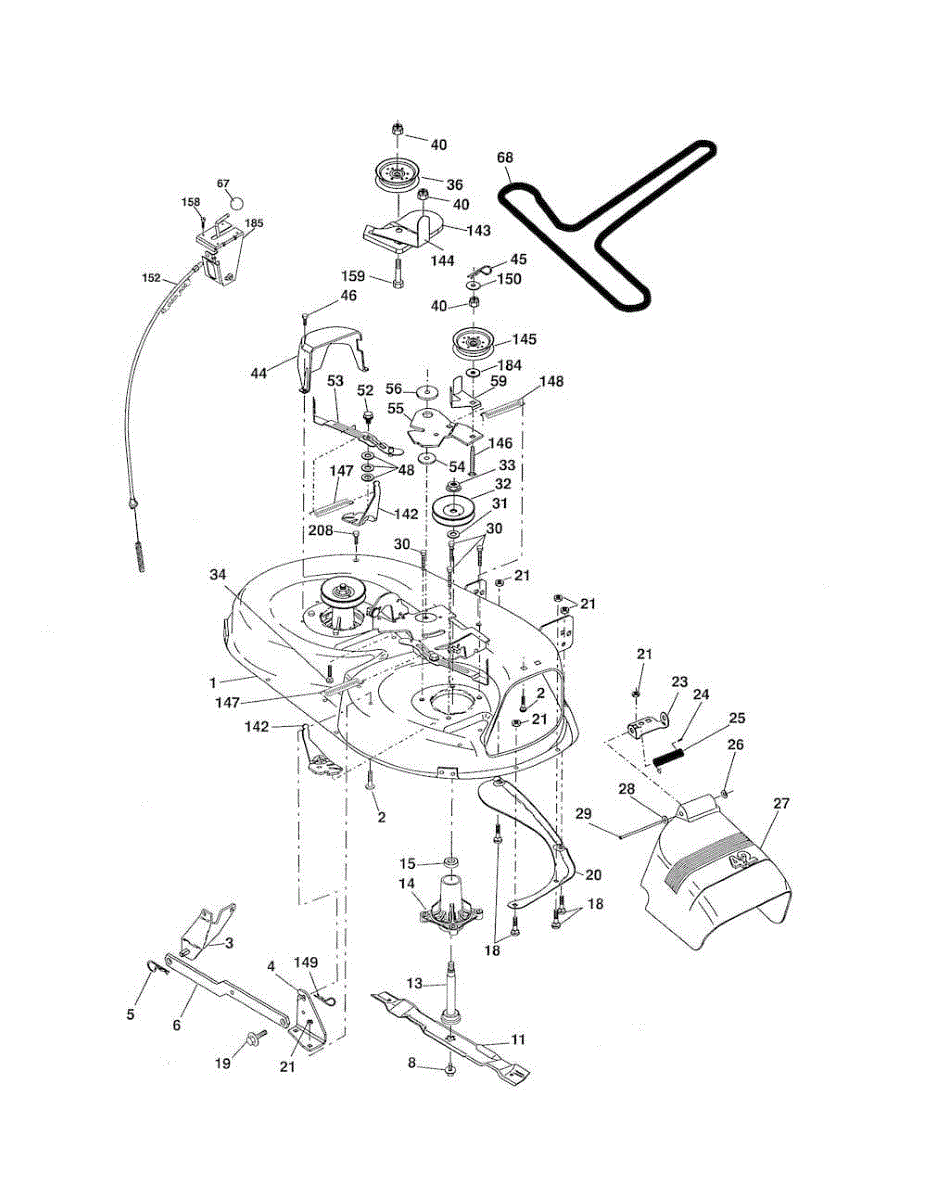

Parts for Poulan 96016002400: Mower Deck Parts

This genuine Husqvarna bolt and washer replacement part is specifically engineered to hold and secure the lawnmower blade in place. The bolt is threaded while the washer has a curved or rounded headed. A washer is needed for even load distribution of the threaded bolt. Fastening the bolt without the fastener may cause stress to the material it's driven into. One of the warning signs that the bolt and washer are broken is if the lawnmower blade doesn't rotate properly. Instead of moving in one circular motion, it turns erratically and goes up and down. In some cases, it will make a loud grinding noise during cutting. The lawnmower blade may even fly out from its normal position. Replacing the worn-down bolt and washer is fast and straightforward. First, shut down the engine and let it cool. Then, take out the spark plug and turn the mower on its side. Use a socket to remove the old bolt and washer. Then, grab the replacement and insert it through the blade's hole. Tighten it using the socket. This original Husqvarna bolt and washer is only suitable for lawnmowers made by Husqvarna, Craftsman, and Weed Eater. It is also compatible with some Dixon and Poulan lawnmowers. This bolt and washer replacement is sold individually.

This no grease mandrel assembly is the part that houses the shaft where the mower blade attaches. It is mounted to the deck of the mower by three bolts, which are sold separately. The mounting holes on the mandrel housing are not threaded, but the bolts used to secure the mandrel to the deck are self-tapping. If the lawnmower is no longer providing an even cut, there may be a problem with the mandrel assembly. A broken or damaged mandrel assembly can severely reduce the mower's cutting performance. Replace it as soon as possible. The mandrel shaft goes through the deck, and the pulleys are attached to them, then the belt that drives the mandrels is placed in the pulleys. A spacer must be installed under the pulley. Failing to use a spacer or installing it on top of the pulley will result in damage to the shaft and pulley. This mandrel assembly is compatible with Ariens, Craftsman, Husqvarna, Poulan, and Weed Eater lawn mower models. It is an OEM part sourced directly from the manufacturer and is sold individually. The mandrel assembly includes a housing, shaft assembly, bearing, and nut only; the pulley/washer and blade bolt/washers are not included.

This no grease mandrel assembly is the part that houses the shaft where the mower blade attaches. It is mounted to the deck of the mower by three bolts, which are sold separately. The mounting holes on the mandrel housing are not threaded, but the bolts used to secure the mandrel to the deck are self-tapping. If the lawnmower is no longer providing an even cut, there may be a problem with the mandrel assembly. A broken or damaged mandrel assembly can severely reduce the mower's cutting performance. Replace it as soon as possible. The mandrel shaft goes through the deck, and the pulleys are attached to them, then the belt that drives the mandrels is placed in the pulleys. A spacer must be installed under the pulley. Failing to use a spacer or installing it on top of the pulley will result in damage to the shaft and pulley. This mandrel assembly is compatible with Ariens, Craftsman, Husqvarna, Poulan, and Weed Eater lawn mower models. It is an OEM part sourced directly from the manufacturer and is sold individually. The mandrel assembly includes a housing, shaft assembly, bearing, and nut only; the pulley/washer and blade bolt/washers are not included.

A lock nut secures bolted joints with the creation of friction on the thread of the bolt. It prevents loosening of parts, which is a common occurence on lawn machines due to the tremendous amounts of vibration and wear, which can loosen connections between crucial components. This lock nut will prevent such issues. It will be necessary to have wrenches and other tools to make the repair or replacement. This OEM lock nut for Husqvarna and Craftsman fits garden machines that include tillers, lawnmowers, tractors, and other equipment. This durable part ships individually.

This is a push nut that is used in many different models of lawnmowers. It's a black nut made of durable metal. The push nut is used to secure various components in several locations on lawn and garden equipment. This component is made of strong materials but it can experience damage, wear and tear, or even break over time. This can cause the lawnmower to perform poorly or experience other issues. This is a small component that can be broken or lost and needs to be replaced to ensure the best performance from the lawnmower. A set of pliers and a screwdriver may be required to replace the push nut. The parts that will need to be removed before replacement vary based on the location of the push nut. Disassemble any components in the way before taking out the bad or damaged push nut. Place and tighten the new nut and reassemble the parts.This is a genuine OEM replacement push nut that is directly sourced from the manufacturer. It is sold as an individual component. The push nut is created for use with lawnmowers manufactured by Craftsman, Husqvarna, Weed Eater, Poulan, Murray, Ariens, and Dixon.

This replacement deflector shield is a genuine OEM part intended for use on lawn mowers and tractors. It attaches to the side of the mower and directs grass clippings away from the blade as it mows. This serves to keep grass from bunching up in the blade, which could cause it to stall out. The direction of the deflector shield also blows grass clippings behind the mower to keep any potentially hazardous debris from flying up at the mower. Deflector shields can become dried out and brittle over time and can snap off if the mower drives too close to a wall, tree, or other hard object. Deflector shields usually only need replacing if they break. This would cause grass clippings and debris to fly in all directions, which could be dangerous for the user. Replacing the deflector shield is an easy repair and only requires a socket wrench set. This part is compatible with a wide variety of Husqvarna and Craftsman lawn mowers and tractors and is sourced from the original manufacturer. This product ships individually.

This is the replacement washer head screw for a lawnmower or lawn tractor. It is black in color and is roughly 1.5 inches in length. With its hexagonal head and washer face, it is usually used as a fastener in outdoor power tools. It is self-tapping, meaning it can tap its own threads when screwed into either plastic, wood, or metal. When used with lawn tractors and lawnmowers, this screw is commonly employed for securing the mandrel housing to the mower deck. Replace the washer head screw if the old screw is damaged or missing. First, a pilot hole should be made that's slightly smaller than the diameter of this screw before driving it with a screwdriver. This is also a thread-forming type of self-tapping screw, and it does not have a pointed tip. It is compatible with specific products from major brands like Ariens, Craftsman, Husqvarna, Murray, Poulan, Ryobi, and Weed Eater. This part is sold individually and is a genuine OEM part sourced directly from the manufacturer.

This top lock flange nut is a genuine Husqvarna part, sold individually. This top lock flange nut can be used as a replacement part for lawn mowers. The purpose of a top lock flange nut is to provide a fastening component, in conjunction with a bolt, through which two parts can be affixed to one another through clamping and rotation.The top lock flange nut is a small fastening component that can be easily lost and misplaced. If components come loose as a result of a lost top lock flange nut, the component should be replaced by this genuine OEM replacement part. Additionally, over time, a top lock flange nut can be stripped or eroded beyond functionality, in which case the component should be replaced. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This is an OEM part sourced directly from the manufacturer. It is sold individually. This top lock flange nut is compatible with the following outdoor appliance brands: Husqvarna, Craftsman, Weed Eater, Dixon, Poulan, and Aries.

This idler pulley is a genuine replacement part for select riding lawn tractors. The idler pulley mounts to the mower deck and is attached to the mower belt. When the engine is engaged and the mower is driving, the pulley is responsible for guiding the path of the belt. This pulley is subjected to repetitive motion, constant vibrations, and other damage and can become worn or broken over time. Replacing the pulley will ensure proper operation and guidance of the belt. This OEM part can provide a solution for compatible tractors. This genuine idler pulley replacement is designed for use with mowers from brands like Husqvarna, RYOBI, Poulan, Jonsered, and Weed Eater. This idler pulley is made of durable metal and sold as a single unit. No other hardware is included with the purchase. Always disengage the spark plug and wear gloves when working on belts or under the mower deck, such as in the case of replacing this pulley.

This flanged hex nut is used in various models of lawn and garden equipment. The nut is considered a standard hardware part that may have multiple applications on different units. It is typically used along with a bolt or screw to provide a secure hold for various components. This nut is a small part and can become lost in the process of other repairs. It can also break or strip the threads due to regular wear and tear, impact damage, or another issue. If this nut is broken or missing, it needs to be replaced immediately. Replacing the hex nut with a genuine OEM part will ensure equipment is always in proper working order. This OEM hex nut is designed for use in select Craftsman and Husqvarna equipment. It is manufactured by Husqvarna as an exact replacement for the original nuts that came with the machine. This part can fit on more than 150 machines, including lawn mowers, tractors, snow blowers, and trimmers from both brands. Owners will want to check their parts diagram for the exact location(s) and application(s) of this nut. Since it is standard hardware, some people purchase multiple quantities to keep extra parts on hand in case of emergency.

This is a belt guard for use with certain models of riding mower and lawn tractor. The belt guard is situated between the washer and the arm idler. The purpose of the guard is to help guide the belt so that it works properly. They could also help to protect the belts from damage and work as a safety feature.The belt guard is made from durable metal and it is made to last. However, owners might find that they eventually need to replace the piece if it breaks or has other damage. If the belt guard has been bent or if it is corroding, it will not do its job properly. Replacing the guard will require a socket set, wrench set, and a set of pliers.The belt guard can serve as a replacement for many models of riding mowers and tractors from Husqvarna, Weed Eater, Ryobi, Poulan, and Jonsered. The piece is sold individually, and it is an authentic OEM replacement part sourced from the manufacturer.

This shift arm knob can be used with many lawnmowers and lawn tractors from various major lawn and garden manufacturers. It is used to grasp the shift lever to change gears and engage the mower. The shift arm knob makes it more comfortable to use the shift lever. Without the knob, the lever would be slippery and hard to hold with bare hands.It is made of heavy-duty plastic that can fade and crack due to the elements. Installing the replacement shift arm knob does not require tools and can be complete in under five minutes. The shift arm knob is a threaded ball that screws onto the shift lever. To remove, turn the ball counterclockwise until it comes off the shift lever. Line the new knob up with the shift lever and turn clockwise to screw on. Hand-tighten the lever. Do not over-tighten as this could could strip the threads. This shift arm knob is a genuine OEM replacement part sourced directly from the manufacturer. It is sold as an individual unit. This knob is designed for use in lawnmowers and lawn tractors manufactured by Ariens, Craftsman, Husqvarna, and Poulan.

A V-belt is responsible for transmitting energy. It is made from a thick and sturdy rubber material. It features grooves for improved traction and measures ½ x 95-1/2. A worn-down v-belt can lead to inefficient energy loss, and therefore poor performance. Installing this v-belt requires pliers and a wrench. First, the spark plug wire needs to be removed. Then, position the mower deck to the lowest possible level. Move the machine's blade engagement level to OFF. Remove the belt found from the engine pulley. Don't forget to take out the bow-tie pins and blade engagement cable as well. Remove the bolt from the pulley cover and loosen the nuts found at the idler pulley. Put the new belt and then tighten the nuts on the idler pulleys. The deck can now be re-assembled to its original position. This Husqvarna 532144959 V-Belt OEM Replacement can help keep a lawnmower in top condition. This genuine Husqvarna made V-belt is specifically for driving the blades on a lawnmower. It is compatible with Ariens, Craftsman, Poulan Pro, Dixon, and Husqvarna mowers. This V-belt is sold individually.

This clutch cable kit is an authentic OEM replacement part for a riding lawn mower or tractor. The clutch cable connects to the idler arm located in the lower deck of a mower and allows the operator to manually engage or disengage the blades. The clutch cable runs up through the steering block and into the front display so that the operator can easily access the clutch. If a clutch cable becomes jammed or tenses up, it will be difficult to depress. If the operator tries to depress the clutch cable without realizing that it is jammed, the clutch cable will snap. The most obvious sign of a snapped clutch cable is that the clutch gives little resistance and the blade cannot be engaged. To change a clutch cable, use a socket set to remove the fuel tank and gain access to the cable. A pair of needle nose pliers is also recommended. This replacement part is compatible with Weed Eater, Husqvarna, Ryobi, and Poulan appliances and comes sourced from its original manufacturer. This part includes a clutch cable and a zip tie.
