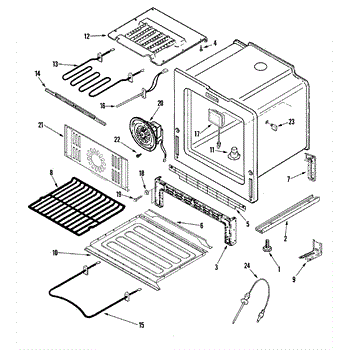

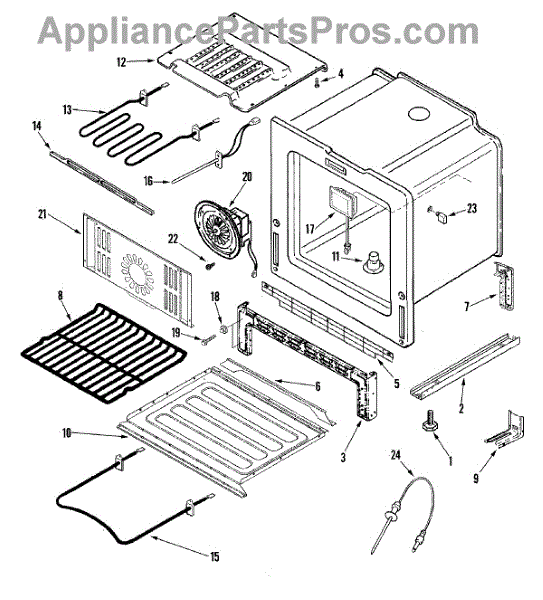

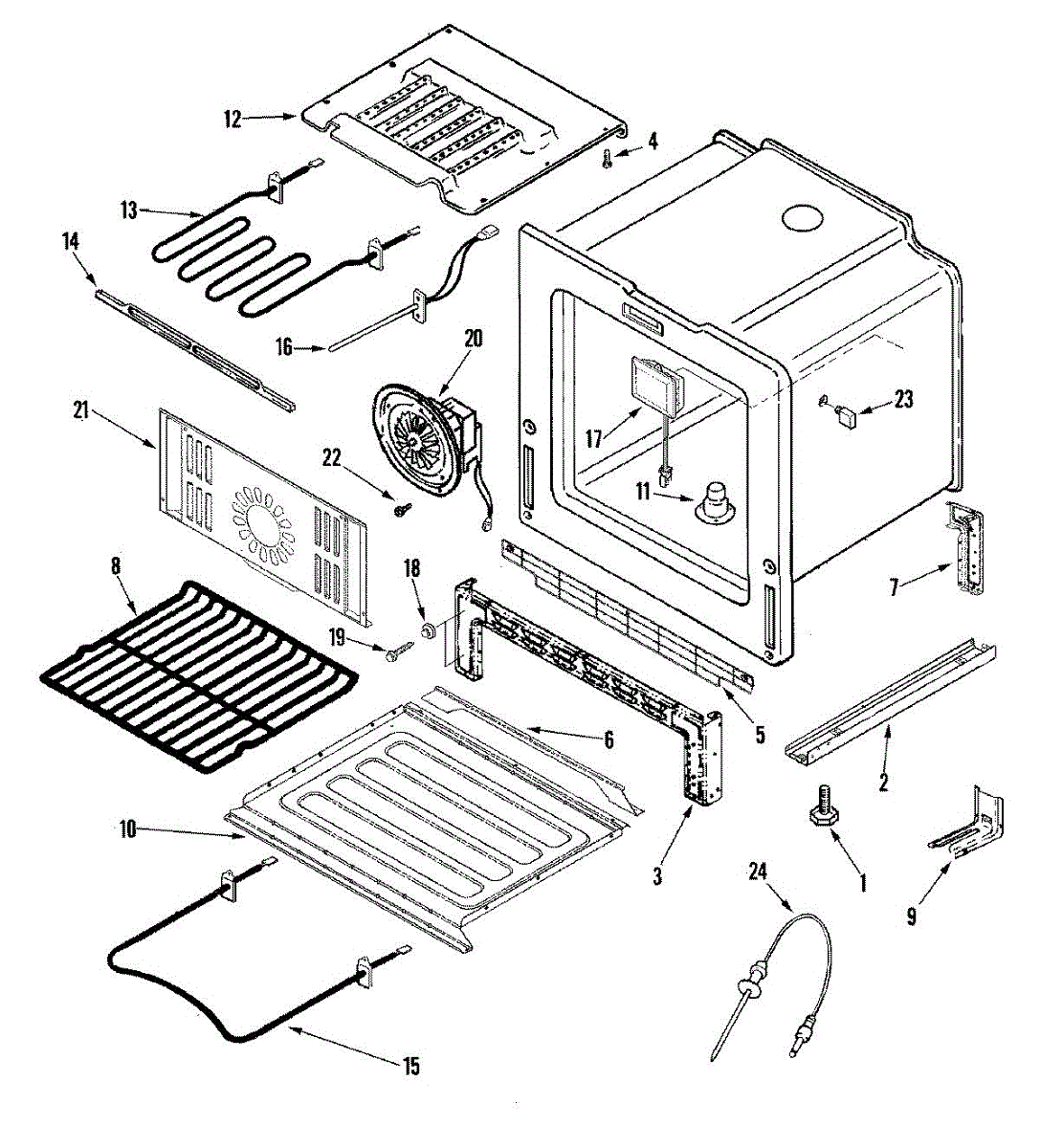

Parts for Jenn-Air JES9900BAS: 06 - Oven / Base Parts

Metal leveling leg screw threads into your range base to adjust height and stabilize the unit. Replace missing, bent, or stripped screws for level footing.

Bottom panel for your range chassis. Replaces cracked, rusted, or damaged base panels. Installs under the appliance to protect internal components.

Replacement fastening screw for securing trim, panels, and brackets inside appliances. Use when original screw is missing, stripped, or damaged.

Replace your oven's missing, warped, or discolored rack. This sturdy metal rack installs on side rails for stable baking and roasting surfaces.

Replace missing or stripped screws for your range anti-tip bracket. This 2-piece hardware set secures the bracket to the wall or floor for stability.

Anti-tip bracket bolts to the floor behind your range to prevent tipping. Replace if missing, bent, or damaged during moving or installation.

If your broil function won't heat or brown food properly, a failed broil element is the likely cause. This upper heating element restores direct radiant heat.

Oven not heating or baking unevenly? The bake element generates heat at the bottom of your oven cavity. DIY-friendly repair—takes about 10 minutes.

Fix F1 error codes and temperature control issues with this oven temperature sensor. Takes about 15 minutes to install—just 2 screws and plug-in wiring.

Spacer that maintains proper spacing between range components to prevent rubbing and misalignment. Replace if cracked, broken, or missing during repairs.

Size: No. 8

This part is a convection fan that is designed for use on ranges. This part is responsible for circulating the hot air throughout the oven to ensure even heating. If the fan motor stops working, then this part will need to be replaced to ensure the oven is working correctly. If the oven is not heating evenly, this is also a sign that the convection fan is faulty. This replacement procedure is very easy to do and takes approximately 30 minutes from start to finish. It's important to unplug the range from the electrical outlet before attempting to replace this part. Also, allow the oven plenty of time to cool prior to working on it. Wear gloves for safety during this process.The convection fan is compatible with ranges that are manufactured by the Jenn-Air and Whirlpool brands. It is sold individually and is sourced directly from the manufacturer.

Convection baffle that directs airflow in your oven's convection system. Replace if cracked, warped, or damaged to restore proper air circulation.

This receptacle provides the appliance's electrical connection point, restoring a secure power feed and preventing intermittent or no-power issues. Use it to replace a damaged or worn connector for reliable operation. What it does:

• Restores the appliance's main power connection where the cord or harness plugs in
• Replaces cracked, melted, or loose receptacles that cause intermittent power
• Stops arcing or poor contact that can lead to shutdowns or overheating smells
• Helps ensure a firm, vibration-resistant electrical connection

• Disconnect all power before starting work to avoid shock or injury
• Verify wiring colors and terminal positions match the original before reconnecting
• Securely fasten the receptacle and strain-relieve the cord/harness to prevent movement

Oven not recognizing meat probe when inserted? This replacement meat probe restores temperature monitoring. Easy DIY fix, works right away.
