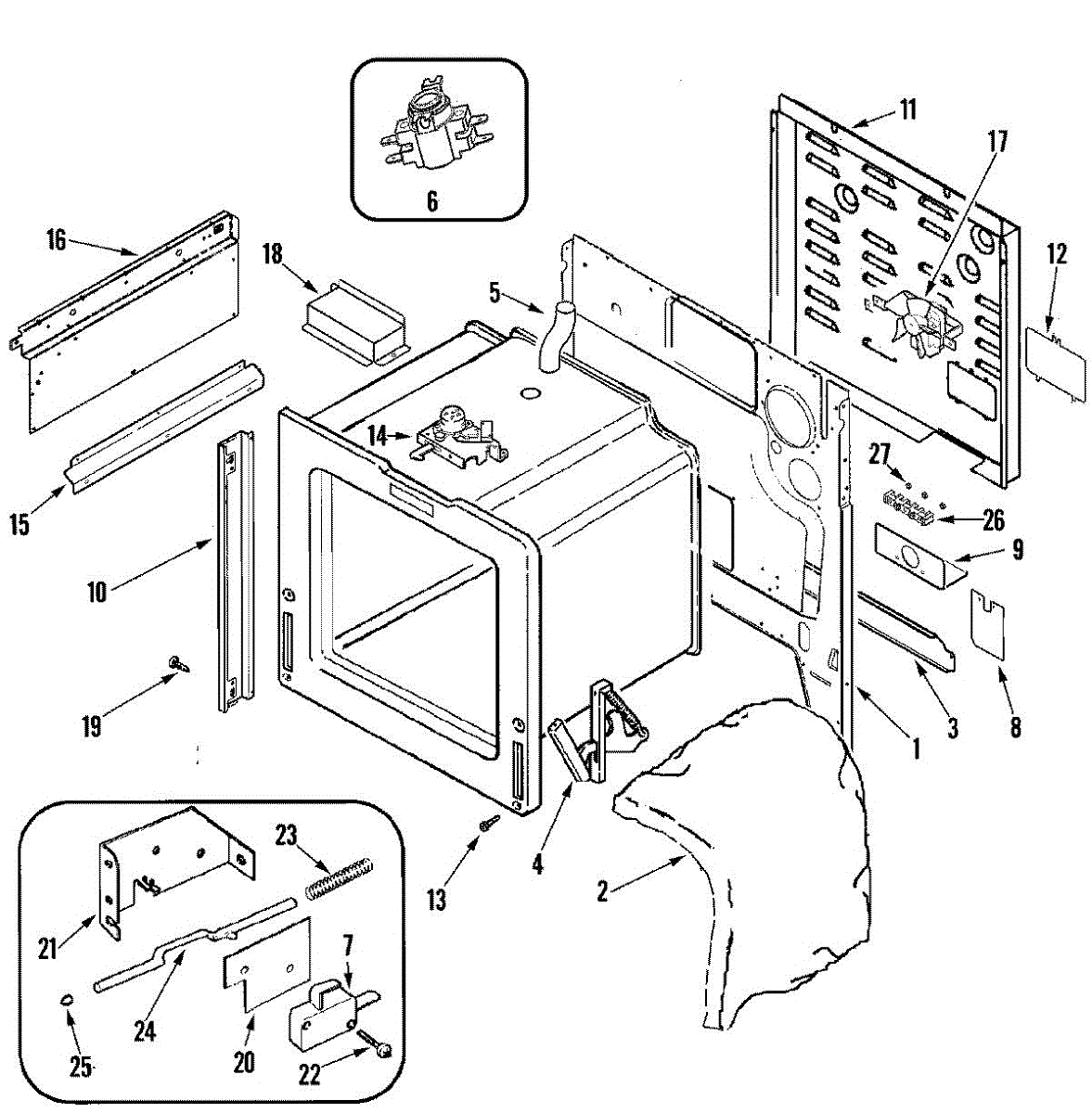

Parts for Jenn-Air JES9900BAS: 02 - Body Parts

This oven door hinge supports and guides the door through its range of motion so it opens smoothly and seals tightly when closed. Replacing a fatigued hinge restores proper door alignment and consistent oven performance. What it does:

• Provides spring-assisted tension to control door opening and closing
• Helps the door seal evenly against the gasket to retain heat
• Maintains correct stop positions to prevent slamming or over-travel
• Common symptoms: door won't close fully or pops open, drops/slams, sits crooked, heat escaping/long preheat

• One door hinge assembly

• Disconnect power at the breaker; allow the oven to cool completely before servicing.
• Remove the door per your model's procedure (often open to the broil stop, engage hinge locks, then lift off).
• Use hinge locks/pins to control spring tension and prevent snap-back during removal/installation.
• Support the door to avoid damage; many replace both hinges together to keep tension balanced.

Thermal cutoff

The light switch assembly controls power to the appliance light circuit. Replace a worn or faulty switch to restore reliable on/off operation when your lamp won't turn on, won't turn off, or works intermittently. What it does:

• Opens and closes electrical contacts to supply or cut power to the light
• Controls cavity or task lights as designed for the specific model
• Typical symptoms: light won't turn on, won't turn off, or flickers/intermittently works
• Physical signs of failure: stuck/loose actuator or no continuity when tested

• 1 light switch assembly

• Disconnect power at the breaker or unplug the appliance before service
• Access location varies by model; remove necessary panels/trim to reach the switch
• Note wire positions and transfer them one at a time to the new switch; secure the mounting
• Restore power and test light operation before final reassembly

Size: 10-24X5/16-NI

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 10-32 terminal block nut fastens wire lugs to the appliance's terminal studs. Replacing a missing, stripped, or corroded nut restores a tight, reliable connection and helps prevent heat damage or intermittent power at the connection.

• Secures wire lugs to a 10-32 terminal stud for a solid electrical connection
• Restores proper clamping force when the original nut is stripped, corroded, or missing
• Helps address loose/burned terminal connections, heat discoloration, or intermittent power at the block
• Suitable for terminal block and similar 10-32 stud applications on compatible appliances

• Disconnect power at the breaker or unplug the appliance before servicing
• Inspect the terminal block, studs, and wiring for heat damage; replace any damaged components
• Clean threads and start the nut by hand to avoid cross-threading; tighten firmly without overtightening
• If the stud turns while tightening, hold it with an appropriate tool to protect the block
