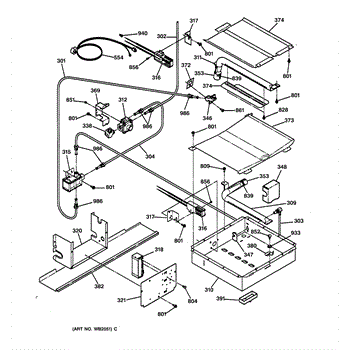

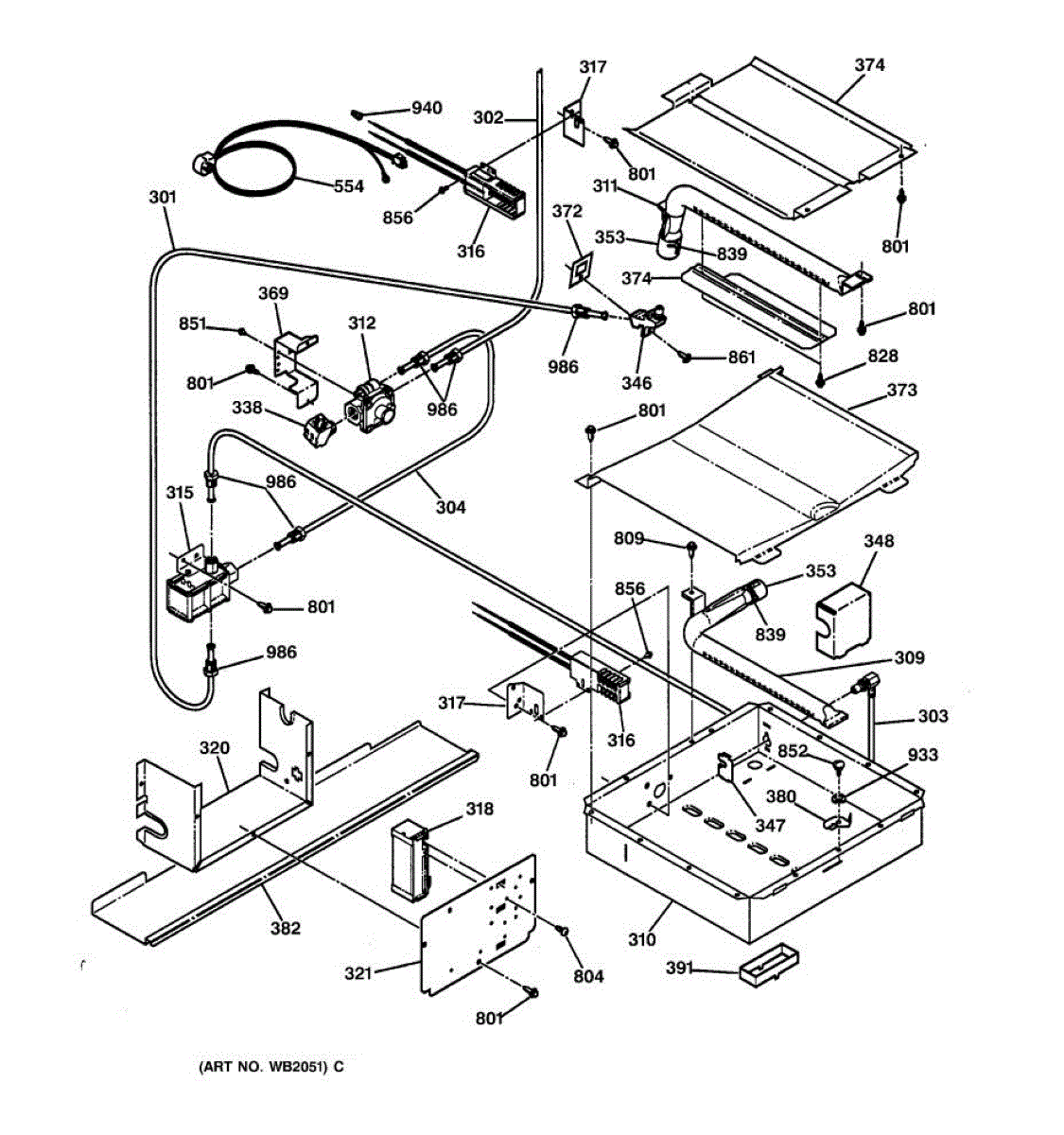

Parts for Ge JGSP44AEV2AA: 05 - Oven Burner Parts

Tube assembly for ovens and ranges. Connects gas or water lines internally. Replace if cracked, corroded, leaking, or damaged during appliance repair.

This part has been discontinued and is no longer available.

This spark igniter creates the arc that lights the gas burner, restoring quick, reliable ignition in your range or oven. Replacing a worn electrode helps eliminate hard starts, intermittent lighting, and nonstop clicking.

• Generates a high-voltage spark at the burner to ignite gas
• Helps resolve burner won't light, delayed ignition, or intermittent sparking
• Can reduce continuous clicking caused by a weak, damaged, or mispositioned electrode
• Typical signs include no visible spark or a cracked ceramic insulator

• Disconnect power and shut off gas; allow the appliance to cool before service
• Handle the ceramic insulator carefully; avoid bending or striking the electrode tip
• Position the tip near the burner port; ensure a solid ground and secure bracket
• Reconnect the lead firmly, then test for a strong spark before reassembly

The Spark Module is an OEM replacement part for GE gas ranges. It is responsible for generating electric sparks to ignite the gas burners on the cooktop. The spark module produces consecutive sparks when a surface burner knob is turned on, which ignite the gas mixture and allows the burner flame to ignite safely and consistently.

Causes of a bad spark module can include faulty electrodes, worn internal components that hamper sparking, or damage due to moisture intrusion or power surges over time.

Symptoms of a bad spark module include:

• Burners that will not ignite or only intermittently ignite
• Flashback or burning above the burner head
• The smell of gas when turning burners on

This GE replacement part is also compatible with models from Hotpoint, RCA, and certain Kenmore gas ranges.

This front wire cover protects and conceals the appliance's wiring and terminal area at the front of the unit for safer operation and a cleaner appearance. It helps prevent accidental contact, snagging, and debris buildup around wiring. What it does:

• Covers and protects the front wiring/terminal area from accidental contact and foreign objects
• Keeps wires routed and restrained to reduce strain and chafing
• Helps prevent shorting or arcing caused by exposed or loose wires
• Restores a finished appearance to the front service area

• Always disconnect power to the appliance at the breaker or unplug before servicing.
• Remove any required access panels or components to reach the front wiring/terminal area.
• Install using the original mounting points and hardware; do not stretch or pinch wiring.

Sheet metal baffle that directs heat across the broiler chamber for even cooking. Replace if cracked, warped, or corroded to restore proper heat distribution.

Fix an oven door that won't stay closed or latch properly with this gas range door latch. Simple repair for restoring secure door operation.

Range power cord connects your range to the wall outlet. Replace if cord is frayed, damaged, or missing when installing a new range or moving to a new home.

ST10-16 X 7/16"

Replacement mounting screw secures panels, brackets, and components in place. Needed when original fasteners are missing, stripped, or damaged.

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

8-32 thread screw fastens panels and components inside ranges, ovens, and cooktops. Replace stripped, missing, or damaged screws to secure covers properly.

Nickel

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

These ceramic wire nuts provide secure electrical connections for range installation and wiring. The heat-resistant ceramic material protects connections from high temperatures generated during cooking. Use these nuts when installing a new range or repairing damaged electrical connections that have become loose or corroded.

Inverted tubing nut secures gas line connections on ranges and ovens. Replace if stripped, corroded, or missing to ensure proper tubing fitment.
