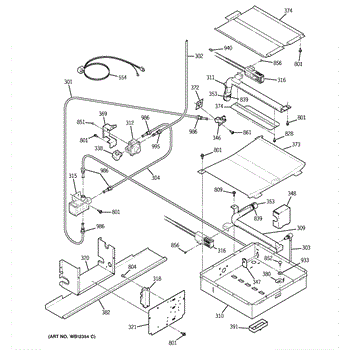

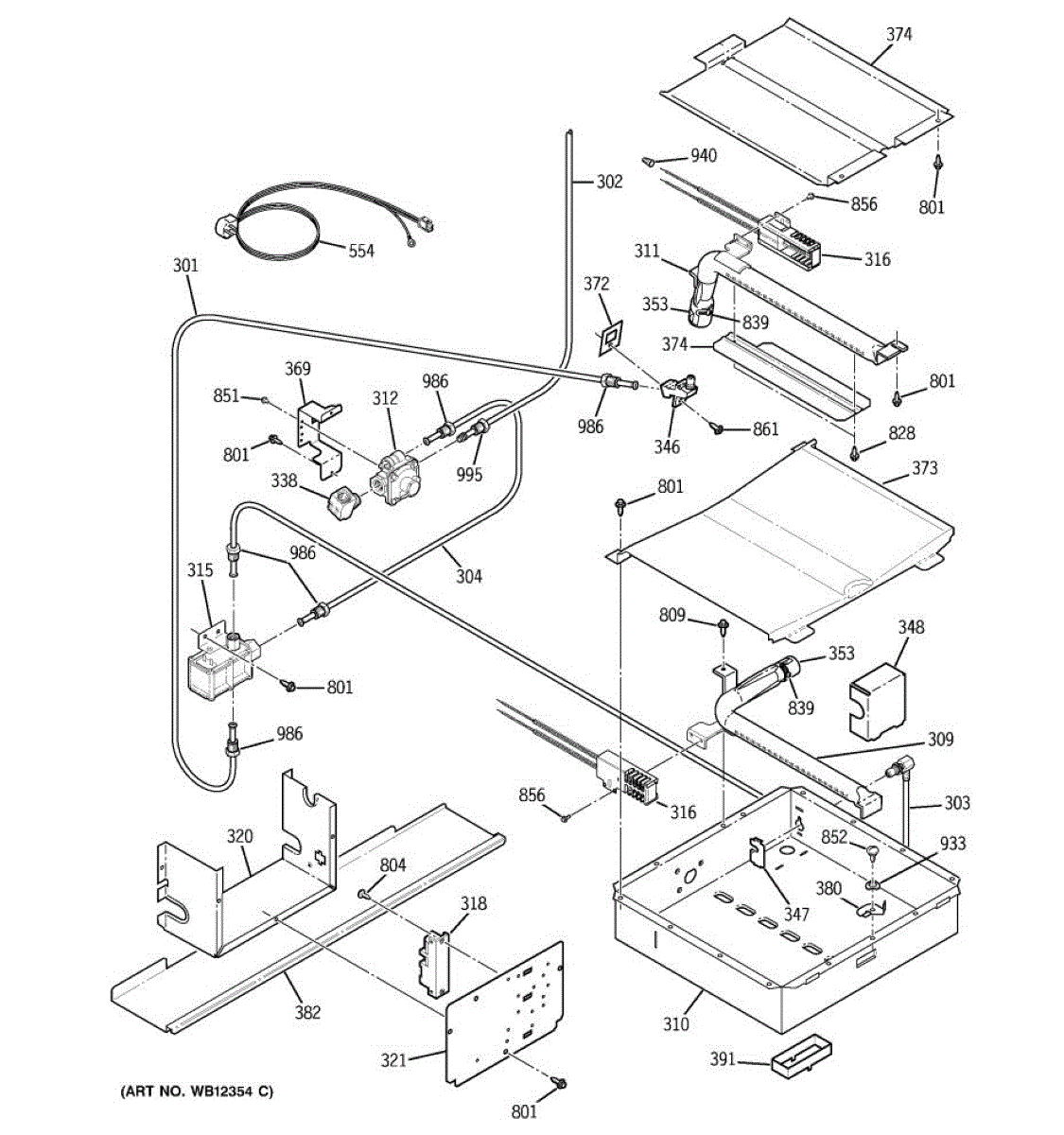

Parts for Ge JGSP44BEY3BB: 06 - Oven Burner Parts

Tube assembly for ovens and ranges. Connects gas or water lines internally. Replace if cracked, corroded, leaking, or damaged during appliance repair.

Broil element assembly for your range oven. Installs at the top of the oven cavity. Replace if the element is cracked, broken, or no longer heats properly.

This spark igniter creates the arc that lights the gas burner, restoring quick, reliable ignition in your range or oven. Replacing a worn electrode helps eliminate hard starts, intermittent lighting, and nonstop clicking.

• Generates a high-voltage spark at the burner to ignite gas
• Helps resolve burner won't light, delayed ignition, or intermittent sparking
• Can reduce continuous clicking caused by a weak, damaged, or mispositioned electrode
• Typical signs include no visible spark or a cracked ceramic insulator

• Disconnect power and shut off gas; allow the appliance to cool before service
• Handle the ceramic insulator carefully; avoid bending or striking the electrode tip
• Position the tip near the burner port; ensure a solid ground and secure bracket
• Reconnect the lead firmly, then test for a strong spark before reassembly

Fix burners that won't ignite or spark continuously. This spark module controls ignition for all surface burners. DIY repair in about 45 minutes.

Sheet metal baffle that directs heat across the broiler chamber for even cooking. Replace if cracked, warped, or corroded to restore proper heat distribution.

Fix an oven door that won't stay closed or latch properly with this gas range door latch. Simple repair for restoring secure door operation.

Range power cord connects your range to the wall outlet. Replace if cord is frayed, damaged, or missing when installing a new range or moving to a new home.

ST10-16 X 7/16"

Replacement mounting screw secures panels, brackets, and components in place. Needed when original fasteners are missing, stripped, or damaged.

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

8-32 thread screw fastens panels and components inside ranges, ovens, and cooktops. Replace stripped, missing, or damaged screws to secure covers properly.

Nickel

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

These ceramic wire nuts provide secure electrical connections for range installation and wiring. The heat-resistant ceramic material protects connections from high temperatures generated during cooking. Use these nuts when installing a new range or repairing damaged electrical connections that have become loose or corroded.

Inverted tubing nut secures gas line connections on ranges and ovens. Replace if stripped, corroded, or missing to ensure proper tubing fitment.
